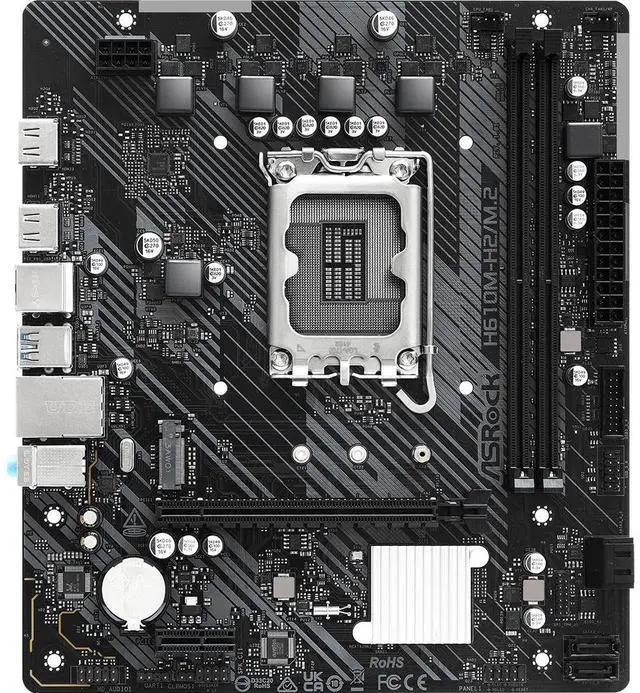

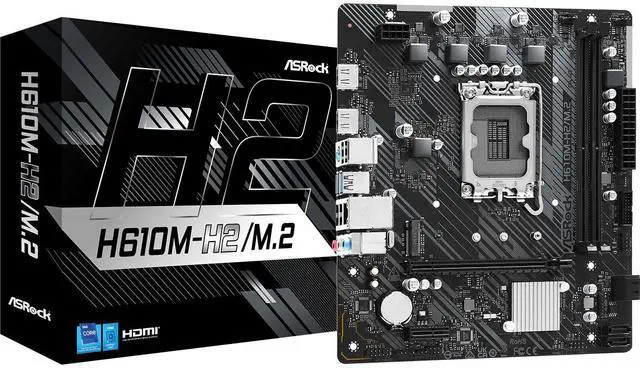

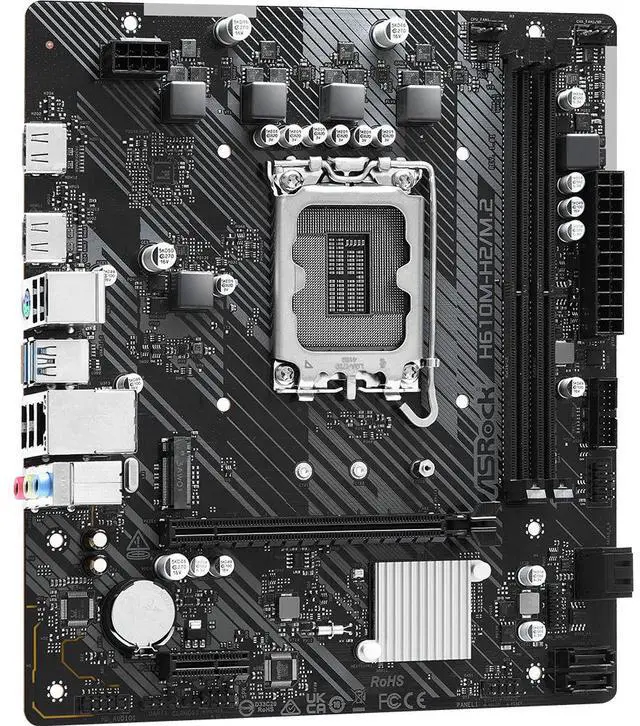

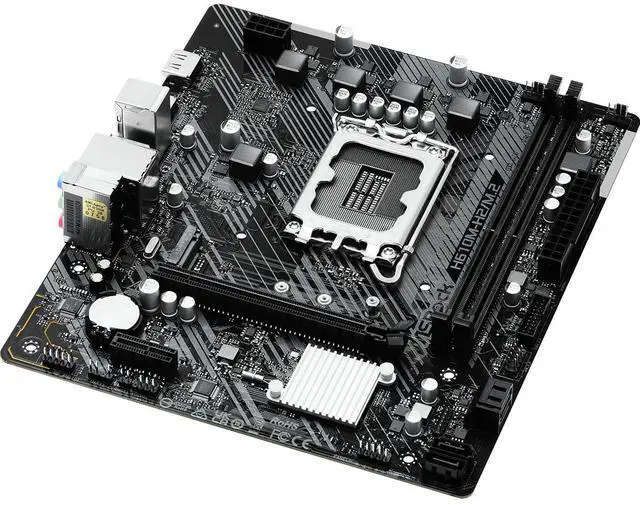

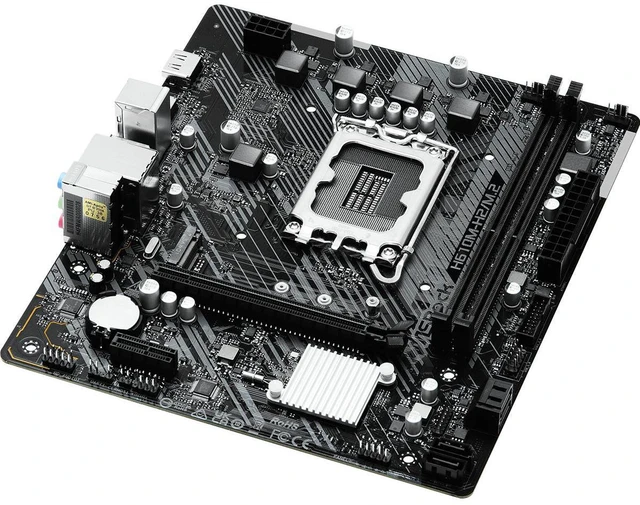

ASRock H610M-H2/M.2 LGA 1700 Intel H610 SATA 6Gb/s DDR4 Micro ATX Motherboard

Exclusive Features

Rock-Solid Durability

- 3+1+1 Power Phase Design

EZ Update

- ASRock Auto Driver Installer

Processor

- Supports 14th, 13th and 12th Generation Intel® Core Processors (LGA1700)

- Supports Intel® Hybrid Technology

- Supports Intel® Turbo Boost Max 3.0 Technology

Chipset

- Intel® H610

Memory

- Dual Channel DDR4 Memory Technology

- 2 x DDR4 DIMM Slots

- Supports DDR4 non-ECC, un-buffered memory up to 3200

- Supports ECC UDIMM memory modules (operate in non-ECC mode)

- Max. system memory capacity: 64GB

- Supports Intel® Extreme Memory Profile (XMP) 2.0

BIOS

- 128Mb AMI UEFI Legal BIOS with graphical interface support

Integrated Graphics

- Intel® Xe Graphics Architecture (Gen 12)

- 2 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3, max. resolution up to 4K 60Hz

* Intel® UHD Graphics Built-in Visuals and Display Output are only supported with processors that have integrated GPU capabilities.

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Network

- Gigabit LAN 10/100/1000 Mb/s

- Realtek 8111H

Expansion Slots

CPU:

- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

- 1 x PCIe 3.0 x1 Slot (PCIE2)*

* Supports NVMe SSD boot

Storage

Chipset:

- 1 x Ultra M.2 Slot (M2_1, Key M), supports 2242/2260/2280 type PCIe Gen3x4 (32 Gb/s) Mode*

- 4 x SATA3 6.0 Gb/s ports

* Supports NVMe SSD booting

USB

- 4 x USB 3.2 Gen1 Type-A (2 front, 2 rear)

- 6 x USB 2.0 (2 front, 4 rear)

* All USB ports support ESD electrostatic protection

Connectors

- 1 x SPI TPM header

- 1 x Chassis intrusion warning header and speaker header

- 1 x CPU fan connector (4-pin)*

- 1 x Chassis/Water pump fan connector (4-pin) (Smart Fan Speed Control)**

- 1 x 24-pin ATX power connector

- 1 x 8-pin 12V power connector

- 1 x Front panel audio connector

- 1 x USB 2.0 header (supports 2 USB 2.0 ports)

- 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen1 ports)

* CPU_FAN1 supports fan power up to 1A (12W)

** CHA_FAN1/WP supports fan power up to 2A (24W).

CHA_FAN1/WP can automatically detect 3-pin or 4-pin fans.

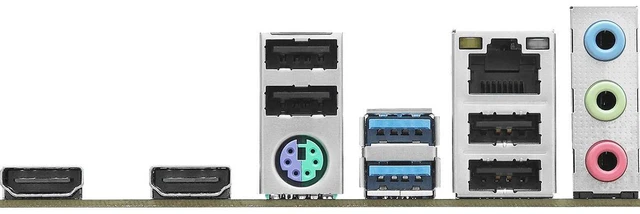

Rear Panel I/O Ports

- 1 x PS/2 keyboard/mouse port

- 2 x HDMI ports

- 2 x USB 3.2 Gen1 Type-A ports

- 4 x USB 2.0 ports

- 1 x RJ-45 network port

- HD Audio Jacks: Line in / Front Speaker / Microphone
