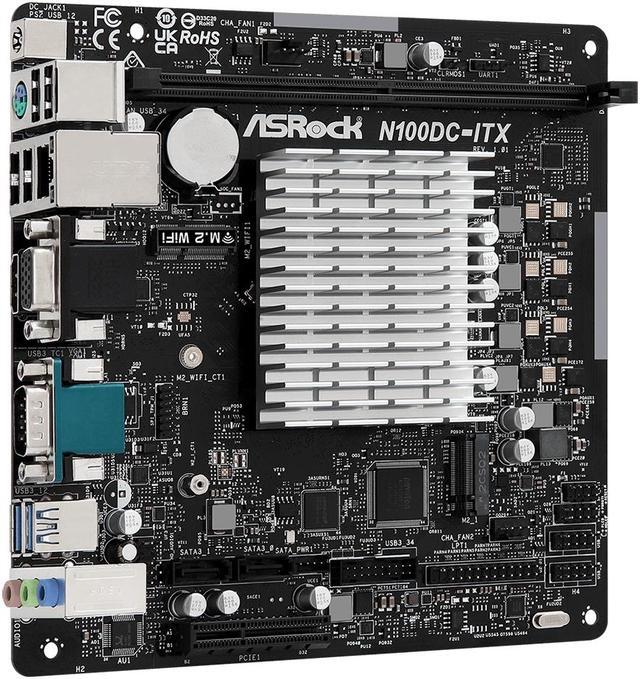

ASRock N100DC-ITX - Intel Quad-Core Processor N100 (Up to 3.4 GHz) DDR4- 2 SATA3, Supports Intel Turbo Boost Technology Mini ITX (280) Motherboards - Intel
- ntel Quad-Core Processor N100 (up to 3.4 GHz)
- Supports 1 DDR4 DIMM
- 1 DC Jack (Compatible with the 19V power adapter, 5.5 x 2.5mm DC-in jack)
- 1 PCIe 3.0 x4 (x2 mode), 1 M.2 Key E for WiFi
- Graphics Output Options: D-Sub, HDMI
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 2 SATA3, 1 M.2 (PCIe Gen3x2)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
+
+
Specs
Reviews (14)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock N100DC-ITX
| Brand | ASRock |
|---|---|
| Model | N100DC-ITX |
| Part Number | N100DC-ITX |
| CPU Socket Type | - Intel Quad-Core Processor N100 (Up to 3.4 GHz) - Supports Intel® Turbo Boost Technology |
|---|---|
| CPU Type | Intel® Quad-Core Processor N100 (Up to 3.4 GHz) - Supports Intel® Turbo Boost Technology |
| Number of Memory Slots | 1 x DDR4 DIMM Slot |
|---|---|
| Memory Standard | Supports DDR4 non-ECC, un-buffered memory up to 3200* * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) - Max. capacity of system memory: 32GB |
| Maximum Memory Supported | 32GB |
| PCI Express x16 | 1 x PCIe 3.0 x4 Slot (PCIE1), supports x2 mode* - 1 x M.2 Socket (Key E), supports type 2230 Intel® CNVio (Integrated WiFi/BT) * Supports NVMe SSD as boot disks |
|---|
| Serial ATA (SATA) | 2 x SATA3 6.0 Gb/s Connectors Supports NVMe SSD as boot disks |
|---|---|
| M.2 | 1 x M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen3x2 (16 Gb/s) mode* |
| Audio Channels | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec |
|---|
| LAN Chipset | Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H |
|---|

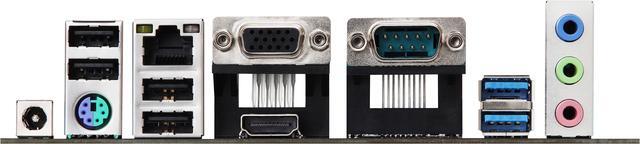

| Back I/O Ports | 1 x DC Jack (Compatible with the 19V power adapter) - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x Serial Port: COM1 - 1 x D-Sub Port - 1 x HDMI Port - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
| Windows 11 | - Microsoft® Windows® OS 10 64-bit / 11 64-bit |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Features | Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
|---|
| Date First Available | August 22, 2023 |
|---|
