Question 1

what are the power requirements?

Accepted Answer

Hello Eric Zorn,

Thank you for contacting us in regards to your question.

Personally, I would highly recommend going with an 850w to 1000w to keep up with your internal peripherals.

Thank you,
Newegg Support

Question 2

is new egg going to restock this item? I was really hoping to get one but I can't afford my whole rig till july and I don't want to make the same mistakes as last time and buy as i go to find out months later one of my parts was DOA.

Accepted Answer

Hello there,

Thank you for contacting us with your question. Since the item is currently out of stock, the item may or may not be restocked, you can always continue looking to see if its something we offer. However, we do have other Vega 64 options available as well.

Thank you for your patience and cooperation,
Newegg Support

Question 3

For an EGPU what's the wattage required for this graphics unit?

Accepted Answer

Hello there, Thank you for contacting us in regards to your question. The manufacturer lists that a 750 W power supply is recommended for this GPU. However, it does not list the recommendation for use as an EGPU. I recommend contacting the manufacturer directly for possible assistance and more information. Their contact information can be found under the 'Warranty & Returns' tab and listed below. Website: http://www.asrock.com/ Support Phone: 1-909-590-8308 Support Email: support@asrockamerica.com Support Website: https://www.asrock.com/support/index.us.asp Thank you, Newegg Support

Question 4

How many monitors can it run simultaneously (3, 4)?

Accepted Answer

Hello Roy,

Thank you for contacting us in regards to your question.

It can run 4 monitors simultaneously.

Thank you,
Newegg Support

Question 5

I keep hearing a difference between Samsung and Hynix memory. Does anyone know which this has?

Accepted Answer

Pretty sure I read on a few diff forums discussing this and ending in all vega 64 ref have samsung hbm. The one I received has samsung(phantom x).

Question 6

Does it support crossfire/vulcan? and what are the power requirements 1 and 2

Accepted Answer

I think it does support crossfire, I have a 550 EVGA g3 and that’s considered border line to run these I pull 250w just the card alone at load. No over clocking two 8 pins pcie power cables.

Question 7

How hot does it run?

Accepted Answer

By default the fan profile is pretty conservative and it will easily reach 85° C or so and start throttling. After tweaking it stays below 75° C during normal usage (Rocket League), but still heats up quick running furmark.

I haven't yet managed to get the automatic fan controller to scale the fan speed beyond ~2770 RPM, but I can manually set the fan to go much faster (> 4000 RPM) and that keeps it cool even running furmark. It does get significantly louder when going that speed though.

Question 8

Is this card using a reference PCB layout and will a reference Vega aftermarket waterblock fit?

Accepted Answer

It looks just like all the other reference cards out even has the gputach on it.Email asrock to know for sure tho.

Specification
Graphics Engine	AMD Radeon RX VEGA 64
Bus Standard	PCI Express x16 Gen3
DirectX	12
OpenGL	OpenGL^® 4.5
Video Memory	HBM2 8GB
Engine Clock	Boost Clock: 1546 MHz Base Clock: 1247 MHz
Stream Processors	4096
Memory Clock	945 MHz
Memory Bus	2048-bit


Resolution	Digital Max Resolution: 8K (7680 x 4320)

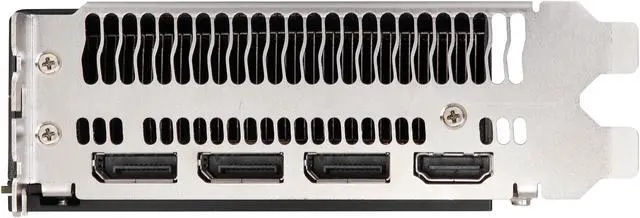

Interface	1 x HDMI 2.0 3 x Display Port 1.4
HDCP Support	Yes
Multi-view	4
Power Connectors	2 x 8-pin

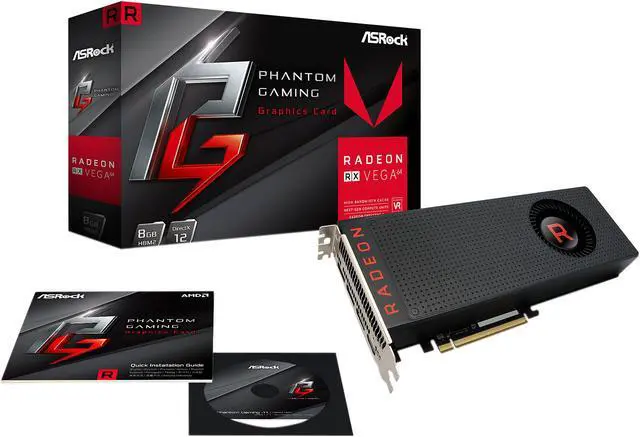

Accessories	1 x Support CD 1 x Quick Installation Guide
Dimensions	280 x 127.2 x 41 mm

Brand	ASRock
Series	Phantom Gaming X
Model	VEGA 64 8G

Chipset Manufacturer	AMD
GPU Series	AMD Radeon RX VEGA Series
GPU	Radeon RX Vega 64
Core Clock	1247 MHz
Boost Clock	1546 MHz
Stream Processors	4096 Stream Processors

Effective Memory Clock	945 MHz
Memory Size	8GB
Memory Interface	2048-Bit
Memory Type	HBM2

Meet Your Seller

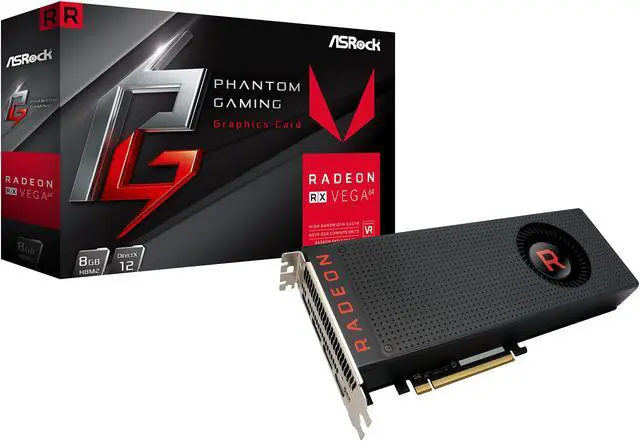

ASRock Phantom Gaming X Radeon RX Vega 64 8GB HBM2 PCI Express 3.0 x16 Graphics Card VEGA 64 8G

Product Brief

Engine Clock / Memory Clock

Video Memory

Features

Phantom Gaming Tweak Utility

ARMOR YOUR VR MACHINE

THE WORLD'S NEWEST GAMING ARCHITECTURE

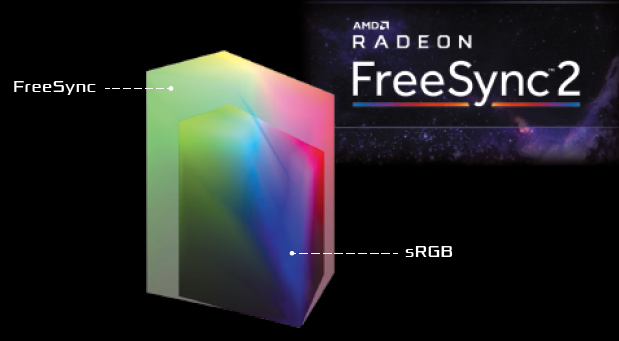

FreeSync™ 2 READY

SUPPORTS 8K RESOLUTION

AMD EYEFINITY TECHNOLOGY

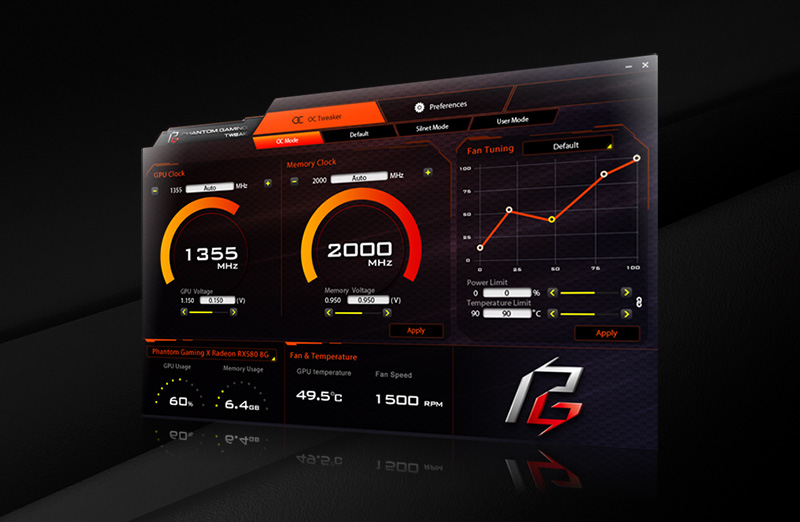

PHANTOM GAMING TWEAK

AMD RADEON SOFTWARE ADRENALIN EDITION

Specification

Learn more about the ASRock VEGA 64 8G

Customer Reviews of the ASRock VEGA 64 8G

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Multi-Monitor Support	4
HDMI	1 x HDMI 2.0
DisplayPort	3 x DisplayPort 1.4

Max Resolution	7680 x 4320
Eyefinity Support	Yes
Virtual Reality Ready	Yes
Cooler	Single Fan
Thermal Design Power	375W
Power Connector	2 x 8-Pin
HDCP Ready	Yes

Max GPU Length	280 mm
Card Dimensions (L x H)	11.02" x 5.01"
Slot Width	2 Slots
