ASRock X399 Phantom Gaming 6
Based on AMD X399 chipset, this board is aimed at HEDT (High-End Desktop) platform and supports AMD Ryzen Threadripper Series CPUs for Socket TR4. It's primed to deliver incredible performance for your gaming, rendering, content creation and more, with eight DIMM slots and quad-channel technology, three PCIe x16 slots, with multi-GPU support, and three Ultra M.2 slots.
Large aluminum alloy heatsinks are built onboard, which take heat efficiently while giving the board a solid feel and a professional look. Super Alloy components guarantee your board and system run stable and reliable even in the most demanding situations. And with onboard RGB lighting and RGB LED headers, you can create and customize a light show to match your taste, or enhance the gaming vibe.
- Supports AMD TR4 Socket Ryzen Threadripper X Series CPUs (180W)
- Digital PWM, 8 Power Phase & Dr. MOS
- Supports DDR4 3400+ (OC)
- 3 PCIe 3.0 x16, M.2 Key-E for WiFi
- NVIDIA 3-Way SLI, AMD 3-Way CrossFireX
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster Cinema 5
- 8 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C),
- 12 USB 3.1 Gen1 (4 Front, 8 Rear)
- Phantom Gaming 2.5G LAN, Intel Gigabit LAN
- Polychrome RGB SYNC
Phantom Gaming 2.5 Gb/s LAN
The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.
2.5G ETHERNET, HIGH TCP & UDP THROUGHPUT
Going beyond gaming! ASRock 2.5Gb/s LAN motherboard with higher throughput that is excellent at a small package file transferring and unleash the stunning performance especially for gaming.
Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
To support the latest AMD Ryzen Threadripper X Series CPUs (180W), an extra-large aluminum alloy heatsink with heatpipe is added to effectively take away heat from the MOSFET, giving a more stable and long lasting system.
Triple Ultra M.2
Triple of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.
*Performance result may vary with a different configuration.
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.
Full Coverage M.2 Heatsink
A massive full coverage M.2 heatsink can support up to Type 22110 M.2 devices, it is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best.
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Dr. MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.

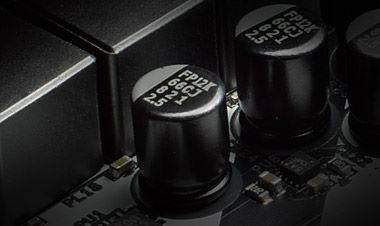

Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

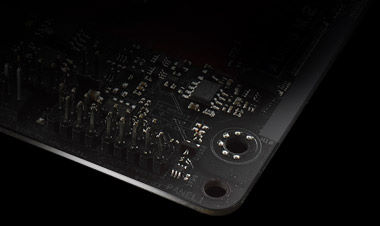

Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

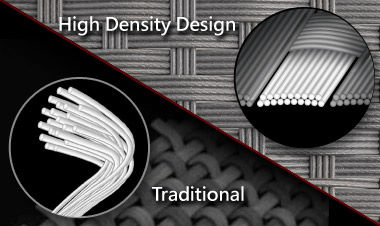

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Gold Audio Jacks
Everything will wear off in time, but gold looks better! Gold audio jack provides stable sound transmission!
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
