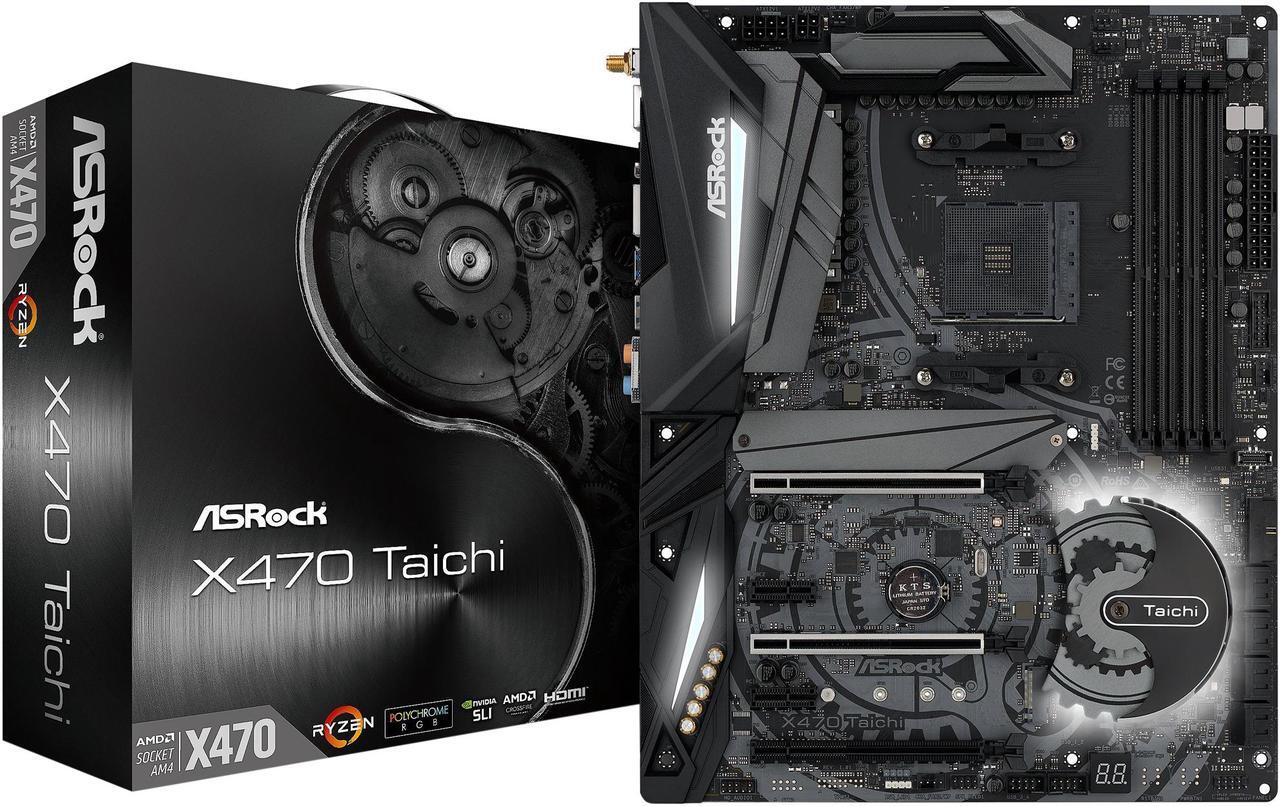

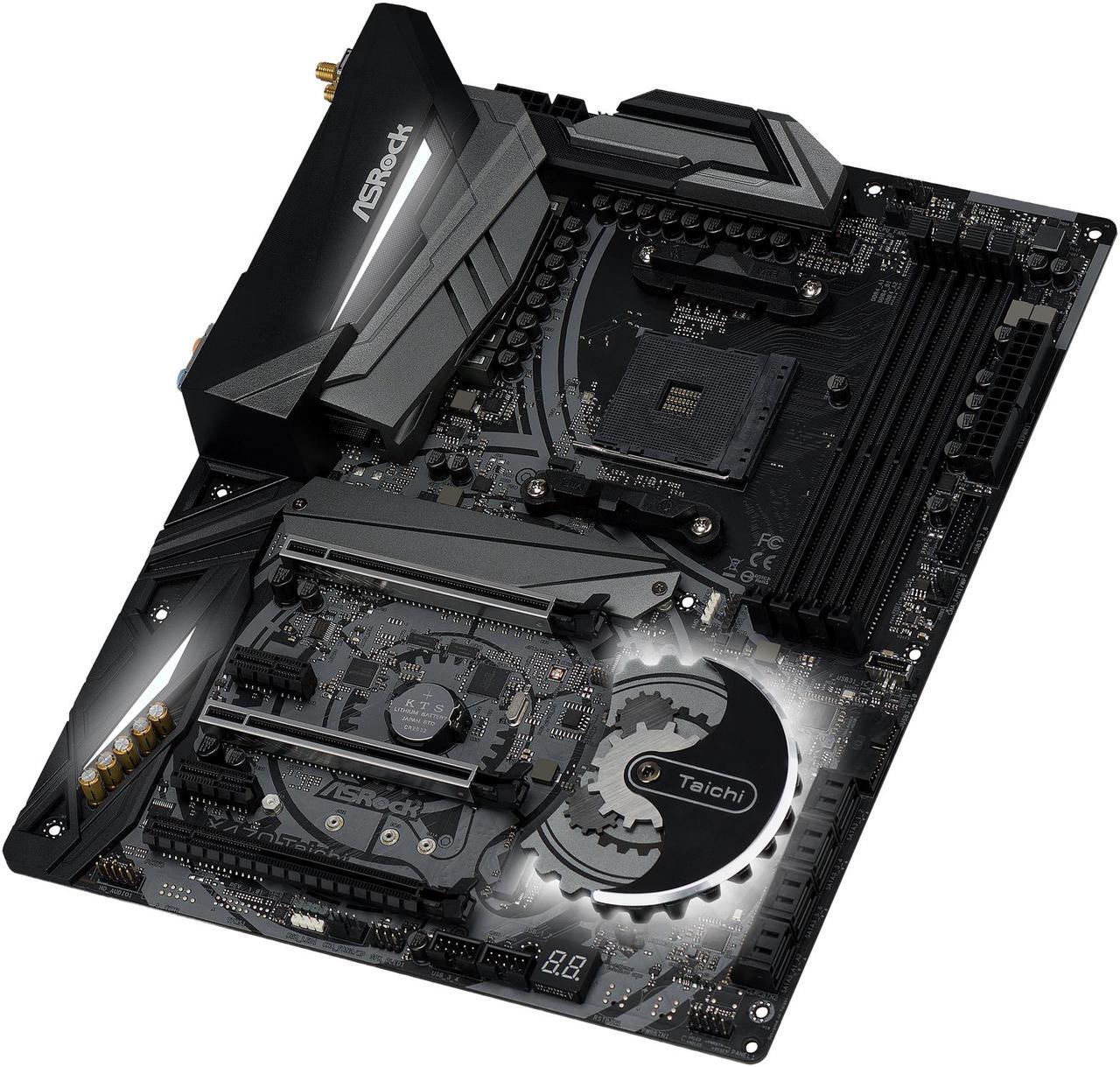

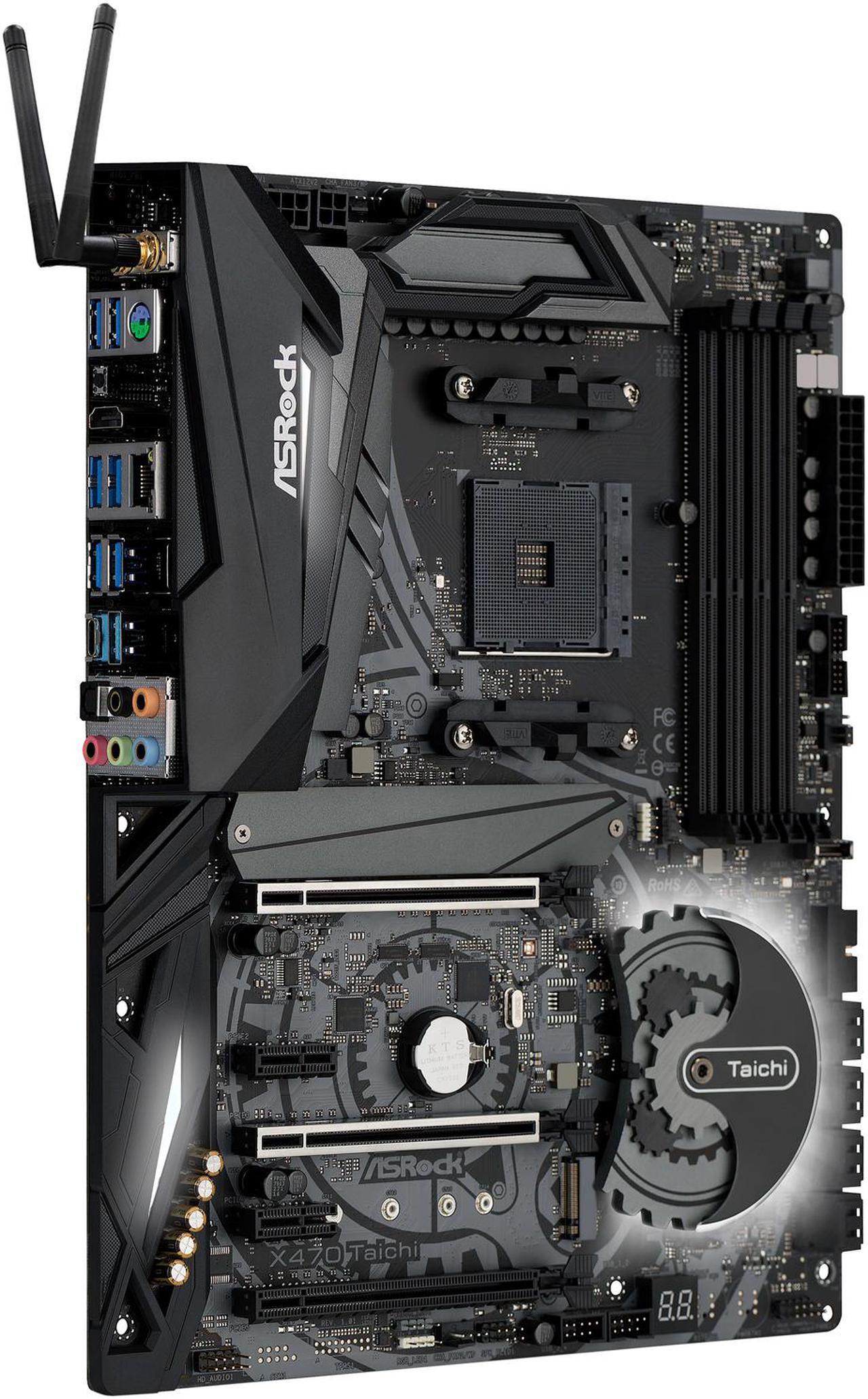

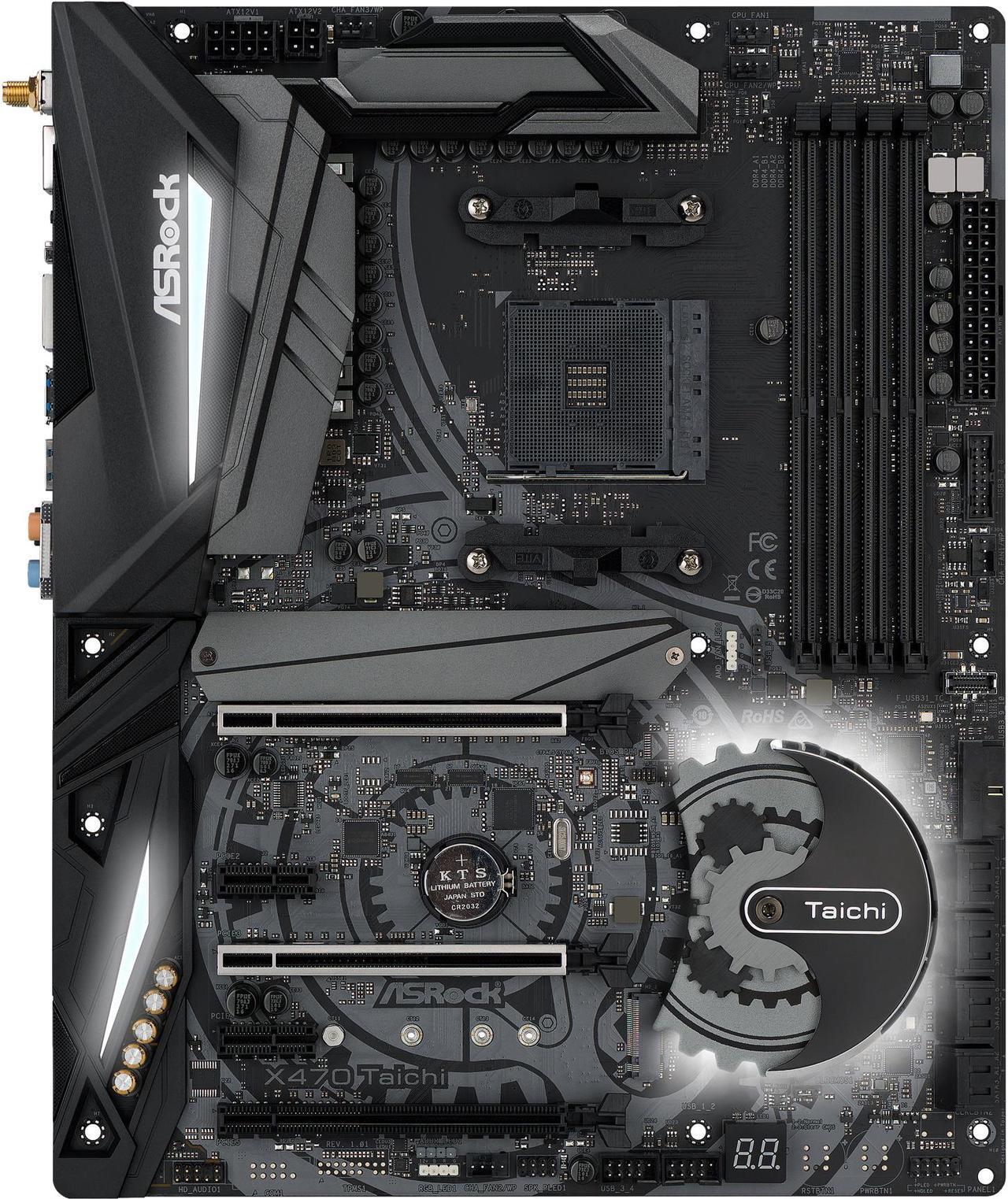

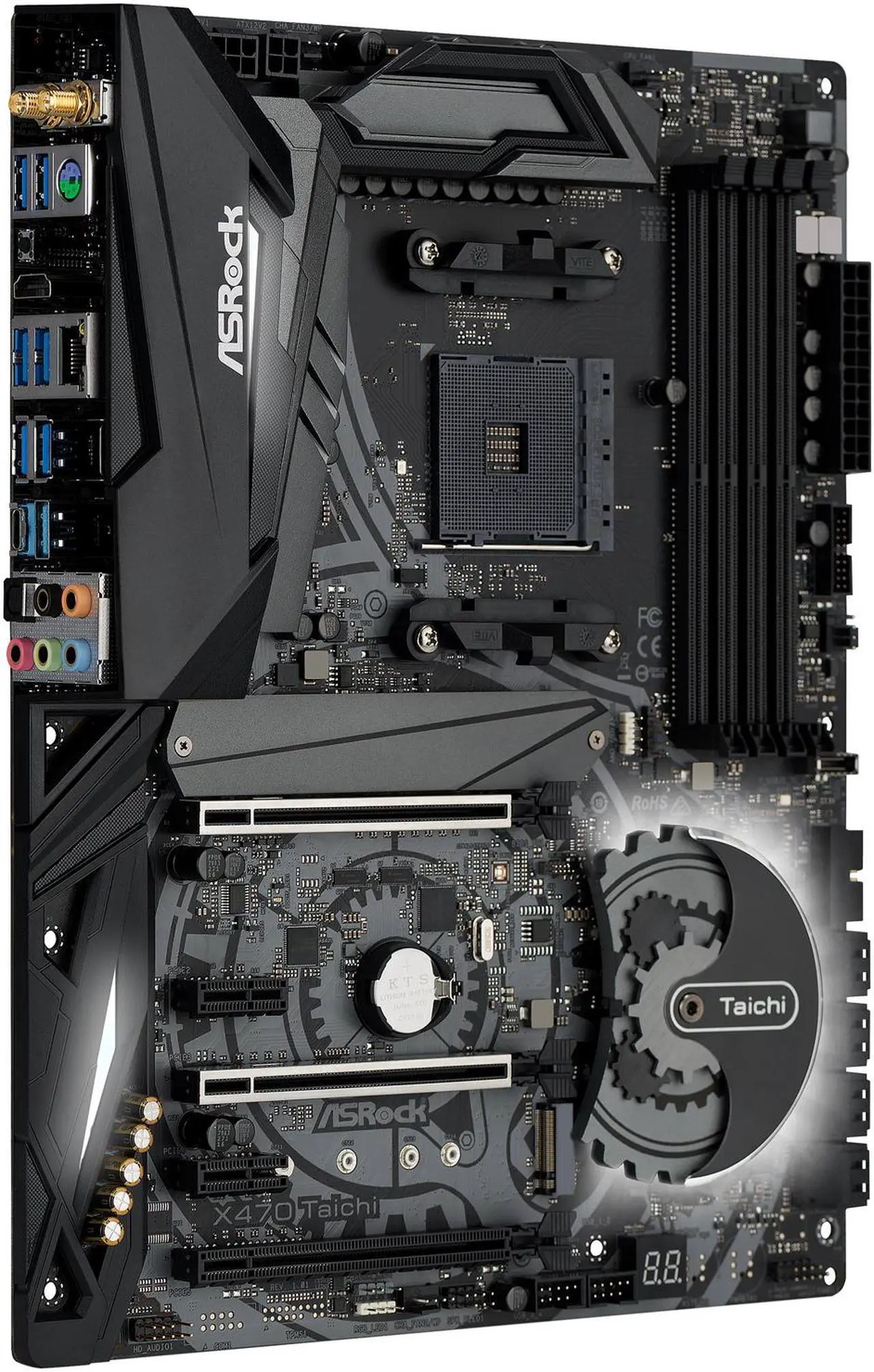

Experience a new level of performance and reliability with the ASRock X470 Taichi motherboard. It works flawlessly with AMD Ryzen series AM4 processors and supports up to DDR4 3466+ (OC)* memories. Oriented at DIY enthusiasts, this board comes with two PCIe 3.0 x16 slots, eight SATA 3 slots, two Ultra M.2 slots (one supports PCIe Gen3 x4 & SATA 3 and one supports PCIe Gen2 x4 & SATA3)* three USB 3.1 Gen2 and ten USB 3.1 Gen1 to meet diverse connectivity needs. It includes a Hyper BCLK Engine II for easy PCIe frequency overclocking and a SLI HB Bridge to power extreme demanding graphic applications. The Purity Sound 4 brings you immersive audio experience. You can create unrivaled visual thrills by syncing lighting effect across Polychrome SYNC compatible components. It's built with solid-quality components to ensure amazing quality and durability while the Full Spike Protection helps avoid damages caused by strikes and surges. Enjoy the convenience provided by intuitive A-Tuning software and ASRock Live Update & APP Shop.
*Actual support may vary by CPU.

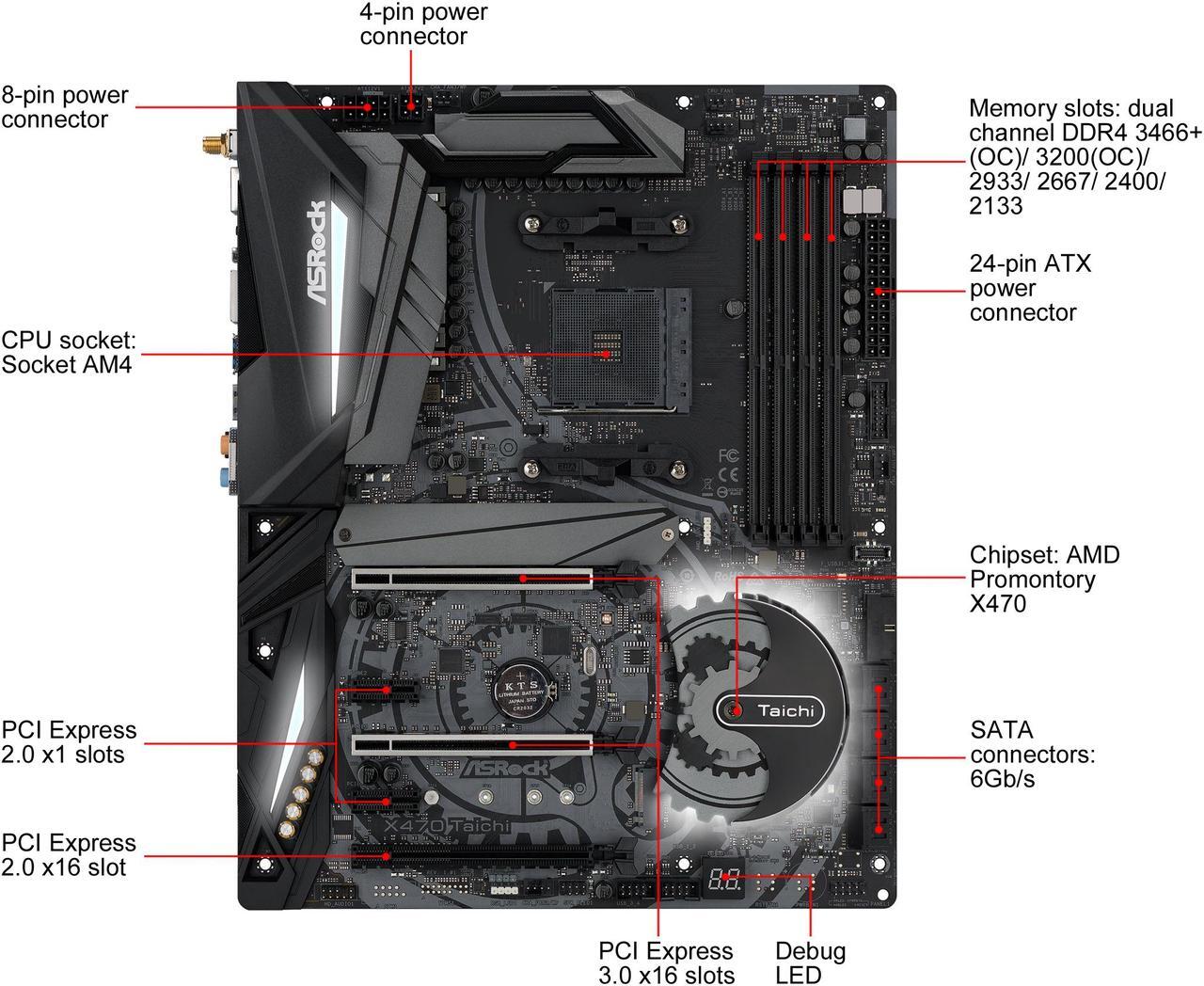

- Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
- Supports DDR4 3466+ (OC)
- 2x PCIe 3.0 x16, 1x PCIe 2.0 x16, 2x PCIe 2.0 x1
- NVIDIA Quad SLI, AMD Quad CrossFireX
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound 4 & DTS Connect
- 8x SATA3, 1x Ultra M.2 (PCIe Gen3 x4 & SATA3), 1x M.2 (PCIe Gen2 x4 & SATA3)

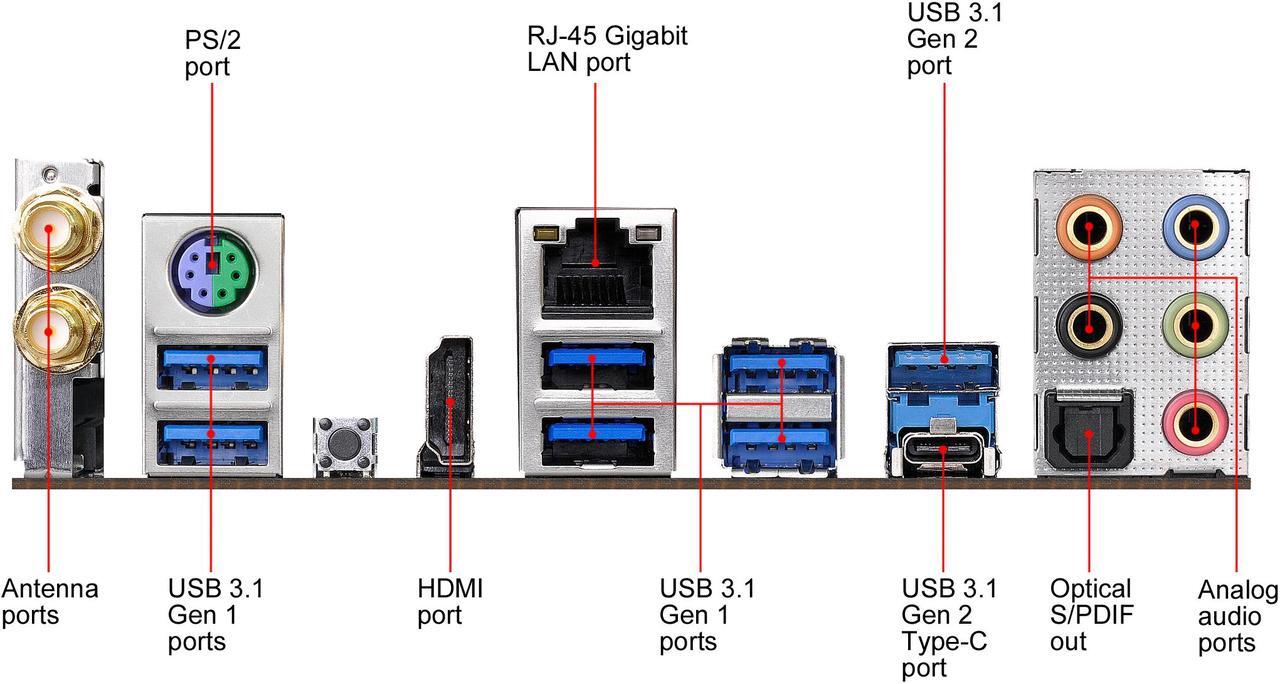

- 3x USB 3.1 Gen2 (Rear Type-A + C, Front Type-C), 10x USB 3.1 Gen1 (4x Front, 6x Rear)
- Intel Gigabit LAN, Intel 802.11ac + Bluetooth 4.2
- ASRock Polychrome RGB

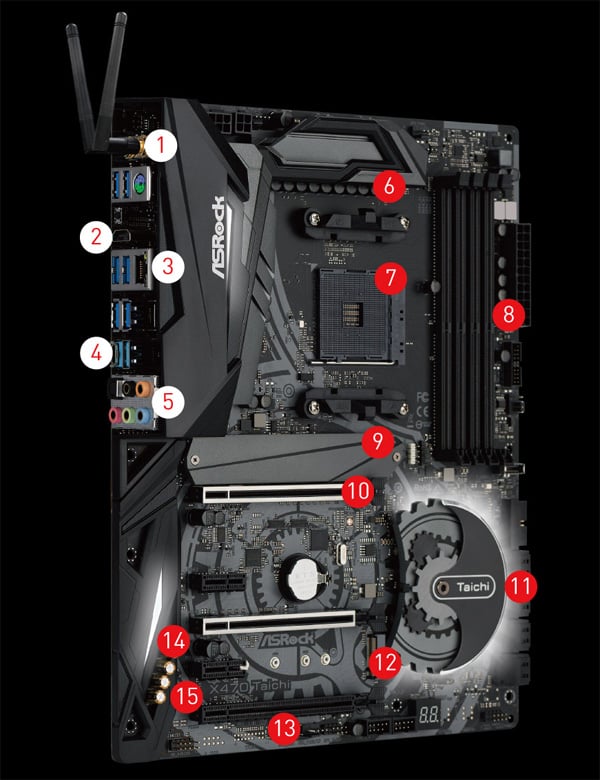

- Dual-Band 802.11ac WiFi
- HDMI
- Intel I211AT Gigabit LAN
- USB 3.1 Gen2 Type-A+C
- Gold Audio Jack
- Digi Power (IR Digital PWM 12 Power Phase Design Premium 45A Power Choke)
- AMD AM4 Socket
- Nichicon 12K Black Caps
- Ultra M.2 Socket & Full Coverage M.2 Heatsink (PCIe Gen3 x4 & SATA3)
- PCI-E Steel Slots Supports 2-Way SLI/CFX
- 8x Sata 3 6Gb/s
- M.2 Socket (PCIe Gen2 x4)
- RGB LED + Addressable RGB LED Headers
- Purity Sound 4
- 2oz Copper PCB

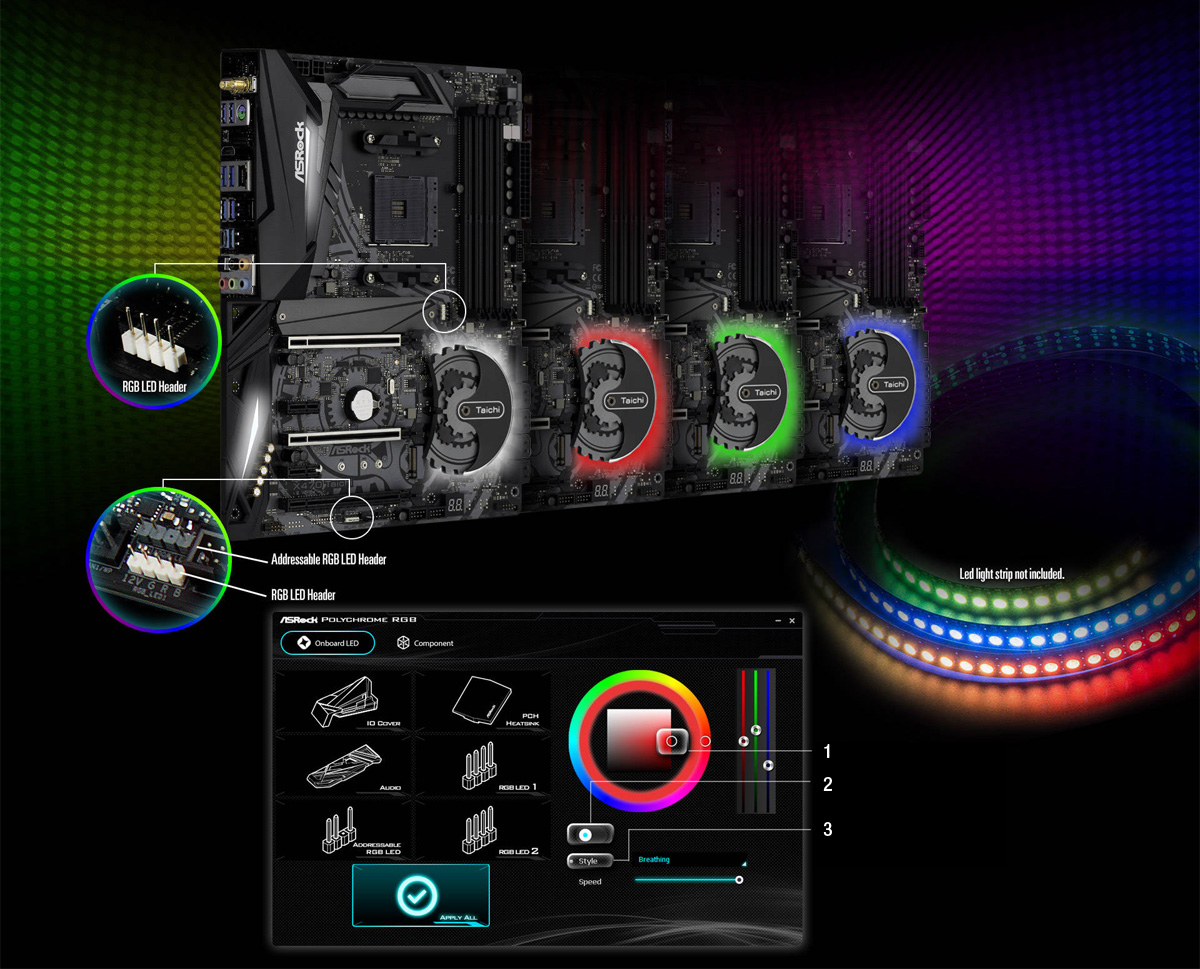

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
- Drag the tab to customize your preference.
- Toggle on/off the RGB LED switch And choose the channel.
- Select a RBG LED light effect from the drop-down menu.
A massive full-coverage M.2 heatsink can support up to Type 22110 M.2 devices, it is able to dissipate heat efficiently to ensure your high-speed M.2 SSD always works at its best.

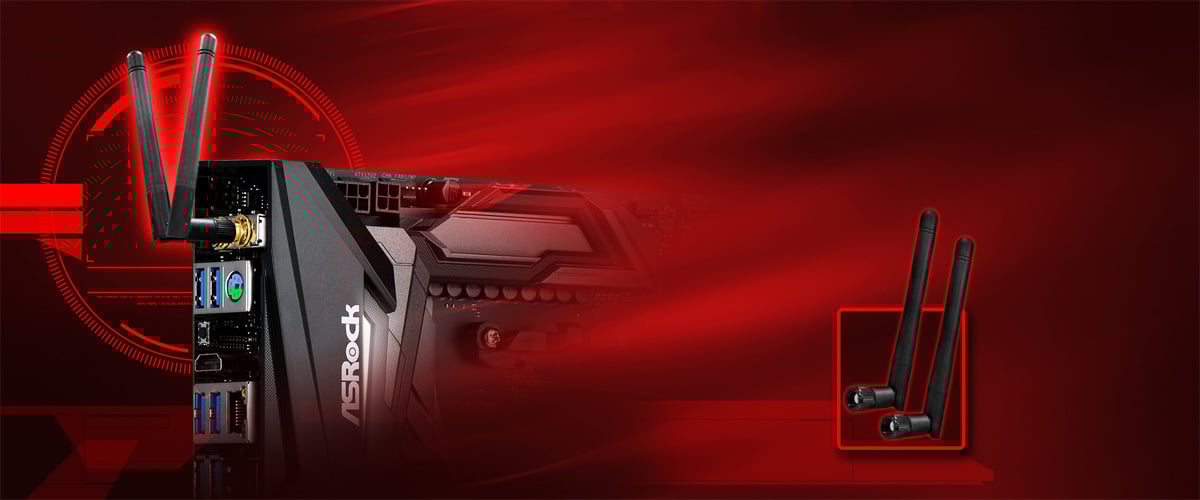

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G/5G WiFi) module which supports wireless networks and Bluetooth v4.2.

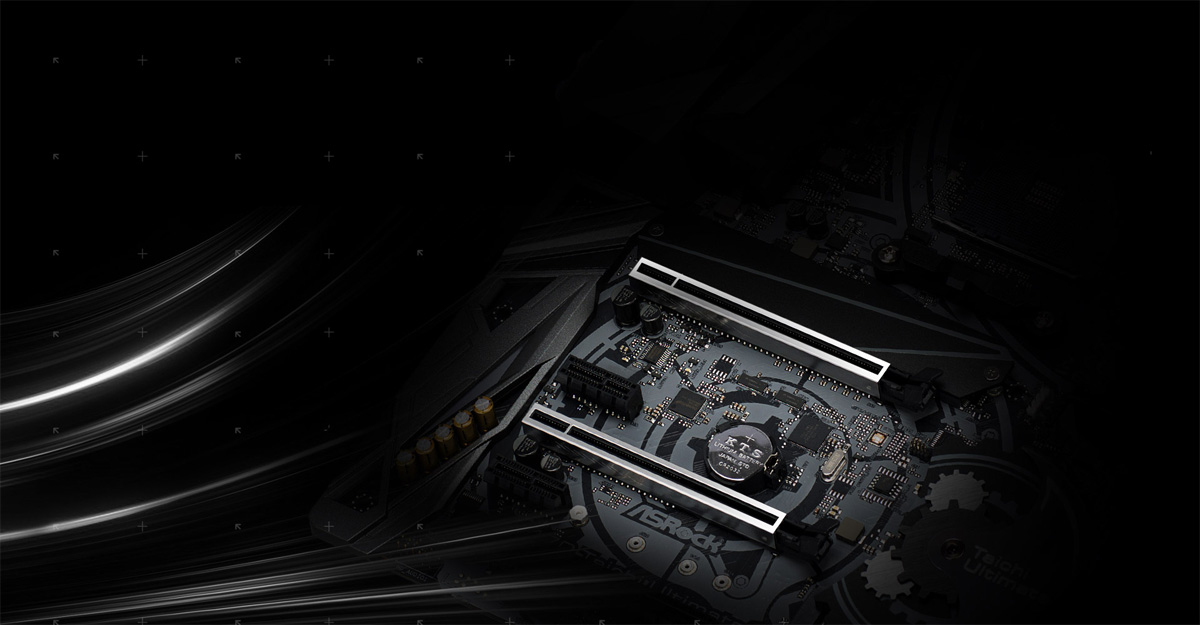

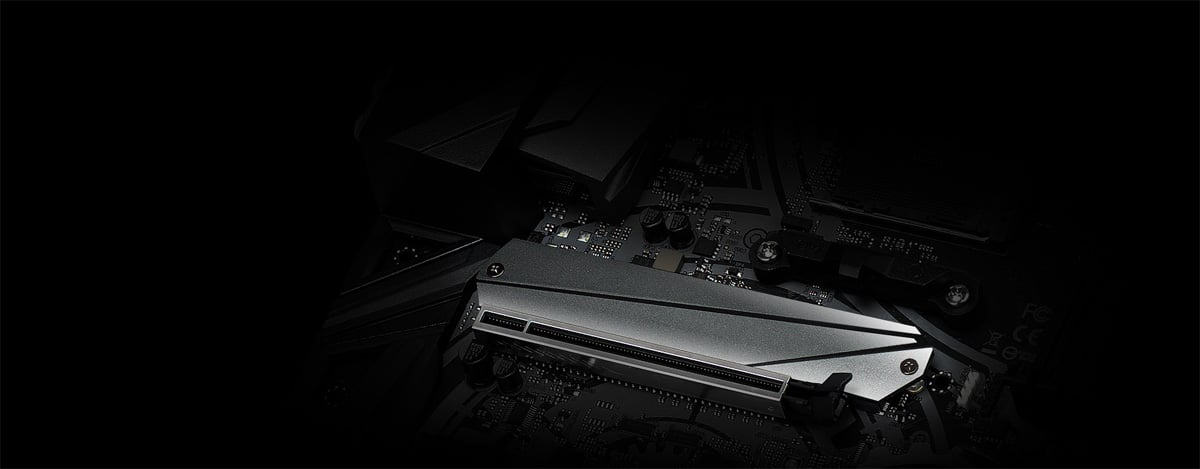

The advanced PCI-E steel slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

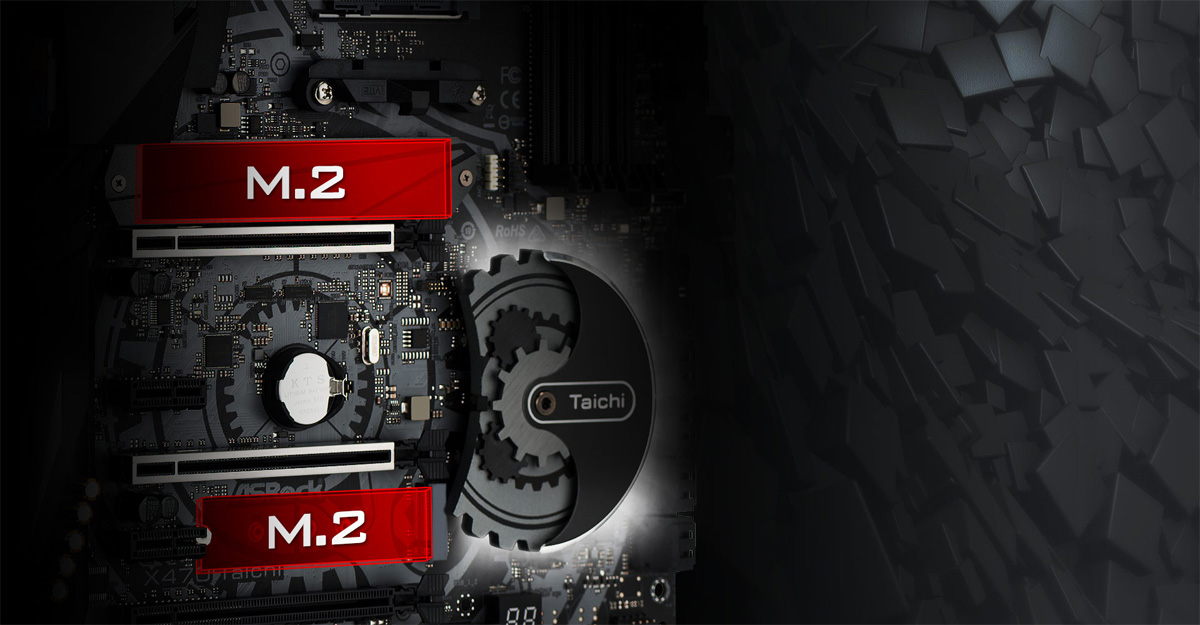

Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock's U.2 Kit for installing some of the world's fastest U.2 PCIe Gen3 x4 SSD.

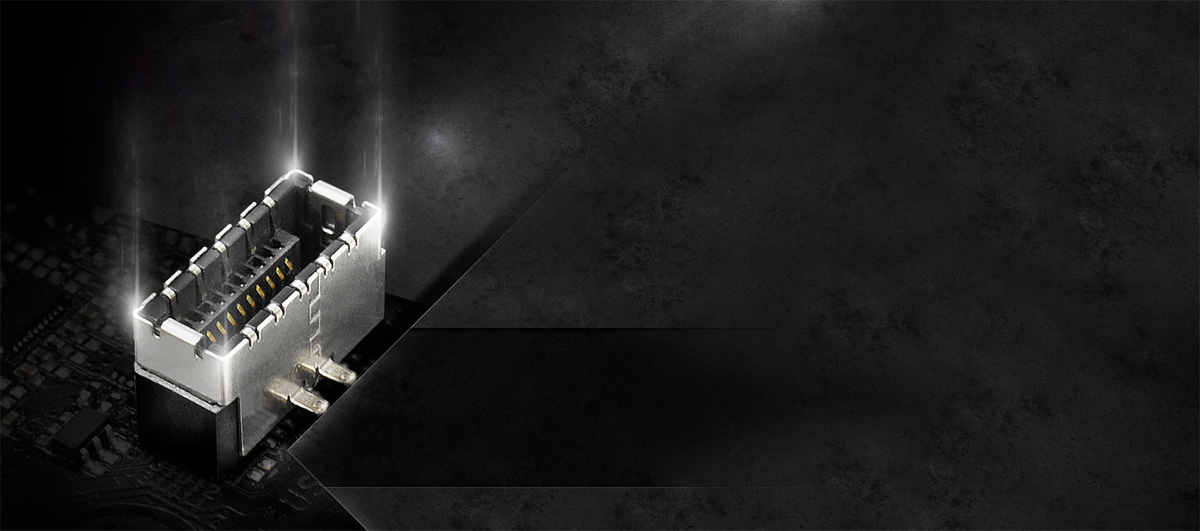

Front USB 3.1 Gen2 Type-C header delivers up to 10Gbps data transfer rate and next-generation reversible USB design to the front panel of the computer case.

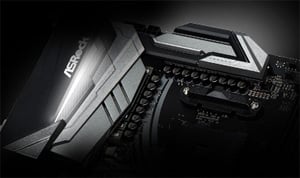

Extra-large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

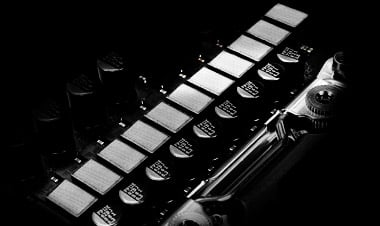

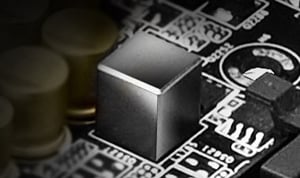

Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat-resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

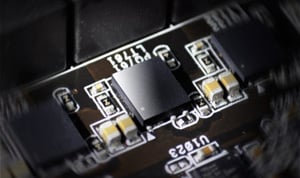

Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, having a DSM with a larger die area provides extreme lower Rds(on) 1.2 mO, so the power supply for the CPU Vcore is more efficient.

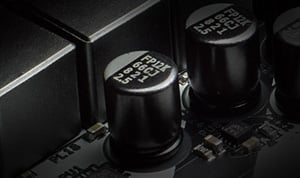

Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

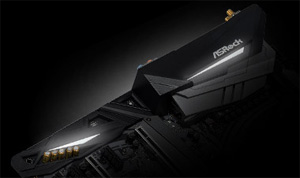

A newly designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.
Pure-black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

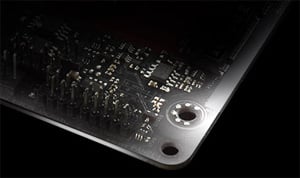

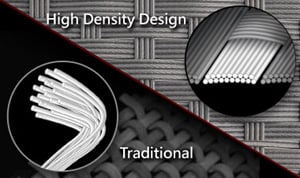

High Density Glass Fabric PCB designs reduce the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

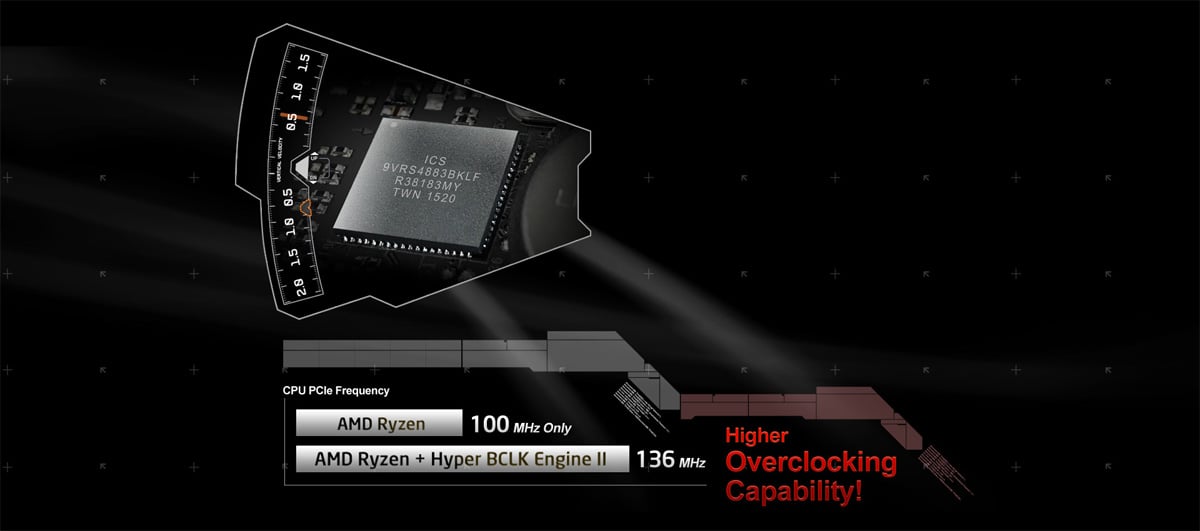

An additional external base clock generator that supports PCIe frequency overclocking. It provides a wider range of frequencies and more precise clock waveforms, allowing any user to get most from their CPU investment with precise, stable overclocking.

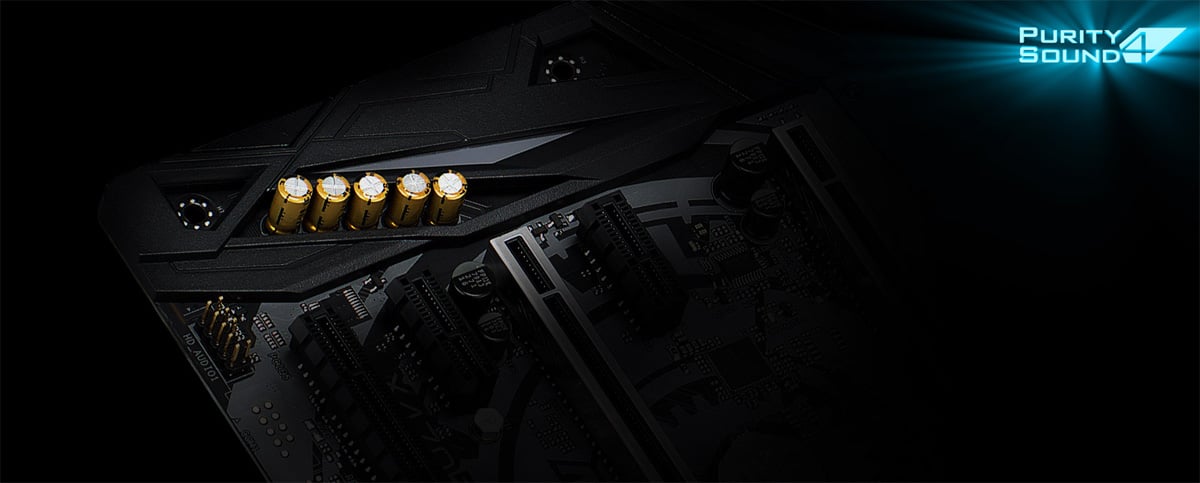

It's time to enjoy the most purified audio performance with ultra high definition. Purity Sound 4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.
120dB SNR DAC
Gold Audio Connectors
TI NE5532 Premium Headset Amplifier
Individual PCB Layers for R/L Audio Channel
Impedance Sensing on Front Out port
PCB Isolate Shielding
Pure Power-In
Nichicon Fine Gold Series Audio Caps
Gold Audio Jacks

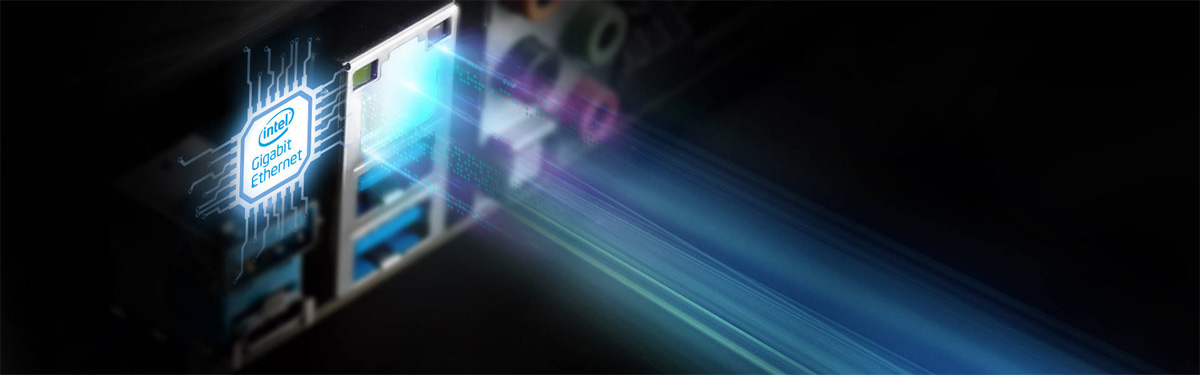

Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

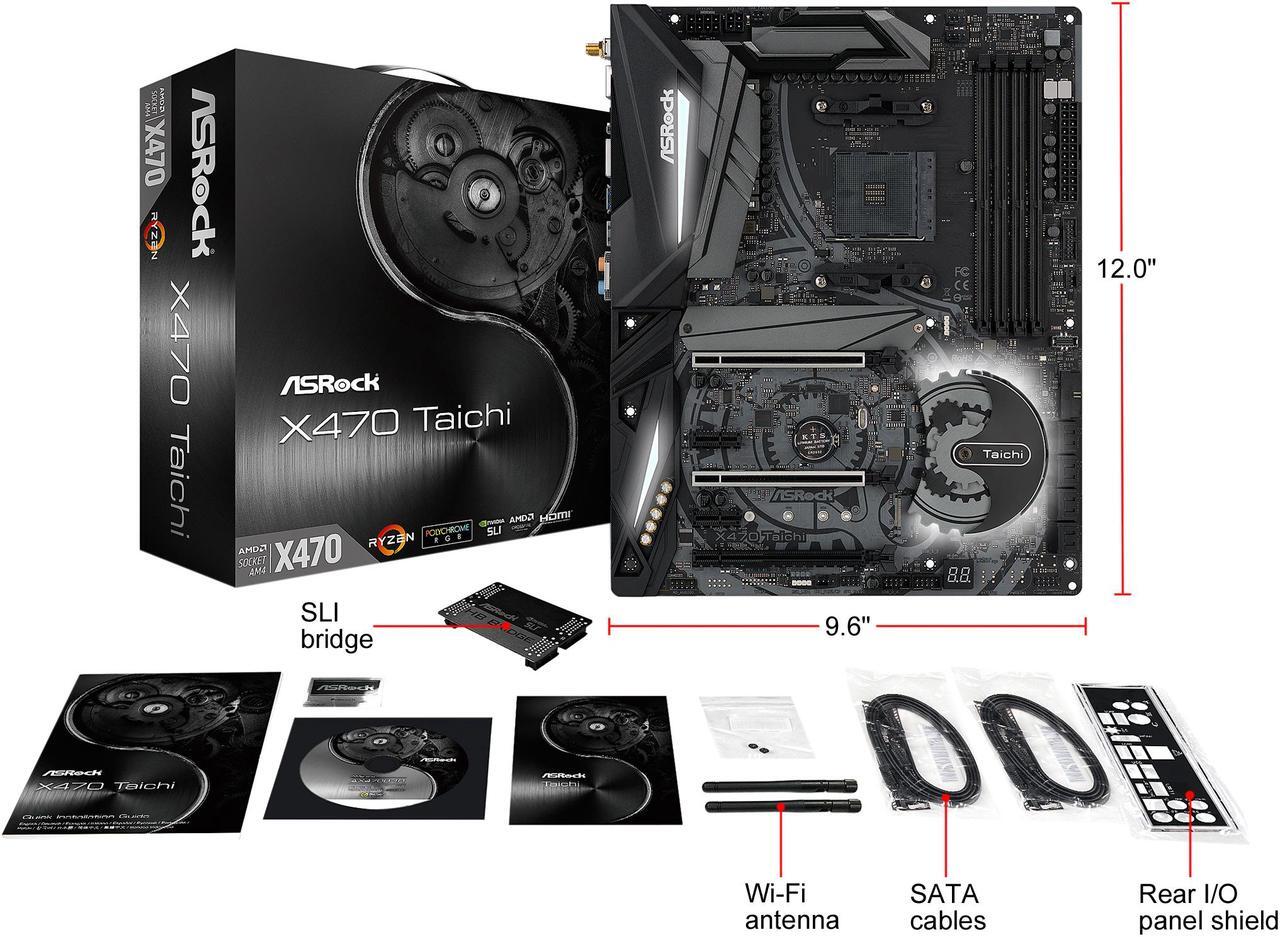

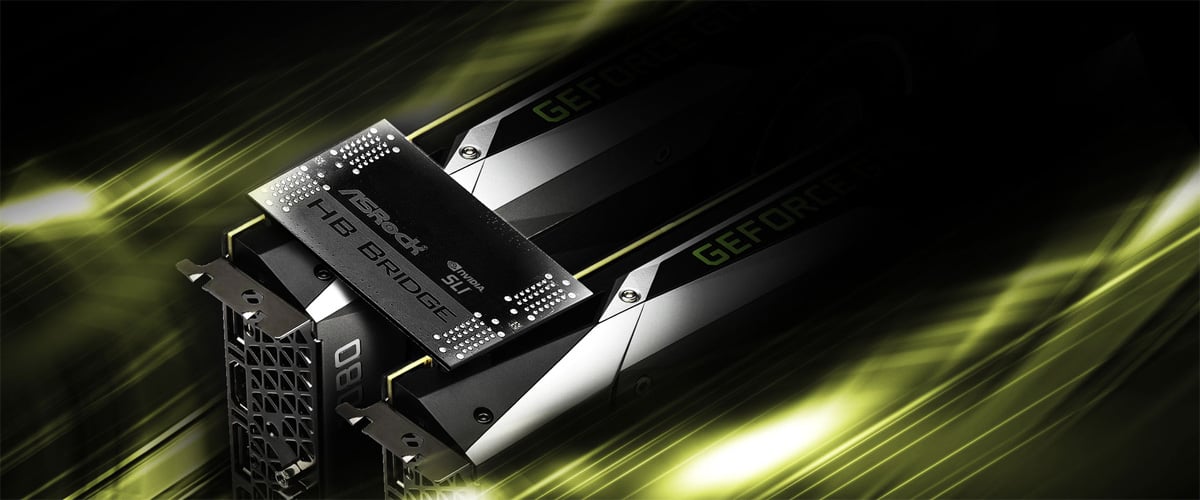

The free bundled ASRock's new SLI HB Bridge is compatible with the NVIDIA GeForce GTX 1080 and 1070 graphics cards that doubles the available transfer bandwidth, thus delivering rock stable gameplay and experiencing surround gaming in the best way.

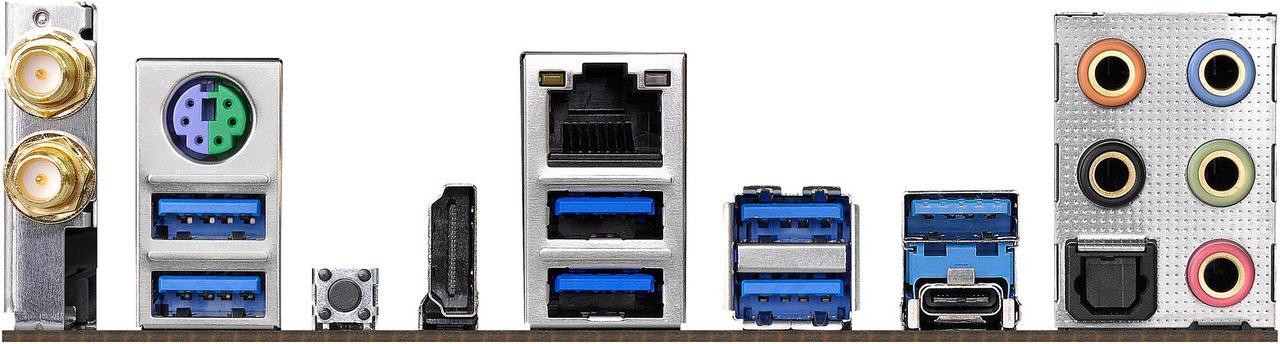

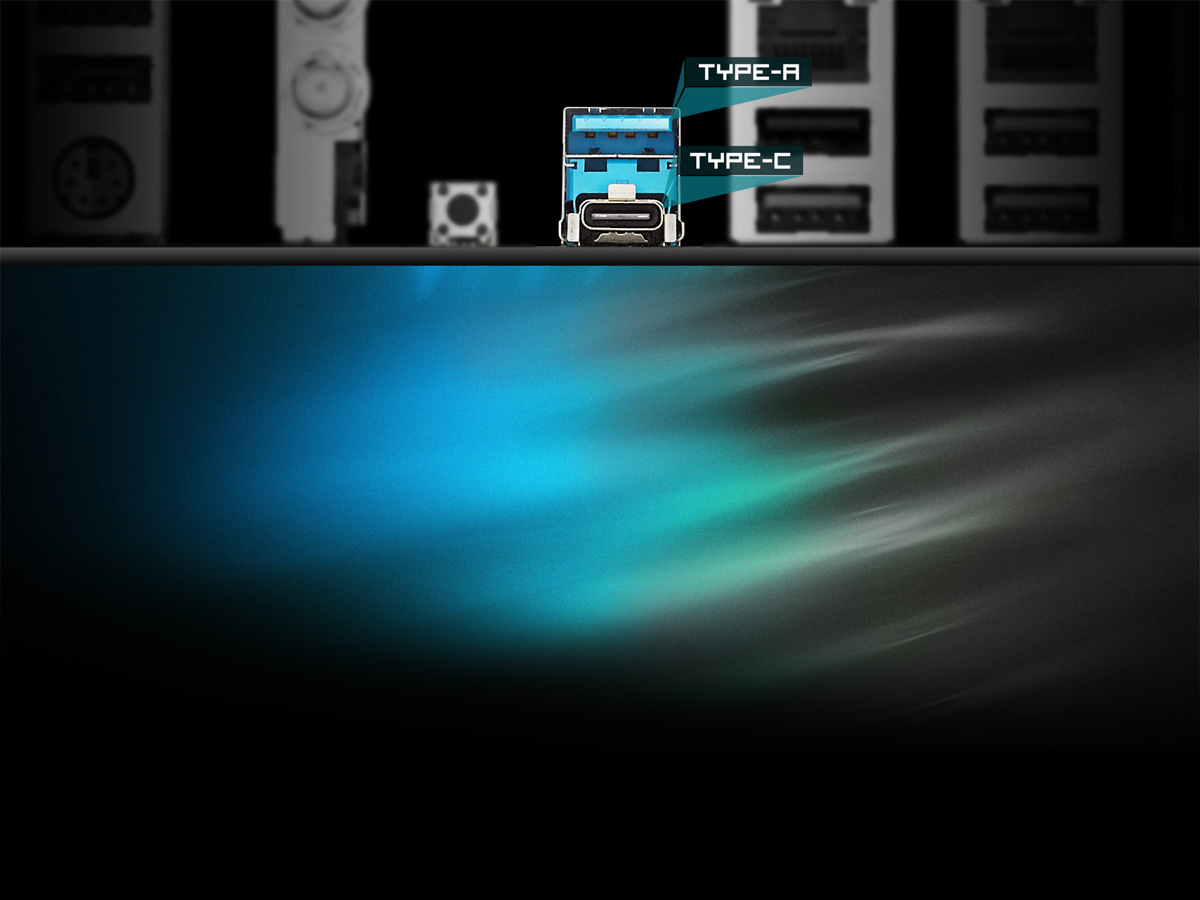

This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear I/O for supporting next-generation USB 3.1 Gen2 devices and to deliver up to 10Gbps data-transfer rates.
USB 3.1 Gen2 doubles the data transfer rate!
USB 3.1 Gen2 Type-C doubles the charge speed!

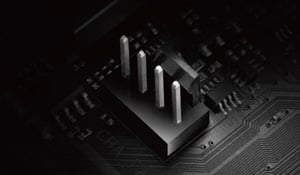

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

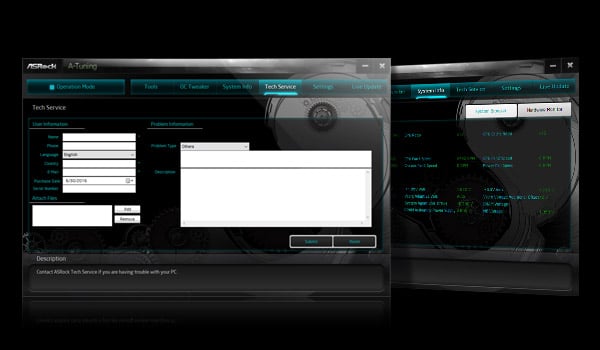

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
