Dual Ultra M.2 For SSD
Two of the world's fastest PCIe Gen3 x4 Ultra M.2 slots that
deliver up to 32Gb/s transfer speed, it also supports SATA3
6Gb/s M.2 modules.
Front USB 3.1 Gen1 Type-C
Front USB 3.1 Gen1 Type-C header delivers super fast data
transfer rate and next generation reversible USB design to the
front panel of computer case.
Intel® 802.11ac WiFi & LAN port
Intel LAN provides the best throughput
performance, and user may also choose 802.11ac
wireless connections.
RGB LED
Build your own colorful lighting system! ASRock RGB LED allows
users to connect LED strip and create their unique PC style easily.
PCI-E Steel Slots :
Tailor-made for multiple VGA cards
The advanced PCI-E Steel Slots packed with solid cover that
prevent any signal interference with graphics cards. It also
ensures the heavy graphics cards to be well-installed in the PCI-E
slots safely.
ASRock Intel® 4-Layer Memory
POOL Technology
POOL (Planes On Outer Layers) technology allows 4-layer boards to
utilize stripline routing instead of micro-strip routing, making
motherboard having better electrical properties and performance.
Premium 45A Power Choke
Premium Memory Alloy Choke
Nichicon 12K Black Caps
I/O Armor
Sapphire Black PCB
High Density Glass Fabric PCB
Learn more about the ASRock Z370 Killer SLI/ac
Model
Brand
ASRock
Model
Z370 Killer SLI/ac

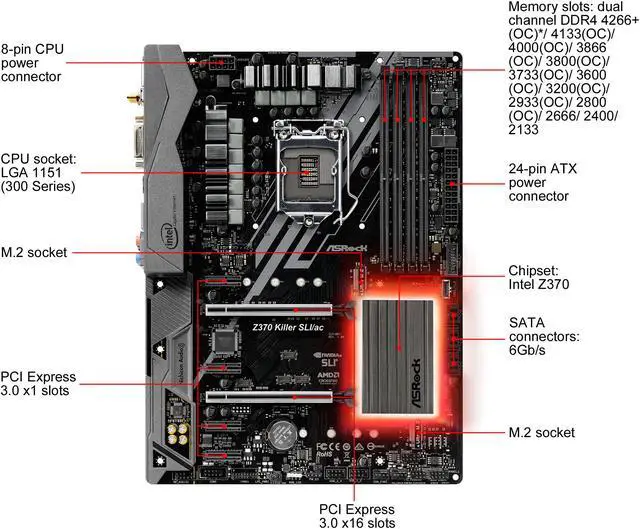

Supported CPU
CPU Socket Type
LGA 1151 (300 Series)
CPU Type
Supports 8th Generation Intel Core Processors (Socket 1151) * Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU Technologies
Turbo Boost Technology 2.0
Chipsets
Chipset
Intel Z370
Onboard Video
Onboard Video Chipset
Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics DirectX 12 HWA Encode/Decode: VP9 8-bit, VP9 10-bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG,VC-1 Max. shared memory 1024MB** Dual graphics output: Support DVI-D and HDMI ports by independent display controllers Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP with DVI-D and HDMI Ports Supports 4K Ultra HD (UHD) playback with HDMI Port
* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ** The size of maximum shared memory may vary from different operating systems.
Memory
Number of Memory Slots
4x288pin (DDR4)
Memory Standard
Supports DDR4 4266+(OC)*/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 * 8th Gen Intel CPU supports DDR4 up to 2666. * Please refer to Memory Support List on ASRock's website for more information.
Maximum Memory Supported
64GB* *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4))* * Supports NVMe SSD as boot disks
PCI Express x1
4 x PCI Express 3.0 x1 Slots (Flexible PCIe)
Other Slots
1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module (on the rear I/O) 15µ Gold Contact in VGA PCIe Slot (PCIE2)
Storage Devices
Serial ATA (SATA)
6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* * If M2_1 is occupied by a SATA-type M.2 device, SATA_5 will be disabled. * If M2_2 is occupied by a SATA-type M.2 device, SATA_0 will be disabled.
M.2
2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)** ** Supports Intel Optane Technology ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit
Intel Optane Ready
Yes
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC892
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Intel I219-V
Max LAN Speed
1Gbps
Wireless LAN
Intel 802.11 ac Wi-Fi Module Supports IEEE 802.11 a/b/g/n/ac Supports Dual-Band (2.4/5 GHz) Supports high speed wireless connections up to 433 Mbps
Bluetooth
Supports Bluetooth 4.2 / 3.0 + High speed class II

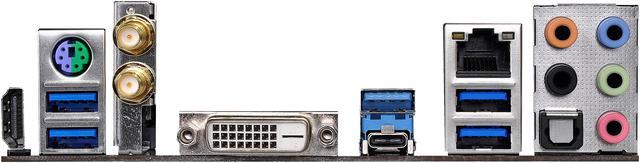

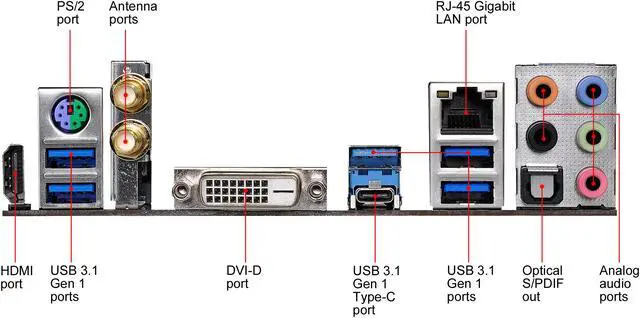

Rear Panel Ports
PS/2
1 x PS/2 keyboard/mouse port
Video Ports
1 x DVI-D Port
HDMI
1 x HDMI
RJ45
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.1
5 x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection) 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
USB Type-C
1 x USB 3.1
S/PDIF Out
1 x Optical
Audio Ports
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Antenna Connectors
2 x Antenna Ports
Internal I/O Connectors
Onboard USB
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) 1 x Front Panel Type C USB 3.1 Gen1 Header
Other Connectors
1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 1 x CPU Fan Connector (4-pin)** 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x Chassis Optional/Water Pump Fan Connector (4-pin)*** 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) 1 x Performance Mode / Easy OC Header
* Supports in total up to 12V/3A, 36W LED Strip. ** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *** The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. **** CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
Physical Spec
Form Factor
ATX
LED Lighting
RGB

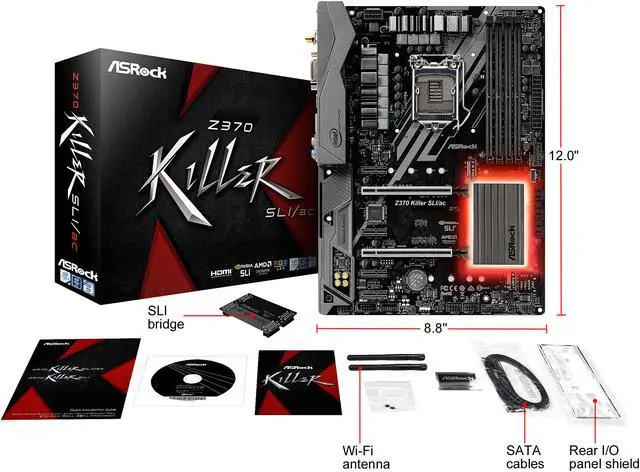

Dimensions (W x L)
12.0" x 8.8"
Power Pin
1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector
