    ASRock Z590 EXTREME LGA 1200 Intel Z590 ATX Intel Motherboard

    Used - Very Good Product Type
    • Z590 EXTREME
    • Z590 PHANTOM GAMING 4
    • Z590 PHANTOM GAMING-ITX/TB4
    • Z590 PRO4
    • Z590 STEEL LEGEND
    • Z590 STEEL LEGEND WiFi 6E
    • Z590M-ITX/AX
    • Z590M PHANTOM GAMING 4
    • Intel Z590
    • Supports 10th Gen Intel Core Processors
    • Supports 11th Gen Intel Core Processors
    • 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
    • 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the ASRock Z590 EXTREME

    Model
    Brand ASRock
    Model Z590 EXTREME
    Supported CPU
    CPU Socket Type LGA 1200
    CPU Type Supports 10th Gen Intel Core Processors
    Supports 11th Gen Intel Core Processors
    Supported CPU Technologies Turbo Boost Technology 3.0
    Chipsets
    Chipset Intel Z590
    Onboard Video
    Onboard Video Chipset 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
    Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
    Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc
    Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
    Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
    Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
    Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports
    Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports**

    * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    ** 11th Gen Intel Core Processors support HDMI 2.0. 10th Gen Intel Core Processors support HDMI 1.4.
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
    10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*

    * 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
    * 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
    Maximum Memory Supported 128GB

    ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 4.0 x16 11th Gen Intel Core Processors
    - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*
    10th Gen Intel Core Processors
    - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*

    * Supports NVMe SSD as boot disks
    PCI Express x1 3 x PCI Express 3.0 x1 Slots
    Other Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)
    15µ Gold Contact in VGA PCIe Slot (PCIE1)
    Storage Devices
    Serial ATA (SATA) 6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*

    * If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
    * If M2_3 is occupied, SATA3_4 and SATA3_5 will be disabled.
    M.2 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (Only supported with 11th Gen Intel Core Processors)**
    1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
    1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**

    ** Supports Intel Optane Technology
    ** Supports NVMe SSD as boot disks
    ** Supports ASRock U.2 Kit
    Intel Optane Ready Yes
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset Realtek ALC1220
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Dragon RTL8125BG
    Second LAN Chipset Intel I219V
    Max LAN Speed 2.5Gbps + 1Gbps

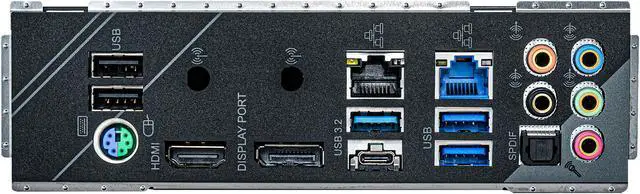

    Rear Panel Ports
    Back I/O Ports 2 x Antenna Mounting Points
    1 x PS/2 Mouse/Keyboard Port
    1 x HDMI Port
    1 x DisplayPort 1.4
    1 x Optical SPDIF Out Port
    1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (ReDriver) (Supports ESD Protection)*
    1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (ReDriver) (Supports ESD Protection)*
    2 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
    2 x USB 2.0 Ports (Supports ESD Protection)
    2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
    HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

    * Ultra USB Power is supported on USB3_12 ports.
    * ACPI wake-up function is not supported on USB3_12 ports.
    Internal I/O Connectors
    Onboard USB 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20Gb/s) (Supports ESD Protection)
    2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
    2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    Other Connectors 1 x SPI TPM Header
    1 x Power LED and Speaker Header
    2 x RGB LED Headers*
    2 x Addressable LED Headers**
    1 x CPU Fan Connector (4-pin)***
    1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    1 x Front Panel Audio Connector (15µ Gold Audio Connector)
    1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
    1 x Power Button with LED
    1 x Reset Button with LED

    * Support in total up to 12V/3A, 36W LED Strip.
    ** Support in total up to 5V/3A, 15W LED Strip.
    *** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
    **** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    ***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    ***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.
    Software Feature
    Windows 11 Supported
    Physical Spec
    Form Factor ATX
    LED Lighting RGB

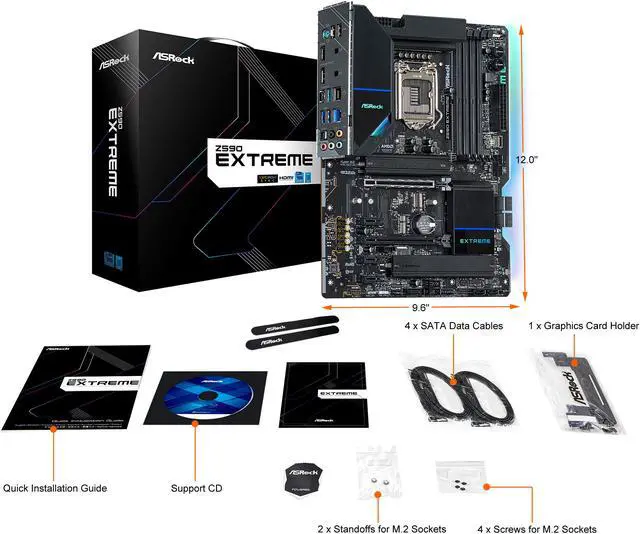

    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 1 x 24-pin ATX Power Connector (Hi-Density Power Connector)
    2 x 8-pin 12V Power Connectors (Hi-Density Power Connector)
