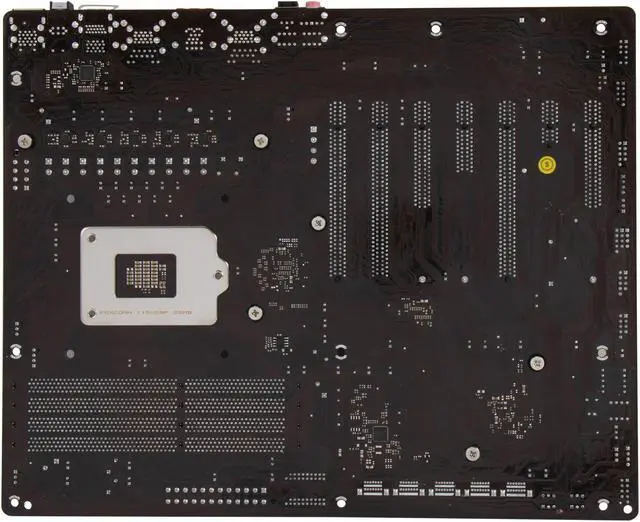

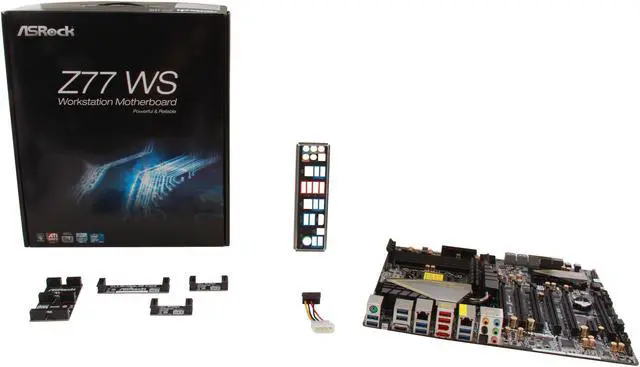

ASRock Z77 WS LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard
Used - Very Good Product Type
- Intel Z77
- Core i7 / i5 / i3 (LGA1155)
- DDR3 3000+(OC)/2400(OC)
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Z77 WS
| Brand | ASRock |
|---|---|
| Model | Z77 WS |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Core i7 / i5 / i3 (LGA1155) |
| Supported CPU Technologies | Intel Turbo Boost 2.0 Technology Intel K-Series unlocked CPU Hyper-Threading Technology |
| Chipset | Intel Z77 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 3000+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 5 (PCIE2: x16 mode OR PCIE1/PCIE3/PCIE5/PCIE7: x16/0/16/0 or x8/8/8/8 mode) |
|---|---|
| PCI Express 2.0 x16 | 1 @x4 |
| PCI Express x1 | 1 x PCI Express x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA RAID | 2 x SATA3 6.0 Gb/s connectors by Intel Z77, support RAID (RAID 0, RAID 1, RAID 5, RAID 10) 4 x SATA2 3.0 Gb/s connectors by Intel Z77, support RAID (RAID 0, RAID 1, RAID 5, RAID 10) 4 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061(SATA3_A4 connector is shared with eSATA3 port) |
| Audio Chipset | Realtek ALC898 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Broadcom BCM57781 |
|---|---|
| Second LAN Chipset | Broadcom BCM57781 |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| HDMI | 1 x HDMI |
| USB 3.0 | 8 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394 |
| eSATA | 1 x eSATA 6Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 4 x USB 3.0 + 6 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394 |
| Other Connectors | 1 x IR header 1 x CIR header 1 x COM port header 1 x HDMI_SPDIF header 1 x Power LED header 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin) 1 x Power Fan connector (3-pin) 24 pin ATX power connector 8 pin 12V power connector SLI/XFire power connector Front panel audio connector 1 x Dr. Debug with LED 1 x Power Switch with LED 1 x Reset Switch with LED 1 x Clear CMOS Switch with LED |
| Form Factor | ATX |
|---|---|
| Power Pin | 24 Pin |
| Features | Premium Gold Caps Digi Power Design, 8 + 4 Power Phase Design Supports Dual Channel DDR3 3000+(OC) 5 x PCIe 3.0 x16 Slots, 1 x PCIe 2.0 x16 Slot, Supports AMD 4-Way CrossFireXTM and NVIDIA 4-Way SLITM Supports Intel HD Graphics with Built-in Visuals 12 USB 3.0 (4 Front, 8 Rear), 6 SATA3 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec), Supports THX TruStudio Supports ASRock XFast 555, Interactive UEFI, Intel Smart Connect, Intel Rapid Start Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite |
|---|
| First Listed on Newegg | July 11, 2025 |
|---|
