Intel Specifications: ATX12V
PFC Type: Active PFC
ATX Standard: ATX 3.1
Dimensions: 150 x 150 x 86 mm
Efficiency: 80 Plus Gold
MTBF: >120,000 hours at 40°C
Multi-Technology Protection: Overvoltage/Overvoltage/Undervoltage/Short Circuit/Overcurrent/Overtemperature
Safety Certifications: Restriction of Hazardous Substances
AC Input Voltage: 100-240 VAC
DC Output Voltage: +3.3V +5V +12V -12V +5V
Rated Current: 25A 25A 70.8A 0.8A 3A
Rated Power Consumption: 130W 130W 850W 9.6W 15W
Total Power: 850W

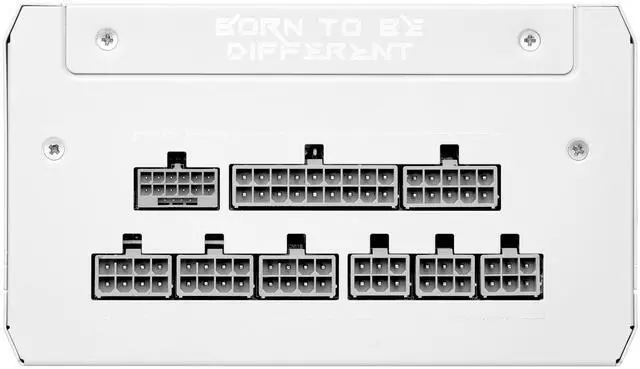

Ports: MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (power and component side)
PCI-E 8-pin x 4
SATA x 5
PERIPHERAL x 4
Package Included
Power cable x 1
Motherboard module cable x 1 (610mm)
CPU module cables x 2 (650mm)
PCI-E Gen 5 16-pin module cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) module cable x 1 (675mm)
PCI-E 1-to-1 module cable x 1 (675mm)
SATA 1-to-2 module cable x 1 (400+120mm)
SATA 1-to-3 module cable x 1 (400+120+120mm)
Peripheral 1-to-4 Modular cable x 1 (400+150+150+150mm)
TX GAMING Velcro x 3
Tianxuan magnetic sticker x 1
Tianxuan Ji poster x 1
Tianxuan sticker x 1
User manual x 1
Weight
2.38kg (single power supply)

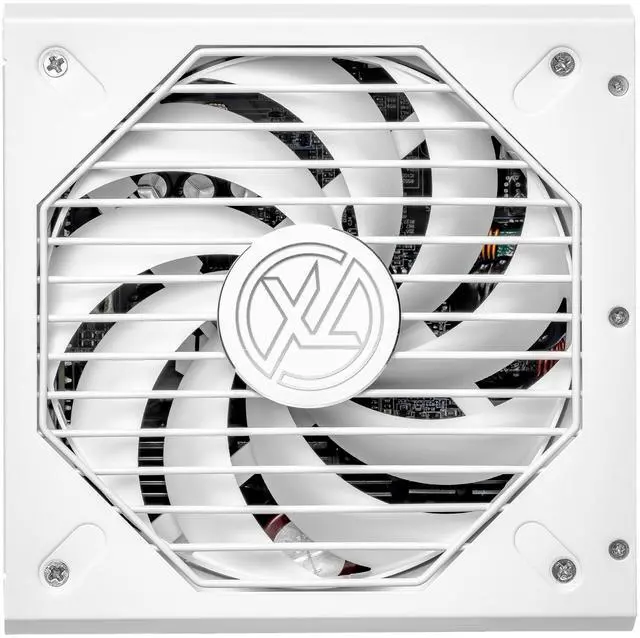

0dB technology
Supported. When the power supply is under a certain load, the fan will completely shut off.
