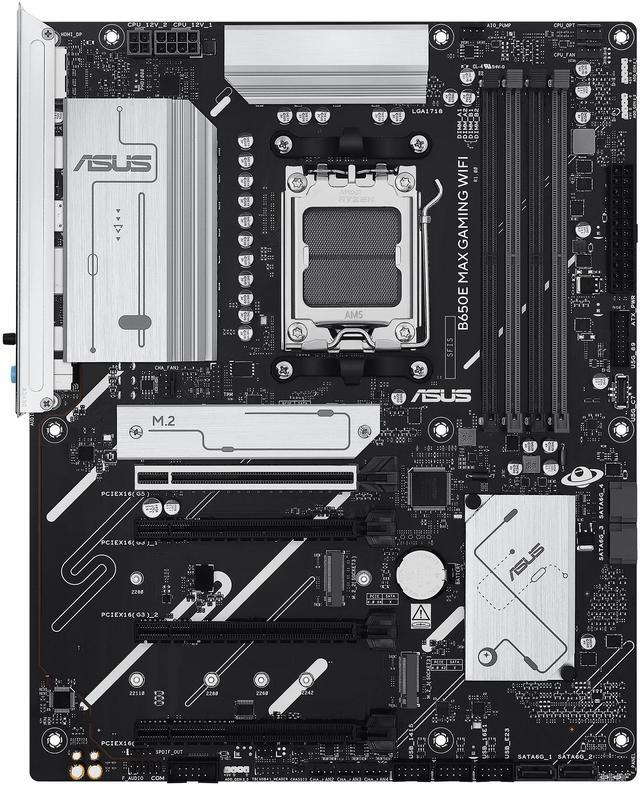

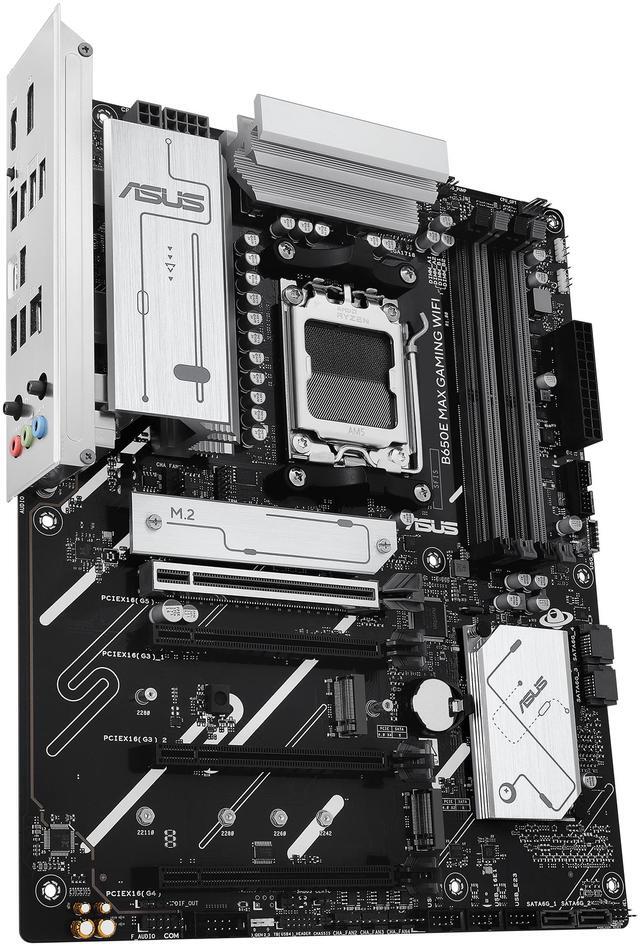

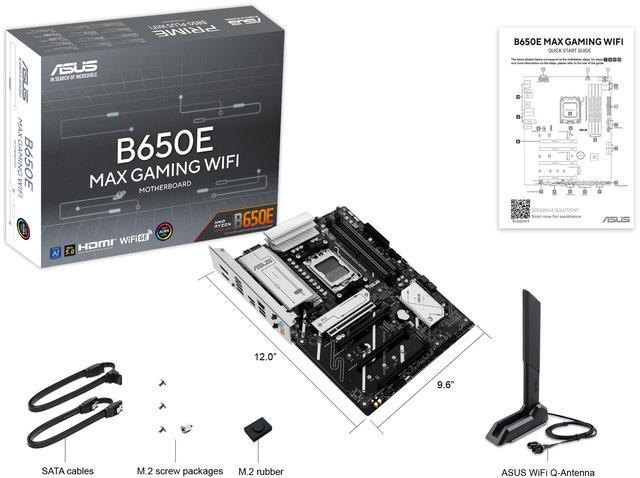

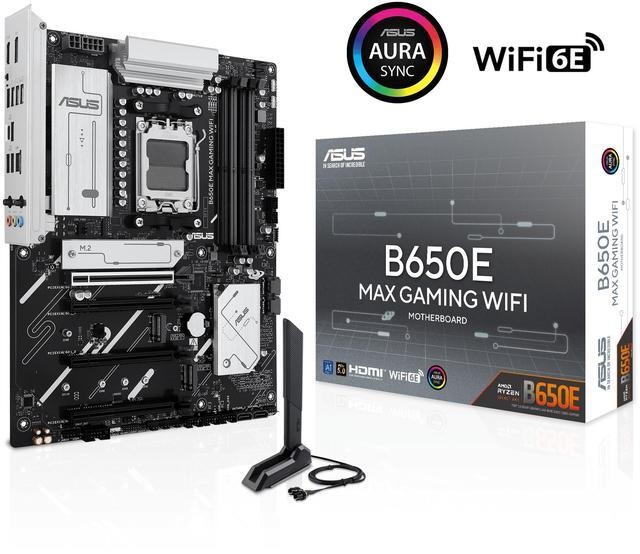

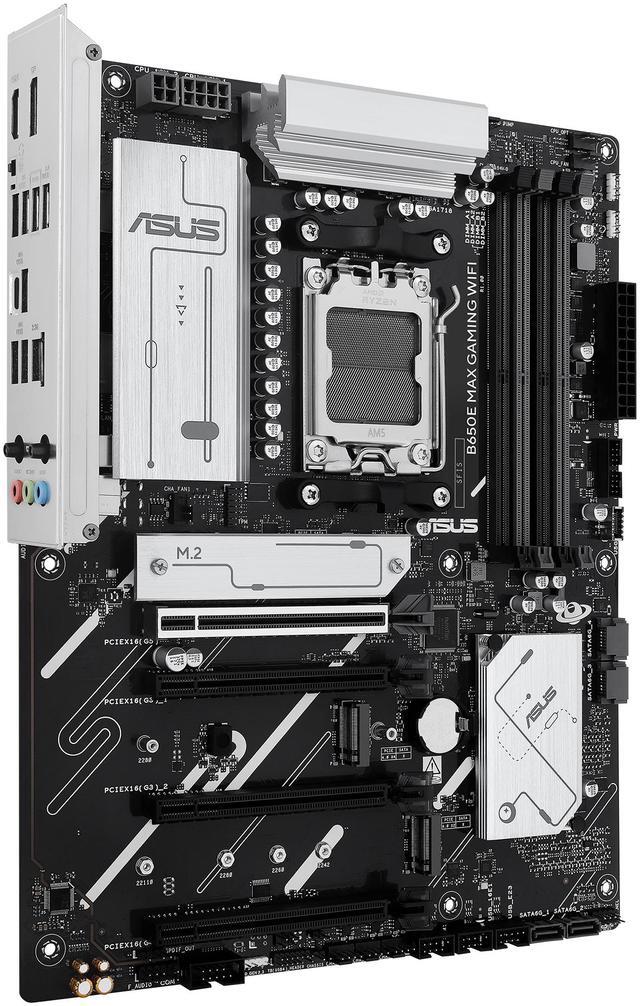

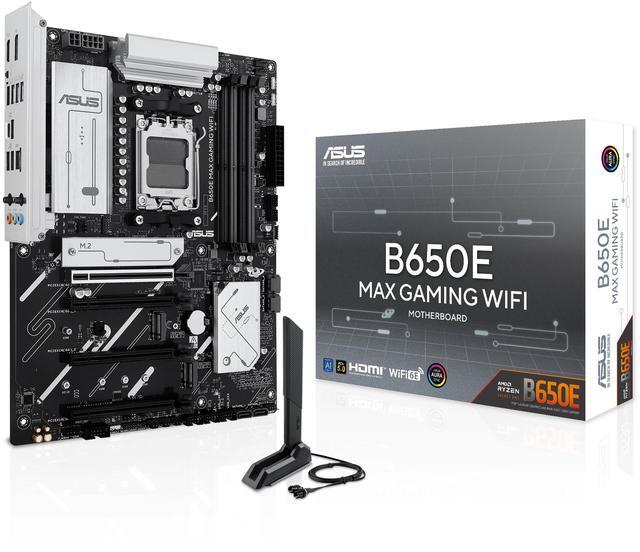

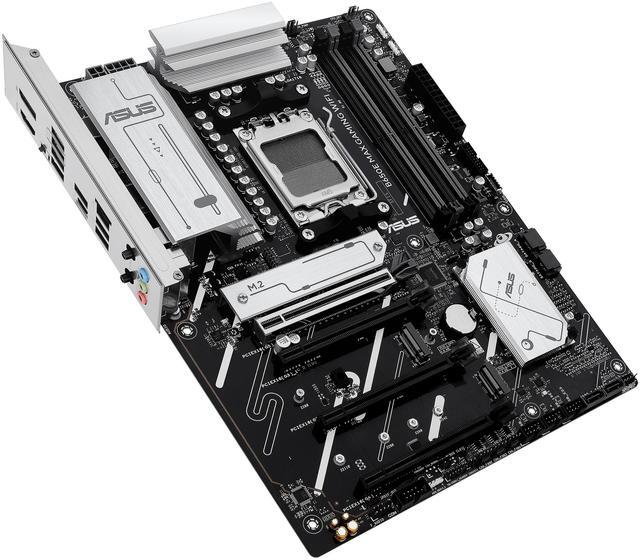

Main image of ASUS B650E MAX GAMING WIFI AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, 3x M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, USB 10Gbps Type-A & Type-C, BIOS FlashBack, Aura Sync

Alt view image 2 of 11 - ASUS B650E MAX GAMING WIFI AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, 3x M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, USB 10Gbps Type-A & Type-C, BIOS FlashBack, Aura Sync

Alt view image 3 of 11 - ASUS B650E MAX GAMING WIFI AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, 3x M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, USB 10Gbps Type-A & Type-C, BIOS FlashBack, Aura Sync

Alt view image 4 of 11 - ASUS B650E MAX GAMING WIFI AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, 3x M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, USB 10Gbps Type-A & Type-C, BIOS FlashBack, Aura Sync

Alt view image 5 of 11 - ASUS B650E MAX GAMING WIFI AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, 3x M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, USB 10Gbps Type-A & Type-C, BIOS FlashBack, Aura Sync

Alt view image 6 of 11 - ASUS B650E MAX GAMING WIFI AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, 3x M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, USB 10Gbps Type-A & Type-C, BIOS FlashBack, Aura Sync

Alt view image 7 of 11 - ASUS B650E MAX GAMING WIFI AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, 3x M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, USB 10Gbps Type-A & Type-C, BIOS FlashBack, Aura Sync

Alt view image 8 of 11 - ASUS B650E MAX GAMING WIFI AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, 3x M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, USB 10Gbps Type-A & Type-C, BIOS FlashBack, Aura Sync

Alt view image 9 of 11 - ASUS B650E MAX GAMING WIFI AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, 3x M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, USB 10Gbps Type-A & Type-C, BIOS FlashBack, Aura Sync

Alt view image 10 of 11 - ASUS B650E MAX GAMING WIFI AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, 3x M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, USB 10Gbps Type-A & Type-C, BIOS FlashBack, Aura Sync

Alt view image 11 of 11 - ASUS B650E MAX GAMING WIFI AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, 3x M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, USB 10Gbps Type-A & Type-C, BIOS FlashBack, Aura Sync

Shop All ASUS Products

ASUS B650E MAX GAMING WIFI AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, 3x M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, USB 10Gbps Type-A & Type-C, BIOS FlashBack, Aura Sync

Option: B650E MAX GAMING WIFI

ROG STRIX B650E-F GAMING WIFI
TUF GAMING B650M-PLUS WIFI
TUF GAMING B650-PLUS WIFI
ROG STRIX B650-A GAMING WIFI
PRIME B650M-A AX II
PRIME B650M-A II-CSM
TUF GAMING B650-E WIFI
TUF GAMING B650M-E WIFI
PRIME B650-PLUS WIFI
ROG STRIX B650E-I
B650E MAX GAMING WIFI W
B650E MAX GAMING WIFI
TUF GAMING B650E-PLUS
TUF GAMING B650E-E WIFI

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Enhanced Power Solution: 8+2+1 phase power design, 6-layer PCB, alloy chokes and durable capacitors for stable power delivery

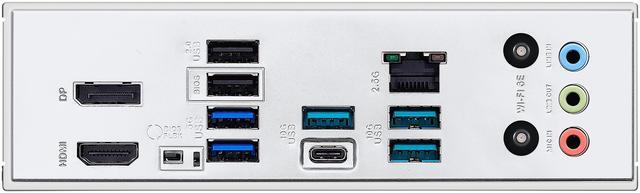

Ultrafast Connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A & Type-C ports, and front USB 5Gbps Type-C support
Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+

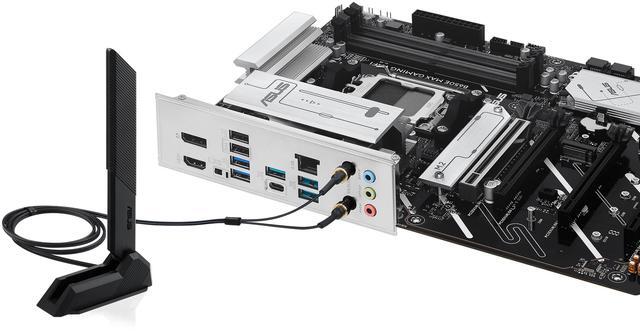

DIY Friendly Design: Pre-mounted I/O shield, BIOS FlashBack, Q-Antenna, Q-LED Core
Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
CEC Tier II ready

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Up to 8000+MT/s (OC)
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
ECC Supported	Yes
Buffer Supported	Un-buffered

PCI Express 5.0 x16	AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16	AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0 x16 slot (support x4 mode)
PCI Express 3.0 x16	2 x PCIe 3.0 x16 slots (support x1 mode)* * The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)* AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode) * Specifications vary by CPU types.
SATA RAID	0/1/5/10

Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 802.11 ax
Bluetooth	Bluetooth 5.3

ASUS B650E MAX GAMING WIFI AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, 3x M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, USB 10Gbps Type-A & Type-C, BIOS FlashBack, Aura Sync

Learn more about the ASUS B650E MAX GAMING WIFI

Customer Reviews of the ASUS B650E MAX GAMING WIFI

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Brand	ASUS
Model	B650E MAX GAMING WIFI
Part Number	90MB1LD0-MVAAY0

Onboard USB	1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan header Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header 1 x Thunderbolt (USB4) header

Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors 1 x 4-pin +12V CPU Power connectors

BIOS Feature	256 Mb Flash ROM, UEFI AMI BIOS
Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS Driver Hub ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Windows 11	Supported
