ASUS M3N78-VM AM2+/AM2 NVIDIA GeForce 8200 HDMI Micro ATX AMD Motherboard
(284)
Write a Review
NVIDIA GeForce 8200
Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
DDR2 1066 / 800 *DDR2 1066 is supported by AM2+ CPU only
🔥Don't forget your OS, we have
Windows 11 OEM
,
Download
and
USB
versions available
Unleash the performance of the AMD 9800X3D CPU with a
premium X870E motherboard
,
RGB liquid CPU cooler
,
high speed DDR5
and
SSD
.
Maximize the power of GeForce 5000 series cards with
Gen5 NVMe SSD
.
Overview
Specs
Reviews
(284)
Learn more about the ASUS M3N78-VM
Model
Brand
ASUS
Model
M3N78-VM
Supported CPU
CPU Socket Type
AM2+/AM2
CPU Type
Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
Chipsets
Chipset
NVIDIA GeForce 8200
Memory
Number of Memory Slots
4x240pin
Memory Standard
DDR2 1066 / 800
*DDR2 1066 is supported by AM2+ CPU only
Maximum Memory Supported
8GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express x16
1 x PCI Express x16
PCI Express x1
1 x PCI Express x1
PCI Slots
2 x PCI Slots
Storage Devices
SATA RAID
0/1/0+1/5/JBOD
Onboard Video
Onboard Video Chipset
NVIDIA GeForce 8 series
Onboard Audio
Audio Chipset
VIA VT1708B
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Realtek 8211CL
Max LAN Speed
1Gbps
Rear Panel Ports
Back I/O Ports
1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 / 6 x Audio Jacks / 6 x USB 2.0/1.1
PS/2
1
Video Ports
D-Sub + DVI
HDMI
1 x HDMI
USB 1.1/2.0
6 x USB 2.0
eSATA
1 x eSATA 3Gb/s
S/PDIF Out
1 x Optical
Audio Ports
6 Ports
Internal I/O Connectors
Onboard USB
3 x USB connector (6 ports)
Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
9.6" x 9.6"
Power Pin
24 Pin
Features
Features
Express Gate
Hybrid SLI
Astounding Blue-Ray and HD DVD Playback through HDMI
Direct X 10 Support for Windows Vista 3D Experience
ESD Guards
Packaging

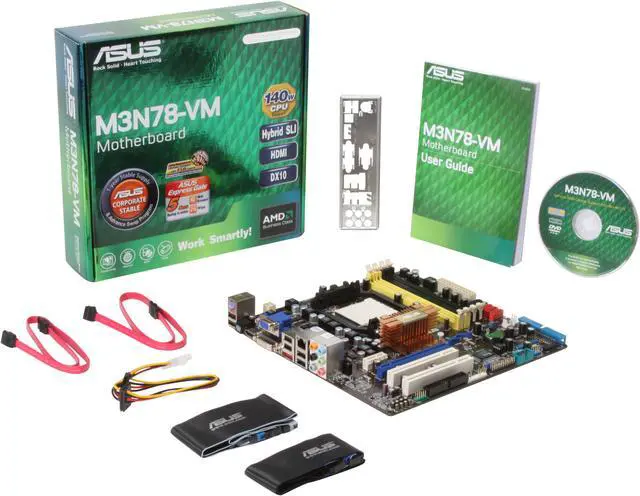

Package Contents
M3N78-VM
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
Additional Information
First Listed on Newegg
June 25, 2008
