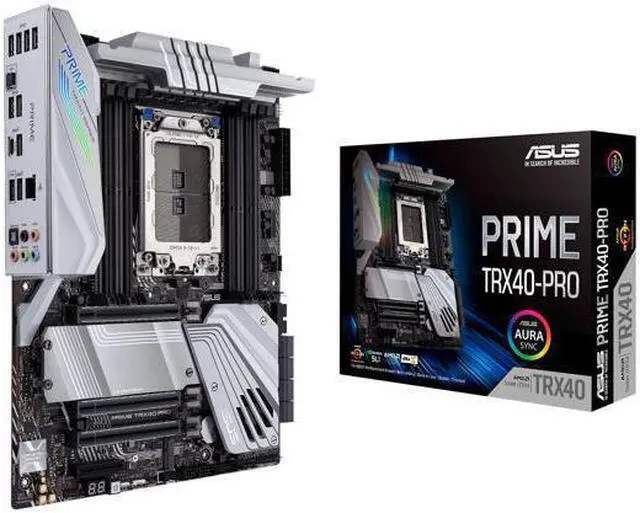

AMD TRX40 ATX motherboard sTRX4 for 3rd Gen Ryzen Threadripper-series processors with 16 TDA21462 power stages, 4-channel DDR4, triple PCIe 4.0 M. 2s, USB 3.2 Gen 2 Type-C front-panel connector and Aura Sync RGB lighting AMD
SocketsTRX4: Ready for the latest 3rd Gen AMD Ryzen Threadripper series processors

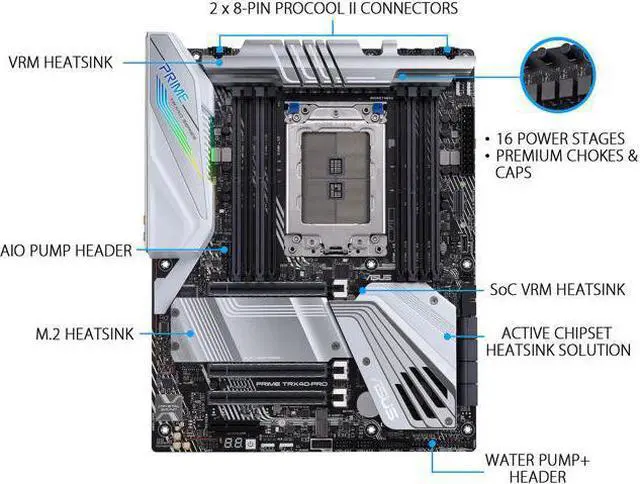

Robustpowerdesign: 16 Infineon TDA21462 power stages, ProCool II connectors with solid pins, and premium chokes and capacitors for stable power delivery
Comprehensivethermalsolutions: VRM heatsink, M. 2 heatsink, SoC VRM heatsink, active chipset heatsink solution, and an array of hybrid fan headers

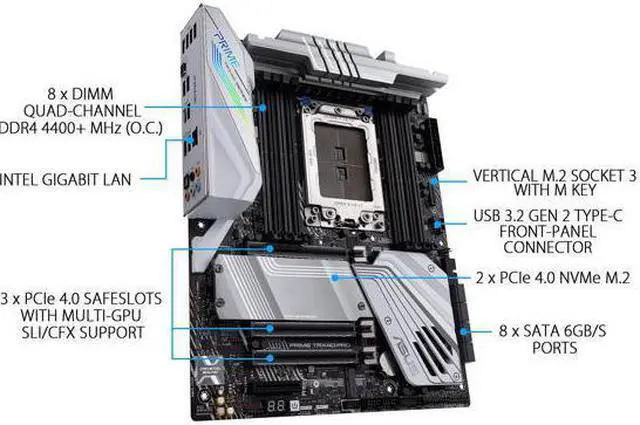

Next-genconnectivity: Three PCIe 4.0 NVMe M. 2 slots, USB 3.2 Gen 2 Type-C front-panel connector, and Intel Gigabit

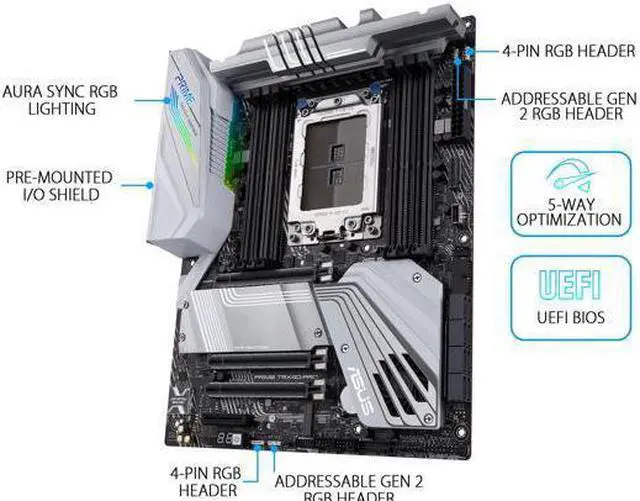

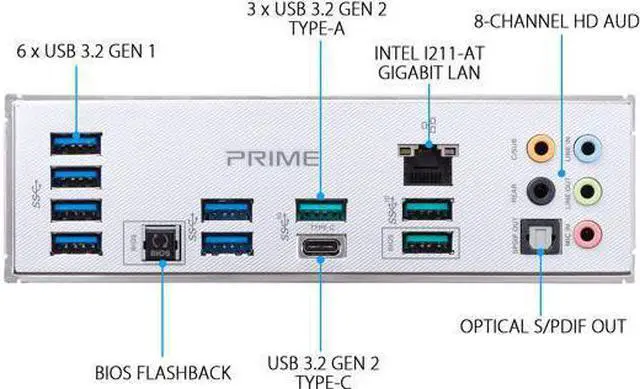

EthernetIntelligenttuning: ASUS 5-Way Optimization software and renowned UEFI BIOS offer easy configuration options for all experience levels 6 x USB 3.2 Gen 1 BIOS FlashBack Button 4 x USB 3.2 Gen 2 (3 x Type-A & 1 x Type-C) Intel® Gb Ethernet 8-Channel HD Audio 3 x PCIe 4.0 (x16/x16/x16) 2-Way SLI & 2-Way CFX Suppor ASUS SafeSlot Crystal Sound 3 Realtek® S1220 Codec Power Pre-Regulator De-Pop Circuit Audio Shielding Premium Japanese Audio Capacitors Dedicated Audio PCB Layers DTS: X® Ultra 2 x 8-Pin ProCool II Connectors 16 Power Stages 4-Pin RGB Header Addressable Gen 2 RGB Header 4-Channel DDR4 AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Processors Vertical M. 2 22110 (PCIe 4.0 x4 & SATA Modes) USB 3.2 Gen 2 Type-C Front-Panel Connector AMD TRX40 Chipset 2 x M. 2 22110 (PCIe 4.0 x4 Mode) 8 x SATA 6Gb/s Addressable Gen 2 RGB Header 4-Pin RGB Header ASUS Prime TRX40-Pro is expertly engineered to unleash the full potential of AMD's latest high-core-count processors for content creators, designers and professional use. Combining a robust power design, comprehensive cooling solutions, ultrafast PCIe 4.0 connectivity and intelligent tuning options, the high-end desktop motherboard delivers the performance and stability needed to turn every creative vision into reality. Get the Most out of All Your Cores AMD's HEDT platform raises the stakes with the latest AMD 3rd Gen Ryzen Threadripper processors that boast more cores and higher bandwidth than ever before. Prime TRX40-Pro is ready for the additional processing power that plows through intensive tasks such as 3D rendering and video editing, and the extra bandwidth allows you to add multiple graphics cards and NVMe SSDs to accelerate your productivity.
Power Robust Power Design The new AMD Socket sTRX4 is compatible with 3rd Gen AMD Ryzen Threadripper CPUs with up to 32 cores, up to 64 PCIe 4.0 lanes, and 280-watt thermal design power (TDP). Such specifications require serious power, so Prime TRX40-Pro is equipped with an enhanced power solution that includes 16 power stages to ensure your processor keeps up with your creativity. ProCool II Connectors ProCool II connectors ensure a snug and reliable connection to the EPS 12V power lines. The second-generation features upgrades of metal amour and solid pins for better heat dissipation, as well as a warning LED-display with a BIOS POST message to indicate improper c
