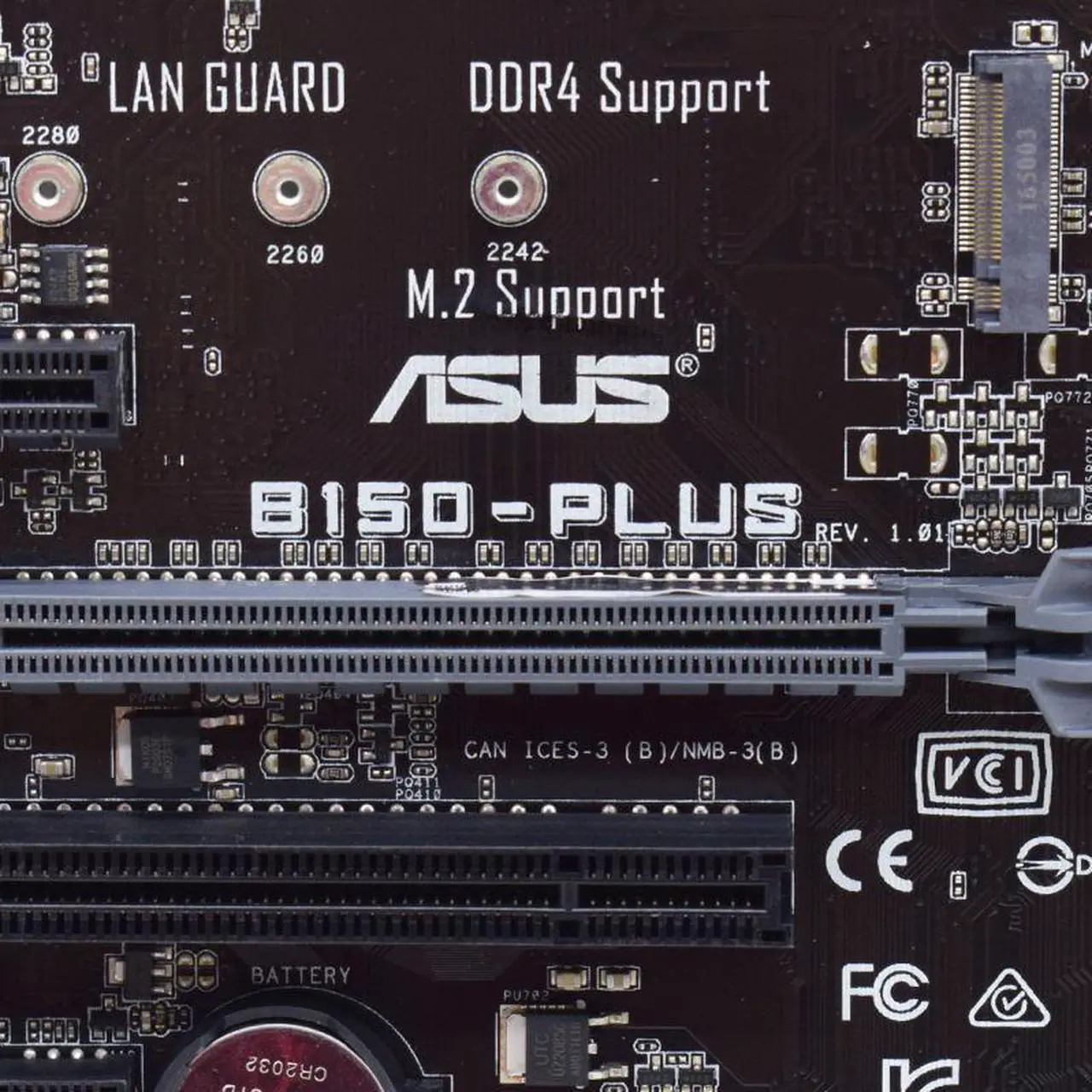

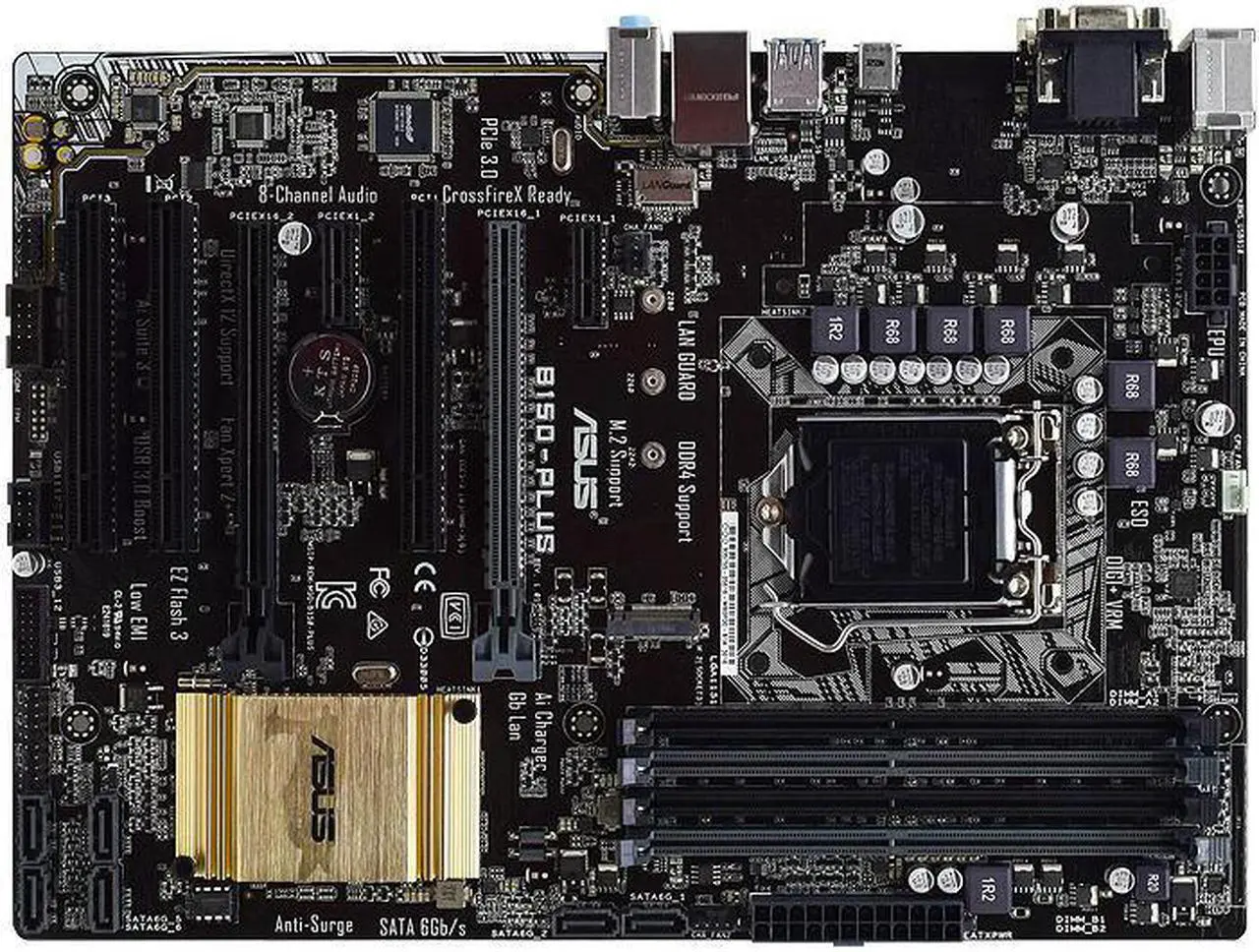

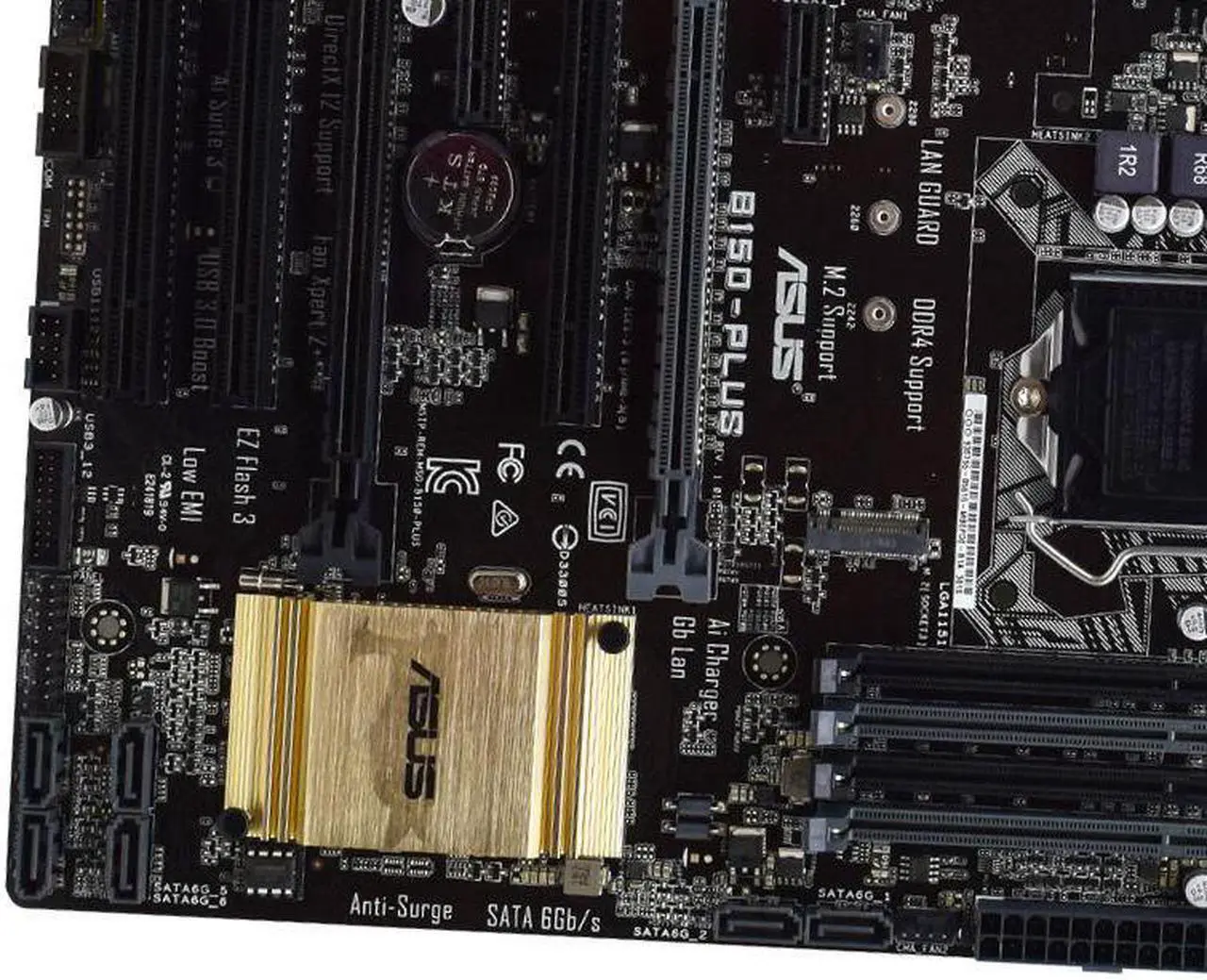

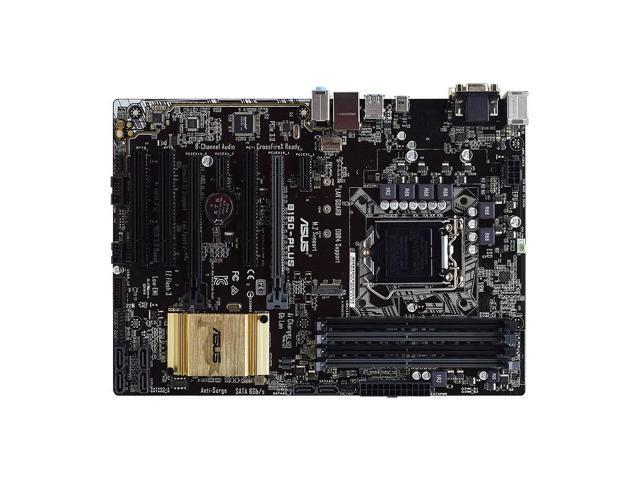

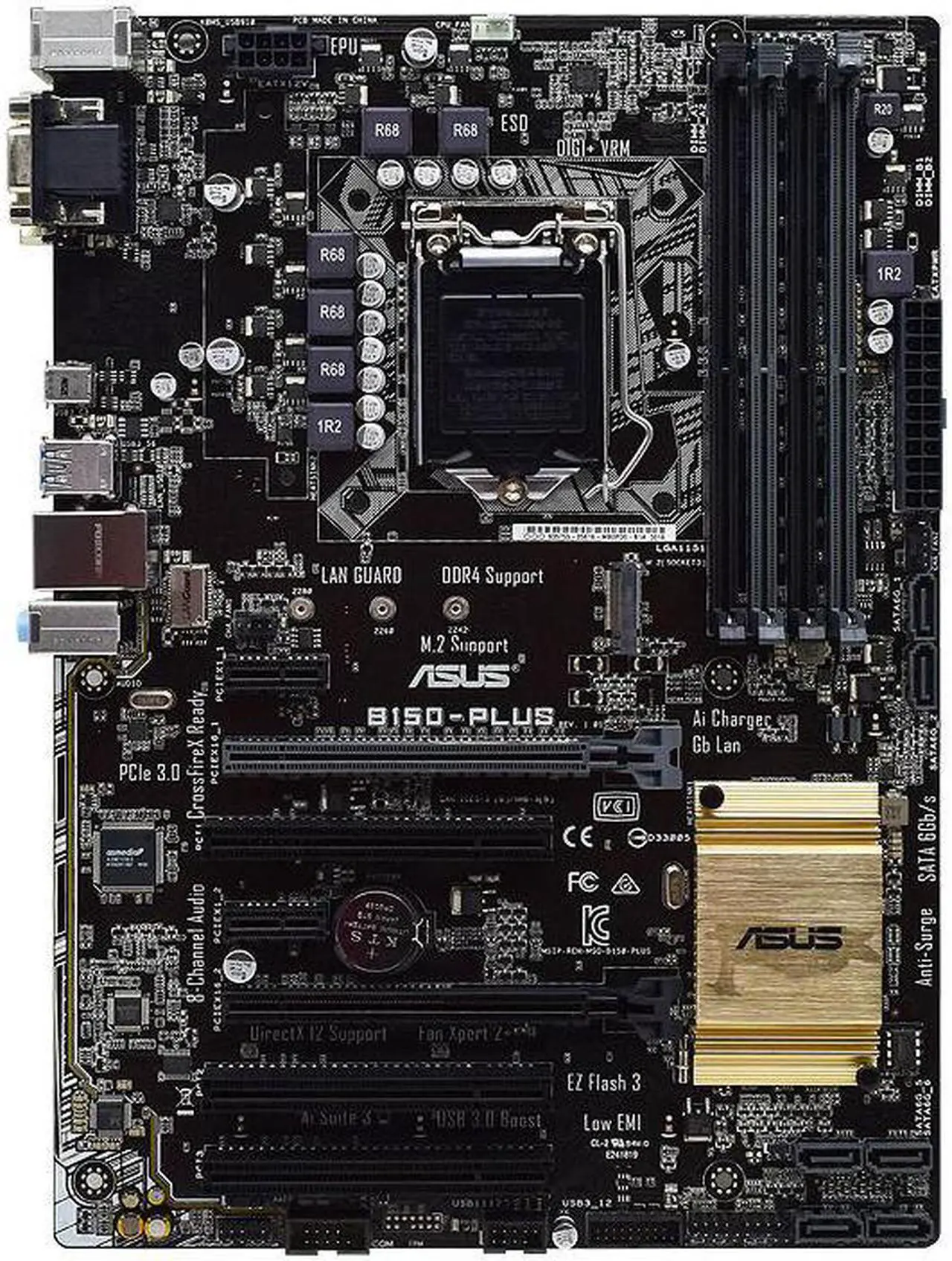

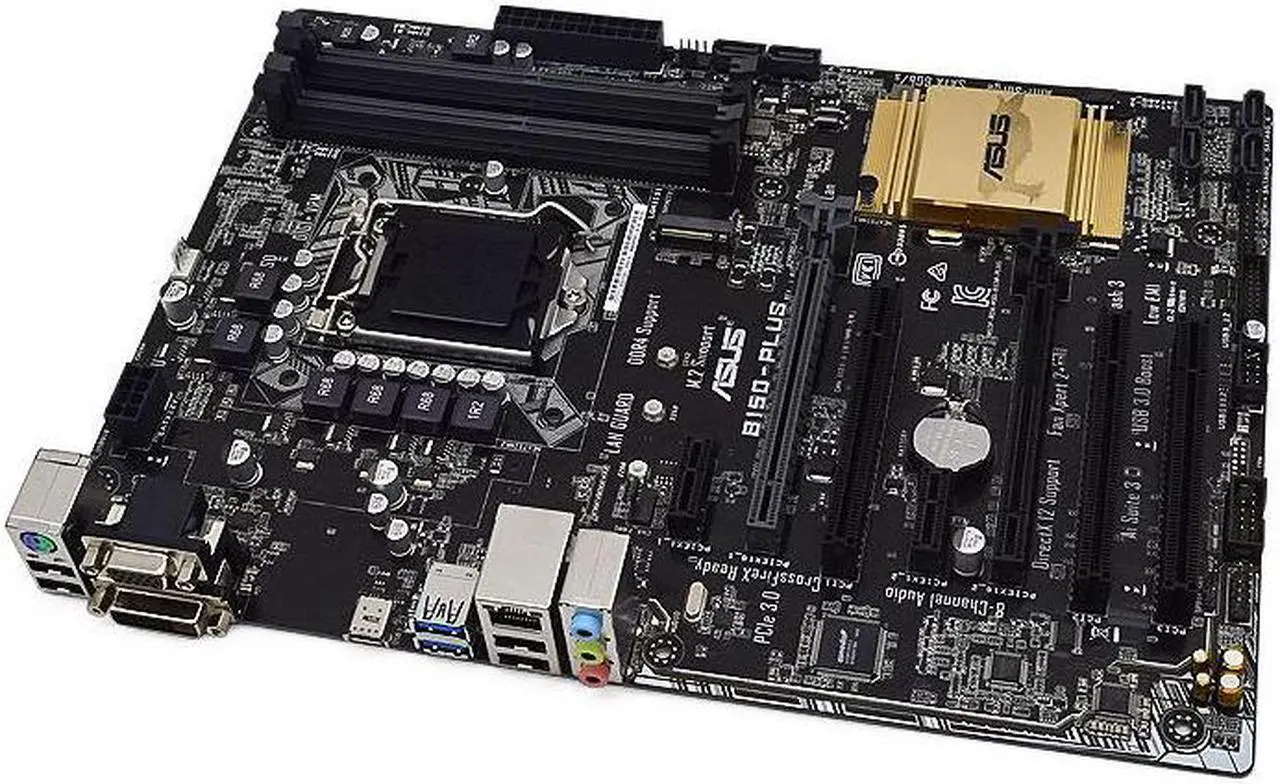

ASUS B150-PLUS 1151 Motherborad B150 Motherborad DDR4 64GB RAM Core i7 6700 i5 7500 CPU M.2 DVI PCI-E 3.0 6×SATAIII 4×USB3.0 ATX

B150-PLUS Parameters Motherboard chip Integrated chip sound card/network card Main chipset Intel B150 Chipset description Using Intel B150 chipset Display chip CPU built-in display chip (requires CPU support) Audio chip integrated Realtek ALC887 8-channel audio chip Network card chip Onboard Realtek RTL8111GR Gigabit network card Processor specifications CPU type Sixth generation Core i7/i5/i3/Pentium/Celeron CPU socket LGA 1151 CPU description Support Intel 14nm processor Memory specifications Memory type 4×DDR4 DIMM Maximum memory capacity 64GB Memory description Support dual-channel DDR4 2133MHz memory Storage expansion PCI-E standard PCI-E 3.0 PCI-E slot 2×PCI-E X16 graphics card slot, 2×PCI-E X1 slot PCI slot 3 × PCI slot Storage interface 1×M.

2 interface, 6×SATA III interface I/O interface USB interface 1×USB 3.0 Type-C interface, 4×USB 3.0 interface (2 built-in +2 backplane), 6×USB 2.0 interface (2 built-in +4 backplane) Video interface 1×VGA interface, 1×DVI interface Power connector One 8-pin, one 24-pin power connector Other interfaces 1 × RJ45 network interface, 3 × audio interface, 2 × chassis fan interface, 1 × S/PDIF_Out interface, 1 × front panel audio interface (AAFP), 1 × system panel interface, 1 × PS/2 keyboard and mouse universal interface Plate type Motherboard board type ATX board type Dimensions 30.5 × 21.8 cm
