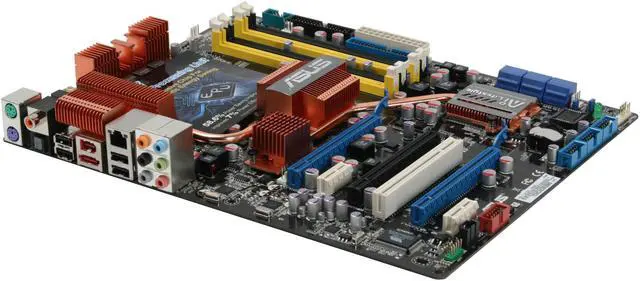

ASUS P5N-T Deluxe <GREEN> LGA 775 NVIDIA nForce 780i SLI ATX Intel Motherboard
- NVIDIA nForce 780i SLI
- Core 2 Quad / Core 2 Extreme / Core 2 Duo
- DDR2 1066
Specs
Reviews (73)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASUS P5N-T Deluxe <GREEN>
| Brand | ASUS |
|---|---|
| Model | P5N-T Deluxe <GREEN> |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| FSB | 1333/1066 MHz |
| Chipset | NVIDIA nForce 780i SLI |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1/5/JBOD |
| Additional RAID Controller | Marvell 88SE6111 |
| Audio Chipset | ADI AD1988B |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Marvell 88E1116 |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x eSATA 3GB/S / 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | 3-Way SLI provides Scalable Performance ASUS 3rd Generation 8 Phase Power Design Up to 20°C(36°F) Cooler - Stack Cool 2 Pure Copper Heat Pipe Uses 100% All High-quality Conductive Polymer Capacitors |
|---|
| Package Contents | P5N-T Deluxe <GREEN> Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable 6 x SATA Cable 4-pin to SATA Power Cable IEEE1394 & USB Bracket 3-Way SLI & SLI Bridge Optional Fan for Water-Cooling or Passive-Cooling only 3 in 1 Q-connector |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| First Listed on Newegg | January 02, 2008 |
|---|
