compatible with 10700f?

The ASUS PRIME B460M-A motherboard supports 10th Gen Intel Core Processors, which includes the Intel Core i7-10700F.

compatible with kingston ddr4 3200mt/s cl 16-20-20 1.35v xmp

The ASUS PRIME B460M-A motherboard supports DDR4 memory standards up to 2933 MT/s natively. While it may support higher speeds through overclocking, it is not explicitly mentioned if it is compatible with Kingston DDR4 3200 MT/s CL 16-20-20 memory.

Does this board support wifi

The product information does not mention Wi-Fi support.

Is there an IO shield that comes with this motherboard?

Yes, an IO shield comes with this motherboard.

does this support 11th gen intel?

I'm wondering the same as my TWO MB's don't do ANYTHING and I have two 11th Gen core i5s.

Is this board compatible with the Intel Core i7-10700KF Comet Lake 8-Core 3.8 GHz LGA 1200 125W BX8070110700KF Desktop Processor ?

Yes, the ASUS PRIME B460M-A motherboard is compatible with the Intel Core i7-10700KF Comet Lake 8-Core 3.8 GHz LGA 1200 125W BX8070110700KF Desktop Processor as it supports 10th Gen Intel Core Processors and has an LGA 1200 socket.

Does the BIOS need to be updated for a 10th gen core i5 10400?

The ASUS PRIME B460M-A motherboard supports 10th Gen Intel Core Processors out of the box. There is no need to update the BIOS for a 10th gen core i5 10400.

does it have an argb header?

No, it does not have an ARGB header. It has standard RGB headers.

Is SSD ssd nvme m.2 or SATA?

The diagram shows two NVME M.2 socks. Keep in mind this a PCIe 3.0, so it's capped at speeds of 3500. You need a 11th gen intel or AMD board to get PCIe 4.0 which are twice as fast.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 44 wish lists)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

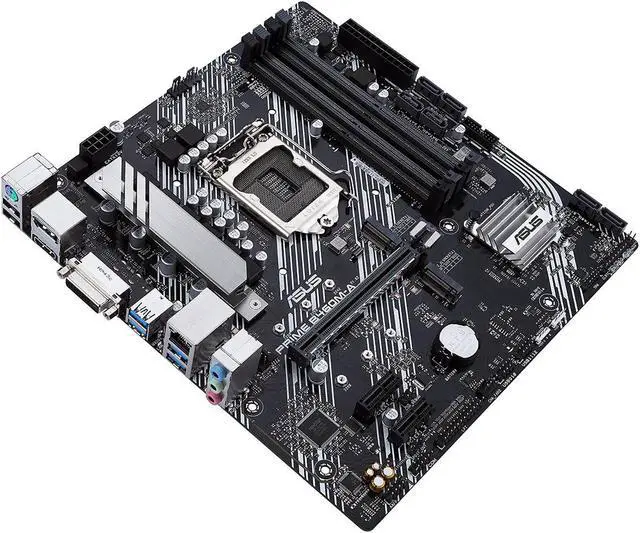

Main image of ASUS PRIME B460M-A LGA 1200 Intel B460 Micro ATX Intel Motherboard

Alt view image 2 of 5 - ASUS PRIME B460M-A LGA 1200 Intel B460 Micro ATX Intel Motherboard

Alt view image 3 of 5 - ASUS PRIME B460M-A LGA 1200 Intel B460 Micro ATX Intel Motherboard

Alt view image 4 of 5 - ASUS PRIME B460M-A LGA 1200 Intel B460 Micro ATX Intel Motherboard

Alt view image 5 of 5 - ASUS PRIME B460M-A LGA 1200 Intel B460 Micro ATX Intel Motherboard

Shop All ASUS Products

ASUS PRIME B460M-A LGA 1200 Intel B460 Micro ATX Intel Motherboard

(26) Write a Review

Intel B460
Supports 10th Gen Intel Core Processors
Supports Intel Pentium Gold / Celeron Processors
DDR4 2933 / 2800 / 2666 / 2400 / 2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (26)

See all Q & A

Model
Brand	ASUS
Model	PRIME B460M-A

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Supports 10th Gen Intel Core Processors* Supports Intel Pentium Gold / Celeron Processors* * Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel B460

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2933 / 2800 / 2666 / 2400 / 2133* * 10th Gen Intel Core i9/i7 CPUs support 2933 / 2800 / 2666 / 2400 / 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0 x16* * Actual support may vary by CPU.
PCI Express x1	2 x PCIe 3.0 x1

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode)
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps

Rear Panel Ports

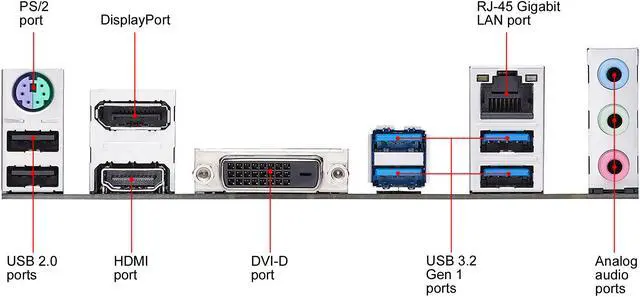

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s)

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x CPU Fan connector(s) (1 x 4-pin) 1 x CPU OPT Fan connector(s) (1 x 4-pin) 2 x Chassis Fan connector(s) (2 x 4-pin) 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x SPI TPM header 1 x LPT header 1 x S/PDIF out header(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 9.2"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s)

Features
Features	Software Features: ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update AI Charger ASUS CPU-Z DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Special Features: ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS Safeslot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM ASUS Sync - Standard RGB header(s) BIOS: 128MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 10 64-bit

Packaging
Package Contents	Accessories: User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD

Additional Information
First Listed on Newegg	June 01, 2020

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
