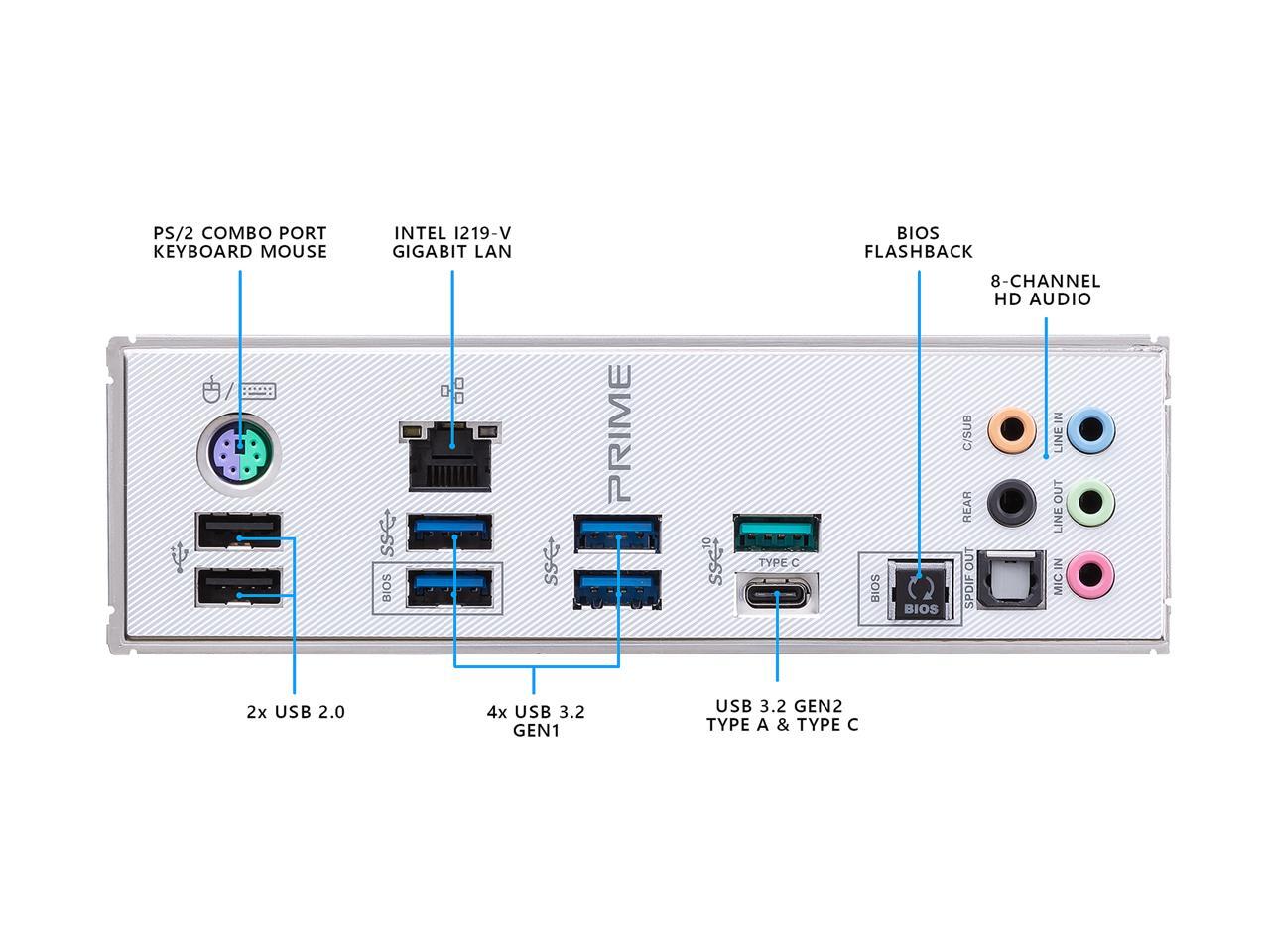

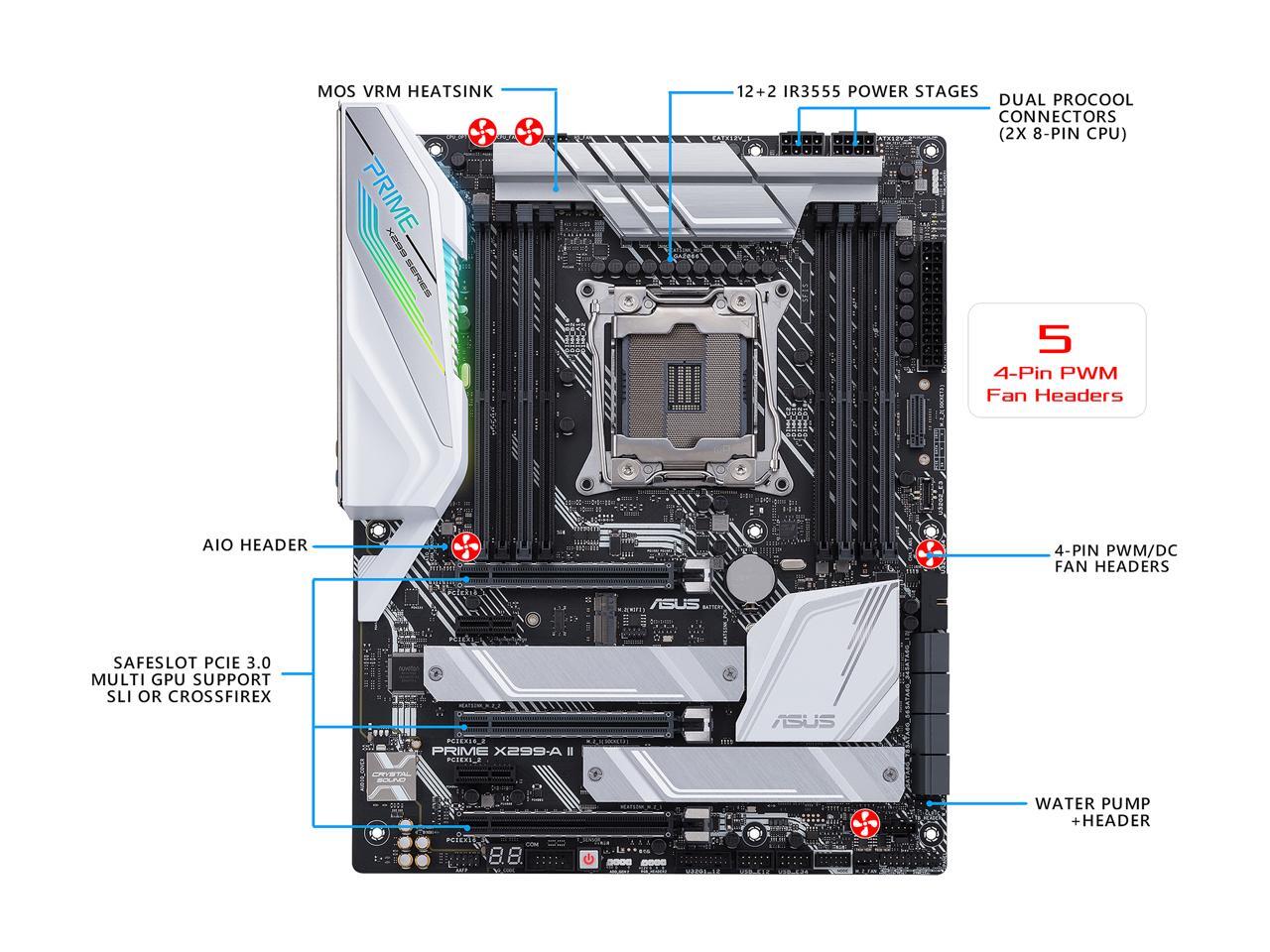

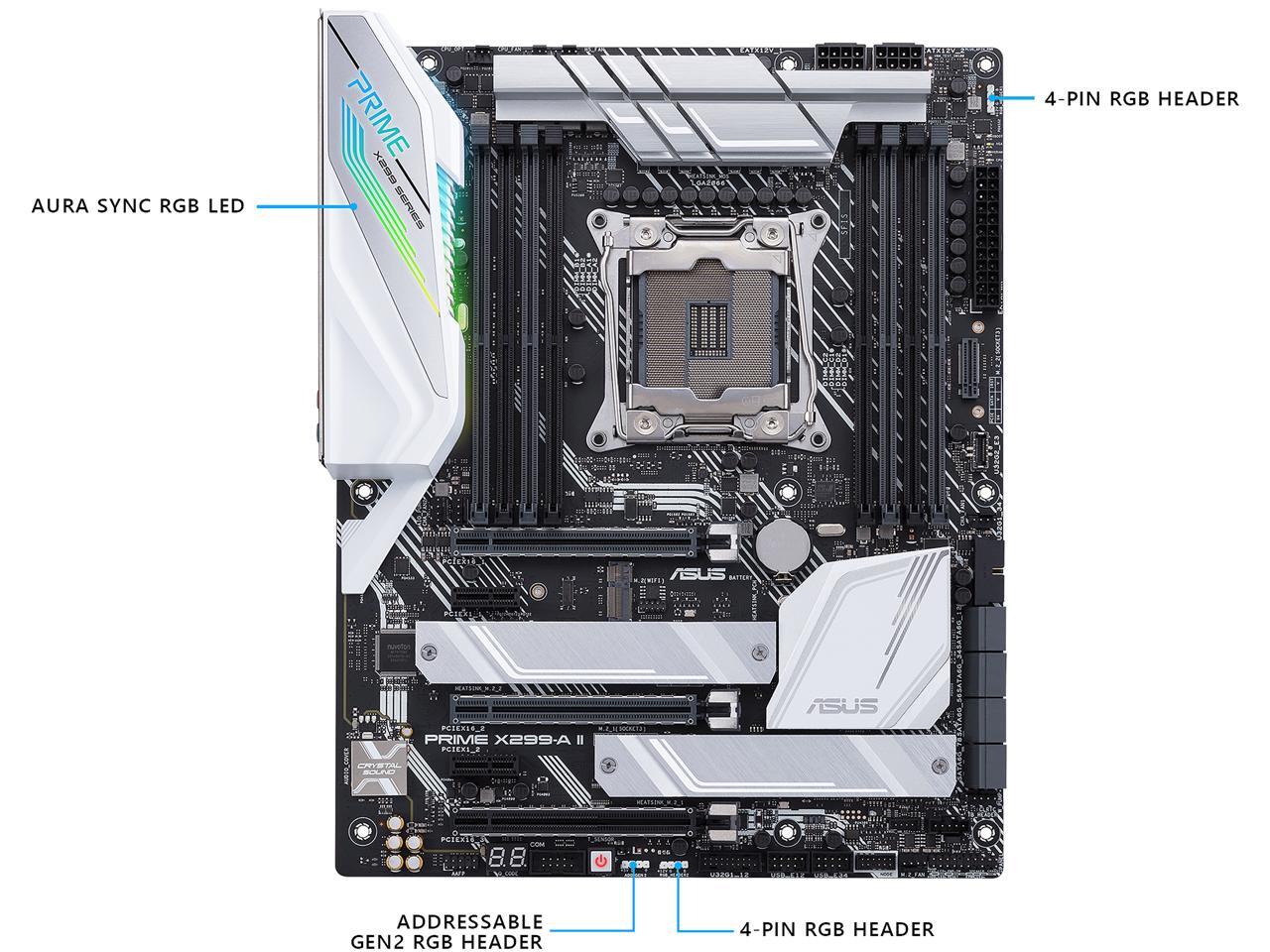

Main image of ASUS Prime X299-A II LGA 2066 Intel X299 ATX Intel Motherboard

Alt view image 2 of 7 - ASUS Prime X299-A II LGA 2066 Intel X299 ATX Intel Motherboard

Alt view image 3 of 7 - ASUS Prime X299-A II LGA 2066 Intel X299 ATX Intel Motherboard

Alt view image 4 of 7 - ASUS Prime X299-A II LGA 2066 Intel X299 ATX Intel Motherboard

Alt view image 5 of 7 - ASUS Prime X299-A II LGA 2066 Intel X299 ATX Intel Motherboard

Alt view image 6 of 7 - ASUS Prime X299-A II LGA 2066 Intel X299 ATX Intel Motherboard

Alt view image 7 of 7 - ASUS Prime X299-A II LGA 2066 Intel X299 ATX Intel Motherboard

Customer images

Shop All ASUS Products

ASUS Prime X299-A II LGA 2066 Intel X299 ATX Intel Motherboard

Name: ASUS Prime X299-A II LGA 2066 ATX Intel Motherboard
Brand: ASUS
SKU: N82E16813119213
Rating: 4 (127 reviews)

(127)(13) Write a Review

Intel X299
Intel Socket 2066 Core X-Series Processors
DDR4 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (127)

Any questions? Our AI beta will help you find out quickly.

Try me now

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

CPU Socket Type	LGA 2066
CPU Type	Intel Socket 2066 Core X-Series Processors * Refer to www.asus.com for CPU support list
Supported CPU Technologies	Turbo Boost Technology 3.0 * The Intel Turbo Boost Max Technology 3.0 support depends on the CPU types

Number of Memory Slots	8x288pin (DDR4)
Memory Standard	DDR4 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	256GB

PCI Express 3.0 x16	44-Lane CPU: 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 28-Lane CPU: 2 x PCIe 3.0/2.0 x16 (x16, x16/x8)* * PCIeX16_3 will be disabled when using 28-lane CPU.
PCI Express x1	2 x PCIe 3.0/2.0 x1 * * PCIEX1_1 shares bandwidth with USB 3.2 Gen 2 front panel connector (U31G2_E1). It is disabled by default. * PCIEX1_2 shares bandwidth with SATA6G_7.
Other Slots	1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode* * The Wi-Fi E key shares bandwidth with PCIEX1_1. * The Wi-Fi/BT module is purchased separately.

Serial ATA (SATA)	8 x SATA 6Gb/s port(s)* * The SATA6G_7 shares bandwidth with PCIeX1_2.
M.2	Intel X299 Chipset: 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)* 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)** Intel Core i9 9000/7000 and i7 9000 X-Series CPU: 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode) * The M.2_2 socket shares bandwidth with SATA6G_1 port when using M.2 SATA devices. ** The M.2_1 PCIe mode source is from X299 Chipset when using 44 and 28-lane CPU.
Intel Optane Ready	Yes * The M.2 PCIE mode source from X299 Chipset supports Intel Optane Memory
SATA RAID	0/1/5/10

Audio Chipset	Realtek S1220A High Definition Audio CODEC
Audio Channels	8 Channels

ASUS Prime X299-A II LGA 2066 Intel X299 ATX Intel Motherboard

Learn more about the ASUS X299-A II

Customer Reviews of the ASUS X299-A II

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Onboard USB	1 x USB 3.2 Gen 2 front panel connector 2 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x Aura Addressable Strip Header(s) 1 x AAFP connector 2 x Aura RGB Strip Header 1 x M.2_FAN connector 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x AIO_PUMP connector 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x CPU_OV jumper 1 x Q-Code

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 2 x 8-pin EATX 12V Power connectors

Model
Brand	ASUS
Series	Prime
Model	X299-A II

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps
