ASUS PRIME X470-PRO - Motherboard - ATX - Socket AM4 - AMD X470 - USB 3.1 Gen 1, USB 3.1 Gen 2, USB-C Gen1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Learn more about the ASUS Prime X470-Pro
Model
Brand
ASUS
Model
Prime X470-Pro
Supported CPU
CPU Socket Type
AM4
CPU Type
AMD AM4 Socket AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation / 7th Generation A-series/Athlon X4 Processors * Refer to www.asus.com for CPU support list
AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors2 x PCIe 3.0 x16 (x16 or dual x8)AMD Ryzen with Radeon Vega Graphics / 7th Generation A-Series/Athlon X4 Processors1 x PCIe 3.0 x16 (x8 mode)
PCI Express 2.0 x16
1 x PCI Express 2.0 x16 slots (max. at x4 mode)** PCIeX16_3 slot shares bandwidth with PCIeX1_1 and PCIeX1_3.
PCI Express x1
3 x PCI Express 2.0 x1 slot
Storage Devices
Serial ATA (SATA)
6 x SATA 6Gb/s
M.2
AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors:1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)AMD 7th Generation A-Series/Athlon X4 Processors:1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)AMD X470 chipset:1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x2 mode)** The M.2_2 socket shares PCIe clock with PCIe x1_1. When PCIe x1_1 or PCIe x1_3 is occupied, the M.2_2 socket can only support SATA mode.
SATA RAID
0/1/10
Onboard Video
Onboard Video Chipset
Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics / 7th Generation A-Series APUMulti-VGA output support: HDMI/DisplayPort ports- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 HzMaximum shared memory of 2048MB (for iGPU exclusively)
Onboard Audio
Audio Chipset
Realtek S1220A high definition audio CODEC featuring Crystal Sound 3
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Intel i211AT
Max LAN Speed
1Gbps

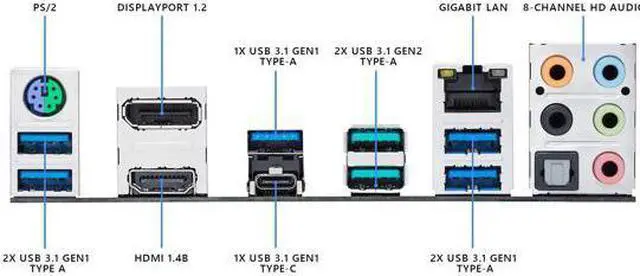

Rear Panel Ports
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 2 (teal blue) Type-A1 x USB 3.1 Gen 1 USB Type-C5 x USB 3.1 Gen 11 x Optical S/PDIF out5 x Audio jack(s)
Internal I/O Connectors
Onboard USB
1 x USB 3.1 Gen 2 front panel connector1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors
2 x Aura RGB Strip Headers1 x CPU Fan connector(s) (1 x 4-pin)1 x CPU OPT Fan connector(s) (1 x 4-pin)3 x Chassis Fan connector(s) (2 x 4-pin)1 x AIO_PUMP connector (1 x 4-pin)1 x W_PUMP+ connector (1 x 4-pin)1 x Front panel audio connector(s) (AAFP)1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)1 x Clear CMOS jumper(s)1 x 14-1-pin TPM connector1 x COM port header1 x T_Sensor Connector
Physical Spec
Form Factor
ATX

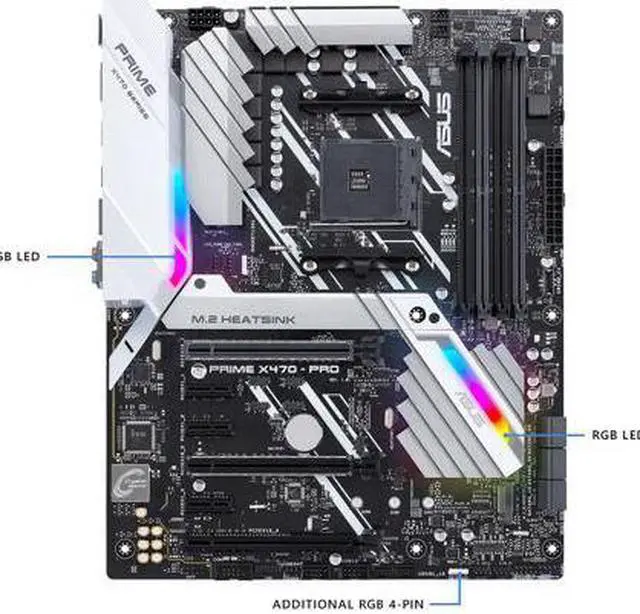

LED Lighting
RGB
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)
Features
Features
Multi-GPU Support:AMD Ryzen 2nd Generation / Ryzen 1st Generation ProcessorsSupports NVIDIA 2-Way SLI TechnologySupports AMD CrossFireX TechnologyAMD Ryzen with Radeon Vega Graphics / AMD 7th Generation A-Series/Athlon X4 ProcessorsSupports AMD CrossFireX TechnologySpecial Features:5-Way Optimization by Dual Intelligent Processors 5Fan Xpert4- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling controlASUS 5X Protection III:- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM: 10 Phase digital power design- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention- ASUS ESD Guards - Enhanced ESD protectionASUS TPU:- Auto TuningASUS EPU:- EPUAURA:- Aura Lighting ControlASUS Exclusive Features:- AI Suite 3- Ai Charger- Turbo LANASUS Quiet Thermal Solution:- Stylish Fanless Design Heat-sink solution & MOS Heatsink- ASUS Fan Xpert 4ASUS EZ DIY:- ASUS CrashFree BIOS 3- ASUS EZ Flash 3ASUS Q-Design:- ASUS Q-Shield- ASUS Q-Slot- ASUS Q-DIMM- ASUS Q-ConnectorTurbo APP- featuring system performance tuning for selected applicationsBIOS:256MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory informationManageability:WOL by PME, PXEOperating System:Windows 10 64-bit
Packaging
Package Contents
Accessories:User's manualASUS Q-Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x SLI HB BRIDGE (2-WAY-M)1 x Q-connector(s) (1 in 1)
Additional Information
First Listed on Newegg
June 30, 2024
Customer Reviews of the ASUS Prime X470-Pro
There are no reviews yet.
Do you own this product?
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
