Main image of ASUS Prime Z390-A LGA 1151 (300 Series) Intel Z390 ATX Intel Motherboard

Alt view image 2 of 6 - ASUS Prime Z390-A LGA 1151 (300 Series) Intel Z390 ATX Intel Motherboard

Alt view image 3 of 6 - ASUS Prime Z390-A LGA 1151 (300 Series) Intel Z390 ATX Intel Motherboard

Alt view image 4 of 6 - ASUS Prime Z390-A LGA 1151 (300 Series) Intel Z390 ATX Intel Motherboard

Alt view image 5 of 6 - ASUS Prime Z390-A LGA 1151 (300 Series) Intel Z390 ATX Intel Motherboard

Alt view image 6 of 6 - ASUS Prime Z390-A LGA 1151 (300 Series) Intel Z390 ATX Intel Motherboard

Customer images

Shop All ASUS Products | Visit Roboshine Store

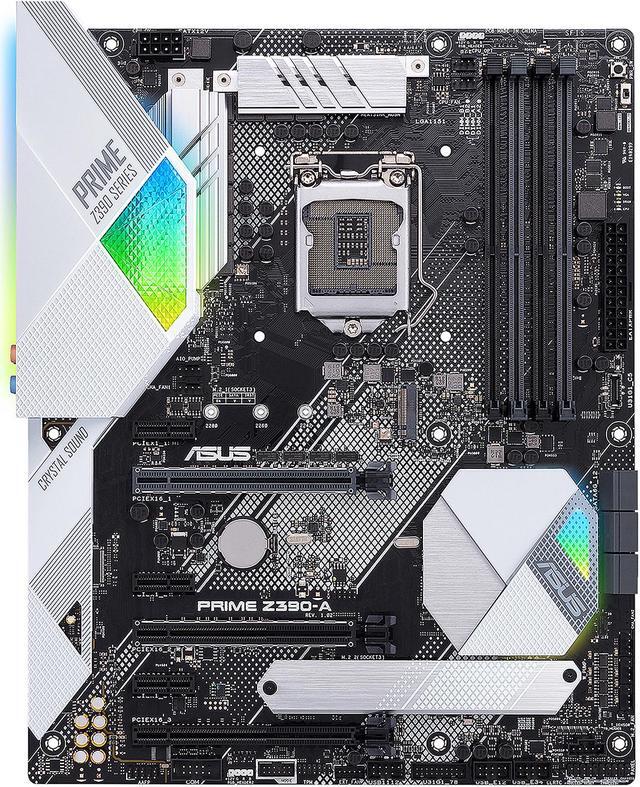

ASUS Prime Z390-A LGA 1151 (300 Series) Intel Z390 ATX Intel Motherboard

Name: ASUS Prime Z390-A LGA 1151 (300 Series) ATX Intel Motherboard
Brand: ASUS
SKU: N82E16813119152
Price: 125.38 USD
Availability: InStock
Rating: 4 (1163 reviews)

(1,163)(38) Write a Review

Option: Prime Z390-A

Prime Z390-A
Prime Z390-P
ROG Maximus XI Apex
ROG Maximus XI Code
ROG Maximus XI Extreme
ROG Maximus XI Formula
ROG Maximus XI Gene
ROG Maximus XI Hero (Wi-Fi)
ROG Strix Z390-E Gaming
ROG Strix Z390-F Gaming
ROG Strix Z390-H Gaming
ROG Strix Z390-I Gaming
TUF Z390-Plus Gaming
TUF Z390-Plus Gaming (Wi-Fi)
TUF Z390M-Pro Gaming (Wi-Fi)
WS Z390 PRO

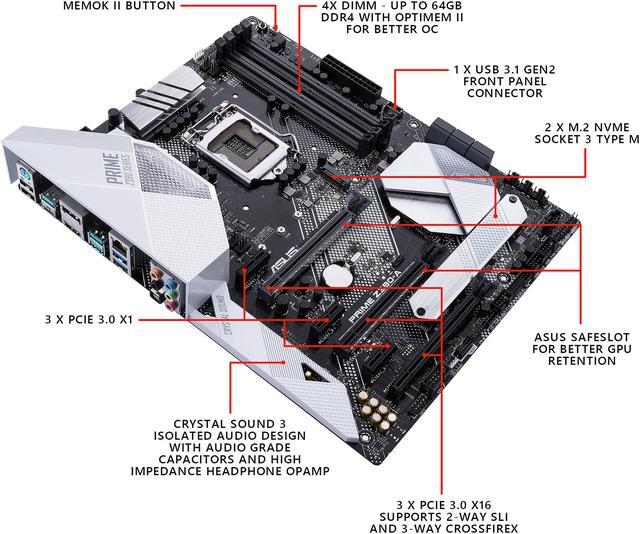

Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with M.2, USB 3.1 Gen2 and ASUS OptiMem II for better DRAM overclocking stability
Revamped 5-Way Optimization with 1-click OC, that has the intelligence to overclock a CPU based on smart prediction and thermal telemetry
5X Protection III Hardware-level safeguards with SafeSlot Core, LANGuard and Overvoltage Protection provide component longevity and reliability while FanXpert 4 with AIO Pump Header delivers advanced fan control for dynamic system cooling
Unique SafeSlot Core fortified PCIe slots prevent damage caused by heavyweight GPUs
Realtek ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3

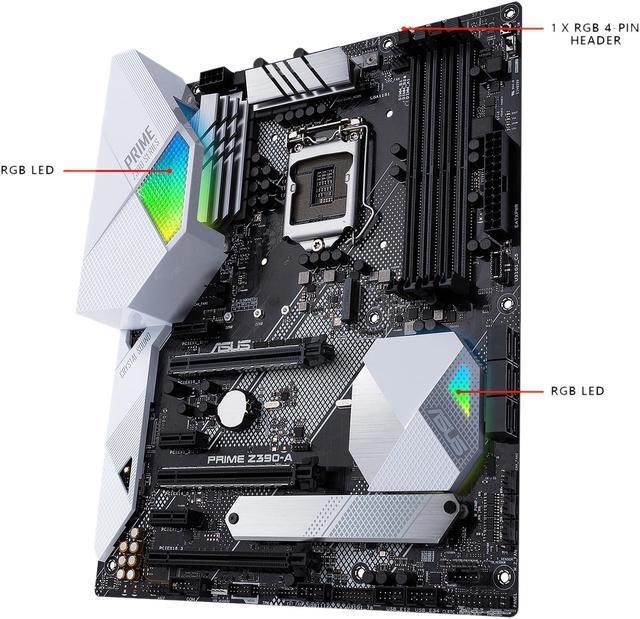

AURA Sync RGB

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (1,163)

Any questions? Our AI beta will help you find out quickly.

Try me now

Designed for 9th generation Intel Core processors, the Prime Z390-A delivers maximum performance with customizable style. 5-Way Optimization provides AI overclocking and dynamic fan calibration while dual M.2 and USB 3.1 Gen2 delivers maximum transfer speeds. Aura Sync RGB with addressable headers customize your build.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by roboshine Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Supports 9th / 8th Gen Intel Core Processors Supports Intel Pentium / Celeron Processors * Not backward compatible with older generation of LGA 1151 CPUs. * Refer to www.asus.com for Intel CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0* * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2666 / 2400 / 2133 * * The maximum memory frequency supported varies by processor. * Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	3 x PCI Express 3.0 x16* * PCIEX16_1 slot supports up to 3 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card. * PCIEX16_2 slot supports up to 2 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card. * Hyper M.2 X16 series card sold separately. Install a Hyper M.2 X16 series card and enable this card under BIOS settings. * The PCIe x16_3 slot shares bandwidth with SATA_5 and SATA_6. The PCIe x16_3 is default set at x2 mode.
PCI Express x1	3 x PCI Express 3.0 x1

Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)* * The M.2_1 socket shares bandwidth with SATA_2 port when using M.2 SATA devices. Adjust BIOS settings to use a SATA device.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Audio Chipset	Realtek ALC S1220A High Definition Audio CODEC featuring Crystal Sound 3
Audio Channels	8 Channels

Best Sellers

Meet Your Seller

ASUS Prime Z390-A LGA 1151 (300 Series) Intel Z390 ATX Intel Motherboard

Learn more about the ASUS Prime Z390-A

Customer Reviews of the ASUS Prime Z390-A

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Onboard USB	1 x USB 3.1 Gen 1 front panel Type-C connector 1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
Other Connectors	2 x Aura RGB Strip Headers 1 x TPM header 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x CPU OPT Fan connector(s) (1 x 4-pin) 2 x Chassis Fan connector(s) (2 x 4-pin) 1 x AIO_PUMP connector (1 x 4-pin) 1 x W_PUMP+ connector 1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x MemOK! II switch(es) 1 x CPU OV 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x EXT_Fan header 1 x Thermal sensor connector 1 x M.2 Fan Header

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s)

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps
