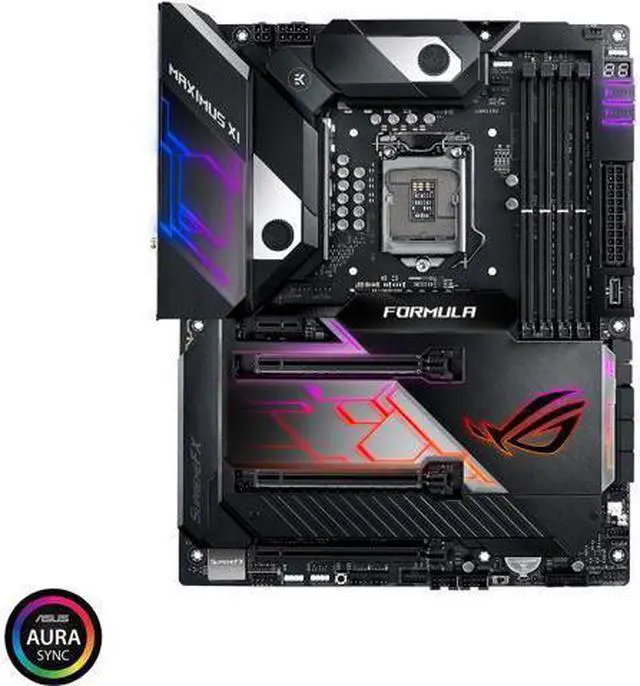

Main image of ASUS ROG Maximus XI Formula Z390 Gaming Motherboard LGA1151 (Intel 8th and 9th Gen) ATX DDR4 HDMI M.2 USB 3.1 Gen2 Onboard 802.11 ac Wi-Fi

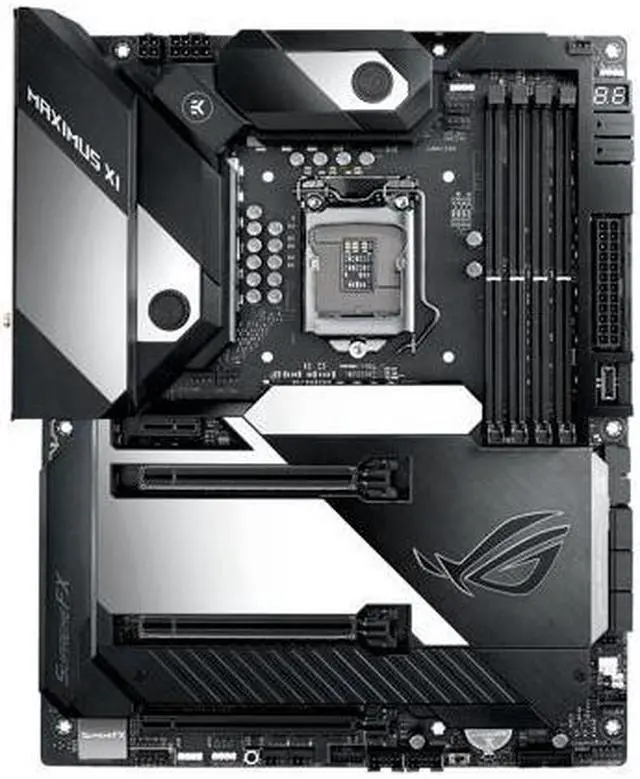

Alt view image 2 of 7 - ASUS ROG Maximus XI Formula Z390 Gaming Motherboard LGA1151 (Intel 8th and 9th Gen) ATX DDR4 HDMI M.2 USB 3.1 Gen2 Onboard 802.11 ac Wi-Fi

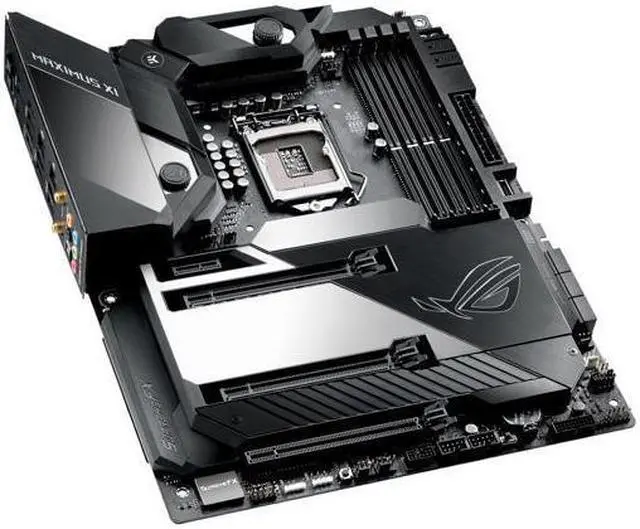

Alt view image 3 of 7 - ASUS ROG Maximus XI Formula Z390 Gaming Motherboard LGA1151 (Intel 8th and 9th Gen) ATX DDR4 HDMI M.2 USB 3.1 Gen2 Onboard 802.11 ac Wi-Fi

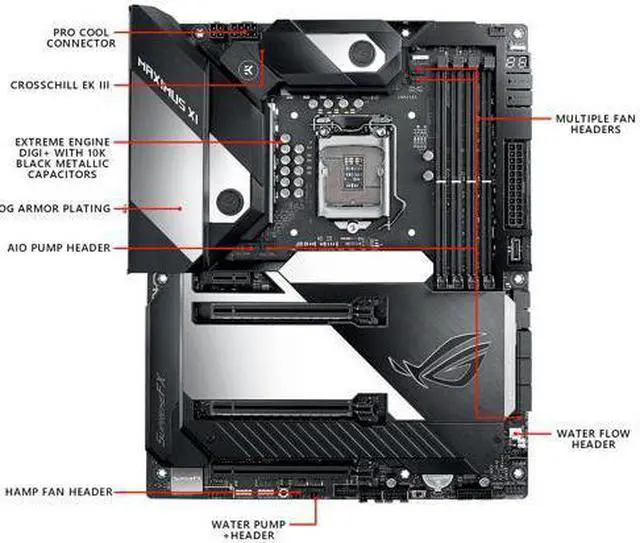

Alt view image 4 of 7 - ASUS ROG Maximus XI Formula Z390 Gaming Motherboard LGA1151 (Intel 8th and 9th Gen) ATX DDR4 HDMI M.2 USB 3.1 Gen2 Onboard 802.11 ac Wi-Fi

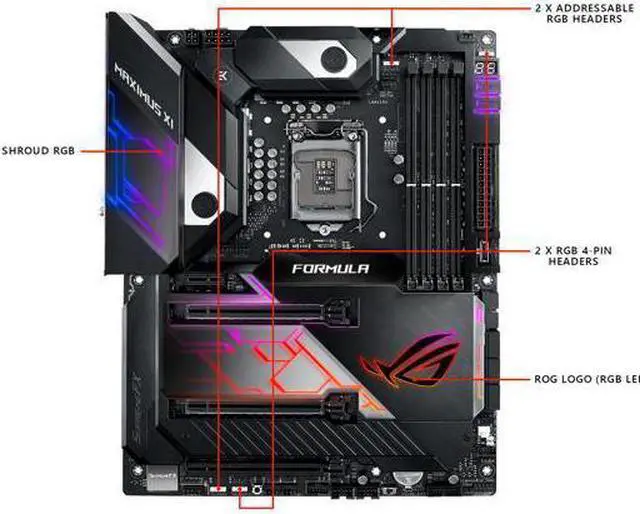

Alt view image 5 of 7 - ASUS ROG Maximus XI Formula Z390 Gaming Motherboard LGA1151 (Intel 8th and 9th Gen) ATX DDR4 HDMI M.2 USB 3.1 Gen2 Onboard 802.11 ac Wi-Fi

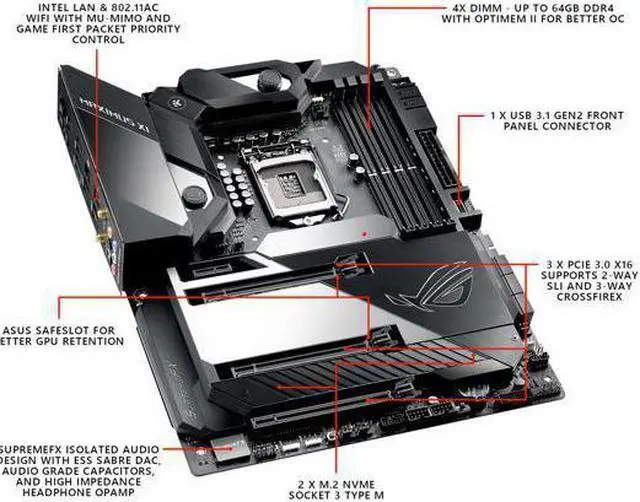

Alt view image 6 of 7 - ASUS ROG Maximus XI Formula Z390 Gaming Motherboard LGA1151 (Intel 8th and 9th Gen) ATX DDR4 HDMI M.2 USB 3.1 Gen2 Onboard 802.11 ac Wi-Fi

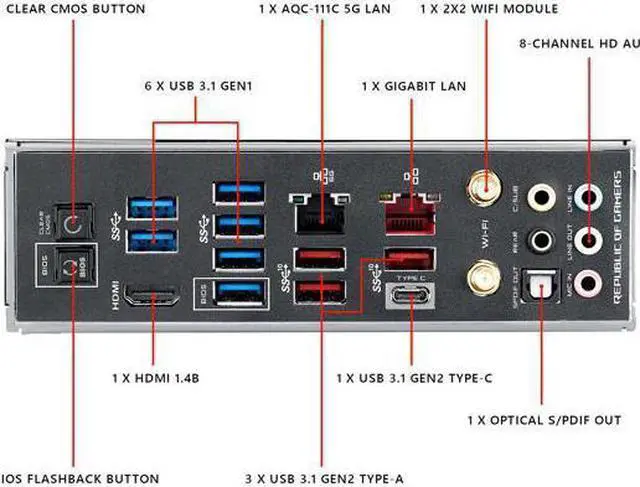

Alt view image 7 of 7 - ASUS ROG Maximus XI Formula Z390 Gaming Motherboard LGA1151 (Intel 8th and 9th Gen) ATX DDR4 HDMI M.2 USB 3.1 Gen2 Onboard 802.11 ac Wi-Fi

Shop All ASUS Products | Visit Glacier Electron Store

ASUS ROG Maximus XI Formula Z390 Gaming Motherboard LGA1151 (Intel 8th and 9th Gen) ATX DDR4 HDMI M.2 USB 3.1 Gen2 Onboard 802.11 ac Wi-Fi

Name: ASUS ROG Maximus XI Formula Z390 Gaming Motherboard LGA1151 (Intel 8th and 9th Gen) ATX DDR4 HDMI M.2 USB 3.1 Gen2 Onboard 802.11 ac Wi-Fi
Brand: ASUS
SKU: 1JW-000C-010R9
Rating: 5 (1 reviews)

REFURBISHED

(1) Write a Review

Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with dual M.2, USB 3.1 Gen 2, onboard 802.11 ac Wi-Fi and ASUS OptiMem II for better DRAM overclocking stability
Revamped 5-Way Optimization overclocks intelligently based on smart prediction and thermal telemetry while FanXpert 4 delivers dynamic system cooling
Dedicated water cooling headers and built-in CrossChill EK III water block allow monitoring of water temperature and flow without a standalone controller
Aura Sync RGB lighting with addressable headers features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products
Pre-mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (1)

Memory Standard: DDR4 4400+(O.C.)*/ 4266(O.C.)*/ 4133(O.C.)*/ 4000(O.C.)*/ 3866(O.C.)*/ 3733(O.C.)*/ 3600(O.C.)*/ 3466(O.C.)*/ 3400(O.C.)*/ 3333(O.C.)*/ 3300(O.C.)*/ 3200(O.C.)*/ 3000(O.C.)*/ 2800(O.C.)*/ 2666/ 2400/ 2133 MHz* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Number of Memory Slots: 4x288pin (DDR4)
Audio Chipset: ROG SupremeFX High Definition Audio S1220 CODEC
PCI Express 3.0 x16: Intel Socket 1151 for Intel Core 9000 series, 8th Generation Core i7/i5/i3, Pentium and Celeron processors2 x PCIe 3.0 x16 slots (supports x16, x8/x8, x8/x4+x4)Intel Z390 Chipset1 x PCIe 3.0 x16 slot (max. at x4 mode)** The PCIe x16_3 slot shares bandwidth with SATA6G_56 ports. PCIe x16_3 slot is set at x2 mode by default.
Onboard Video Chipset: Integrated Graphics Processor - Intel UHD Graphics supportVG...

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: non-replaceable
This item is covered by Glacier Electron Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 * Intel Turbo Boost Technology 2.0 depends on the CPU type

Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 (PCIe 3.0 x4 and SATA modes)1 x M.2 Socket 3 with M key, type 2242/2260/2280 (PCIe 3.0 x4 mode) When M.2_1 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.** When an 22110 M.2 SSD is installed in M.2_1, M.2_2 will be limited to an 2242 M.2 SSD.
SATA RAID	0/1/5/10

LAN Chipset	1 x Aquantia AQC111C 5G LAN
Second LAN Chipset	Intel I219V
Max LAN Speed	5Gbps + 1Gbps
Wireless LAN	Intel Wireless-AC 95602x2 Wi-Fi with MU-MIMO 802.11 a/b/g/n/ac supports dual frequency band 2.4/5 GHzSupports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73 Gbps transfer speed
Bluetooth	Bluetooth v5.0

HDMI	1 x HDMI 1.4b
RJ45	1 x AQC-111C 5G LAN port 1 x Anti-surge LAN (RJ45) port
USB 3.1	6 x USB 3.1 Gen 1 ports [blue] 3 x USB 3.1 Gen 2 ports Type-A [red]
USB Type-C	1 x USB 3.1 Gen 2 port Type-C [black]
S/PDIF Out	1 x Optical
Audio Ports	5 x Gold-plated audio jacks
Antenna Connectors	1 x 2x2 Wi-Fi module

Onboard USB	1 x USB 3.1 Gen2 front panel connector 2 x USB 3.1 Gen1 connectors support 4 USB 3.1 Gen1 ports 2 x USB 2.0 connectors support 4 USB 2.0 ports
Other Connectors	1 x NODE connector1 x 4-Pin CPU_FAN connector 1 x 4-Pin CPU_OPT fan connector 3 x 4-Pin Chassis fan connectors 1 x 5-pin EXT_FAN connector 1 x 4-Pin H_AMP fan connector 1 x 4-pin W_PUMP+ connector 1 x 2-pin W_IN connector 1 x 2-pin W_OUT connector 1 x 3-pin W_FLOW connector 1 x 4-pin AIO_PUMP connector 1 x T_ SENSOR connector 2 x AURA addressable headers 2 x AURA RGB strip headers 1 x Start button 1 x Reset button 1 x ReTry button 1 x MemOK!_II switch 1 x Front panel audio connector (AAFP) 1 x System panel connector

Meet Your Seller

ASUS ROG Maximus XI Formula Z390 Gaming Motherboard LGA1151 (Intel 8th and 9th Gen) ATX DDR4 HDMI M.2 USB 3.1 Gen2 Onboard 802.11 ac Wi-Fi

Refurbished

Learn more about the ASUS Maximus XI Formula

Customer Reviews of the ASUS Maximus XI Formula

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4400+(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	Intel Socket 1151 for Intel Core 9000 series, 8th Generation Core i7/i5/i3, Pentium and Celeron processors2 x PCIe 3.0 x16 slots (supports x16, x8/x8, x8/x4+x4)Intel Z390 Chipset1 x PCIe 3.0 x16 slot (max. at x4 mode)** The PCIe x16_3 slot shares bandwidth with SATA6G_56 ports. PCIe x16_3 slot is set at x2 mode by default.
PCI Express x1	1 x PCIe 3.0 x1 slot

Audio Chipset	ROG SupremeFX High Definition Audio S1220 CODEC
Audio Channels	8 Channels* Due to limitations in HDA bandwidth, 32-Bit /192 kHz is not supported for 8-Channel audio.

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX power connector 1 x 8-pin EATX 12V power connector 1 x 4-pin EATX 12V power connector
