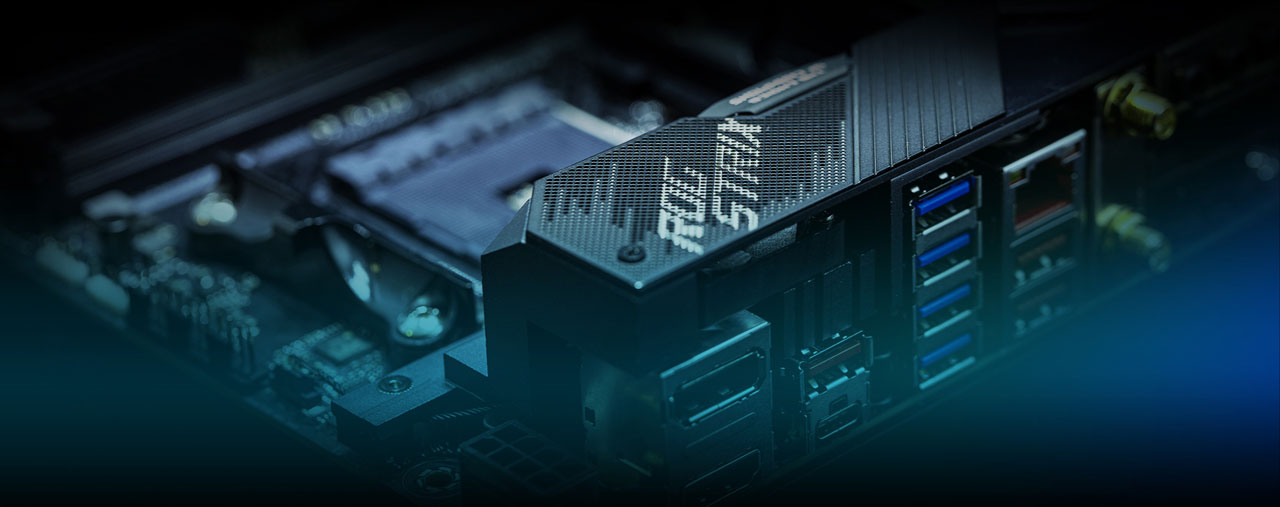

Asus ROG Strix X570-I Gaming
AMD X570 mini-ITX gaming motherboard that supports the latest AMD Ryzen processors including Ryzen 9 3950X featuring 16 cores and 32 threads. Despite its compact mini ITX form factor, this board is packed with performance and features expected from X570 platform, such as PCIe 4.0 connectivity, two M.2 slots, USB 3.2?Gen2, Wi-Fi 6 (802.11ax), and Gigabit Ethernet. Asus Aura Sync RGB offers you the ability to customize and synchronize lighting across a variety of components and peripherals. Its large area heatsinks and revolutionary miniature active cooling design efficiently work to keep temperatures down. And coupled with HDMI 2.0 and DisplayPort 1.4 for ultra-high-resolution video output, ROG Strix X570-I Gaming is solid foundation for a compact gaming powerhouse.
- AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen?2 and AMD StoreMI
- Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB header and addressable Gen 2 header
- Optimal Power Solution: 8+2 power stages with a ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
- Comprehensive cooling design: VRM and chipset heatsinks add mass to help absorb more heat and feature miniature fans, an embedded chipset heatpipe, an M.2 heatsink and an aluminum backplate with cyber-text pattern
- Gaming connectivity: Supports PCIe 4.0, HDMI 2.0 and DisplayPort 1.4 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
- Gaming networking: Intel Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO support, and gateway teaming via GameFirst V
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles tailor made for your rig
- Gaming audio: High-fidelity audio with SupremeFX S1220A, DTS Sound Unbound and Sonic Studio III to draw you deeper into the action
- Gamer’s Guardian: ASUS SafeSlot and premium components for maximum endurance
Effective cooling is extremely important, so ROG Strix X570-I Gaming provides comprehensive cooling features that enable higher performance at lower temperatures.
1. Thermal Pad
High-quality thermal pads up to 6W/mK help transfer heat to the heatsinks.
2. VRM Heatsink
A VRM heatsink provides a large contact area for the MOSFETs and chokes, and an integrated fan enables more efficient cooling for better performance and wattage resistance.
3. Active Chipset Heatsink
PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. ROG Strix X570-I Gaming features an actively cooled heatsink to prevent throttling during sustained transfers.
The small, strong backplate prevents the motherboard from bending and bowing, ensuring that the voltage-regulator module's MOSFETs stay in direct contact for uninterrupted cooling and stable temperatures.
5. 8-Layer PCB
The 8-layer PCB quickly dissipates heat around the VRM, improving overall system stability and giving the CPU more overclocking headroom.
6. M.2 Heatsink
The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
Active Chipset & VRM Heatsink
Dual Custom Delta Superflo Fans
The custom low-noise fans features a high-durability bearing with a 60,000-hour L10* lifespan.
* L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearing are expected to continue successfully operating, as a minimum.
A heatpipe enables more efficient cooling of the chipset heatsink for better performance by transferring heat away from the chipset.
The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.
Cooler by Design
ROG Strix X570 Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS
With upgraded power delivery to fuel high-core-count Ryzen CPUs, plus faster storage and networking, ROG Strix X570-I Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.
Digital power control and an array of power stages ensures ROG Strix X570-I Gaming has the muscle to control the latest AMD Ryzen CPUs.
Up to DDR4 4800 + Mhz (O.C.)
ASUS OptiMem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies and lower latencies.
DUAL PCIE 4.0 M.2
Dual PCIe 4.0 M.2 slots support up to type 2280 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.
Wi-Fi 6 (802.11 AX)
ROG Strix X570-I Gaming amps up networking with Intel Gigabit Ethernet and next-gen Intel Wi-Fi 6 (802.11ax) that takes your LAN to the next level. With ROG GameFirst software that offers multi-gate teaming, you'll enjoy the very best online gaming experience.
Intel Gigabit Ethernet
ROG Strix X570-I Gaming features Intel Ethernet (I211-AT), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.
Shielded Audio, Superior Sound
Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.
The arrival of ROG Strix X570-I Gaming brings a brand-new design that features unique mesh and cyber-text patterns. Together with the most diverse ecosystem of components in the industry, ROG Strix X570-I Gaming makes creating and customizing a gaming rig that reflects your personal style wonderfully easy.
Striking New Design
ROG Strix X570-I Gaming boasts a striking new design with an intricate rainfall pattern that cuts diagonally across the I/O and, along with the iconic ROG logo, is infused with Aura RGB lighting that glows in a brilliant array of vibrant colors. Futuristic cyber-text patterns provide an additional stylish accent, rounding out a design that proudly proclaims the board's gaming identity.

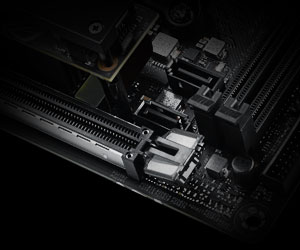

Provides stronger PCIe device retention and greater shearing resistance.
The front-panel header lets you customize the reset button on the front-panel of your chassis to provide quick access to your choice of Aura lighting controls, DirectKey or system reset.
Onboard LEDs to indicate the power status, and problems with the CPU, memory, graphics card or boot device for quick diagnosis.
Included extension cables feature a unique design that allows you to connect them without cramping your hands and minimizes the risk of nicks and cuts inside small cases.
To Swap or secure your graphic cards.

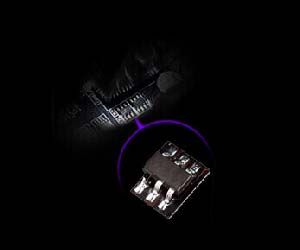

2X greater electrostatic protection than the industry standard. ESD Guards cover the USB, audio and LAN ports.
1-sided clips for super-simple, super-secure handling of memory modules.
Outshine the Competition
ROG Strix motherboards deliver sterling performance, accented by aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header—and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. That's why ROG Strix undergoes an extensive certification program focused on providing the very best compatibility with the widest range of components and devices. Our extensive list of guaranteed-compatible components is an invaluable aid to building a ROG Strix gaming rig. It specifies thousands of compatible parts, and it includes a dedicated Qualified Vendor List (QVL) for memory—so you can build fuss-free.
The ROG Strix Ecosystem Awaits
Gear up with ROG Strix components, from graphics and sound cards, to mice and keyboards, and up your game with complementary aesthetics, control and compatibility—and enjoy more choice than any competing brand.
The ROG Strix X570-I Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.
Take care of complex tuning with just one click. ASUS 5-Way Optimization makes your PC smart by dynamically optimizing essential aspects of your system, providing overclocking and cooling profiles that are tailored for your rig.
GameFirst V Network Control
GameFirst V is an ROG-exclusive tool that lets you build an ROG networking ecosystem with an ROG router. Select the best Wi-Fi channel for maximum stability and minimum interference, optimize network traffic and your connection for lag-free online gaming, team your gateways and keep tabs on bandwidth-hogging apps, all from an intuitive interface that enables easy, on-the-fly adjustments.
Sonic Studio III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process sound true to life.
Armoury Crate is a new software utility designed to give you centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for uni?ed system lighting effects. The software also provides control of settings for a select and growing number of ROG products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and ROG news areas to help you stay in touch with the ROG gaming community.
RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.
THE POWER OF AMD
AMD X570 chipset
The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen /2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI and AMD CrossFireX. It also supports x16 PCI Express 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.
AMD AM4 Socket
The high-performance 3rd Gen AMD Ryzen processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express 4.0/3.0 lanes for superb performance.
