Intelligent Cooling: VRM Dual Heat Sinks + Heat Pipes, M. 2 Double-Sided Thermal Conductivity, AI Cooling II Auto-Tuning
Learn more about the ASUS ROG STRIX Z790-A GAMING WIFI S
Model
Brand
ASUS
Model
ROG STRIX Z790-A GAMING WIFI S
Chipsets
Chipset
Intel Z790
Memory
Number of Memory Slots
4x288pin (DDR5)
Maximum Memory Supported
192GB
Channel Supported
Dual Channel
Memory Feature
Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex OptiMem II ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
Intel® Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot
PCI Express x4
1 x PCIe 4.0 x16 slot
Storage Devices
Serial ATA (SATA)
4 x SATA 6Gb/s
M.2
Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Internal I/O Connectors
Onboard USB
Rear USB (Total 12 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports) 1 x USB 20Gbps (supports USB Type-C® with up to with up to 30W PD Fast-charge ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers
Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over voltage jumper 1 x Front panel audio header (F_AUDIO) 1 x 20-3 pin system panel header with Chassis intrude function 1 x Thermal sensor header 1 x Thunderbolt™ (USB4®) header
ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - Power Saving - Sonic Studio - Two-Way AI Noise Cancelation AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyASUS USB Wattage Watcher Intel® Unison™ Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial)
UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey MemTest86
Windows 11
Windows® 11, Windows® 10 64-bit
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin main power connector 2 x 8-pin +12V power connector
Features
Features
Extreme Engine Digi+ - 5K Black metallic capacitors
ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection - Q-Slot
Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W charging - Support: USB power delivery notification with power output wattage display - Output: 5V/9V max. 3A, 12V max 2.5A - Compatible with PD3.0
Packaging

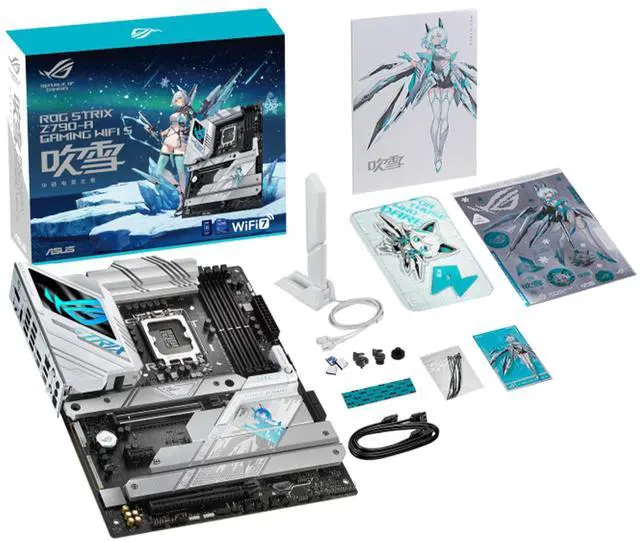

Package Contents
Cables 2 x SATA 6Gb/s cables
Additional Cooling Kit 1 x Thermal pad for M.2
Miscellaneous 1 x ASUS Wi-Fi Q-Antenna 1 x Cable ties package 1 x M.2 backplate Q-Latch package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 2 x M.2 rubber packages 1 x M.2 backplate Rubber package
Documentation 1 x Quick start guide
Additional Information
Date First Available
May 17, 2025
