Question 1

can I use my RTX 2080 super in this?

Accepted Answer

yes, that'll work.  that's only a PCI 3.0 graphics card, but the slots are backward compatible.

Question 2

Is this motherboard compatible with windows 11?

Accepted Answer

Based purely on the specs listed, as I have not built mine up yet, it is listed as Windows 11 - Supported

Question 3

What’s the fastest DDR5 sticks you had success with?  I’m thinking of getting 7200.

Accepted Answer

i'm running 7200 as well, 2x16.  However, I have to choose between that XMP profile or AI-overclocking my processor.  I get instability trying to do both.  Officially, intel 13th gen (and 14th?) only support DDR5 up to 5600 MT/s.  You're playing the silicon lottery to achieve higher speeds past their memory controller.
Without XMP turned on, my memory's default profile was only 4800... i'm not smart enough to manually override ram settings somewhere in the middle and gain an overclock  possibility for the processor.

Question 4

Is it windows 10 compatible?

Accepted Answer

I would not recommend this board for Windows 10. I was able to install Windows 10 but the network controller was not listed in device manager. Attempts to install drivers failed. Decided to try Windows 11. Once 11 booted to the desktop a box popped up saying that network drivers were preinstalled and asked if I wanted to install Armory Crate.

Question 5

Will an M2 SSD drive with it's own heatsink fit?  Or is this Z790-H motherboard only for M2 cards without heatsinks?

Accepted Answer

The big heat sink that is included is removed with two screws in order to install the SSD, so you would just not put it back on if you have your own heatsink.  The user manual is very good, you should be able to find it online and see how the 4 M2 slots can be configured.

Question 6

Does the ASUS ROG STRIX Z790-H Gaming board have tpm 2.0 chip?

Accepted Answer

yes

Question 7

Will this MOB be able to support DDR4 memory?

Accepted Answer

The ASUS ROG STRIX Z790-H Gaming motherboard supports DDR5 memory, not DDR4.

Question 8

What network chipset does it use?  Intel?  Realtek?  Something else?  Specs are glaringly vague about both wired and wifi chipset so someone please answer

Accepted Answer

The motherboard uses an Intel chipset for both wired and wireless networking. Specifically, it has an onboard Intel 2.5Gb Ethernet port and WiFi 6E (802.11ax).

Question 9

The specifications said this mobo can only use 128GB but ASUS's website said it can use to 192GB. Which is correct?

Accepted Answer

The maximum memory supported by this motherboard is 256GB.

Question 10

Will this motherboard be able to support 14th gen intel processors?

Accepted Answer

Yes, it is compatible with Intel 14th generation CPUs.

Brand	ASUS
Series	ROG
Model	ROG STRIX Z790-H GAMING WIFI
Part Number	90MB1E10-M0AAY0

CPU Socket Type	LGA 1700
CPU Type	Intel® Socket LGA1700 for 14th &13th&12th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 : 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/ ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
Memory Feature	Supports Intel Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

PCI Express 5.0 x16	Intel® 14th &13th&12th Gen Processors* 1 x PCIe 5.0 x16 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
PCI Express 4.0 x16	1 x PCI Express 4.0 x16
PCI Express x1	1 x PCI Express 3.0 x1

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Intel® 14th &13th&12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAID	0/1/5/10

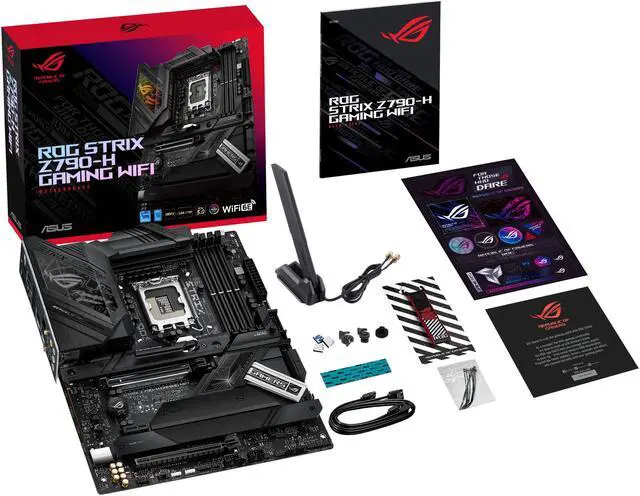

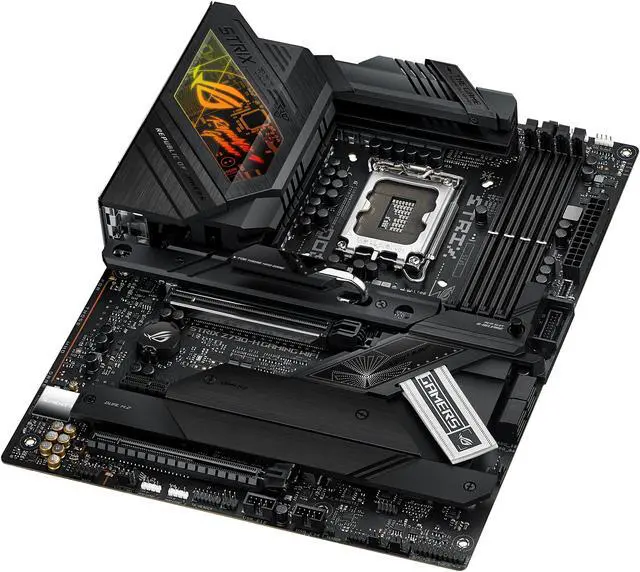

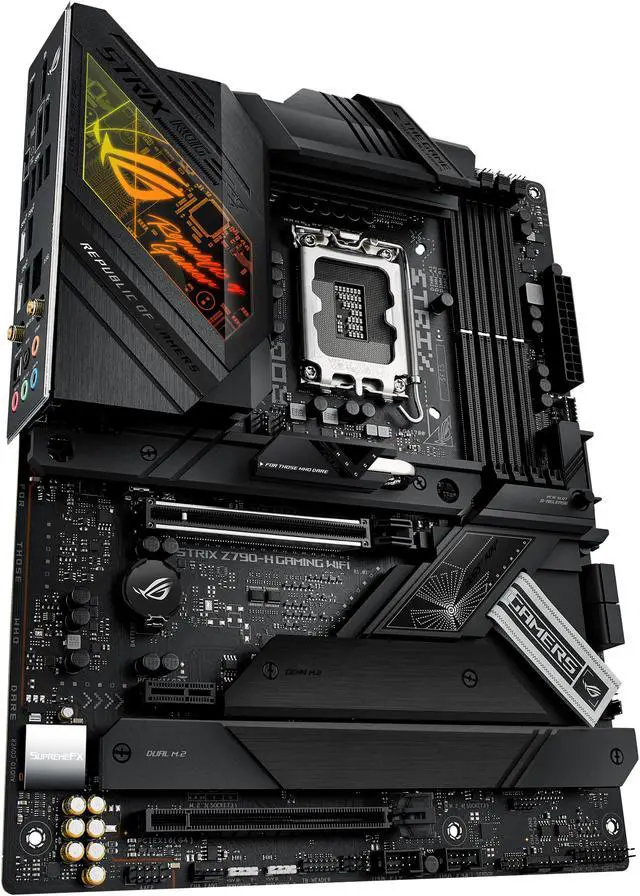

ASUS ROG STRIX Z790-H Gaming (WiFi 6E) LGA 1700(Intel14th &13th&12th Gen) ATX gaming motherboard(DDR5 up to 7800 MT/s, PCIe 5.0 x16 SafeSlot with Q-Release, 4xPCIe 4.0 M.2 slots,USB 3.2 Gen 2x2 Type-C, front-panel connector, AI Motherboard)

Learn more about the ASUS ROG STRIX Z790-H GAMING WIFI

Customer Reviews of the ASUS ROG STRIX Z790-H GAMING WIFI

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Audio Chipset	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover
Audio Channels	7.1 Channels

Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Bluetooth	Bluetooth v5.3

Onboard USB	1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header

Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector

Item#: N82E16813119635
