Question 1

I know it says 3rd-1st gen ryzen, but will it accept a Ryzen 7?

Accepted Answer

Ryzen 7 1700(3.0GHz,8C,L3:16M,65W)ALL0312GO
Ryzen 7 1700X(3.4GHz,8C,L3:16M,95W)ALL0312GO
Ryzen 7 1800X(3.6GHz,8C,L3:16M,95W)ALL0312GO
Ryzen 7 2700(3.2GHz,8C,L3:16M,65W,B2)ALL0312GO
Ryzen 7 2700E(2.8GHz,8C,L3:16M,45W,B2)ALL0312GO
Ryzen 7 2700X(3.7GHz,8C,L3:16M,105W)ALL0312GO
Ryzen 7 3700X (3.6GHz,65W,L3:32M,8C,B0)ALL1201GO
Ryzen 7 3800X (3.9GHz,105W,L3:32M,8C,B0)ALL1201GO
Ryzen 7 PRO 1700(3.0GHz,65W,L3:16M,8C,rev:B1)ALL0312GO
Ryzen 7 PRO 1700X(3.4GHz,95W,L3:16M,8C,rev:B1)Enter an answer to this question.

Question 2

Will this work with my ryzen 5 3600 out the box?

Accepted Answer

I bought this motherboard 3 months ago with a Ryzen 7 3700x and it worked out of the box. No need to update bios! The motherboard box will say "Ryzen 3000 series ready"

I believe any new board sold will already be updated and ready since these processors have been out for a while now.

Question 3

does this come with a I/O Shield?

Accepted Answer

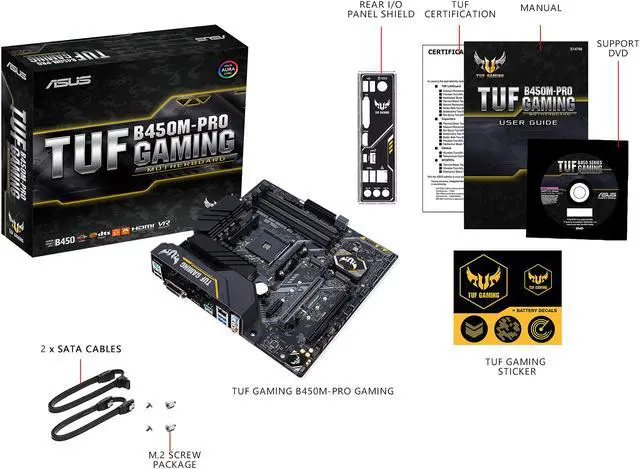

Yes. Mine did and it is uncommon for a new boards to not come with one. This listing shows the i/o shield in the images and has it listed in the "Package Contents" one the specs tab.

Question 4

will this motherboard work with ryzen 5 1600af?

Accepted Answer

Yes it does, you can check Asus’s website on the compatible CPU’s for this motherboard, but to save you the time - AMD Ryzen 5 1600AF is compatible with this motherboard.

Question 5

Can this MB boot Win 10 Pro from a Samsung 970 EVO with AMD Ryzen 5 3400G w/graphics?

Accepted Answer

I have it booting from Win 10 home with a 3200G and Samsung 970 EVO. Works just fine. I had a second 970 EVO in there that wasn't seen by the OS. I didn't know you need to go into disk management, format the drive, then set a partition. Again, this was for the second drive. The M.2 slots run at different speeds, so I would only install 1 slot first, get the OS installed on that slot, then add the second slot later.

Question 6

Does it have TPM 2.0 and is it compatible with win 11?

Accepted Answer

Check ASUS's official BIOS firmware page - version 3202 (June 2021) and onward supports Windows 11.

Question 7

what is the wattage for it?

Accepted Answer

Do you mean how many watts does the motherboard consume under full load? It is a decent rule of thumb to rate your power supply for CPU + GPU + 100W for everything else (mobo, 1-2 HDD, optical drive, and 2-4 sticks of RAM).

Question 8

Is this 6.7 X 6.7?

Accepted Answer

Don't understand the question.

Question 9

does it come with wifi?

Accepted Answer

No wifi is an add on  ,

Question 10

Has anyone used this board with the new BIOS from the ASUS support site to make it compatible with the Ryzen 5000 series, specifically the Ryzen 5 5600X?

Accepted Answer

Personally No ,,  But if you go to the Asus support page for the MoBO it will tell you what chips are supported by which Bios version and you can determine if you need to flash your board or no

Brand	ASUS
Series	TUF
Model	TUF B450M-PRO GAMING

CPU Socket Type	AM4
CPU Type	AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors

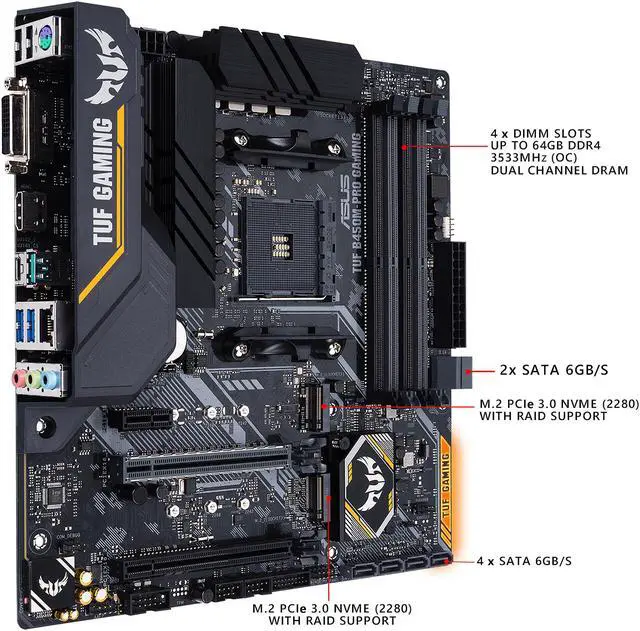

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4400(O.C.)/ 3533(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
PCI Express 2.0 x16	1 x PCIe 2.0 x16 (max at x4 mode)
PCI Express x1	1 x PCI Express 2.0 x1 slot

Serial ATA (SATA)	3rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors: 2 x SATA 6Gb/s port(s) AMD B450 chipset: 4 x SATA 6Gb/s port(s)
M.2	3rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)* AMD Athlon with Radeon Vega Graphics Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)** AMD B450 chipset: 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x2 mode)2 The M.2_1 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed. * The M.2_2 Socket shares bandwidth with the SATA_3/4 ports, and therefore the SATA_3/4 ports cannot be used when an M.2 device is installed.
SATA RAID	0/1/10

Best Sellers

Meet Your Seller

ASUS TUF B450M-PRO GAMING AMD Ryzen 3 AM4 DDR4, HDMI, Dual M.2, USB 3.1 Gen 2 and Aura Sync RGB LED Lighting Micro-ATX Motherboard

Learn more about the ASUS TUF B450M-PRO GAMING

Customer Reviews of the ASUS TUF B450M-PRO GAMING

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Audio Chipset	Realtek ALC S1200A High Definition Audio CODEC
Audio Channels	8 Channels * Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

Onboard USB	1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

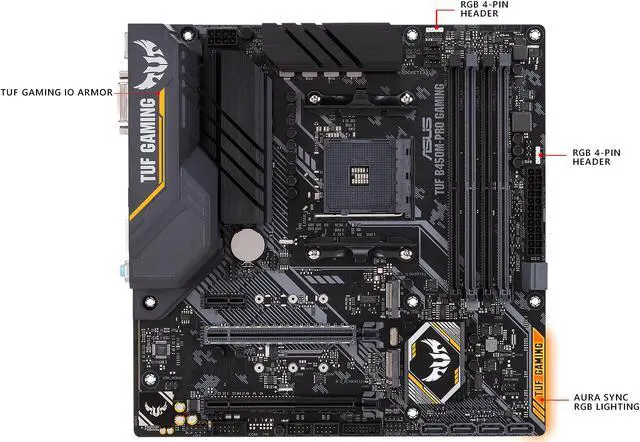

Other Connectors	2 x Aura RGB Strip Header 1 x CPU Fan connector(s) (1 x 4-pin) 2 x Chassis Fan connector(s) (2 x 4-pin) 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Speaker connector

Form Factor	Micro ATX
LED Lighting	RGB

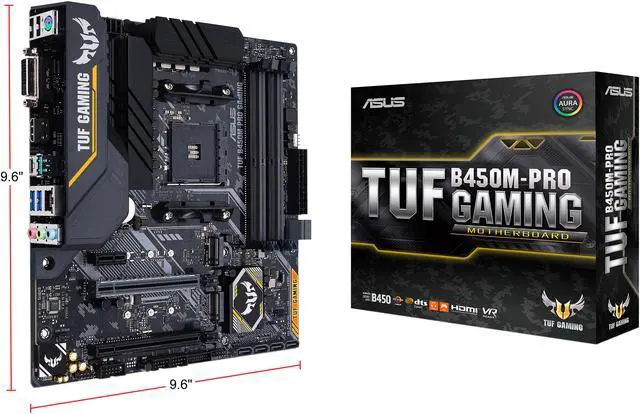

Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s)

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps

Item#: 9SIC4RPKRF5734
