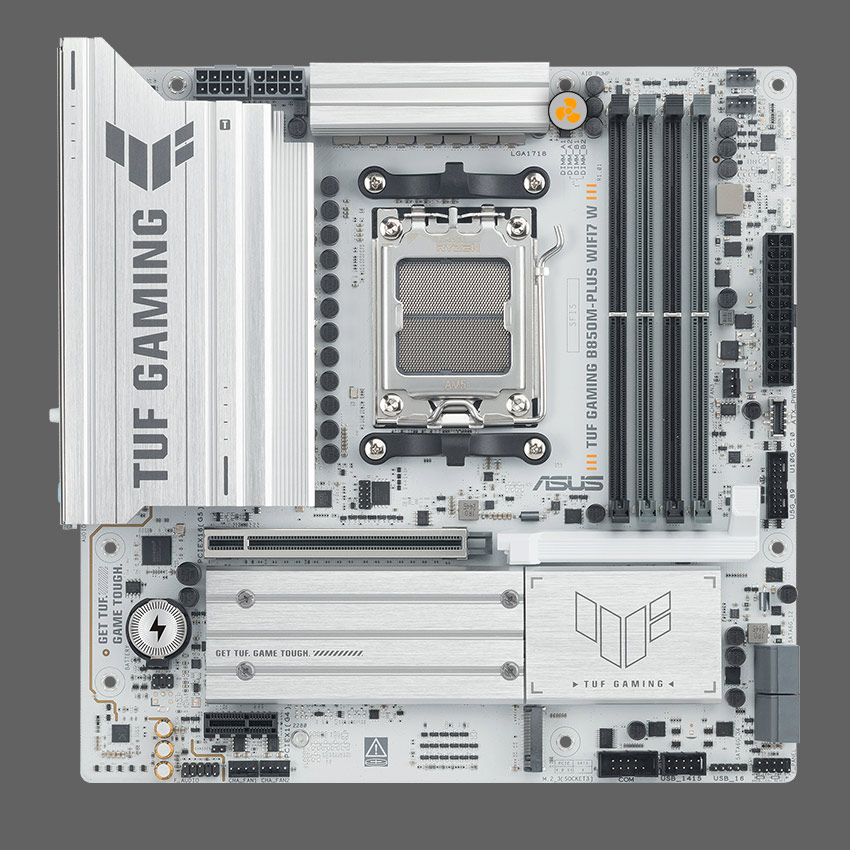

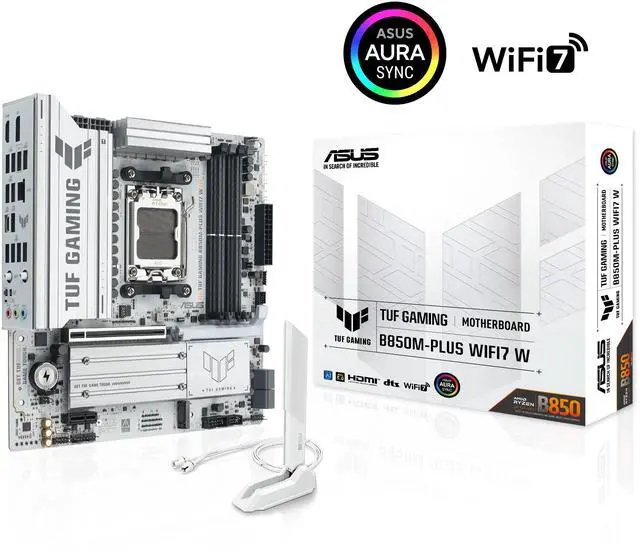

TUF GAMING

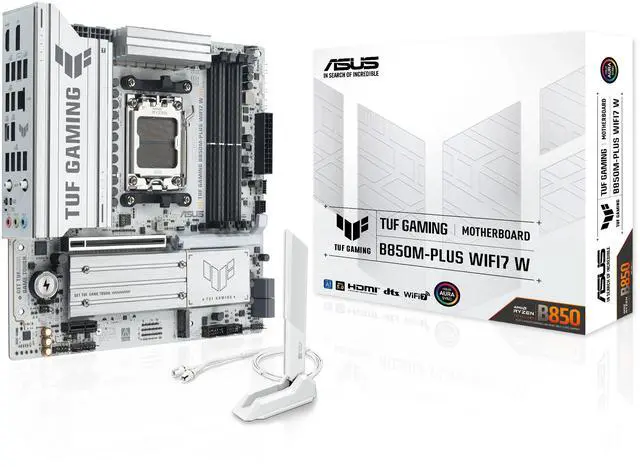

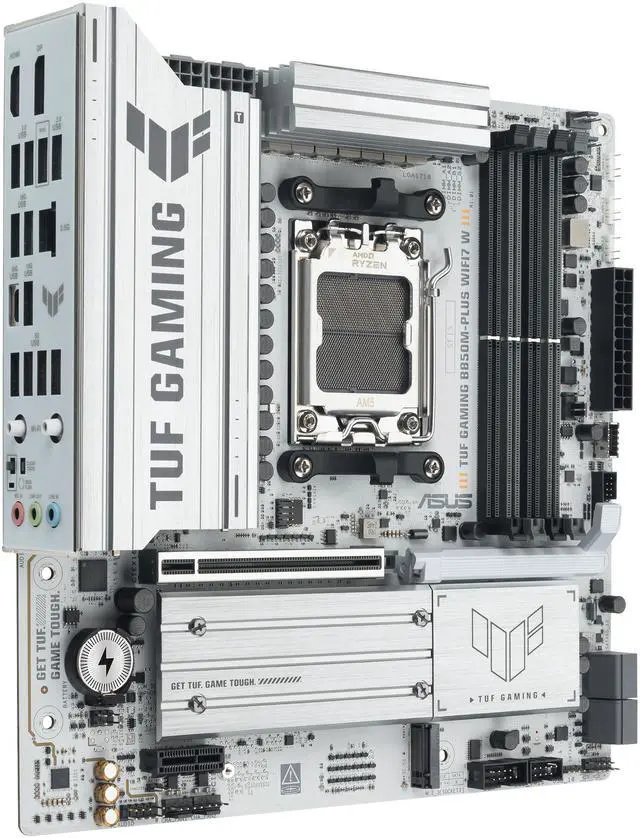

B850M-PLUS WIFI7 W

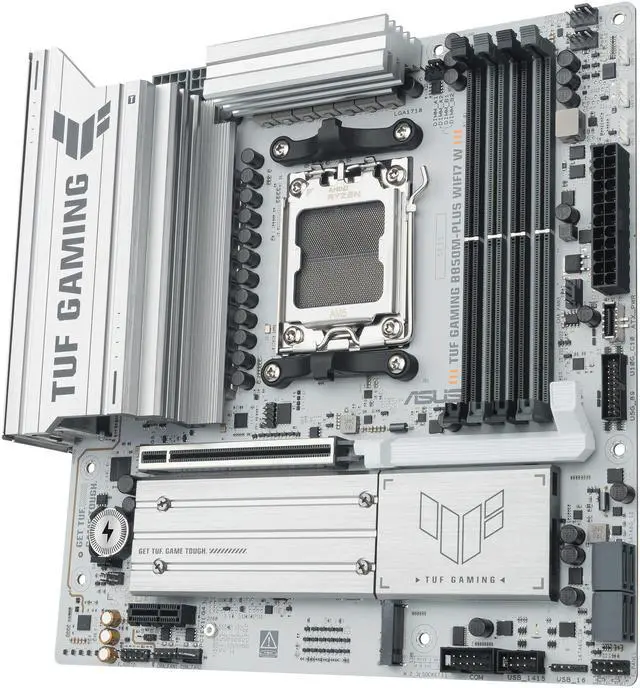

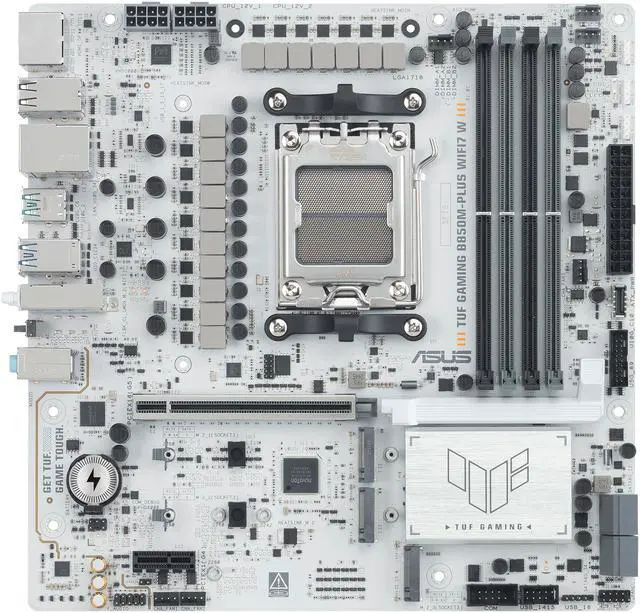

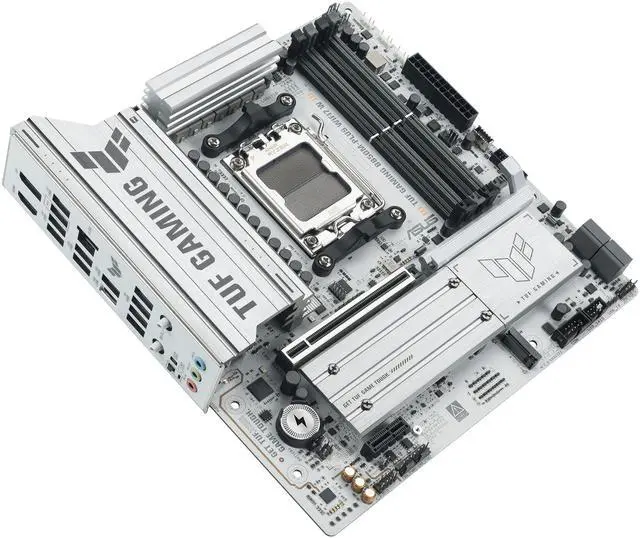

ASUS TUF GAMING B850M-PLUS WIFI7 W takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

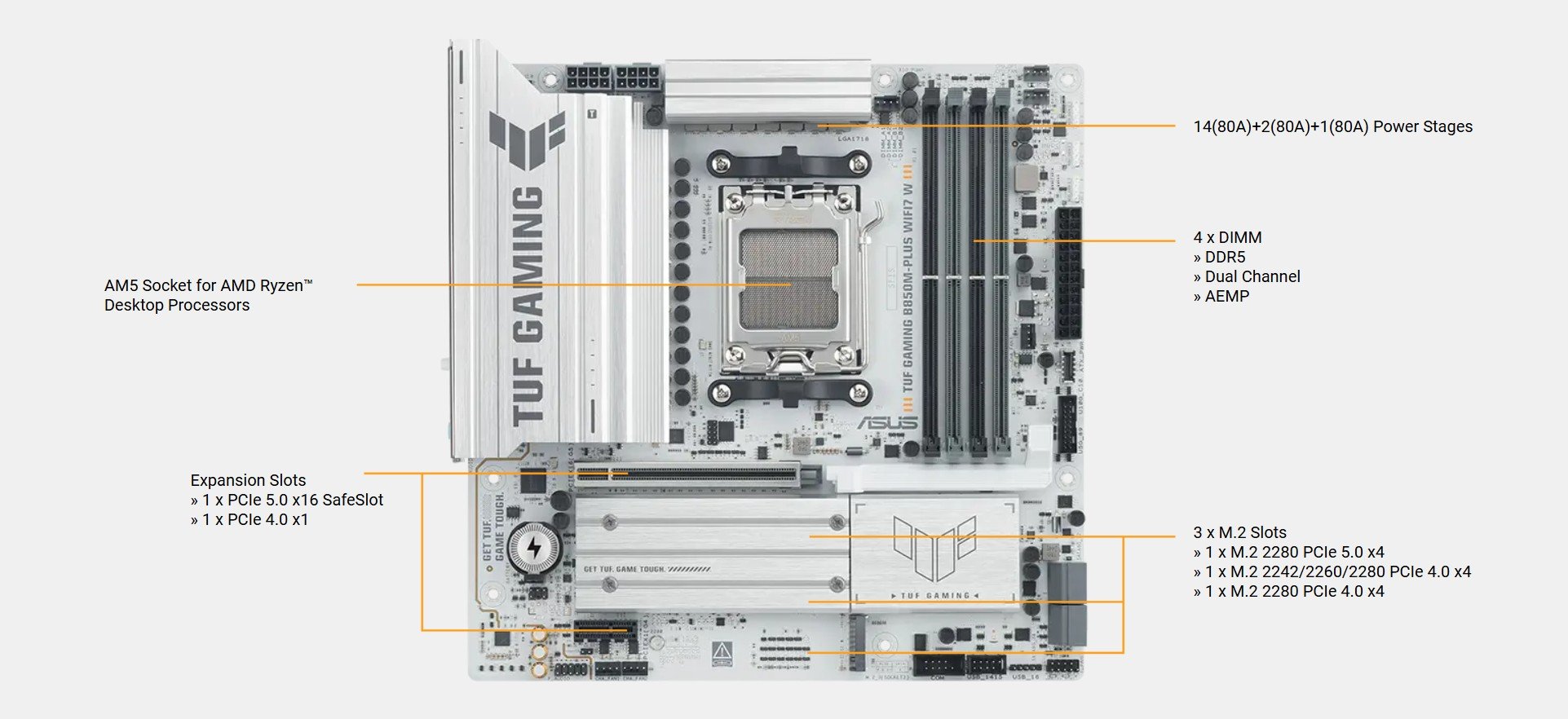

14+2+1 (80A)
Premium power stages with enlarged VRM heatsinks
8000+ MT/s, AEMP
Effortlessly apply to unleash performance
PCIe 5.0 for Graphics Card
Robust to handle new data-heavy tasks
Empowering Connectivity
Rear USB 20Gbps Type-C® & front USB 10Gbps Type-C®
Ultrafast Networking
WiFi 7 with ASUS WiFi Q-Antenna
2.5Gb Ethernet
Faster data transfer
DIY Friendly
PCIe Slot Q-Release, Q-Antenna, M.2 Q-Latch, Q-LED, BIOS Flashback™ Button & Clear CMOS Button

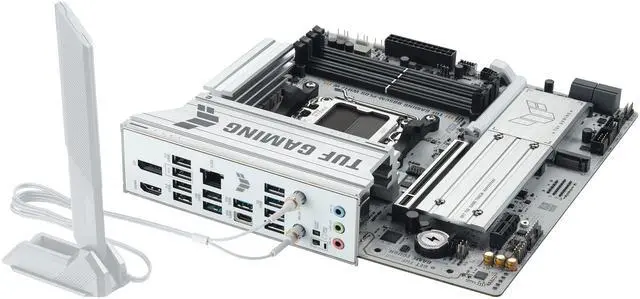

Pre-mounted I/O Shield
For safeguarding ports and enhancing aesthetics
Aura Sync
Full RGB lighting control
Performance
Cooling
Gaming Immersion
Connectivity
Intelligent
Intelligent Control

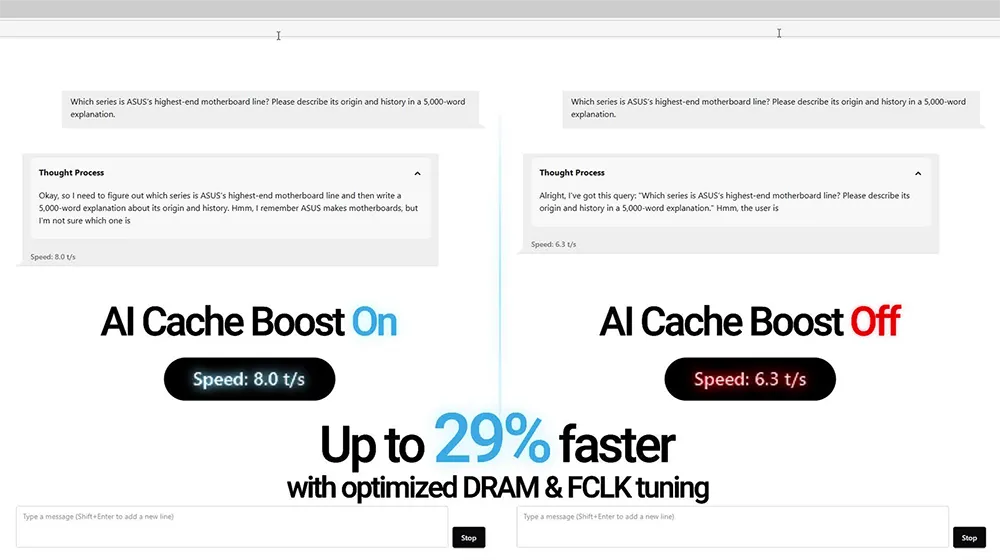

AI CACHE BOOST
Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

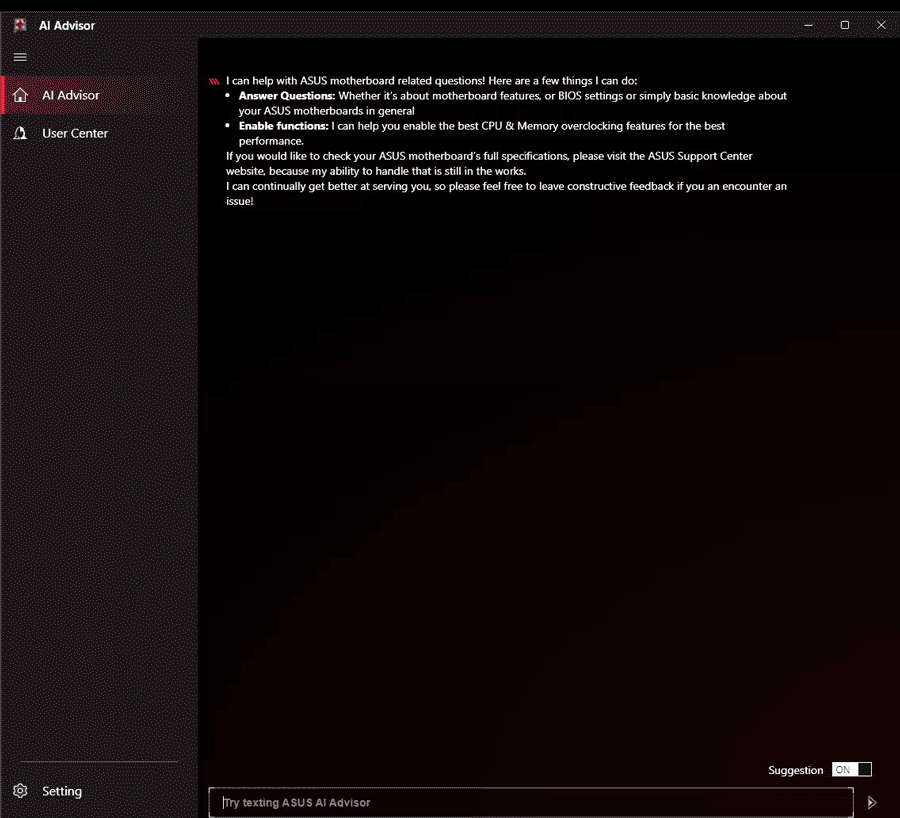

AI Advisor
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.
* Availability of ASUS AI Advisor may vary by region.
** AI Advisor functions may vary by platform.

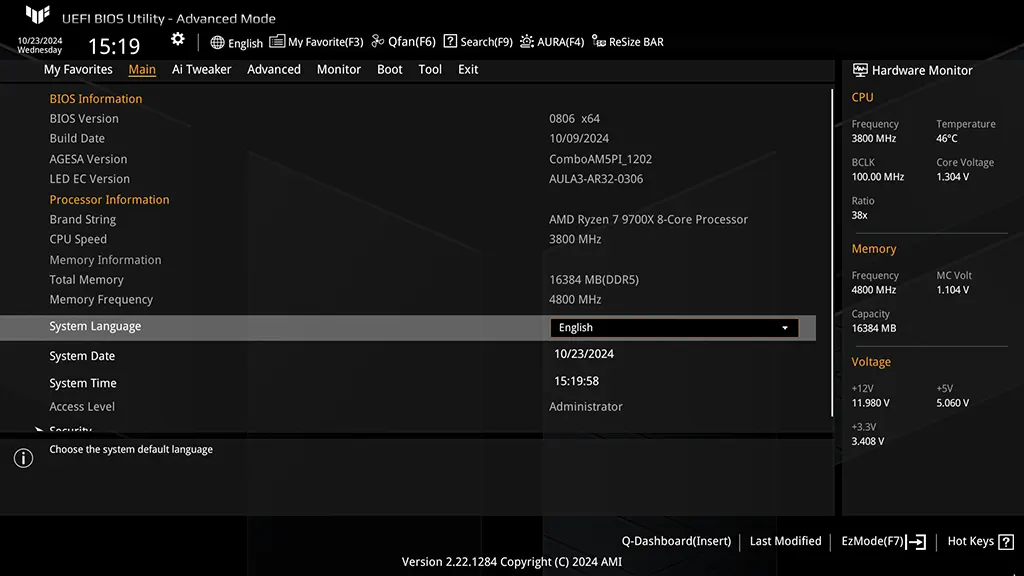

UEFI BIOS
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

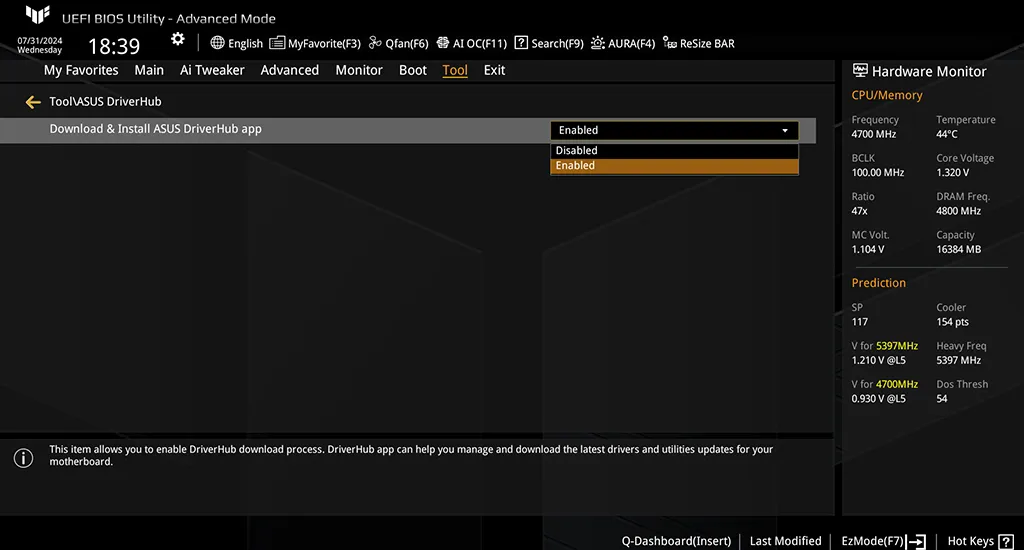

ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.p>

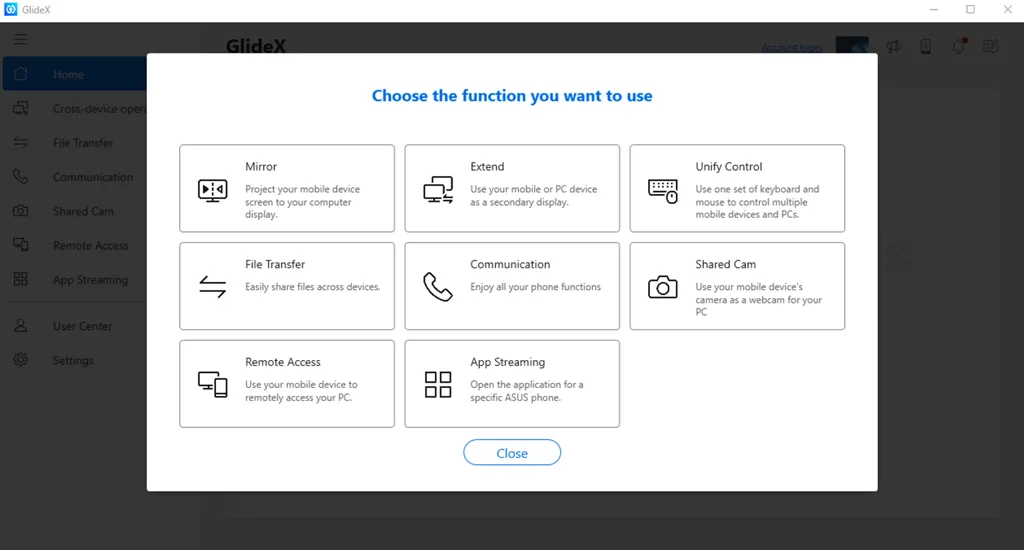

ASUS GlideX
Enable seamless screen sharing and control across PCs, tablets, and smartphones via USB or WiFi, supporting multiple platforms.

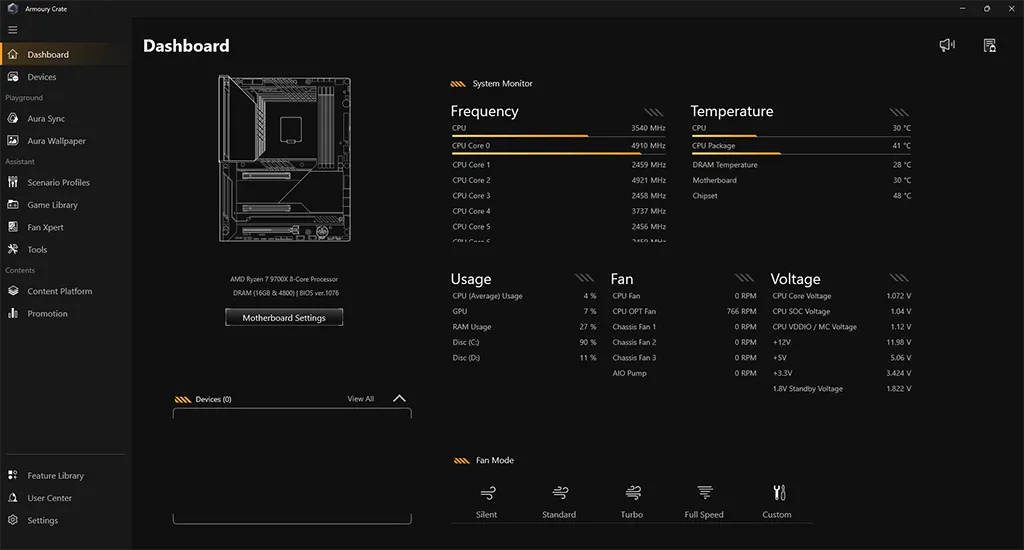

Armoury Crate
Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
Performance

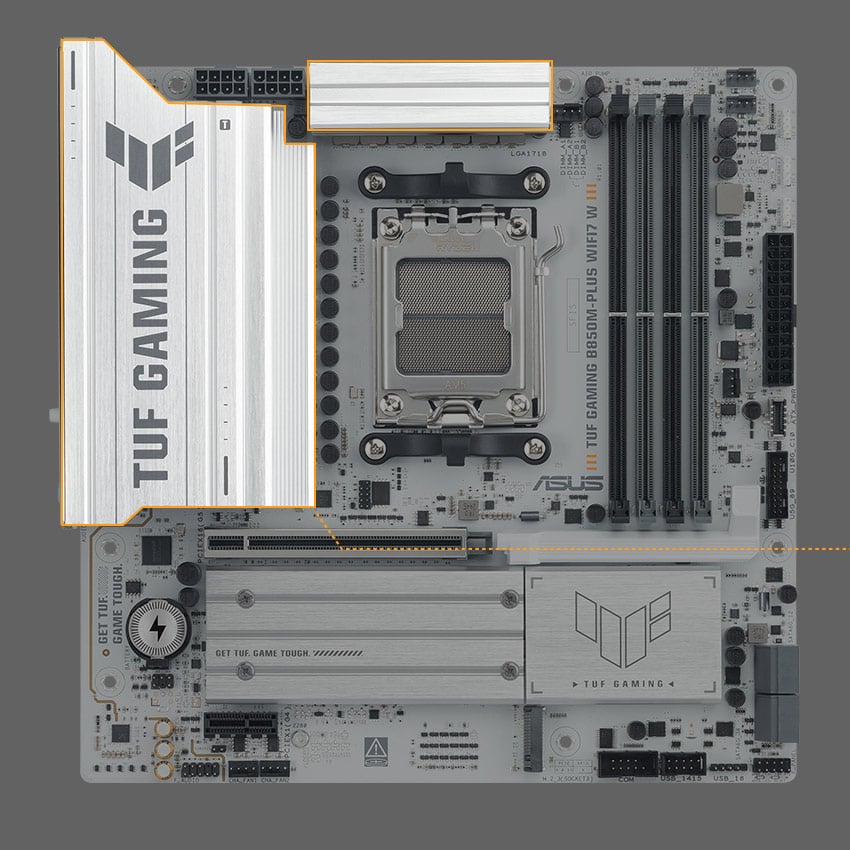

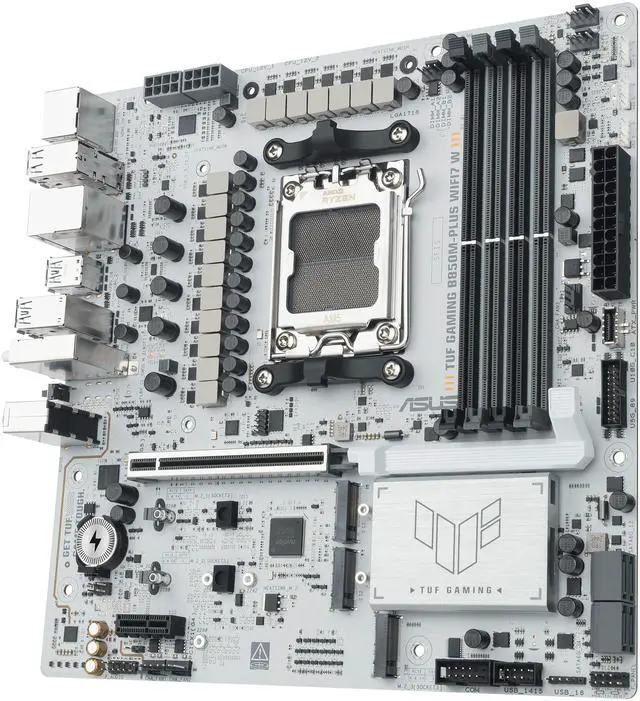

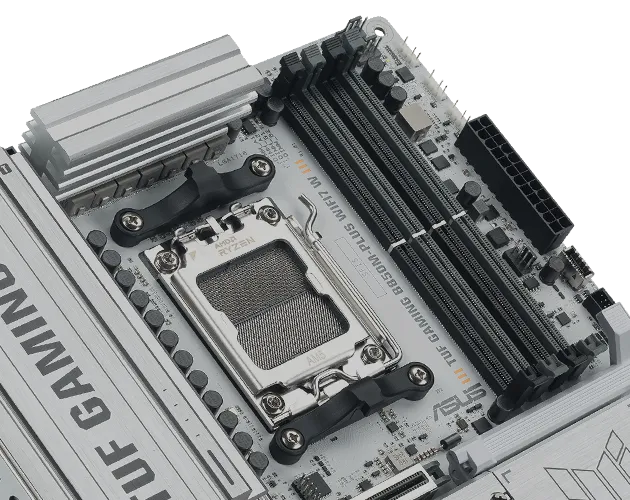

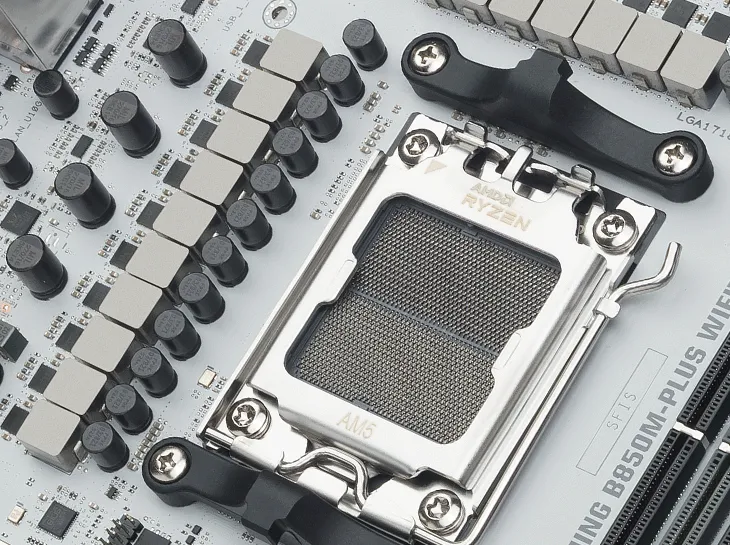

Premium Power Design

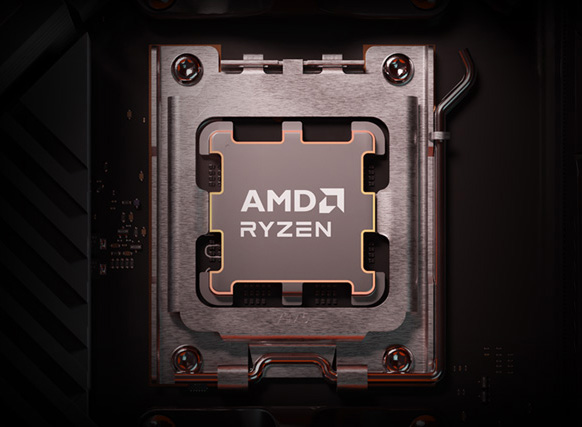

Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
14
Vcore Power
(80A, DrMOS)
2
SOC Power
(80A, DrMOS)
1
Misc Power
(80A, DrMOS)
Eight Layered PCB design
Enhanced stability and overclocking.

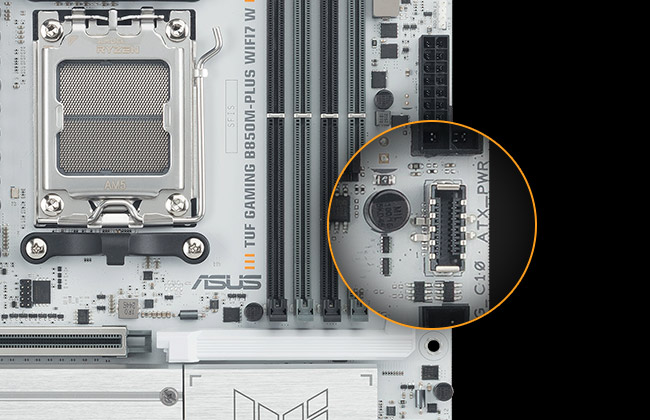

ProCool Power Connectors
Proprietary 8+8 pin connectors improve PSU connection.
TUF Components
TUF chokes and capacitors offer rock-solid durability and stability.
Digi+VRM Control
Real-time voltage control.
Performance
Memory & Storage
DRAM Overclocking Performance
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
* Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.
DDR5 DOMINANCE
For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.
ASUS AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.

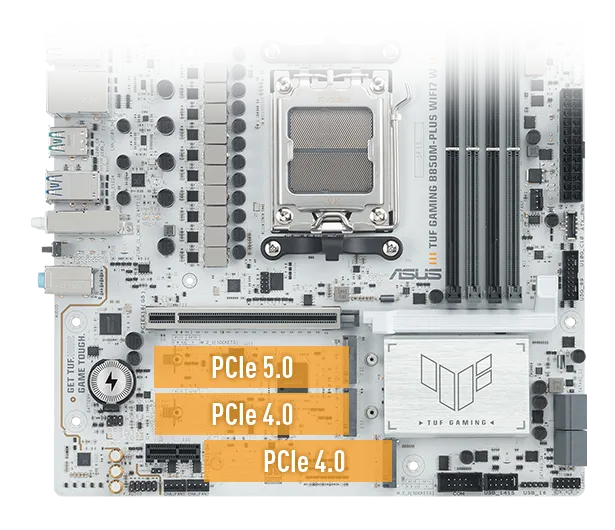

M.2 PCIe 5.0 Support

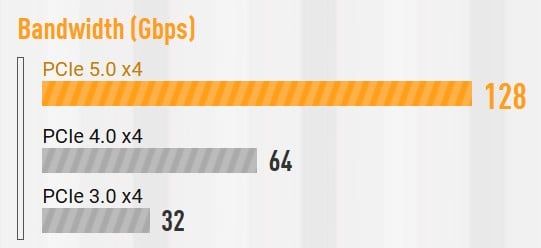

This motherboard also features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.
* Actual transmission speed will be lower than theoretical maximum speed.
Cooling

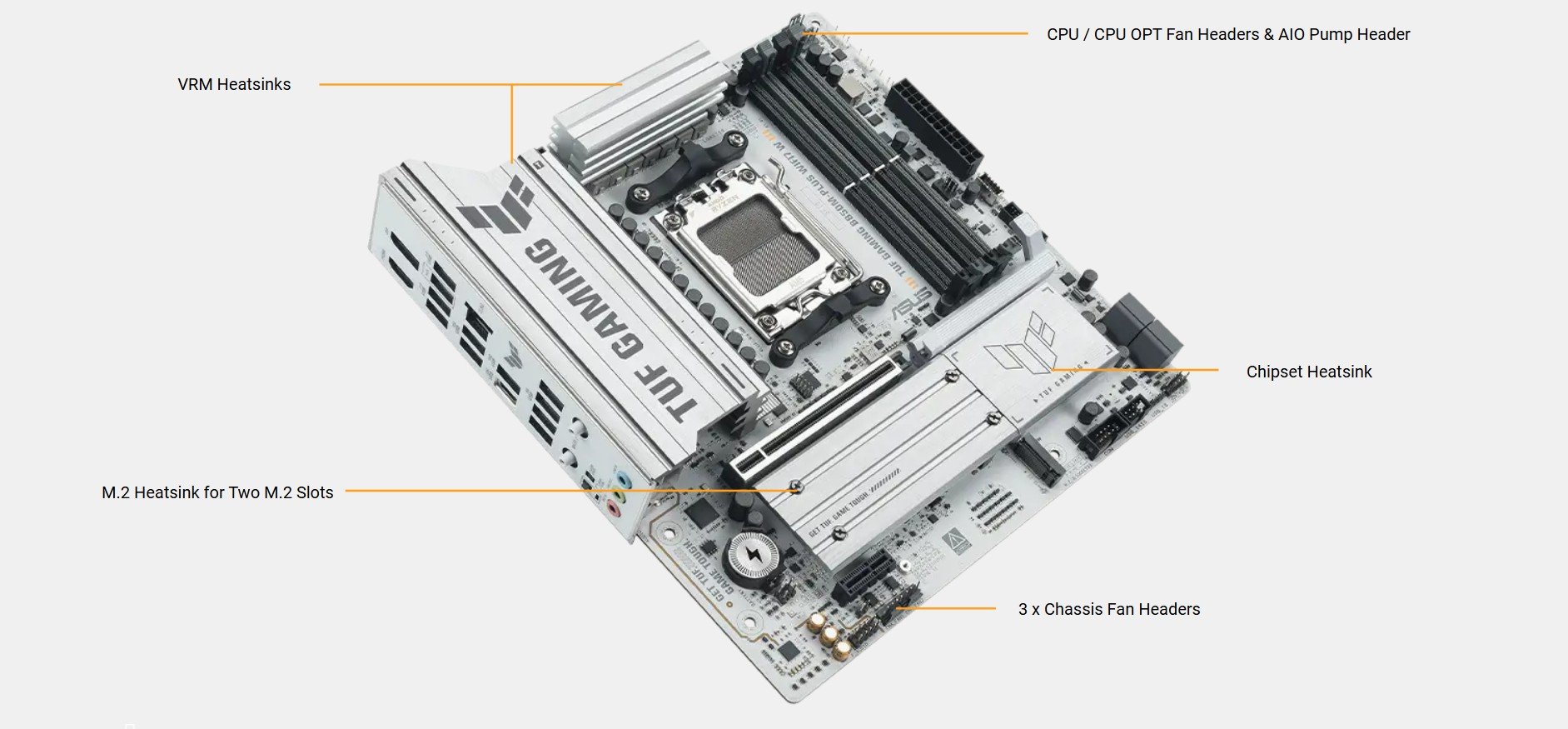

Cooler by Design
Enlarged VRM Heatsinks
The extensive surface area of this heatsink covers the MOSFETs and chokes to improve thermal performance.
Smart Fan Protection
A dedicated integrated circuit protects each fan header from excess heat and electrical currents.
Smart Fan Protection
A dedicated integrated circuit protects each fan header from excess heat and electrical currents.

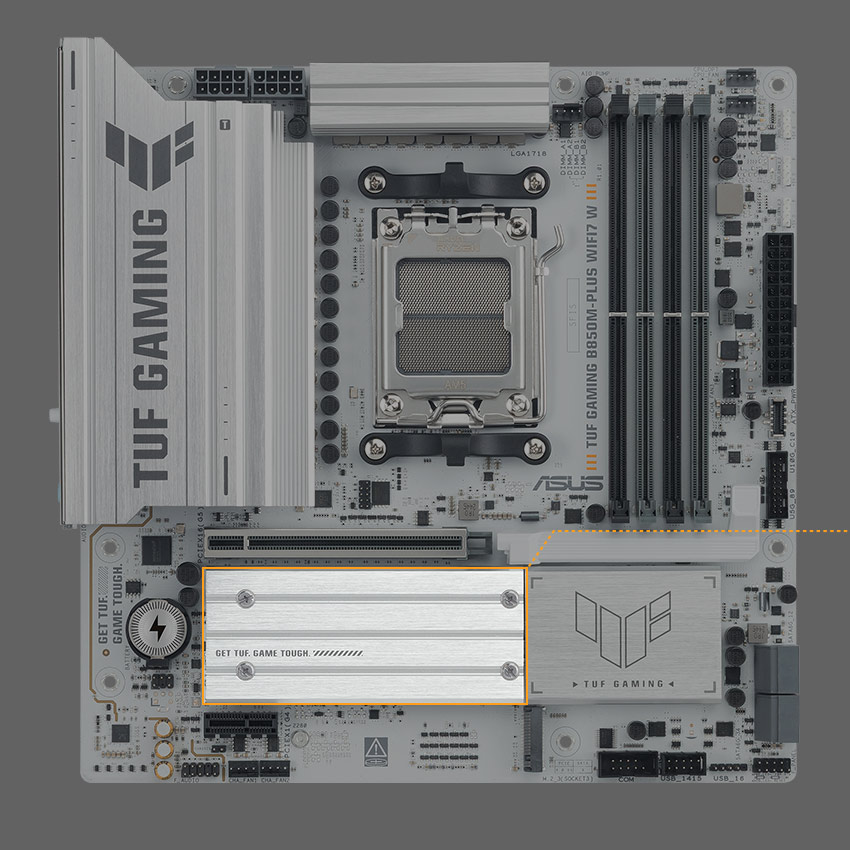

M.2 Heatsink
Two M.2 slots have dedicated heatsinks to help keep M.2 SSDs at optimal operating temperatures and ensure consistent performance and reliability.

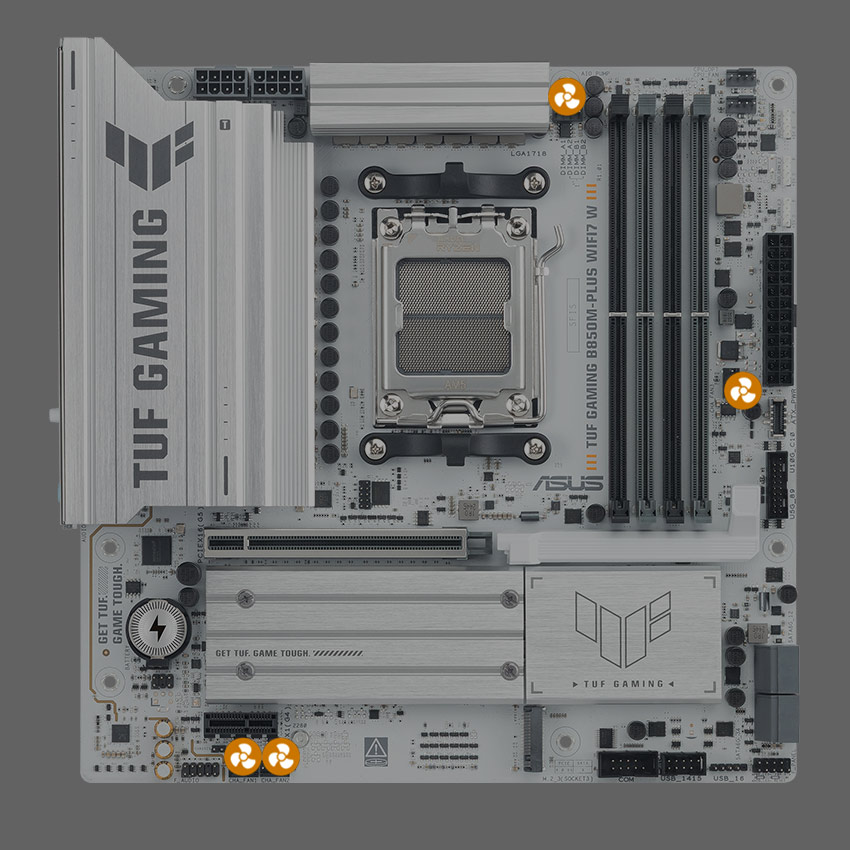

4-Pin PWM/DC Fan
Onboard fan headers support auto-detection of PWM or DC fans.
4-Pin PWM/DC Fan
Onboard fan headers support auto-detection of PWM or DC fans.
AIO Pump Header
An integrated AIO management system enables full control of PWM or DC water pumps, making it perfect for custom or all-in-one cooling setups.
Multiple Temperature Sources
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 2+ or via the UEFI.
Multiple Temperature Sources
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 2+ or via the UEFI.

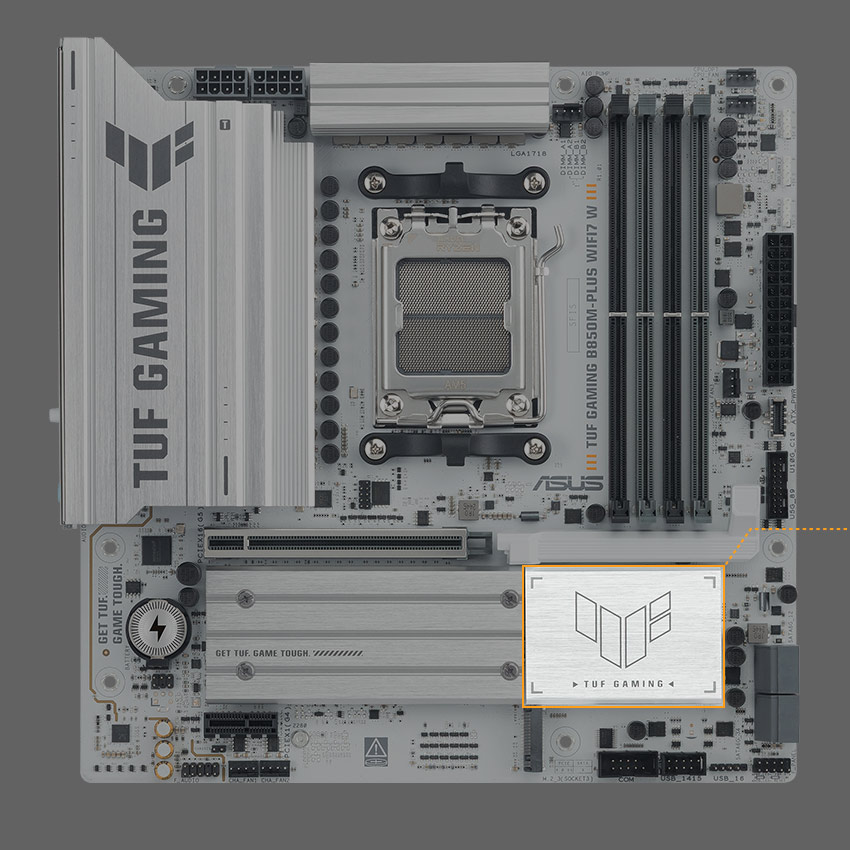

Superb PCH Heatsink
A surface area for the chipset cooler maximizes system performance and heat dissipation.
Cooling
Cooler Compatibility

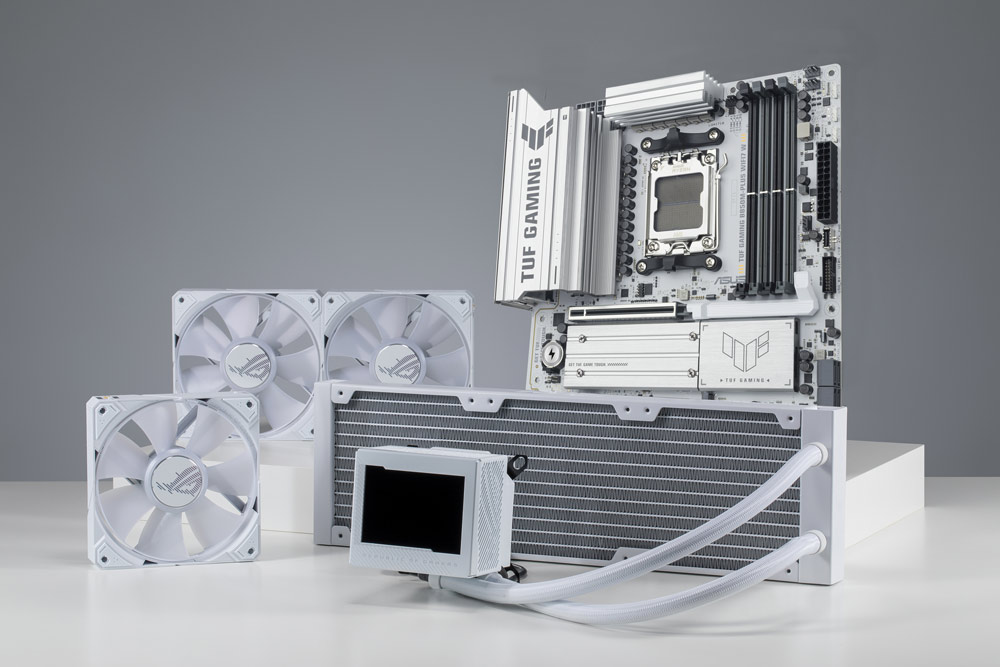

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.

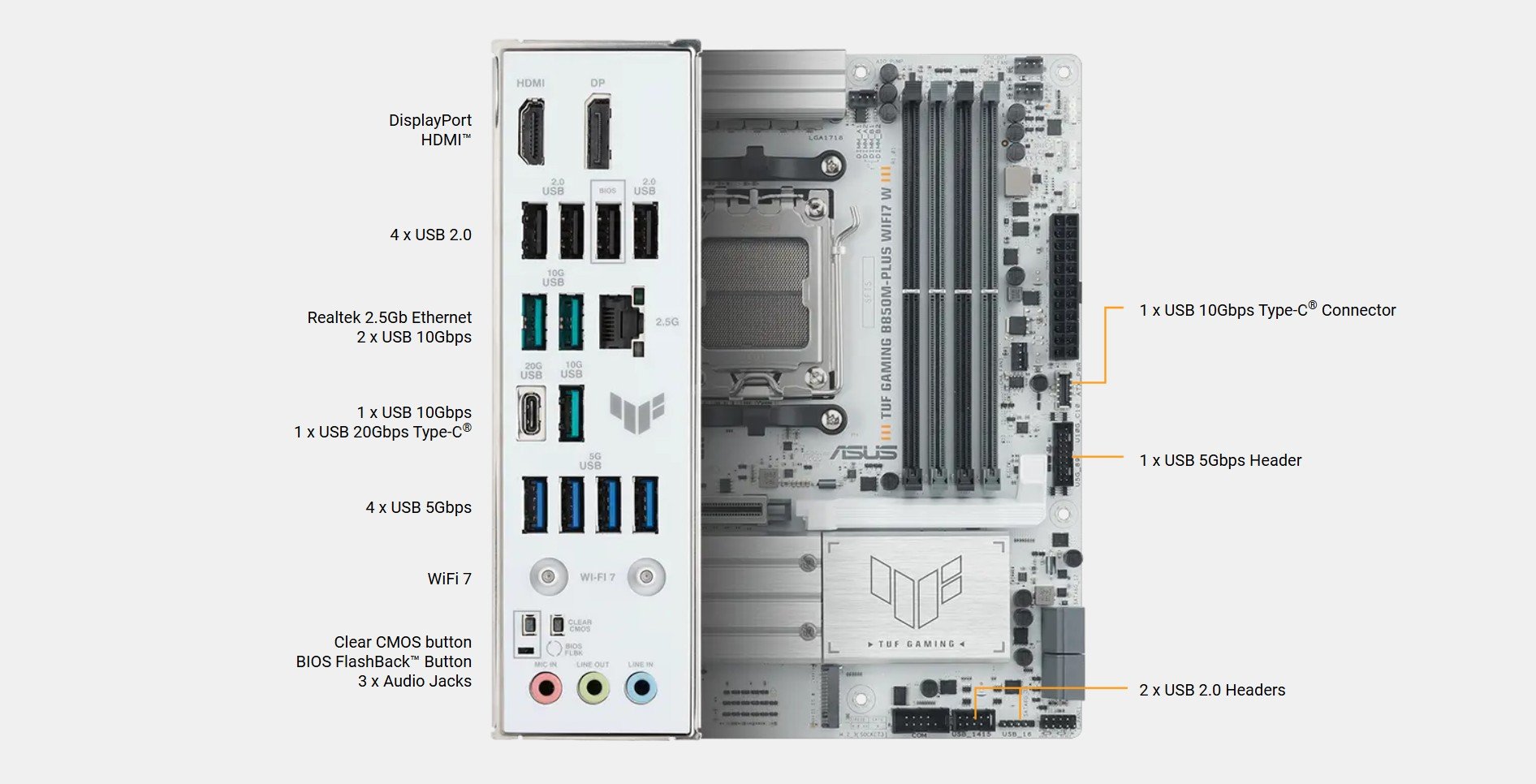

Connectivity
Empowering Connection
This motherboard offers a versatile range of connectivity with PCIe 5.0, rear USB 20Gbps Type-C® port and front USB 10Gbps Type-C® connector.
PCIe 5.0 for Graphics Card

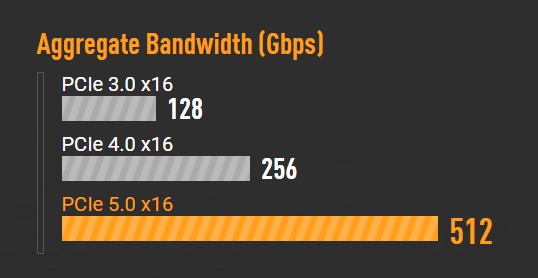

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.

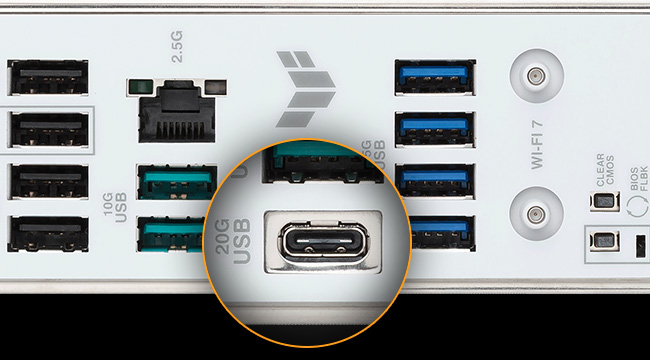

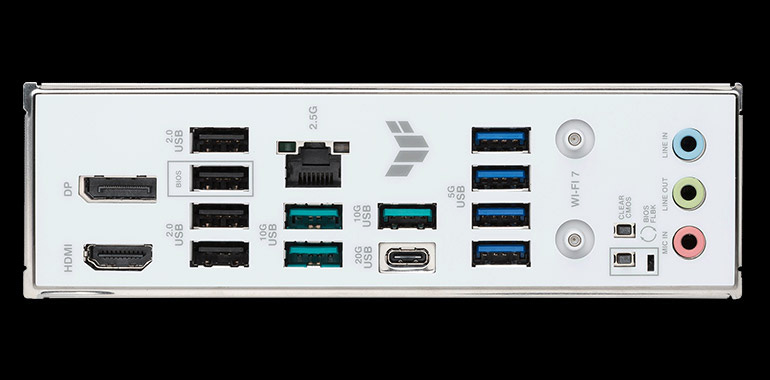

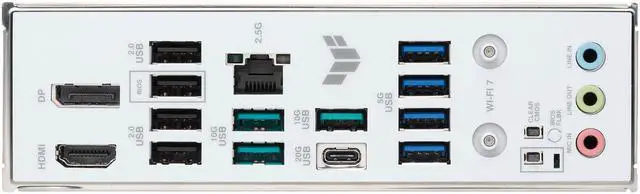

Rear USB 20Gbps Type-C®
Extensive USB support ensures connections to a wide array of external devices. This motherboard includes a USB 20Gbps Type-C® port on the rear I/O panel that delivers transfer speeds of up to 20Gbps.
Front USB 10Gbps Type-C®
This motherboard features a USB 10Gbps Type-C® front panel connector for speedy data transfers of up to 10Gbps.
DIY
Easy PC DIY
PCIe Slot Q-Release

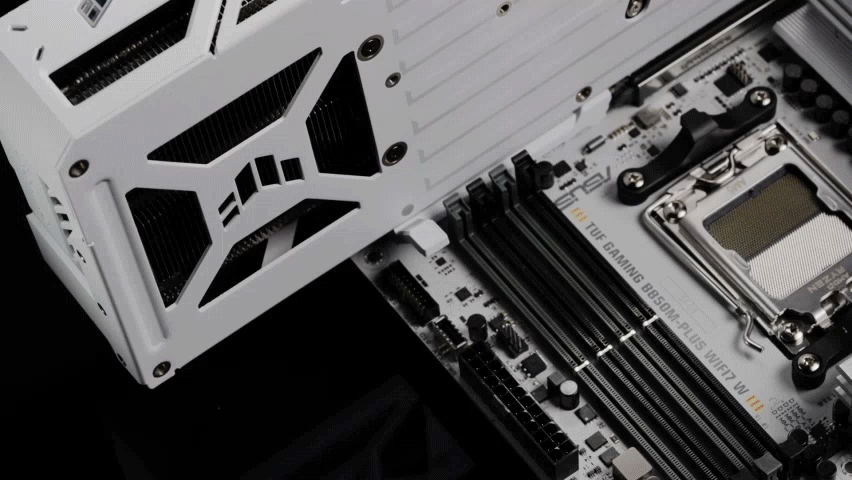

A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
Q-Antenna
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

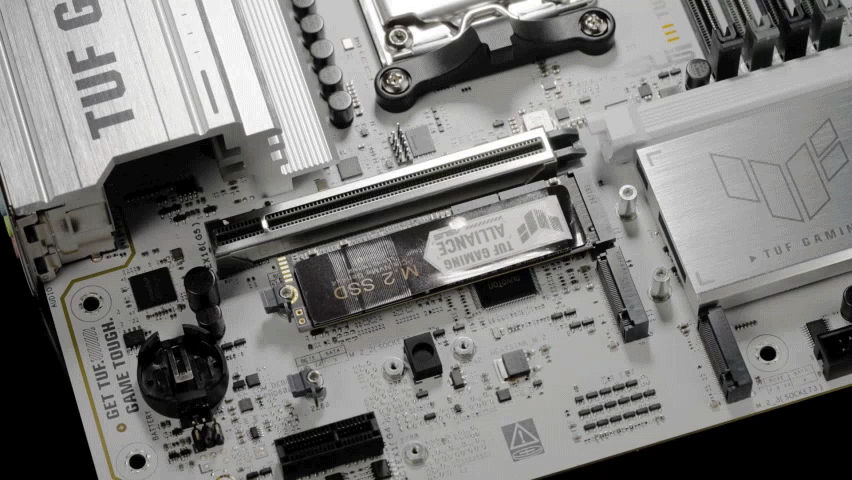

M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.
Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ? CPU, RAM, graphics card, storage devices ? are functioning normally during startup. It can also alert them when memory modules have not been properly installed--even before booting.

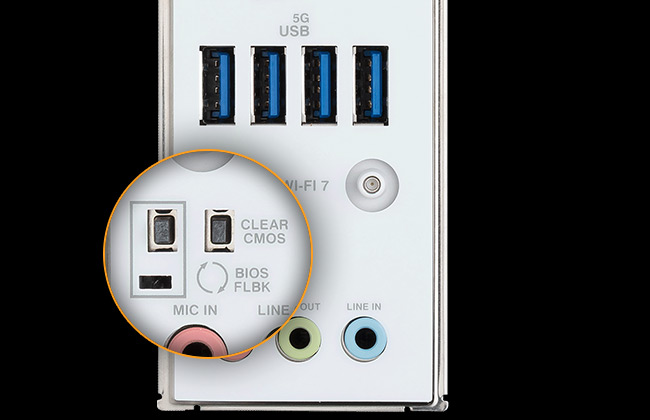

Clear CMOS & BIOS FlashBack™
The Clear CMOS button quickly resets Bl0S settings to factory default. lt can also be used to reboot the PC if incorrect Bl0S settings have been selected.
Bl0S FlashBack™ is a safe and simple way to update Bl0S. Just drop the (UEFI)BlOS file onto a FAT32-formatted USB stick, plug it into the USB BlOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

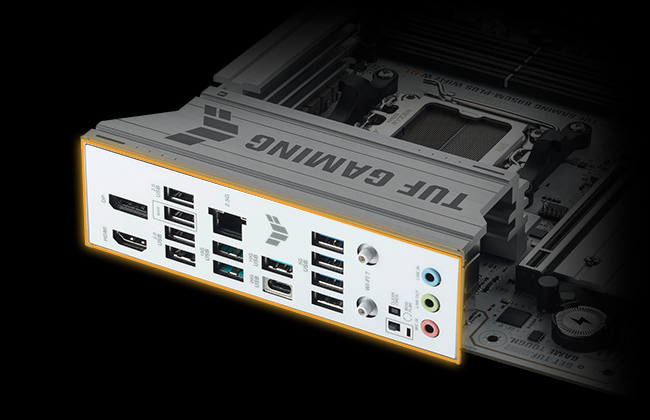

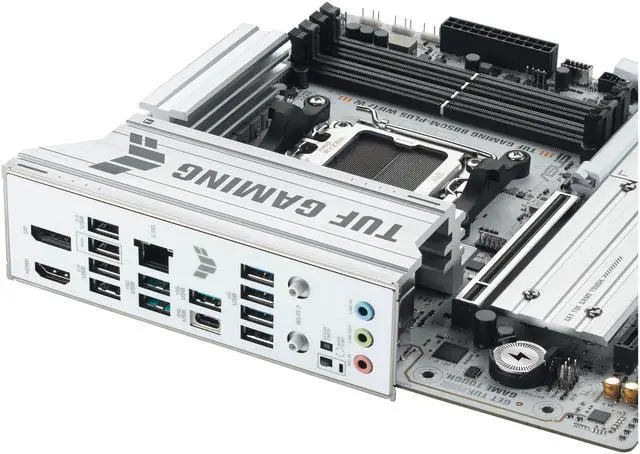

Pre-mounted I/O shield
Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.
DIY
Protection

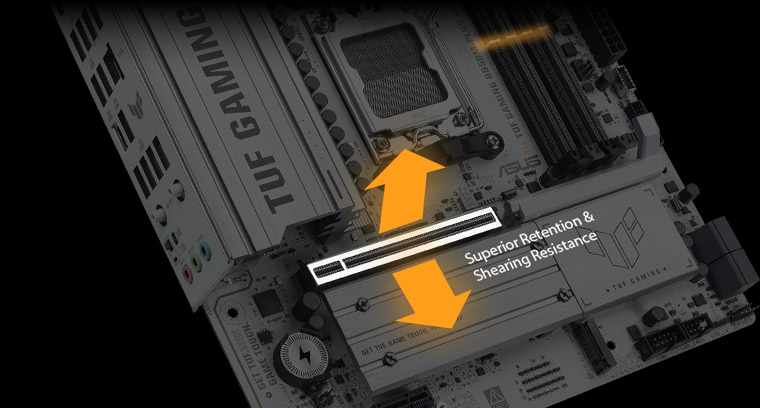

SafeSlot & SafeDIMM
SafeSlot is a reinforced metal sheath integrated with a PCIe slot to keep a card firmly installed and to ensure the highest possible data speeds. The SafeDIMM sheath is integrated to protect memory modules, empowering you to insert them with speed, accuracy and confidence.
ESD Guards
ASUS added special TVS diodes to boost electrostatic discharge prevention by up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge – well above the industry standard.

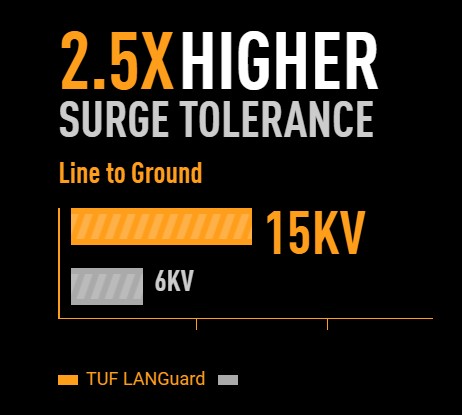

TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, helping to protect the motherboard from lightning strikes and static electricity.

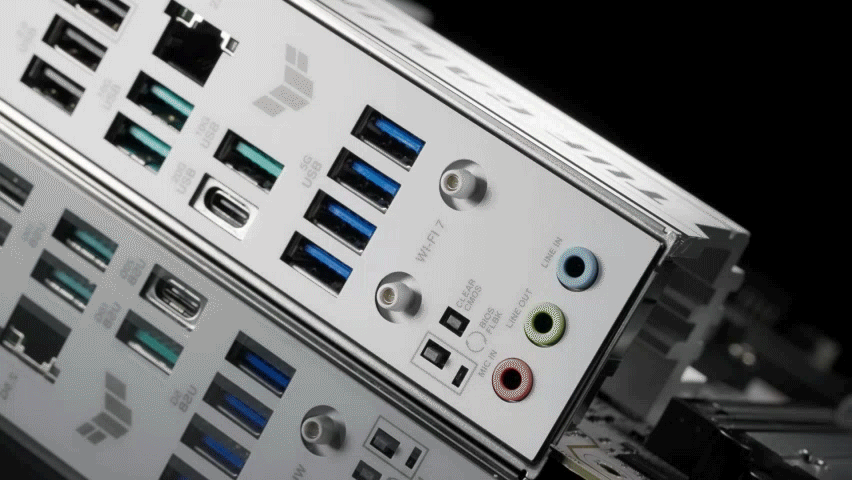

Stainless Steel Back I/O Panel
TUF Gaming motherboards feature a corrosion-resistant stainless steel rear I/O panel with up to a 3X longer lifespan. These models pass a rigorous 72-hour salt fog test, surpassing the industry standard.
DIY

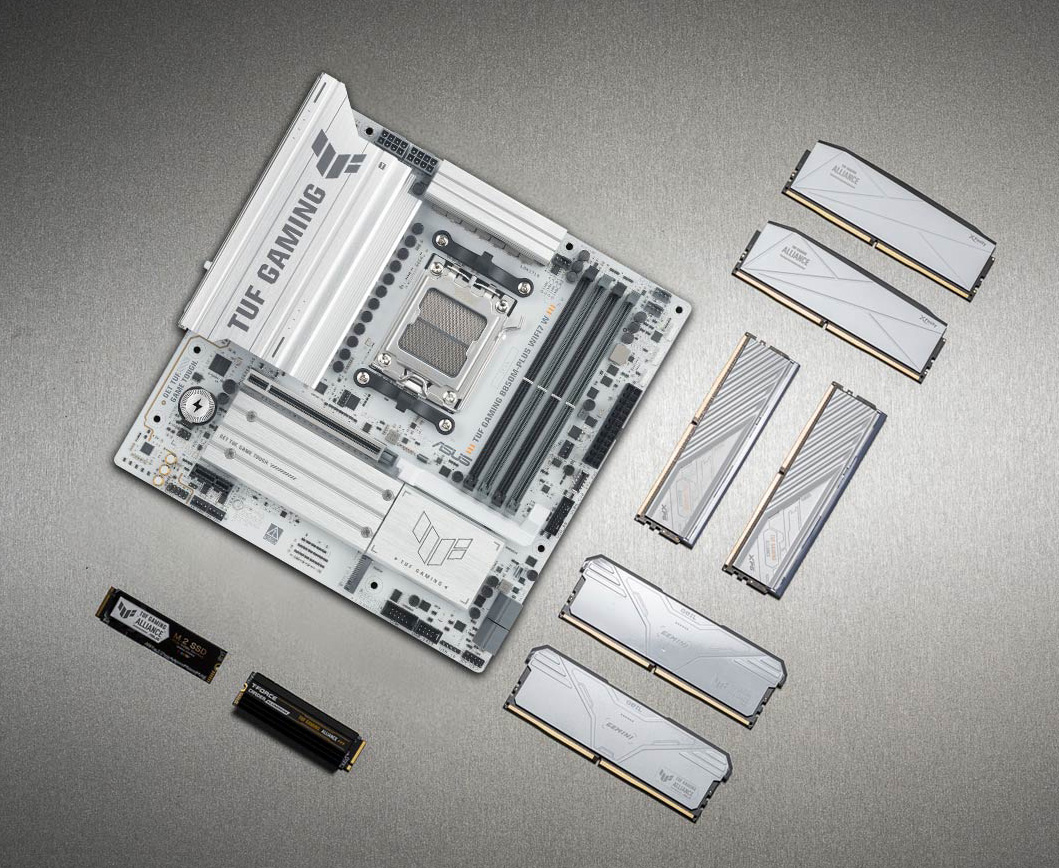

Build With Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
Gaming
Ultrafast Networking
Provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay.
WiFi 7
WiFi 7 ensures stable connections and low latency.
2.5Gb Ethernet
On-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds up to 2.5X faster than 1Gb connections.
Audio

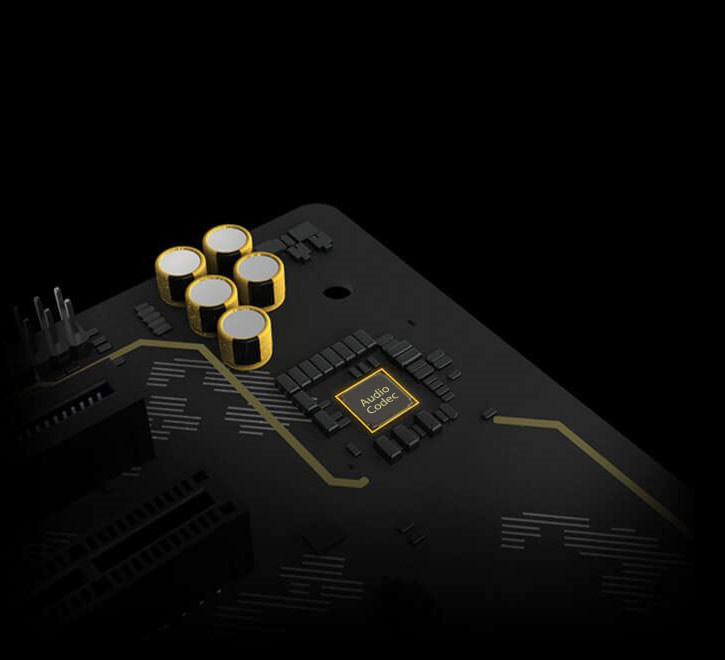

Realtek 7.1 Channel Audio
ALC1220P
This motherboard utilizes an audio codec designed in close collaboration with Realtek — the Realtek ALC1220P. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality.
Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.

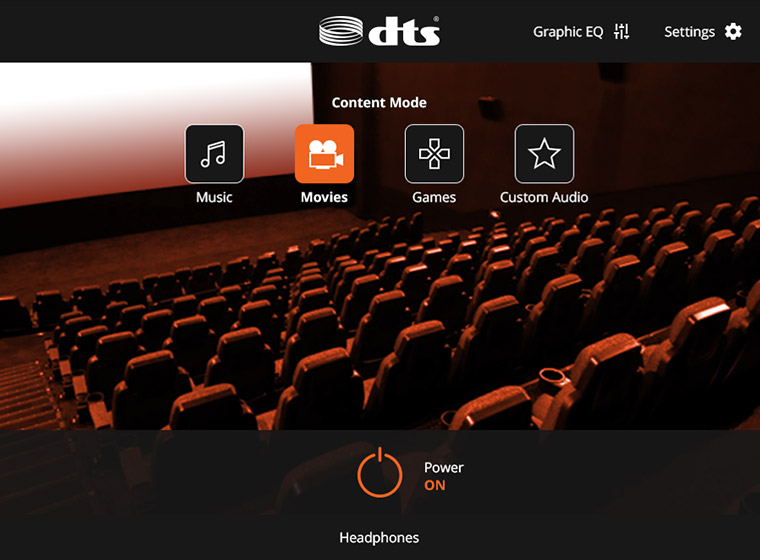

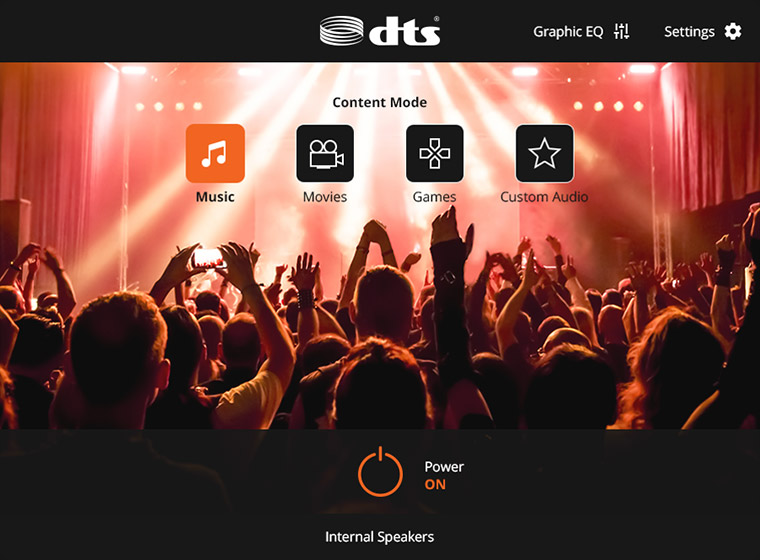

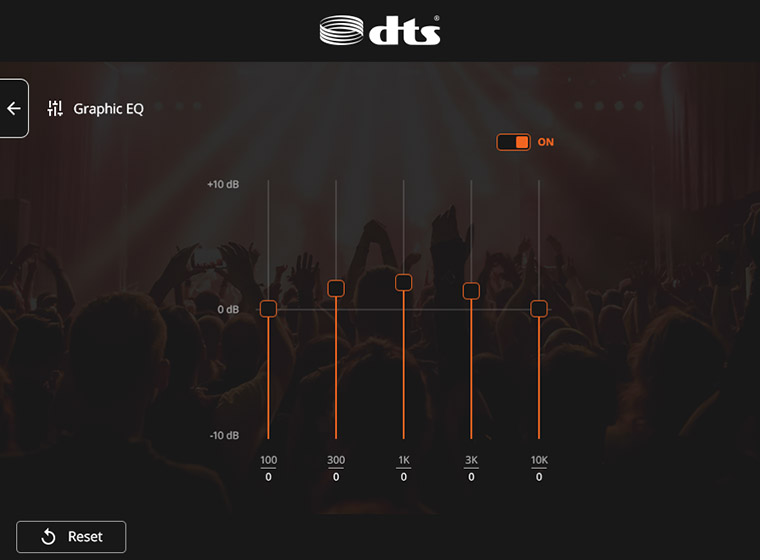

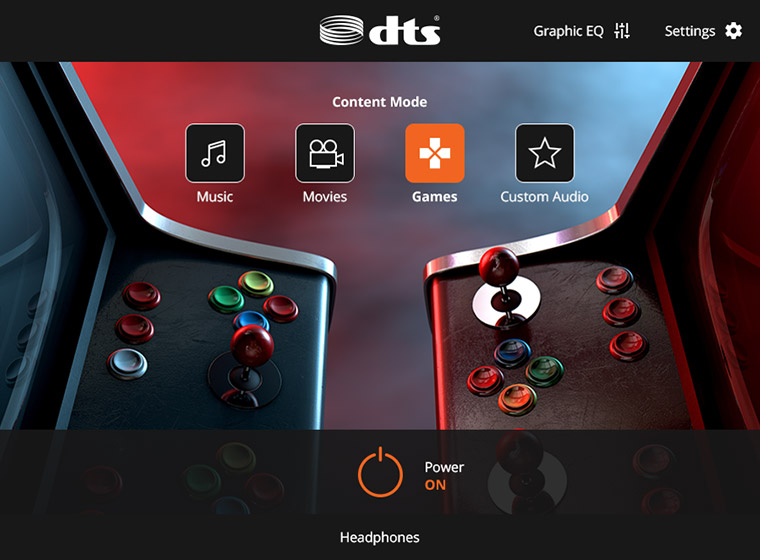

DTS Audio Processing
Better Audio Effects
DTS®Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.
Music Mode
Movie Mode
Game Mode
Custom Audio
Outshine The Competition
ASUS Aura Sync offers synchronized lighting with other Aura Sync products, including motherboards, graphics cards, monitors and peripherals.

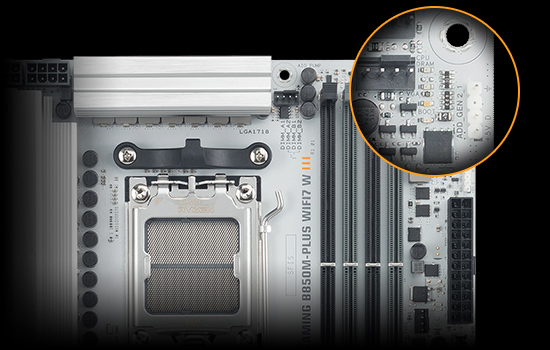

Addressable Gen2 RGB Headers
Automatically optimize lighting effects for the number of LEDs present in compatible ARGB gear.
In Search of Sustainable Solution
ASUS is on a mission to create a sustainable future where all can flourish on the planet we call home.
Every step counts, and as part of ASUS’s commitment to creating a more sustainable future, ASUS has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.
Join us on our journey as we make the world a better place.
Build For The Most Advanced Pc For Gaming And Creating
When only the fastest will do, TUF Gaming B850 motherboards deliver. With faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an TUF Gaming B850 motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
