The ASUS Z10PC-D8/10G-2S server motherboard is designed for small and medium business (SMB) group server, Hadoop storage servers, high speed networking environment, Net Bar, and data center. It comes in a compact 12”x10.5” CEB footprint, fitting easily into standard ATX cases, server racks and tower cases. Thanks to its innovative and peerless engineering design, it features 10Gb Ethernet connection, enhanced storage expandability, excellent server performance, and premium components for premium efficiency.

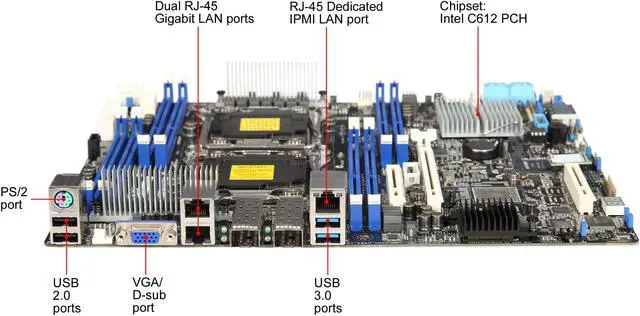

With built-in dual 10Gb Ethernet SFP+ by BCM57840S, Z10PC-D8/10G-2S increases data throughput and improves data transmission efficiency. Users are able to build high-bandwidth, low-latency, performance-focused networks on a compact size server board which can fulfill the needs of high speed interconnection between servers in high speed networking environment.

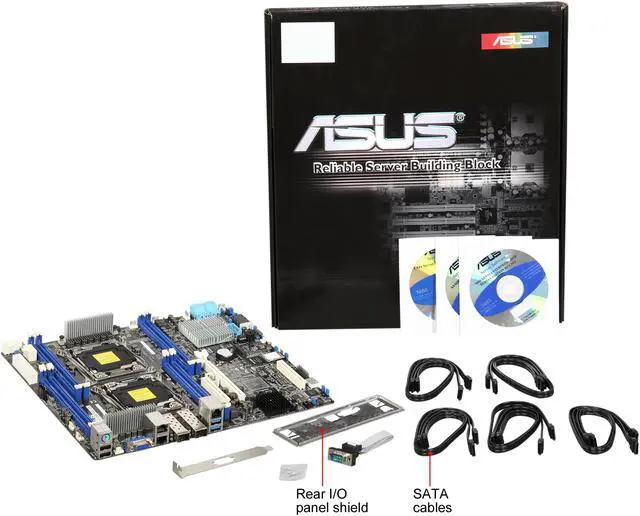

The Z10PC-D8/10G-2S is equipped with ten 6 Gbps SATA ports, offering support for mass storage capacity. In an alternative configuration, Z10PC-D8/10G-2S has nine 6 Gbps SATA and an M.2 slot for a solid-state drive — ideal for an operating system boot drive! In this generation, ASUS has a whole new PIKE solution, standard PCI-E form factor for user to equip with multiple PIKE II cards on one motherboard which maximizes the expandability and utilizations. Just placing the PIKE II card, Z10PC-D8/10G-2S can immediately enlarge the capacity, upgrade to 12G solution and improve the performance, making it the great upgrade option.

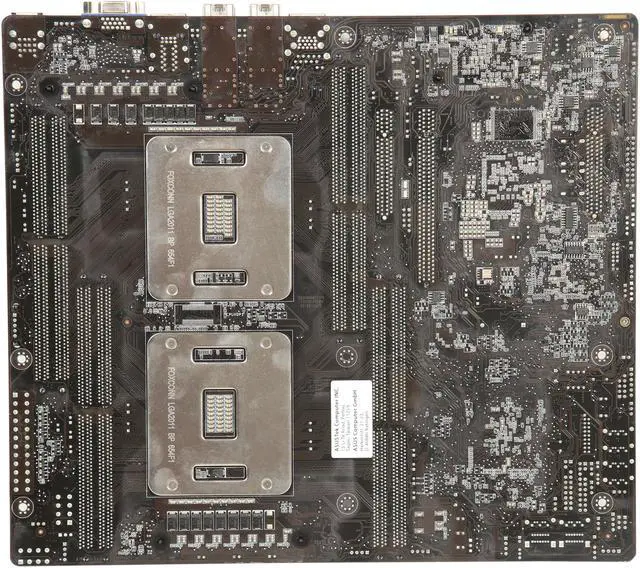

The Z10PC-D8/10G-2S server board supports dual Intel Xeon server processors in a 12” x 10.5” compact size with ATX mounting hole locations. This gives you the freedom to mount Z10PC-D8/10G-2S in many off-the-shelf ATX case options, avoiding the complication and expense of sourcing specialist propriety case designs – ensures end customers can benefit from up-to-date server technologies with affordable budget.
ASUS Z10 server board series has the premium power solution with the hand-chosen components and provides premium efficiency which is up to 94%. The premium power solution consists of 4 pillars to achieve the 94% premium efficiency: Beat Thermal Choke, Dr. MOS, 12K capacitor and Digi+ VRM. A special fin design of Beat-Thermal-Choke results in 3-5? lower choke temperatures and raises the stability, and translates into minimal-loss power delivery. The Dr. MOS is a proven stable circuit integrated MOSFET, which can optimize the switching performance and contribute the efficiency to the system. ASUS DIGI+ VRM design empowers users with superior flexibility, and has the perfect precision to ensure optimized performance and extreme system stability. Moreover, ASUS is the world’s first server manufacturer to introduce 12K solid capacitors which are able to withstand up to 1,200,000 hours of temperatures as high as 65°C (12K hours@105°C). These 12K capacitors can also lower equivalent series resistance (ESR) to increase efficiency and minimize heat generation.
The ASUS Z10 series features quick initialization guidance which lets users realize system initialization state in seconds; furthermore users are able to diagnose system instantly through POST code message in the POST stage. The quick initialization guidance during the POST includes 2 phases. In phase 1 - POST in seconds, the screen lightens in seconds to make users instantly access to system initializing status. In phase 2, device scanning information and 2-digit POST code messages are available to give users a total understanding of startup process and to clearly indicate boot-up status which is easy for troubleshooting.
The optional ASMB8-iKVM (IPMI 2.0-compliant) enables remote update of BIOS, standalone KVM/Java utility, video recording and BSOD capture. Based on out-of-band management, even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface via all major browsers. In addition, ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, software dispatch, task scheduler, remote control, and power control, all through a colorful and informative graphical interface. Through ASUS remote management solution, users could save time and effort on server management and trouble-shooting.
