What type of processor is compatible with this motherboard?

The motherboard is compatible with Intel Core Ultra Processors (Series 2).

What kind of memory can I use with this motherboard?

The motherboard supports DDR5 memory with speeds ranging from 4400 MT/s to 9066 MT/s (OC), in a dual-channel configuration. It supports up to 192GB of non-ECC, unbuffered DIMMs and is compatible with Intel Extreme Memory Profile (XMP) modules.

How many M.2 slots does this motherboard have?

This motherboard has four M.2 slots.

How does this motherboard handle heat dispersion to prevent overheating?

The motherboard features an optimized thermal design, including large VRM heatsinks, M.2 and PCH heatsinks, hybrid fan headers, and Fan Xpert 4 with AI Cooling II to manage heat dispersion effectively.

Can I connect my fast-charging devices to this motherboard?

Yes, this motherboard supports fast-charging devices through its front panel USB 20Gbps Type-C port, which supports up to 30W PD/PPS Fast-charge.

$219^.00

$249.99

Free 30-day Returns

Limit 99999 per customer.

Price alert

Add to wish list

Sold by JB Rapid

Top Rated

4.9 (9 seller ratings)

Shipped by JB Rapid

Best Sellers

MobileMonster

4.3 (6 total ratings)

$229^.00
+ FREE SHIPPING

Newegg

$237^.99
+ FREE SHIPPING

Meet Your Seller

JB Rapid

See Seller Store

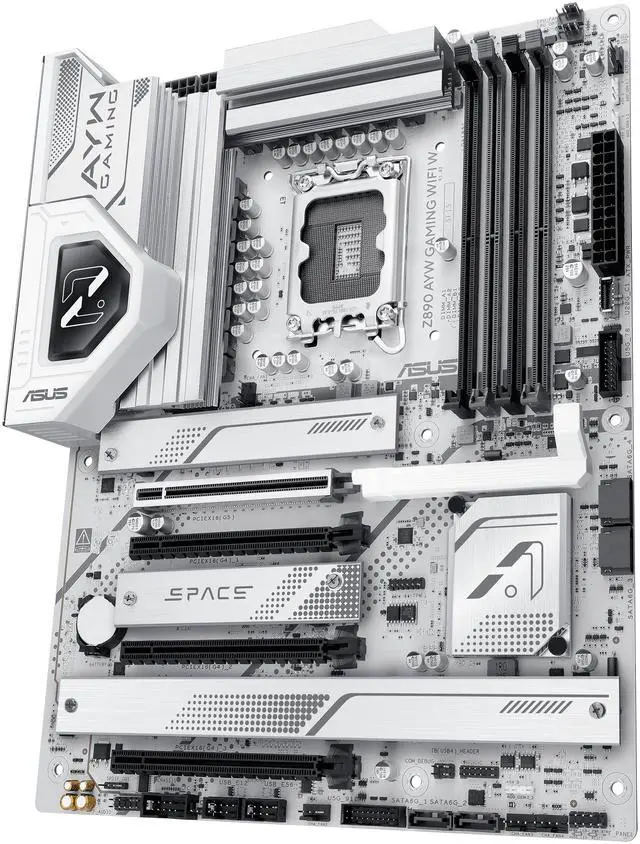

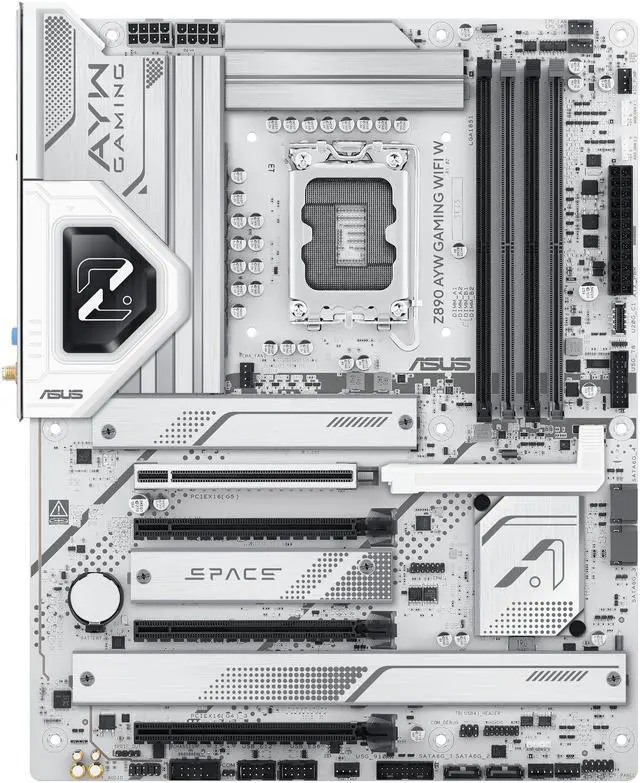

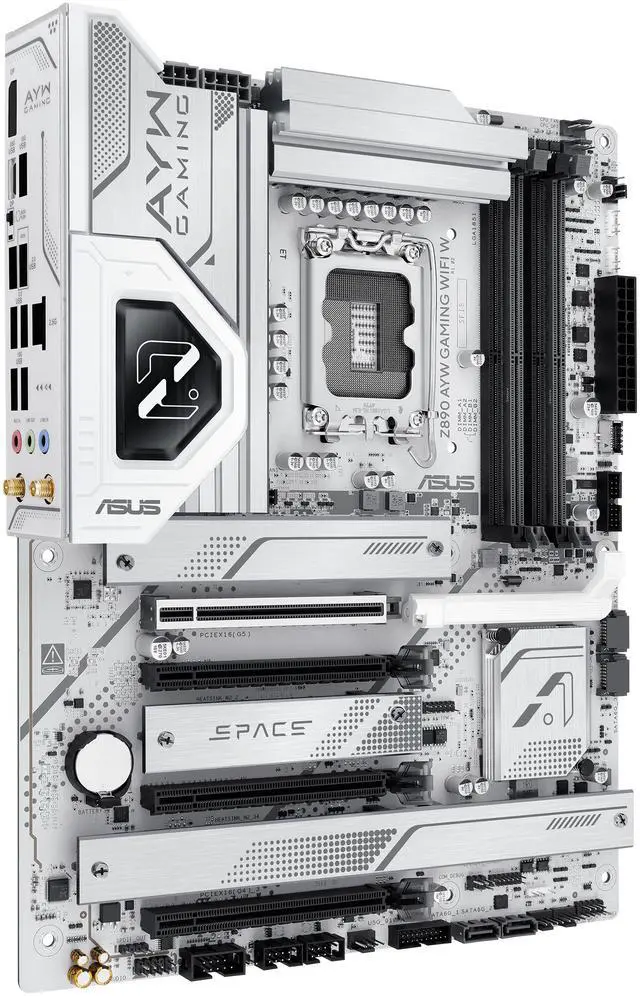

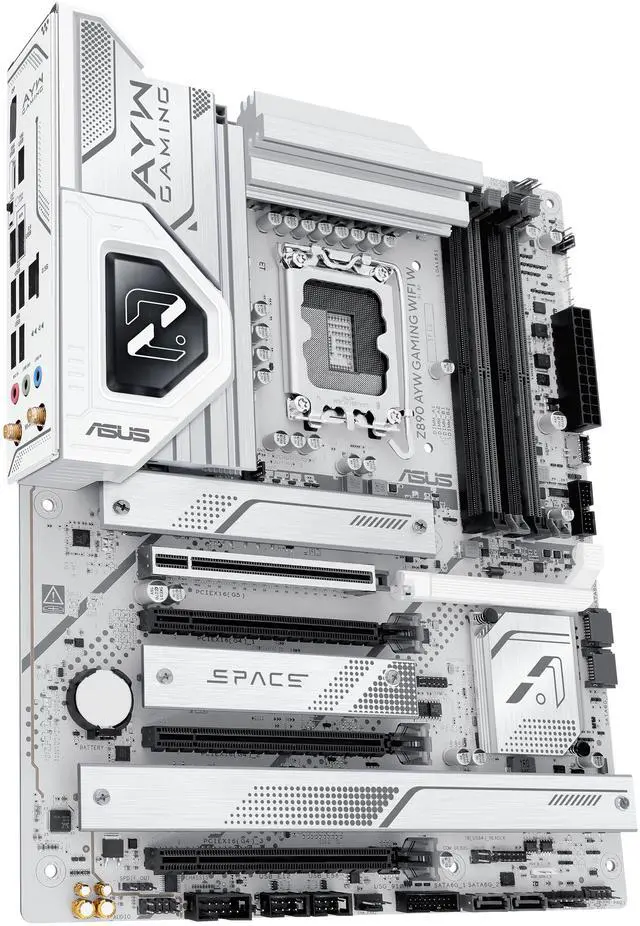

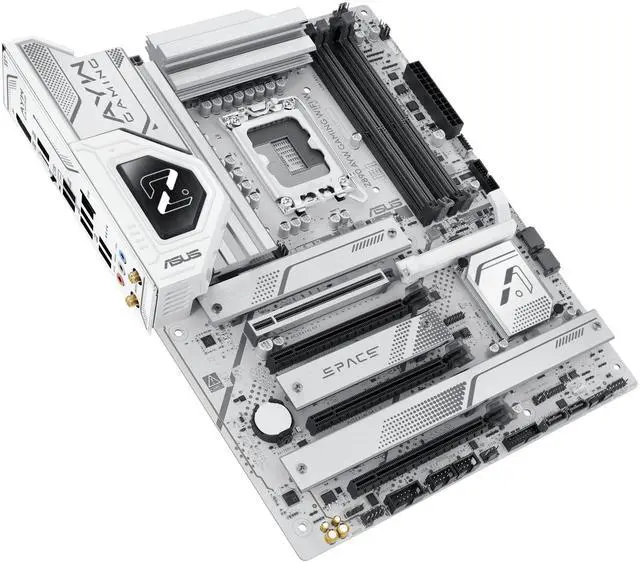

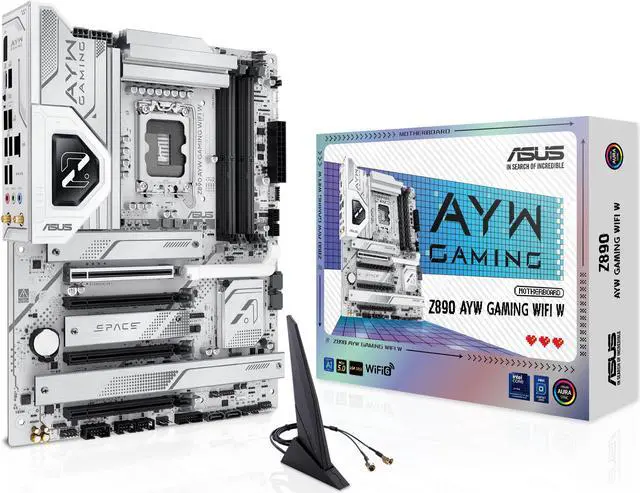

Main image of ASUS Z890 AYW GAMING WIFI W ATX Z890 motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 16+1+2+1 stages, DDR5, PCIe 5.0, Thunderbolt 4, USB Type-C, 4 x M.2, Wi-Fi 7, 2.5Gb LAN

Alt view image 2 of 11 - ASUS Z890 AYW GAMING WIFI W ATX Z890 motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 16+1+2+1 stages, DDR5, PCIe 5.0, Thunderbolt 4, USB Type-C, 4 x M.2, Wi-Fi 7, 2.5Gb LAN

Alt view image 3 of 11 - ASUS Z890 AYW GAMING WIFI W ATX Z890 motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 16+1+2+1 stages, DDR5, PCIe 5.0, Thunderbolt 4, USB Type-C, 4 x M.2, Wi-Fi 7, 2.5Gb LAN

Alt view image 4 of 11 - ASUS Z890 AYW GAMING WIFI W ATX Z890 motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 16+1+2+1 stages, DDR5, PCIe 5.0, Thunderbolt 4, USB Type-C, 4 x M.2, Wi-Fi 7, 2.5Gb LAN

Alt view image 5 of 11 - ASUS Z890 AYW GAMING WIFI W ATX Z890 motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 16+1+2+1 stages, DDR5, PCIe 5.0, Thunderbolt 4, USB Type-C, 4 x M.2, Wi-Fi 7, 2.5Gb LAN

Alt view image 6 of 11 - ASUS Z890 AYW GAMING WIFI W ATX Z890 motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 16+1+2+1 stages, DDR5, PCIe 5.0, Thunderbolt 4, USB Type-C, 4 x M.2, Wi-Fi 7, 2.5Gb LAN

Alt view image 7 of 11 - ASUS Z890 AYW GAMING WIFI W ATX Z890 motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 16+1+2+1 stages, DDR5, PCIe 5.0, Thunderbolt 4, USB Type-C, 4 x M.2, Wi-Fi 7, 2.5Gb LAN

Alt view image 8 of 11 - ASUS Z890 AYW GAMING WIFI W ATX Z890 motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 16+1+2+1 stages, DDR5, PCIe 5.0, Thunderbolt 4, USB Type-C, 4 x M.2, Wi-Fi 7, 2.5Gb LAN

Alt view image 9 of 11 - ASUS Z890 AYW GAMING WIFI W ATX Z890 motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 16+1+2+1 stages, DDR5, PCIe 5.0, Thunderbolt 4, USB Type-C, 4 x M.2, Wi-Fi 7, 2.5Gb LAN

Alt view image 10 of 11 - ASUS Z890 AYW GAMING WIFI W ATX Z890 motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 16+1+2+1 stages, DDR5, PCIe 5.0, Thunderbolt 4, USB Type-C, 4 x M.2, Wi-Fi 7, 2.5Gb LAN

Alt view image 11 of 11 - ASUS Z890 AYW GAMING WIFI W ATX Z890 motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 16+1+2+1 stages, DDR5, PCIe 5.0, Thunderbolt 4, USB Type-C, 4 x M.2, Wi-Fi 7, 2.5Gb LAN

Customer images

Shop All ASUS Products | Visit JB Rapid Store

ASUS Z890 AYW GAMING WIFI W ATX Z890 motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 16+1+2+1 stages, DDR5, PCIe 5.0, Thunderbolt 4, USB Type-C, 4 x M.2, Wi-Fi 7, 2.5Gb LAN

Name: ASUS Z890 AYW GAMING WIFI W ATX Z890 motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 16+1+2+1 stages, DDR5, PCIe 5.0, Thunderbolt 4, USB Type-C, 4 x M.2, Wi-Fi 7, 2.5Gb LAN
Uploaded: 2025-09-15
Description: ASUS Z890 AYW GAMING WIFI W ATX Z890 motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 16+1+2+1 stages, DDR5, PCIe 5.0, Thunderbolt 4, USB Type-C, 4 x M.2, Wi-Fi 7, 2.5Gb LAN

(76)(8) Write a Review

Option: Z890 AYW GAMING WIFI W

ROG MAXIMUS Z890 EXTREME
ROG MAXIMUS Z890 APEX
ROG MAXIMUS Z890 HERO
ROG STRIX Z890-E GAMING WIFI
ROG STRIX Z890-I GAMING WIFI
ROG STRIX Z890-A GAMING WIFI
PRIME Z890-P WIFI
PRIME Z890M-PLUS WIFI
PROART Z890-CREATOR WIFI
TUF GAMING Z890-PLUS WIFI
Z890 AYW GAMING WIFI W

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel LGA 1851 Socket: Ready for Intel Core Ultra Processors (series 2)
Robust Power Solution: 12+1+2+1 80A DrMOS power stages with ProCool power connectors, 6-layer PCB, alloy chokes and durable capacitors for stable power delivery
Next-gen connectivity: DDR5 memory, Wi-Fi 6, PCIe 5.0, rear USB 20Gbps Type-C, front panel USB 20Gbps Type-C with up to 30W PD/PPS Fast-charge and USB Wattage Watcher, Thunderbolt (USB4) header support
Optimized Thermal Design: Large VRM heatsinks, M.2 and PCH heatsinks, hybrid fan headers and Fan Xpert 4 with AI Cooling II
Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and three PCIe 4.0 M.2 slots, all with cooling solutions
DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, Q-Dashboard, Q-LED, BIOS FlashBack button, BIOS FlashBack LED and pre-mounted I/O shield

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (76)

Model
Brand	ASUS
Model	Z890 AYW GAMING WIFI W
Part Number	90MB1I60-M0AAY0

Supported CPU
CPU Socket Type	LGA 1851
CPU Type	Intel Core Ultra Processors (Series 2)

Chipsets
Chipset	Intel Z890

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8666 / DDR5 8800 / DDR5 8933 / DDR5 9000 / DDR5 9066
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Feature	Supports up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII)

Expansion Slots
PCI Express 5.0 x16	Intel Core Ultra Processors(Series 2): 1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16	Intel Z890 Chipset: 2 x PCIe 4.0 x16 slots (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Support Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)
SATA RAID	Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Onboard Audio
Audio Channels	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Onboard LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 802.11 ax
Bluetooth	Bluetooth v5.3

Rear Panel Ports

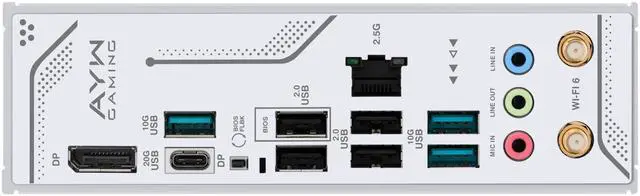

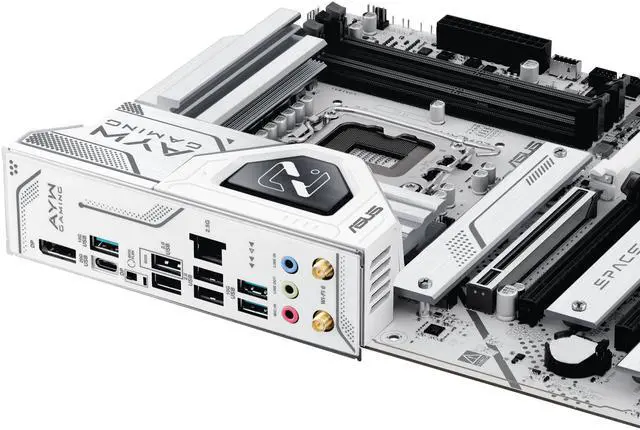

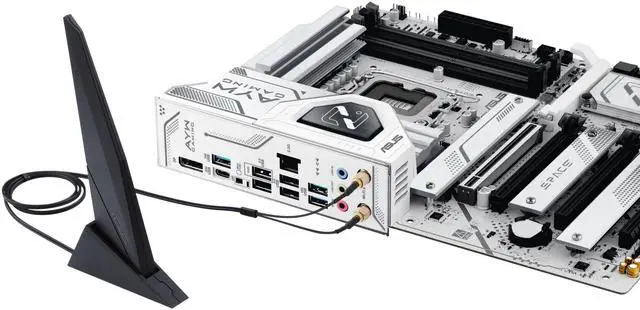

Back I/O Ports	1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button

Internal I/O Connectors
Onboard USB	1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/PPS Fast-charge) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) Header

Software Feature
BIOS Feature	256(128+128) Mb Flash ROM, UEFI AMI BIOS
Software	ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Windows 11	Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors

Features
Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsinks design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield Aura Sync - Addressable Gen 2 headers Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A - Compatible with PD3.0 and PPS

Packaging

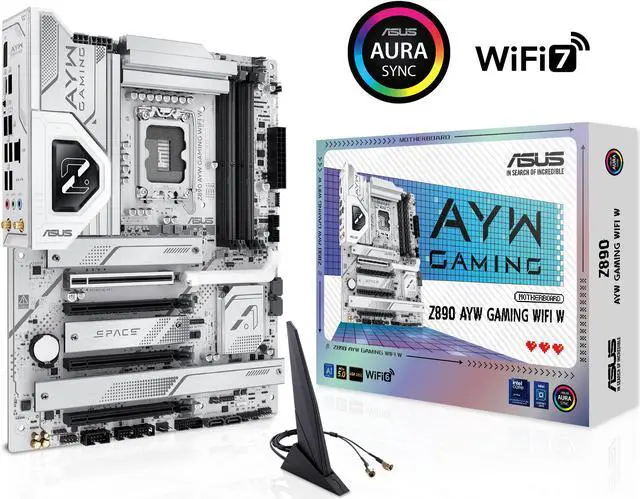

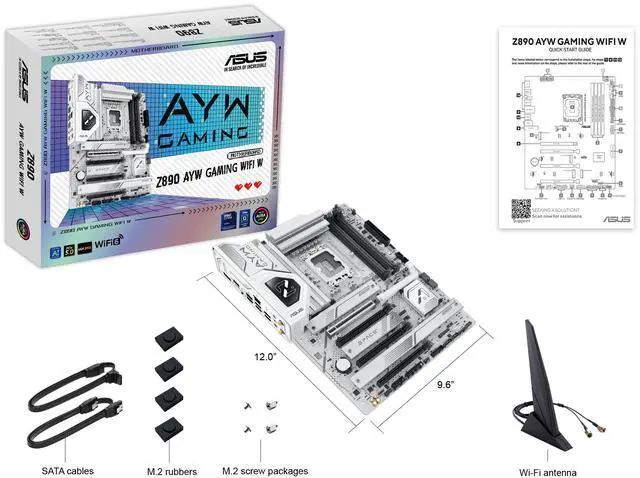

Package Contents	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x M.2 rubber packages 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide
