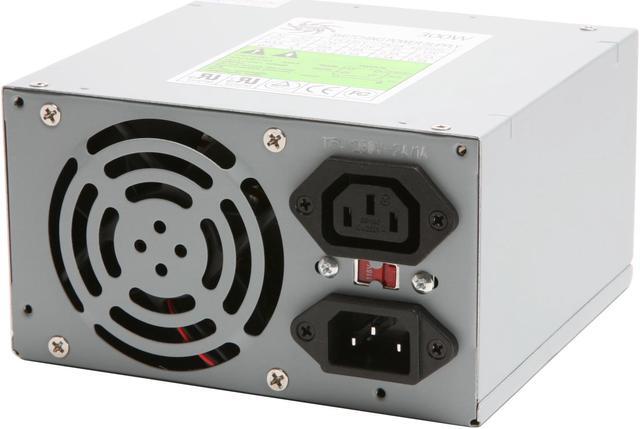

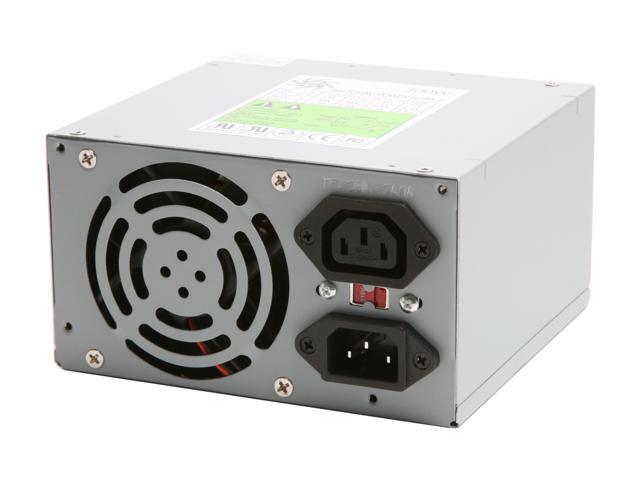

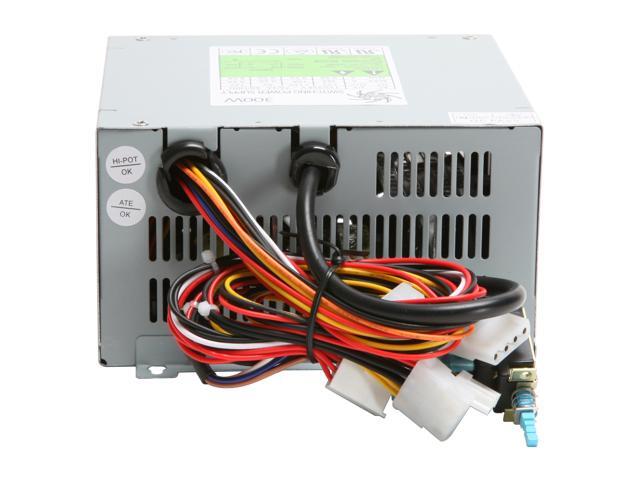

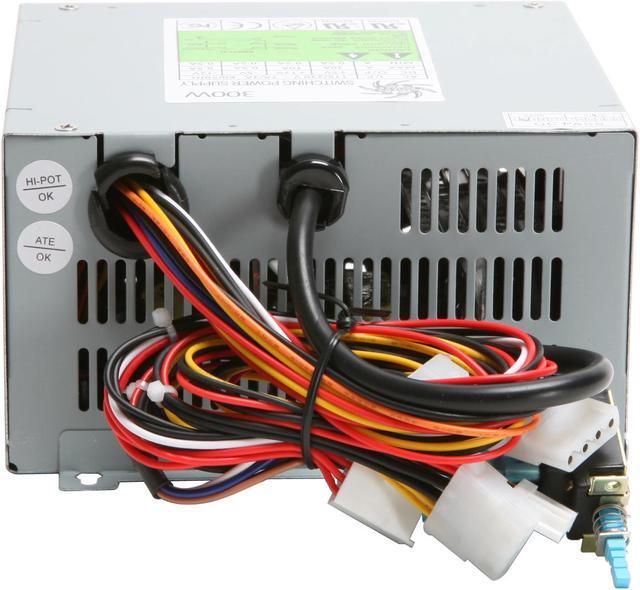

*High efficiency* Low Ripple & Noise* Output over voltage protection* Short circuit protection on all outputs * Reset table power shut down* Approved by UL, CB & CE* 6Pin P8 + 6pin P9 AT Connector * FCC part 15 subpart J Class B at 115VAC operation & CISPR 22 Class B at 230 VAC operatio* 100% burn-in under high ambient temperature (50¢J)* Vacuum-impregnated transformer* 100% Hi-pot tested* Dimension: 5.75"(W) x 3.25"(H) x 5.5"(D)Power Output Power 300 W Input Voltage 115V / 230V ACFrequency 60/ 50 HzOutput Voltage +5V -5V +12V -12VMAX(A) 30A 0.5A 10A 0.5A MIN(A) 0.5A 0.5A 0.5A 0.5ATechnical Information:Fan Rear FanMTBF 100000 Hours at 25°CConnectors 6+6pin AT P8/P9 | 4pin AT Push Button| 4pin Molex | 4pin FDD This power supply is compatible with many old model system, Accounting system, Automatic control machine, storage PCs for power supply replacement.

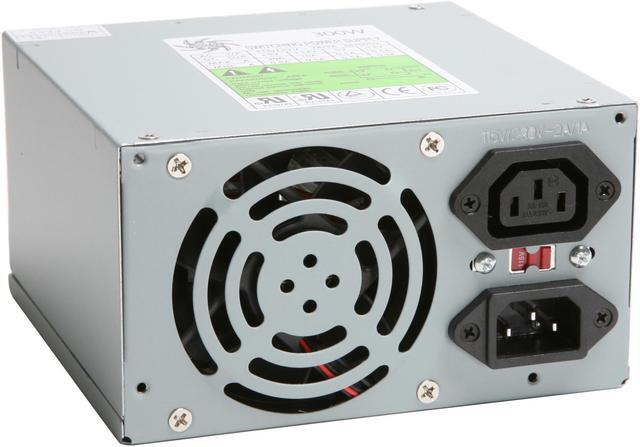

In compliance with AT standards – which have been in the market since 1980s, and are still strong in today's industry – the Athena Power AP-AT30 is a great selection for many industry machines, such as accounting systems, automatic control machines, and storage PCs. The AT Power Supply functions differently than its younger counterpart, the ATX, by being able to power on manually with a power switch. Having this type of control is necessary for the safety of heavy or delicate machinery that interacts together. This unit has also boosted the wattage to 300 to give the machines more power to run on.
Compliant with AT StandardsWorks with older industry systems, from robotic drills to essential medical equipment.
300W OutputHigher than in commonly found PSUs, for more headroom for better stability and control.
Industry-Class ReliabilityOver-voltage- and short-circuit protections ensure first-class protection for your components. 100% burn-in test under high ambient temperature (50°C), and 100% Hi-pot test with a Vacuum-impregnated transformer that is 100% Hi-pot tested, guarantee unmatched durability and reliability you can count on.
Efficient CoolingThe quality fan delivers efficient and quiet cooling for better acoustic comfort and reliability.
Learn more about the Athena Power AP-AT30
General
Brand
Athena Power
Model
AP-AT30
Details
Type
AT
Maximum Power
300 W
Fans
1
PFC
No
+12V Rails
Single
PCI-Express Connector
No
SATA Power Connector
No
SLI
No
Haswell Support
No
CrossFire
No
Modular
No
Power Good Signal
100-500ms
Hold-up Time
16ms min.
Efficiency
> 70%
Over Voltage Protection
Yes
Input Voltage
115 / 230 V
Input Frequency Range
50/60 Hz
Input Current
7A @ 115V, 4A @ 230V
MTBF
>100,000 Hours
Approvals
UL, CB & CE
Features
Features
Low Ripple & Noise Output over voltage protection Short circuit protection on all outputs Reset table power shut down FCC part 15 subpart J Class B at 115VAC operation & CISPR 22 Class B at 230 VAC operation 100% burn-in under high ambient temperature (50°C) 100% Hi-pot tested Vacuum-impregnated transformer 100% Hi-pot tested 6Pin P8 + 6Pin P9 AT Connector
