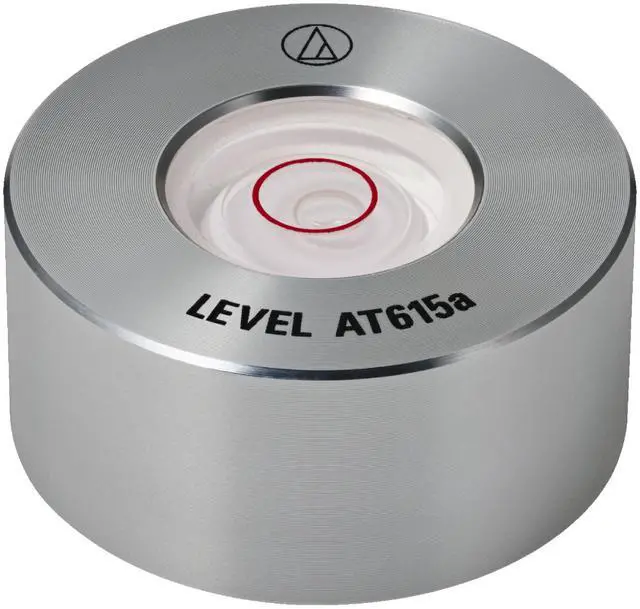

Audio Technica AT615a Precision Aluminum Turntable Bubble Level Aluminum (Silver)
- Audio-Technica
- AT-VM530XEN
- Cartridges & Needles
+
+
Learn more about the Audio-Technica AT-VM530XEN
| Brand | Audio-Technica |
|---|---|
| Model | AT-VM530XEN |
| Color | Orange/Black |
|---|---|
| Accessory Type | Cartridges & Needles |
| Specification | Frequency Response: 20 to 25,000 Hz Channel Separation: 25 dB (1 kHz) Vertical Tracking Angle: 20° Tracking Force: 1.8 to 2.2 g (2.0 g standard) Stylus Construction: Nude elliptical Recommended Load Impedance: 47 k ohms Coil Impedance: 3.2 k ohms (1 kHz) DC Resistance: 750 ohms Coil Inductance: 480 mH (1 kHz) Output Voltage: 3.2 mV (1 kHz, 5 cm/sec.) Output Balance: 1.5 dB (1 kHz) Cantilever: Aluminum pipe Static Compliance: 23 x 10-6 cm/dyne Dynamic Compliance: 7 x 10-6 cm/dyne (100 Hz) |
| Feature | AT-VMx dual moving magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus 0.3 x 0.7 mil elliptical nude stylus tracks the record groove with accuracy for outstanding audio reproduction Significantly lighter stylus tip (compared to previous model) allows for more precise tracing of the record groove Paratoroidal coils improve generating efficiency for enhanced channel separation, channel balance, and transient response PCUHD (Pure Copper Ultra High Drawability) coils - and fewer coil turns - deliver highly responsive, three-dimensional sound reproduction with excellent transient response Center shield plate between the left and right channels reduces crosstalk for clear stereo sound Threaded inserts make cartridge easier to mount, especially to integrated tonearms V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record Durable low-resonance polymer housing Aluminum cantilever Compatible with any turntable headshell that accepts 1/2" cartridges Compatible with most AT-VMx series replacement styli,* offering a wide choice of options for every budget and application *Excludes mono models |
|---|
| First Listed on Newegg | July 24, 2026 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-330-686-2600
- Support Website
- View other products from Audio-Technica
LOADING...
The Audio-Technica AT-VM530XEN is a dual moving magnet phono cartridge with a nude elliptical stylus, designed for vinyl listeners seeking detailed stereo playback and compatible with turntables that accept a 1/2-inch cartridge.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Record playback on turntables with a headshell that accepts 1/2-inch cartridges |
| Cartridge Design And Compatibility | Dual moving-magnet cartridge with a 0.3 × 0.7 mil nude elliptical stylus, aluminum cantilever, and low-resonance polymer housing; compatible with most AT-VMx replacement styli except mono models |
| Tracking And Mechanical Specs | Recommended tracking force is 1.8–2.2 g (2.0 g standard), with a 20° vertical tracking angle, 23 × 10⁻⁶ cm/dyne static compliance, and 7 × 10⁻⁶ cm/dyne dynamic compliance at 100 Hz |
| Electrical Performance | Frequency response of 20–25,000 Hz, 3.2 mV output at 1 kHz and 5 cm/sec, 25 dB channel separation, and 1.5 dB output balance; 47 kΩ recommended load impedance, 3.2 kΩ coil impedance, 750 Ω DC resistance, and 480 mH coil inductance |
| Product Type And Color | Cartridge and needle accessory in orange and black |
| Model Identifiers | Audio-Technica AT-VM530XEN |
