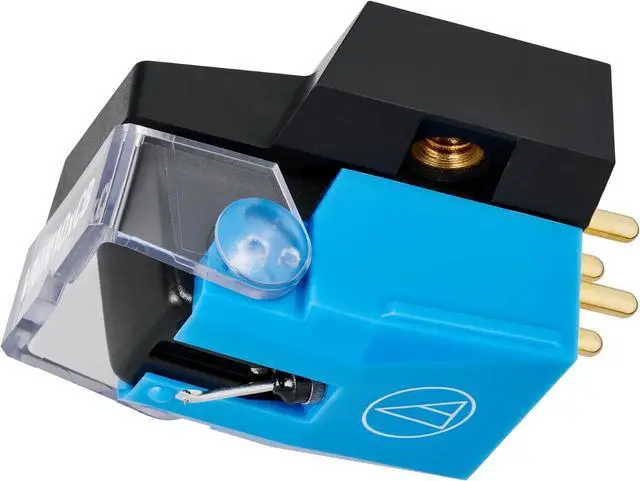

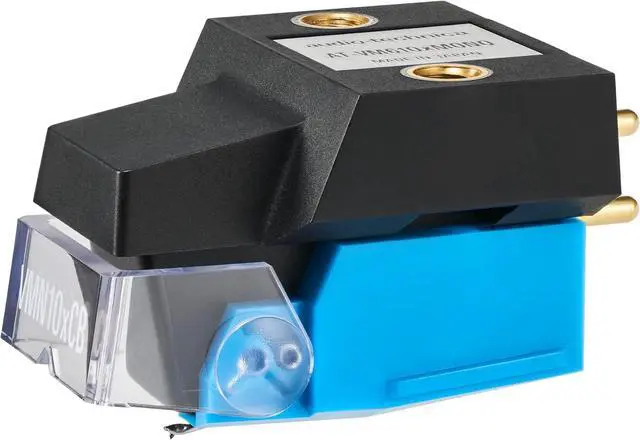

Audio Technica AT-VM610xMONO Dual Moving Magnet Phono Cartridge with Bonded Conical Mono Stylus Blue/Black
- AT-VMx dual moving magnet cartridge with 0.6 mil conical bonded stylus
- 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity
- Paratoroidal coils improve generating efficiency for enhanced transient response
- PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response
- Threaded inserts make cartridge easier to mount, especially to integrated tonearms
+
+
Learn more about the Audio-Technica AT-VM610XMONO
| Brand | Audio-Technica |
|---|---|
| Model | AT-VM610XMONO |
| Color | Blue |
|---|---|
| Accessory Type | Cartridges & Needles |
| Specification | Frequency Response: 20 to 20,000 Hz Vertical Tracking Angle: 20° Tracking Force: 1.8 to 2.2 g (2.0 g standard) Stylus Construction: Conical bonded Recommended Load Impedance: 47 k ohms Coil Impedance: 1.6 k ohms (1 kHz) DC Resistance: 375 ohms Coil Inductance: 240 mH (1 kHz) Output Voltage: 5.0 mV (1 kHz, 5 cm/sec.) Horizontal/Vertical Output Ratio: 20 dB (1 kHz) Cantilever: Aluminum pipe Static Compliance: 23 x 10-6 cm/dyne Dynamic Compliance: 7 x 10-6 cm/dyne (100 Hz) |
| Feature | AT-VMx dual moving magnet cartridge with 0.6 mil conical bonded stylus 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity Paratoroidal coils improve generating efficiency for enhanced transient response PCUHD (Pure Copper Ultra High Drawability) coils - and fewer coil turns - deliver highly responsive, three-dimensional sound reproduction with excellent transient response Threaded inserts make cartridge easier to mount, especially to integrated tonearms V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record Durable low-resonance polymer housing Aluminum cantilever Mono body terminating left and right channels reduces surface noise Compatible with any turntable headshell that accepts 1/2" cartridges |
|---|
| Dimension | 1.1" x 0.72" x 0.69" |
|---|
| First Listed on Newegg | July 01, 2026 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-330-686-2600
- Support Website
- View other products from Audio-Technica
LOADING...
The Audio-Technica AT-VM610xMONO is a dual moving-magnet phono cartridge designed for playing mono records, making it suitable for vinyl listeners and collectors who want a cartridge dedicated to monaural playback.
Recommended For
- Collectors who regularly play mono microgroove LPs and want a cartridge designed for mono playback, with a centered image and reduced surface noise compared with stereo-cartridge playback.
- Listeners with worn or noisy mono LPs who want to try a mono-specific cartridge; a listening test reported less audible noise on a deliberately scratched mono record than with a stereo stylus.
- Vinyl listeners with a collection of mono LPs and a compatible turntable setup who want a dedicated cartridge for those records rather than using their stereo cartridge for every format.
- Owners of mono 45 rpm microgroove records who want a cartridge intended for mono LP-format grooves; it is not the 78 rpm shellac model.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Mono vinyl playback on turntables with a compatible 1/2-inch cartridge headshell, connected to an integrated amplifier, AV receiver, or powered speaker |
| Cartridge And Stylus | Dual moving magnet mono cartridge with a 0.6 mil bonded conical stylus and a mono body that terminates left and right channels |
| Frequency And Output | 20–20,000 Hz frequency response, 5.0 mV output at 1 kHz and 5 cm/sec, and 20 dB horizontal/vertical output ratio at 1 kHz |
| Electrical Characteristics | 47 kΩ recommended load impedance, 1.6 kΩ coil impedance at 1 kHz, 375 Ω DC resistance, and 240 mH coil inductance at 1 kHz |
| Tracking And Compliance | 20° vertical tracking angle, 1.8–2.2 g tracking force (2.0 g standard), 23 × 10⁻⁶ cm/dyne static compliance, and 7 × 10⁻⁶ cm/dyne dynamic compliance at 100 Hz |
| Construction And Mounting | Aluminum pipe cantilever, low-resonance polymer housing, and threaded inserts for easier mounting, including on integrated tonearms; flip-up stylus protector has a V-cut position guide |
| Compatibility And Signal | Compatible with turntable headshells that accept 1/2-inch cartridges; phono signal format |
| Physical Specifications | Blue; 1.1 × 0.72 × 0.69 inches; item weight 7.2 g |
| Model Identifiers | Audio-Technica AT-VM610XMONO |
