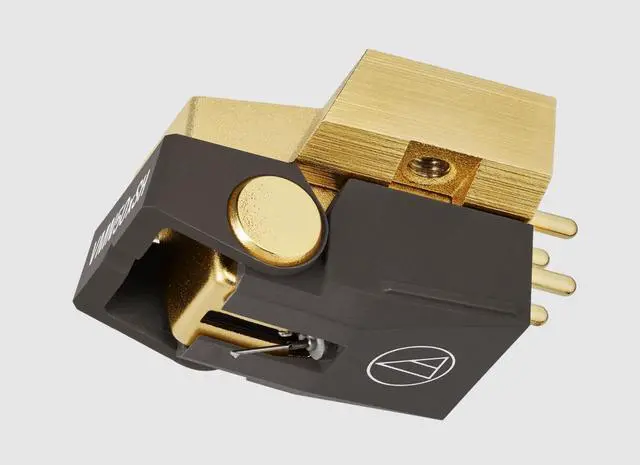

Audio Technica AT-VM750xSH Dual Moving Magnet Phono Cartridge with Nude Shibata Stylus Brown/Gold
- Audio-Technica
- AT-VM750XSH
- Cartridges & Needles
+
+
Learn more about the Audio-Technica AT-VM750XSH
| Brand | Audio-Technica |
|---|---|
| Model | AT-VM750XSH |
| Color | Black/Gold |
|---|---|
| Accessory Type | Cartridges & Needles |
| Specification | Frequency Response: 20 to 27,000 Hz Channel Separation: 26 dB (1 kHz) Vertical Tracking Angle: 20° Tracking Force: 1.8 to 2.2 g (2.0 g standard) Stylus Construction: Nude Shibata Recommended Load Impedance: 47 k ohms Coil Impedance: 3.2 k ohms (1 kHz) DC Resistance: 750 ohms Coil Inductance: 480 mH (1 kHz) Output Voltage: 3.7 mV (1 kHz, 5 cm/sec.) Output Balance: 1.0 dB (1 kHz) Cantilever: 0.28 mm (0.01") diameter solid boron Static Compliance: 20 x 10-6 cm/dyne Dynamic Compliance: 7 x 10-6 cm/dyne (100 Hz) |
| Feature | AT-VMx dual moving magnet cartridge with Shibata stylus Shibata stylus provides long line of contact with the record groove, enabling the pickup of ultra-high frequencies with minimal abrasion and distortion Significantly lighter stylus tip (compared to previous model) allows for more precise tracing of the record groove Solid boron cantilever quickly transmits vibrations from the record groove, ensuring accurate reproduction of dynamic musical passages Die-cast aluminum housing reduces vibrations and resonance Paratoroidal coils improve generating efficiency for enhanced channel separation, channel balance, and transient response PCUHD (Pure Copper Ultra High Drawability) coils - and fewer coil turns - deliver highly responsive, three-dimensional sound reproduction with excellent transient response Center shield plate between the left and right channels reduces crosstalk for clear stereo sound Threaded inserts make cartridge easier to mount, especially to integrated tonearms V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record Compatible with any turntable headshell that accepts 1/2" cartridges Compatible with most AT-VMx series replacement styli,* offering a wide choice of options for every budget and application *Excludes mono models |
|---|
| First Listed on Newegg | July 02, 2026 |
|---|
