Learn more about the Audio-Technica ATXP5
| Brand | Audio-Technica |
|---|---|
| Model | ATXP5 |
| Accessory Type | Other |
|---|---|
| Specification | Channel Separation: 20 (dB at 1 kHz) Vertical Tracking Force: 2.0-4.0 g (3.0 g standard) Stylus Construction: Bonded round shank Recommended Load Impedance: 47,000 ohms Output: 5.5 mV (1 kHz, 5 cm/sec.) Channel Balance: 2.0 dB (1 kHz) Stylus Shape: 0.3 x 0.7 mil elliptical Cantilever: Carbon fiber-reinforced ABS Mount: Half-inch Replacement Stylus: ATN-XP5 Coil impedance: 6.7 k ohms (1 kHz) DC resistance: 990 ohms Recommended load capacitance: 100 to 200 pF Coil inductance: 1.0 H (1 kHz) Vertical tracking angle: 20 degree |
| Frequency Response | 20-18,000 Hz |
|---|
| Feature | 0.3 x 0.7 mil elliptical bonded stylus tip Highly-rigid polyphenylene sulfide (PPS)/glass fiber body 5.5 mV high-level output Tracking force of 2.0 to 4.0 grams (3.0 grams standard) Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking Design offers maximum visibility of the stylus tip Great tracking and channel separation for high-fidelity sound |
|---|
| Dimension | 0.68" x 0.67" x 1.20" |
|---|---|
| Weight | 0.22 oz. |
| First Listed on Newegg | March 24, 2018 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-330-686-2600
- Support Website
- View other products from Audio-Technica
LOADING...

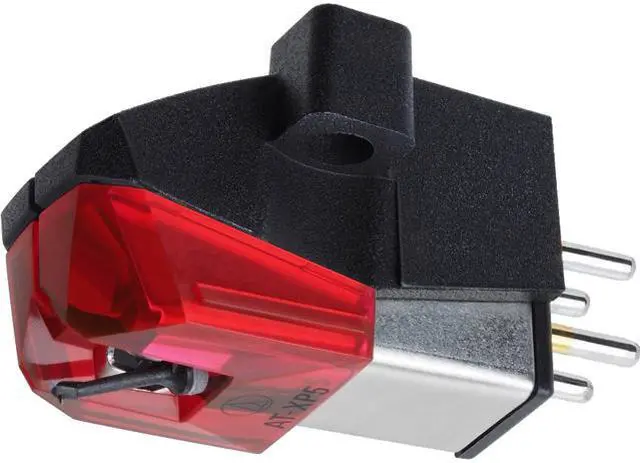

The Audio-Technica ATXP5 is a half-inch-mount DJ phono cartridge with a 0.3 × 0.7 mil elliptical stylus and 5.5 mV output, suited to DJs and turntable listeners seeking high-level output and detailed vinyl playback.
Recommended For
- Budget-conscious vinyl DJs using a half-inch-mount turntable who want a DJ-oriented cartridge with reliable groove tracking and sound that also works for attentive listening.
- Vinyl mixers who cue tracks and want an elliptical stylus with tracking that community users report works well for cueing at the recommended 3 g setting.
- DJs who also play records at home and prefer a warm, balanced presentation; reviewers found the XP5 suitable for listening as well as DJ use.
- Turntable owners who want to replace the stylus when it wears rather than replace the whole cartridge; the XP5 has a designated replacement stylus, the ATN-XP5.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | DJ playback on a phono-compatible turntable |
| Stylus And Tracking | 0.3 × 0.7 mil elliptical bonded stylus with a round shank; 2.0–4.0 g tracking force (3.0 g standard) and 20° vertical tracking angle |
| Mount And Replacement | Half-inch mount with ATN-XP5 replacement stylus |
| Electrical Output And Loading | 5.5 mV output; recommended 47,000-ohm load impedance and 100–200 pF load capacitance; 6.7 kΩ coil impedance, 990-ohm DC resistance, and 1.0 H coil inductance |
| Sound Characteristics | 20–18,000 Hz frequency response, 20 dB channel separation, 2.0 dB channel balance, and 60 dB signal-to-noise ratio |
| Construction And Design | PPS and glass-fiber body, carbon-fiber-reinforced ABS cantilever, nylon wire suspension, and a visible stylus tip; red finish |
| Included Accessory | Cartridge alignment protractor |
| Dimensions And Weight | 0.68 × 0.67 × 1.20 in; 0.22 oz (approximately 6.2 g) |
| Model Identifiers | Audio-Technica ATXP5 (AT-XP5) |
