Does the AXIS M1135-E Mk II support Power over Ethernet?

Yes, the AXIS M1135-E Mk II supports Power over Ethernet (PoE) according to IEEE 802.3af/802.3at Type 1.

What is the maximum resolution of the AXIS M1135-E Mk II Box Camera?

The maximum resolution of the AXIS M1135-E Mk II Box Camera is 1920 x 1080.

$579^.99

Limit 2 per customer.

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

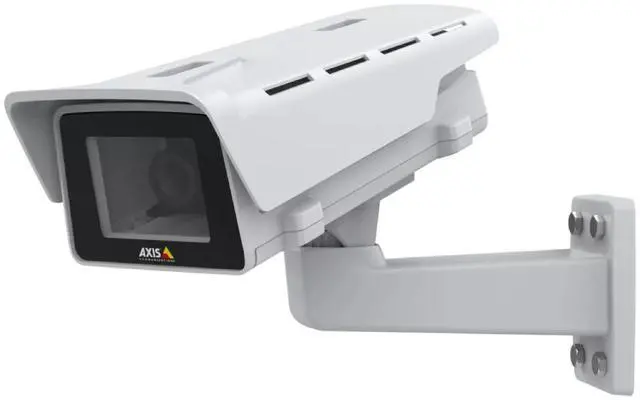

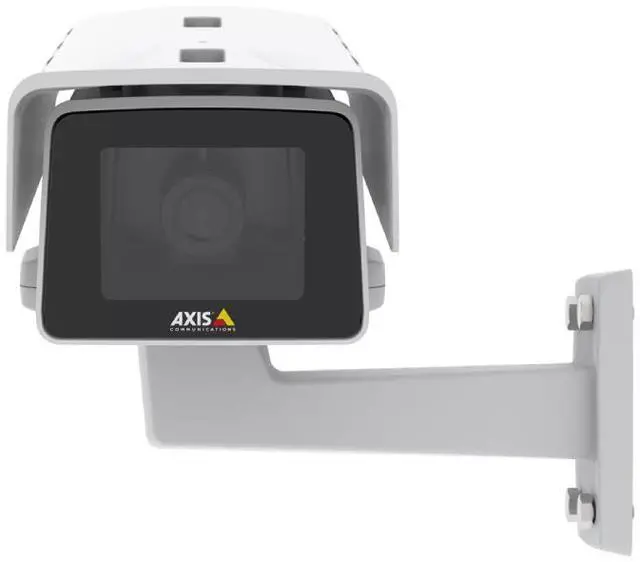

Main image of AXIS M1135-E Mk II Box Camera, Outdoor-ready 2 MP surveillance camera | 02485-001

Alt view image 2 of 2 - AXIS M1135-E Mk II Box Camera, Outdoor-ready 2 MP surveillance camera | 02485-001

Shop All Axis Communications Products

AXIS M1135-E Mk II Box Camera, Outdoor-ready 2 MP surveillance camera | 02485-001

Be the first to review this product...

Compact and flexible design
Lightfinder and Forensic WDR
Audio input
AXIS Object Analytics
Remote zoom and focus with i-CS

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

M1135-E MK II

Model
Brand	AXIS
Series	M11 Series
Model	M1135-E Mk II
Part Number	02485-001

Details
Type	Box Camera
Connection Type	RJ45 10BASE-T/100BASE-TX PoE

Network
Networking Protocol	Network protocols IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS1, TLS1, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
ONVIF	Yes

Camera
Pan/Tilt	Yes
Pan/Tilt/Zoom	Digital PTZ
Sensor & Detector	CMOS
MAX Resolution	1920 x 1080
Lens Type	Varifocal
Security	Edge security Software: Signed OS, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 Client Credential Flow/OpenID Authorization Code Flow for centralized ADFS account management, password protection, Axis Cryptographic Module (FIPS 140-2 level 1), AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), Axis device ID, secure keystore, signed video, secure boot Network security IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall
Night Vision	Yes
Audio	Audio streaming: Audio in, simplex, two-way audio via edge-to-edge technology Audio encoding: 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate Audio input/output: External microphone input or line input, automatic gain control, network speaker pairing

Power
Power over Ethernet	Yes
Power	Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max 7.2 W, typical 4.5 W 10-28 V DC, max 6.6 W, typical 4.4 W

Dimension & Weight
Dimension	240 x 143 x 324 mm (9.5 x 5.6 x 12.8 in) including wall mount
Weight	1.8 kg (4.0 lb) including wall mount

Additional Information
First Listed on Newegg	January 27, 2023

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for replacement - Contact Manufacture for Assistance

This item is covered by Newegg.com's Manufacturer Only Return Policy.
Read full return policy for details.
