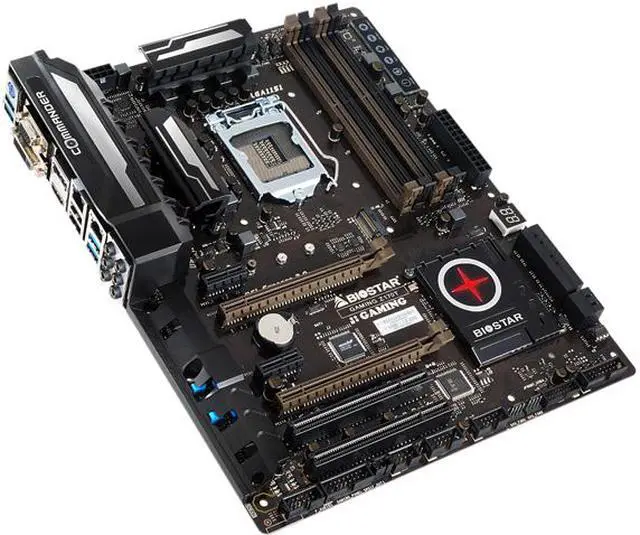

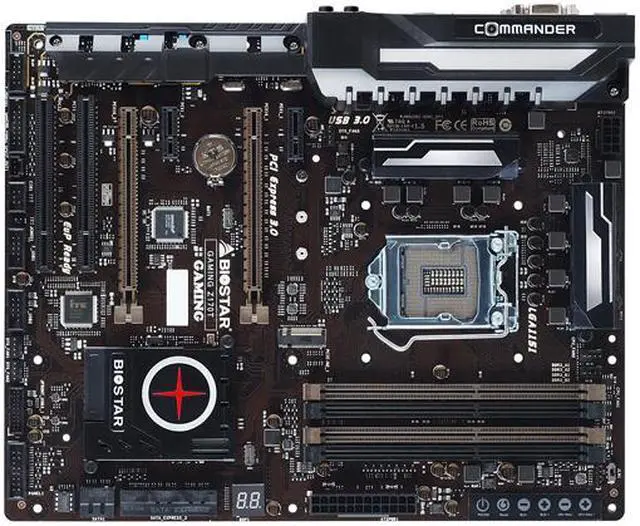

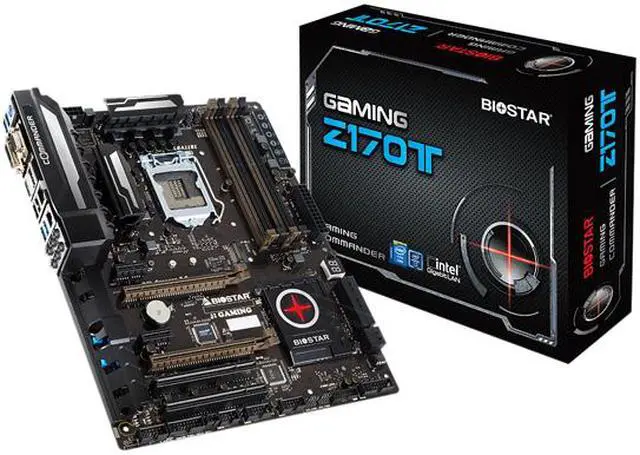

    BIOSTAR GAMING Z170T LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard

    Used - Very Good Product Type
    The item is in very good condition. The BIOS has been upgraded to the latest version.Tested,only the motherboard and I/O shield are included in the package. please leave a message if you need screws.
    • Intel Z170
    • Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
    • DDR3 3000*(*OC)/ 2800*/ 2600*/ 2400*/ 2200*/ 2133*/ 1866*/ 1800*/ 1600/ 1333/ 1066
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the Biostar GAMING Z170T

    Model
    Brand BIOSTAR
    Model GAMING Z170T
    Supported CPU
    CPU Socket Type LGA 1151
    CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
    Chipsets
    Chipset Intel Z170
    Onboard Video
    Onboard Video Chipset INTEGRATED VIDEO
    By CPU model
    Supports DX12
    Supports HDCP
    Memory
    Number of Memory Slots 4x240pin
    Memory Standard DDR3 3000*(*OC)/ 2800*/ 2600*/ 2400*/ 2200*/ 2133*/ 1866*/ 1800*/ 1600/ 1333/ 1066
    Maximum Memory Supported 32GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 2 x PCI-E x16 3.0 Slot (x16 + x4)
    PCI Express x1 2 x PCI-E x1 3.0 Slot
    PCI Slots 2 x PCI Slots
    Storage Devices
    Serial ATA (SATA) 2 x SATA3 Connector
    SATA Express 2 x SATA Express 16Gb/s Connector
    M.2 1 x M.2 Key M 32Gb/s Connector
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset Realtek ALC892
    Audio Channels 8 Channels
    Onboard LAN
    LAN Chipset Intel I219-V
    Second LAN Chipset Realtek RTL8111H
    Max LAN Speed 2 x 1Gbps

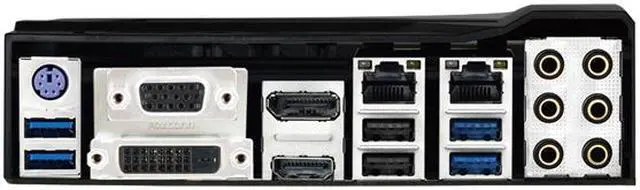

    Rear Panel Ports
    PS/2 1 x PS/2 Keyboard
    Video Ports 1 x DVI-D Connector
    1 x VGA Port
    HDMI 1 x HDMI
    RJ45 2 x RJ45
    DisplayPort 1 x DisplayPort
    USB 3.0 4 x USB 3.0
    USB 1.1/2.0 2 x USB 2.0
    Audio Ports 6 Ports
    Internal I/O Connectors
    Onboard USB 1 x USB 3.0 Header
    2 x USB 2.0 Header
    Other Connectors 1 x Front Audio Header
    1 x Front Panel Header
    1 x S/PDIF-Out Header
    2 x CPU Fan Header
    3 x System Fan Header
    1 x GAMING_Panel Header
    1 x LN2 Switch
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0" x 9.6"
    Features
    Features GAMING COMMANDER
    Support for 6th Gen Intel Core Processors, enables overclocking on Unlocked Intel Core Processors
    Intel Z170 single chip architecture
    Support 4-DIMM DDR3-3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC) up to 32G maximum capacity
    BIOSTAR Hi-Fi 3D Technology inside
    Support USB 3.0
    Support PCIe M.2(32Gb/s)
    Support SATA Express(16Gb/s)
    Support DisplayPort

    GAMING COMMANDER: External GAMING Commander Box(Optional) / Audio Control Software Utility

    H/W MONITORING:
    CPU / System Temperature Monitoring
    CPU / System Fan Monitoring
    Smart / Manual CPU / System Fan Control
    System Voltage Monitoring

    OVERVOLTAGE: CPU Vcore/ Vring/ VGT/ VSA/ VCC_PLL_OC/ DRAM/ PCH 1.0V

    OS SUPPORT: Support Windows 7 / 8.1(x64) / 10(x64)

    SPECIAL FEATURES:
    Supports PURO Hi-Fi 3D
    Touch OC
    Supports 100% Solid capacitor
    Supports Rapid Debug3
    Supports Charger Booster II
    Supports BIOS Online Update
    Packaging
    Package Contents ACCESSORIES:
    4 x SATA Cable
    1 x I/O Shield
    1 x 4GB USB Flash Drive
    1 x User Manual

    BUNDLE SOFTWARE:
    BullGuard
    Smart Ear headphone Utility
    BIO-Remote2
    Smart Speed LAN
    Intel Rapid Start Technology
    Intel Smart Connect Technology
    Intel Rapid Storage Technology (include Intel Smart Response Technology)
