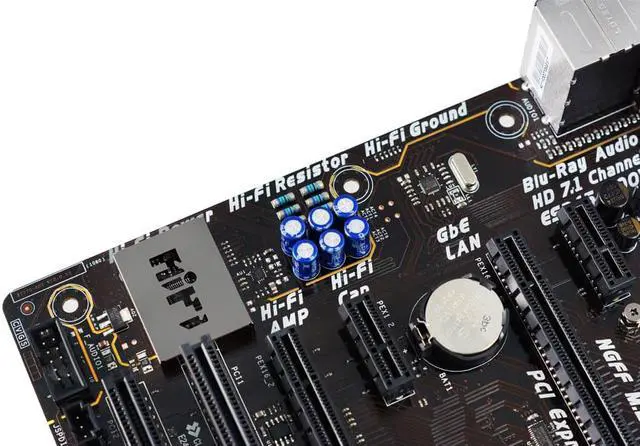

BIOSTAR Hi-Fi Z97Z7 LGA 1150 HDMI SATA 10Gb/s USB 3.0 DDR3 ATX Intel Motherboard

Chipset: Intel Z97

CPU SUPPORT: Intel® Core i7 LGA 1150 Processor
Intel® Core i5 LGA 1150 Processor
Intel® Core i3 LGA 1150 Processor
Intel® Pentium® LGA 1150 Processor
Maximum CPU TDP (Thermal Design Power): 95Watt
Ready for Intel 4th Gen. unclocked CPU (codename Devil's Canyon)
Ready for Intel next enthusiast-class CPU (codename Broadwell)
Support CPU Bclk overclock

MEMORY:
Support Dual Channel DDR3 2800 (OC) / 2600 (OC) / 2400 (OC) / 2200 (OC) / 2133 (OC) / 1866 (OC) / 1800 (OC) / 1600/ 1333/ 1066 MHz
Support non-ECC memory modules
Support Extreme Memory Profile (XMP) memory modules
4 x DDR3 DIMM Memory Slot
Max. Supports up to 32GB Memory

INTEGRATED VIDEO:
By CPU model
Supports DX 11.1 / 11/ 10.1 / 10/ 9
Supports HDCP
Support DirectX Video Acceleration (DXVA) for accelerating video processing
Full AVC/VC1/MPEG2 HW Decode
Support Advanced Scheduler 2.0, 1.0, XPDM
Support OpenGL 4.0
Support HDMI, 1.4 a specification compliant with 3D
Support 3 Displays(HDMI + DVI + VGA)

STORAGE:
4 x SATA III Connector
1 x SATA Express Connector(Support 1 x SATA Express 10Gb/s Devices or 2 x SATA3 6Gb/s Devices)
Support SATA RAID: 0, 1, 5, 10
Support both Legacy and AHCI Mode
Support Hot-Plug in AHCI mode
Support Intel Smart Response Technology
1 x M. 2 (M Key) Connector
Support both PCIE NAND for PCIE SSD and SATA NAND for SATA SSD

LAN:
Realtek RTL8111GR - 10/100/1000Mb/s Controller
Support Wake-On-LAN
Support PXE

AUDIO CODEC:
Realtek ALC892 8-Channel Blu-ray Audio
Support Blu-ray Audio
Support HD Audio
Support 2/4/6/8-channel
Support Biostar Hi-Fi

USB:
4 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header

EXPANSION SLOT:
1 x PCI-E 3.0 x16 Slot (support CrosfireX)
1 x PCI-E 2.0 x16 Slot (x4)
2 x PCI-E 2.0 x1 Slot
2 x PCI Slot

REAR I/O:
1 x PS/2 Keyboard
4 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector, resolution up to 4096x2160@24Hz, 24bpp / 2560x1600@60Hz, 24bpp / 1920x1080@60Hz, 36bpp
1 x DVI Connector, resolution up to 1920x2000@60Hz @24bpp
1 x VGA Port, resolution up to 1920x2000@60Hz @24bpp
1 x LAN Port
6 x Audio Jacks

INTERNAL I/O:
1 x USB 3.0 Header
2 x USB 2.0 Header
4 x SATA III Connector (6Gb/s)
1 x SATA Express Connector(Support 1 x SATA Express 10Gb/s Devices or 2 x SATA3 6Gb/s Devices)
1 x M. 2 Key M Connector
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
2 x CPU Fan Connector
3 x System Fan Connector
1 x CIR Header
1 x TPM Header(TPM V 1.2 )
1 x COM Port Header

H/W MONITORING:
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring

DIMENSION: ATX
Form Factor Dimension: 30.5 cm x 24.4 cm ( W x L )
