Brand | BIOSTAR |
---|---|
Model | X370GT7 |

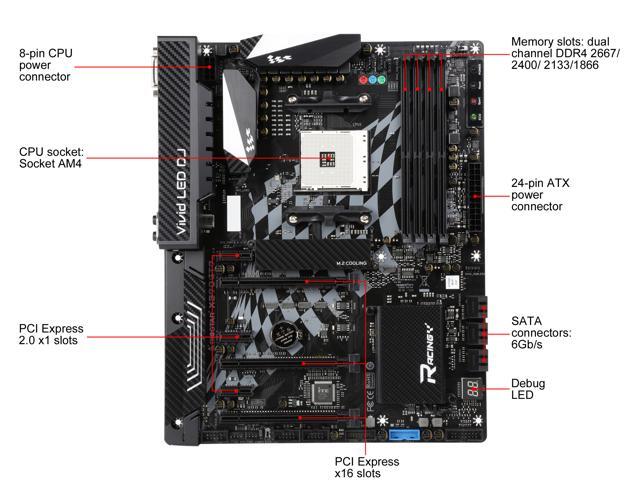

CPU Socket Type | AM4 |
---|---|
CPU Type | A-Series / Ryzen Series |
Chipset | AMD X370 |
---|
Number of Memory Slots | 4x288pin (DDR4) |
---|---|
Memory Standard | DDR4 2667/ 2400/ 2133/ 1866 * DDR4 2667 for AMD Ryzen CPU |
Maximum Memory Supported | 64GB |
Channel Supported | Dual Channel |
PCI Express 3.0 x16 | 2 x PCI-E x16 3.0 Slot (x16 + NA or x8 + x8 for Ryzen CPU, x8 + NA for APU / NPU) |
---|---|
PCI Express 2.0 x16 | 1 x PCI-E x16 2.0 Slot (x4) |
PCI Express x1 | 3 x PCI-E x1 2.0 Slot |
Serial ATA (SATA) | 6 x SATA 6Gb/s |
---|---|
M.2 | 1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage * M.2 (32Gb/s): The bandwidth is depended on CPU, Ryzen is 32Gb/s; APU & NPU is 16Gb/s. |
SATA RAID | 0/1/10 |
Onboard Video Chipset | By CPU model Supports DX12 Supports HDCP |
---|
Audio Chipset | Realtek ALC1220 |
---|---|
Audio Channels | 8 Channels |
LAN Chipset | Realtek RTL8118AS |
---|---|
Max LAN Speed | 1Gbps |

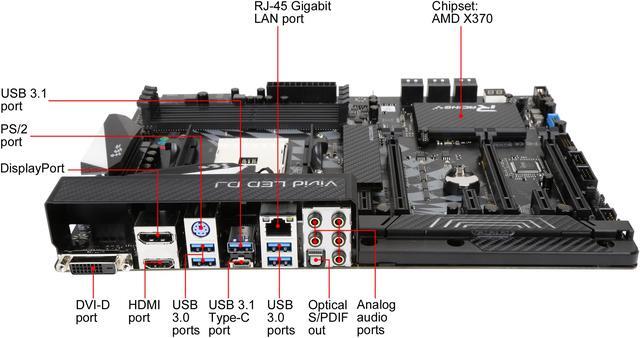

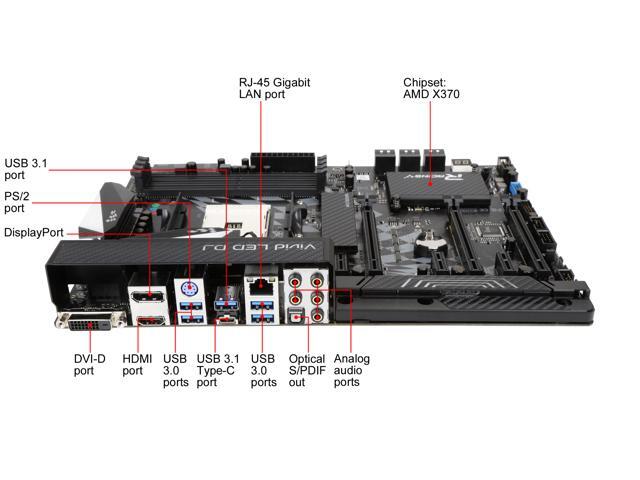

Back I/O Ports | 1 x DisplayPort / 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 4 x USB 3.1 Gen 1 / 5 x Audio Jacks |
---|---|
PS/2 | 1 |
Video Ports | 1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz |
HDMI | 1 x HDMI Connector, resolution up to 4096 x 2160 @60Hz |
RJ45 | 1 x RJ45 |
DisplayPort | 1 x DisplayPort Connector, resolution up to 4096 x 2160 @60Hz |
USB 3.1 | 1 x USB 3.1 Gen2 Type-C Port 1 x USB 3.1 Gen2 Port 4 x USB 3.1 Gen1 Port |
S/PDIF Out | 1 x S/PDIF Out Port |
Audio Ports | 5 x Audio Connector |
Onboard USB | 2 x USB 3.1 Gen1 Header 2 x USB 2.0 Header |
---|---|
Other Connectors | 1 x Front Audio Header 1 x Front Panel Header 2 x CPU Fan Header 3 x System Fan Header 1 x LN2 Switch 2 x 5050 LED Header |
Form Factor | ATX |
---|---|
Dimensions (W x L) | 12.0" x 9.6" |
Features | H/W MONITORING: CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU / System Fan Control System Voltage Monitoring OS SUPPORT: Support Windows 7 (x64) / 10 (x64) BUNDLE SOFTWARE: Racing GT Utility FLY.NET BullGuard FEATURES: VIVID LED DJ VIVID LED ARMOR 5050 LED FUN ZONE Digital Power+ Lightning Charger M.2 Cooling Protection Supports Double Hi-Fi GT TOUCH Dual BIOS Supports 100% Solid capacitor Supports Rapid Debug3 Supports BIOS-Flasher Supports BIOS Online Update |
---|

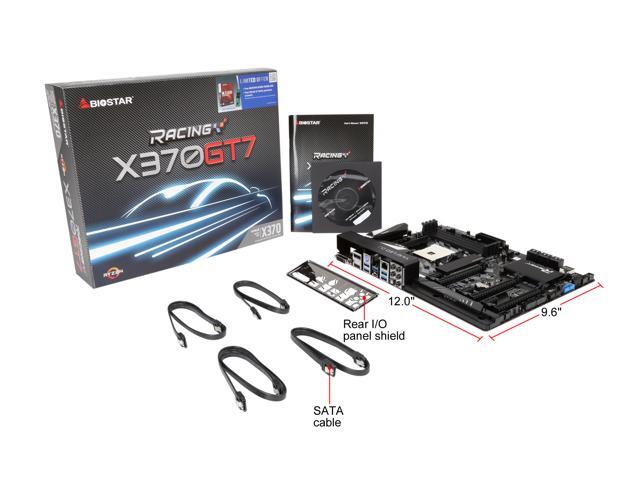

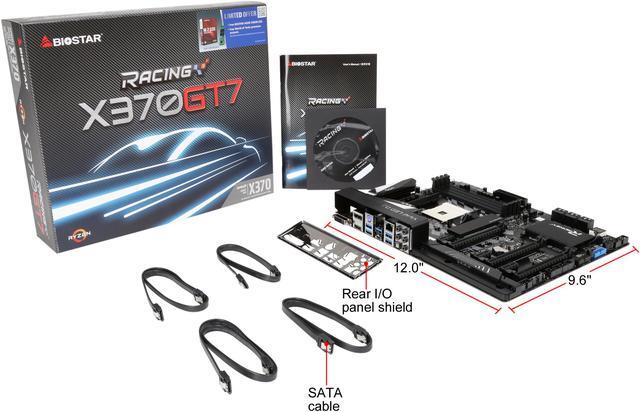

Package Contents | ACCESSORIES: 4 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual |
---|
Date First Available | September 06, 2023 |
---|
