XR DVID EXTENDER WITH AUDIO RS232 HDCP
- Use a single CAT5e/6/7 run for extending DVI-D video plus audio.
- Also extends RS-232 and HDCP signals to the remote screen.
- Goes much farther than standard DVI cabling-up to 330 feet
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
MAIN OVERVIEW FEATURES: Connectivity
Technology: WiredNumber of
Computers Supported: 1Number of
Local Users Supported: 1Maximum
Operating Distance: 330 ftMaximum
Video Resolution: 1920
x 1200Network (RJ-45):
YesDVI: YesNumber of
Network (RJ-45) Ports: 2Number of
DVI Ports: 2Input
Voltage: 120 V AC230 V ACInput
Voltage Range: 100 V AC - 240
V ACPower Consumption: 20
WForm Factor: Wall
MountableTransmitter Height: 1.30"T ransmitter
Width: 4.10"T ransmitter
Depth: 3"Receiver
Height: 1.30"R eceiver
Width: 4.10"R eceiver
Depth: 3"Transmitter
Weight (Approximate): 14.40 ozReceiver
Weight (Approximate): 14.40 ozPackage
Contents: Transmitter Receiver 2 x Power Supplies with Cords 2 x Wallmount Brackets 4 x Screws User
Manual Environmentally Friendly: YesEnvironmental
Certification: WEEE
RoHSCountry of
Origin: TaiwanTAA
Compliant: YesLimited
Warranty: 3 Year
Technology: WiredNumber of
Computers Supported: 1Number of
Local Users Supported: 1Maximum
Operating Distance: 330 ftMaximum
Video Resolution: 1920
x 1200Network (RJ-45):
YesDVI: YesNumber of
Network (RJ-45) Ports: 2Number of
DVI Ports: 2Input
Voltage: 120 V AC230 V ACInput
Voltage Range: 100 V AC - 240
V ACPower Consumption: 20
WForm Factor: Wall
MountableTransmitter Height: 1.30"T ransmitter
Width: 4.10"T ransmitter
Depth: 3"Receiver
Height: 1.30"R eceiver
Width: 4.10"R eceiver
Depth: 3"Transmitter
Weight (Approximate): 14.40 ozReceiver
Weight (Approximate): 14.40 ozPackage
Contents: Transmitter Receiver 2 x Power Supplies with Cords 2 x Wallmount Brackets 4 x Screws User
Manual Environmentally Friendly: YesEnvironmental
Certification: WEEE
RoHSCountry of
Origin: TaiwanTAA
Compliant: YesLimited
Warranty: 3 Year
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-877-877-2269
- Support Website
- View other products from Black Box Corporation
LOADING...
The Black Box AVX-DVI-TP-100M is a DVI-D extender kit that carries video, stereo analog audio, RS-232, and HDCP over one CAT5e/6/7 cable for runs up to 330 feet (100 m), making it suitable for classrooms, meeting rooms, and other installations with a remote display.
Recommended For
- AV installers connecting a DVI-D computer or player to a projector or display in another room, when a single CAT5e/6/7 run is more practical than a long DVI cable.
- Control-room or signage operators placing a compatible DVI screen up to 330 feet from its source and needing RS-232 control at the remote display.
- Installers sending DVI video and two-channel analog stereo audio together to a remote display, without running a separate audio cable between the extender units.
- Organizations extending a compatible DVI source with HDCP-protected content to a remote screen, such as a Blu-ray playback display.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Extending DVI-D video and stereo audio to a TV, monitor, PC, or projector over one CAT5e/6/7 run, with RS-232 and HDCP signal extension |
| Video And Signal Support | Supports 480p, 720p, and 1080p at 60 Hz, plus 1920 × 1200 and 1600 × 1200 at 60 Hz; 340 MHz (10.2 Gbps) bandwidth; extends HDCP and RS-232 |
| Distance And Cabling | Extends signals up to 330 ft. (100 m) over a single CAT5e/6/7 run |
| Audio Support | Stereo 2-channel analog audio |

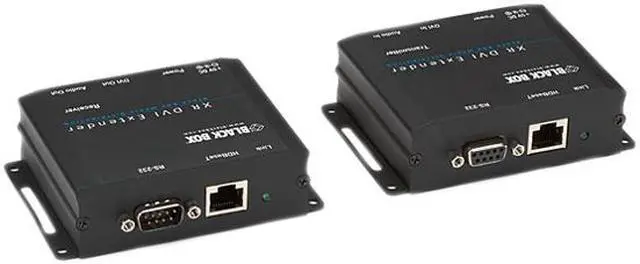

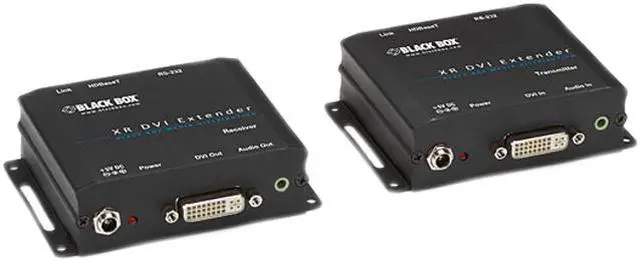

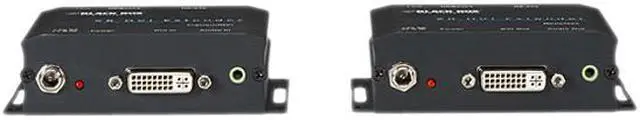

| Connections And Indicators | Transmitter: DVI-D female input, DB9 female RS-232, 3.5 mm stereo audio input, and RJ-45 CATx interconnect; receiver: DVI-D female output, DB9 male RS-232, 3.5 mm stereo audio output, and RJ-45 CATx interconnect. Each unit has power and link LEDs |
| Power | 20 W power consumption; 100–240 VAC, 50–60 Hz, 0.8 A input; 5 VDC, 2 A output |
| Physical Specifications | 4.1 × 3.0 × 1.3 in. (W × D × H); weighs 0.9 lb (approximately 400 g) |
| Installation Environment | For indoor use |
| Compliance | RoHS compliant |
| Model Identifiers | Black Box AVX-DVI-TP-100M; model name also lists 6513709 |
