Thermaltake Core V71 Tempered Glass Black E-ATX Full Tower Tt LCS Certified Gaming Computer Case CA-1B6-00F1WN-04
- Includes GPU Float bracket allows vertical mounting options for 2.5-slot GPU solutions. (Riser Cable Sold Separately)
- Tempered Strength: 4mm Thick Tempered Glass window protects and reduces noise for everyday use.
- Go Big: Supporting up to E-ATX Standard Form factor motherboards
- 3 x 200mm LED fans and 1 x 140mm fan.
- Fully Modular Design: Provides multiple configurations and flexibility for custom PC Enthusiasts

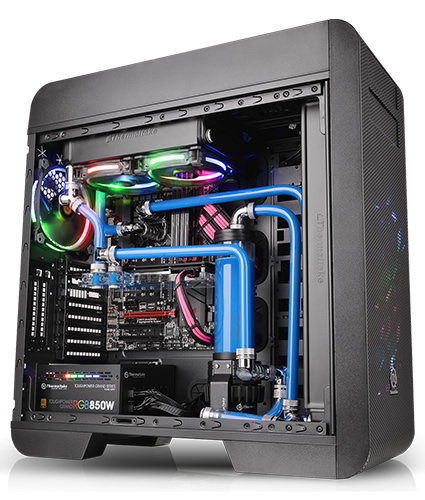

Thermaltake Core V71 Tempered Glass Edition Full Tower Chassis
The Core V71 Tempered Glass Edition full tower chassis features a durable 4mm thick tempered glass window, riser GPU support bracket with optional PCI-e riser cable, three preinstalled 200mm LED fans, and the outstanding cooling performance. With its unprecedented space for high-end configurations and liquid cooling expansion, the Core V71 TG supports the latest PC hardware, and all high-end GPU cards. The Core V71 TG is an ideal choice for those who are looking for a space-saving chassis with excellent expandability and superior ventilation!

Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

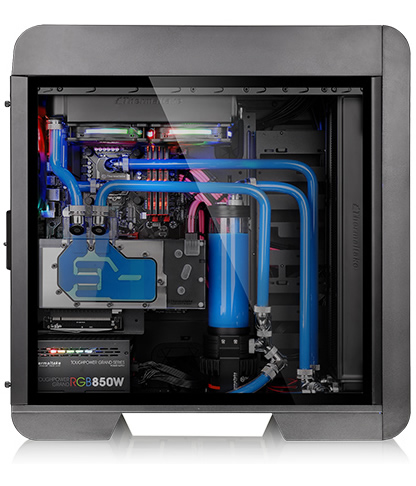

4mm Thick Tempered Glass Window with Gorgeous View
The Core V71 TG features 4mm thick tempered glass to deliver excellent viewing capability. Moreover, unlike any other cases on the market, the enlarged glass window permits users to fully display every interior component of the system and show off their dedication and skill set.

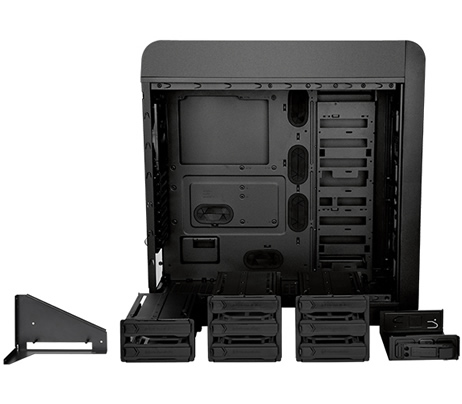

Fully Modular Concept
The fully modular drive cages minimize the hassles of installation and removal. Especially, the Core V71 TG utilizes a tool-less drive bay design that allows users to freely interchange the 3.5” and 2.5” hard-drives to suit their particular needs. The modular drive bay concept of “2+8” offers a good ratio for accessories and storage devices.

Riser GPU Support Bracket
Specially designed with dual GPU placement, the Core V71 TG has the support for vertical graphic card layout with dual PCI-E slots design. The PCI-e riser cable is optional. Plus, the included riser GPU support bracket not only can prevent the graphic card from sagging, but also helps to reduce the weight on the motherboard.
Thermaltake PCI-e X16 Riser Cable (Optional) – Support a wide range of GPU solutions.

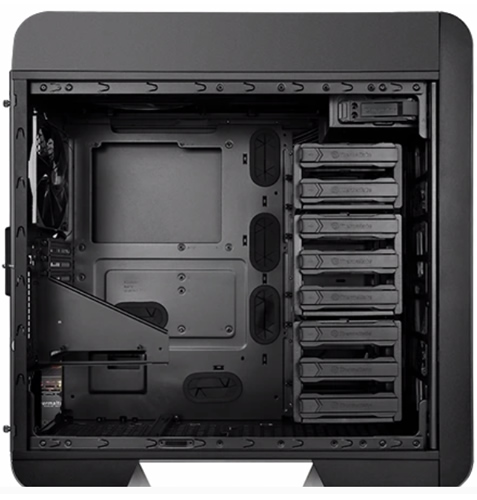

Excellent Expandability
The Core V71 TG supports motherboards up to standard E-ATX, a tower CPU cooler with maximum height 185mm, and a dual expansion slot VGA of up to 400mm in length without HDD rack. The Core V71 TG still leaves plenty of interior space for cable management even after installing a high-wattage PSU. Moreover, with the tool-free design, users can easily mount up to eight 3.5”/2.5” (with HDD cage) and two 5.25” devices into the build at the same time.

Superior Ventilation
Featuring a width of 230mm, the Core V71 TG enables users to build a complete high-end system that supports up to two 200mm case fan or up to one 420mm liquid cooling radiator. Additionally, to improve system ventilation, the CoreV71 TG comes with three 200mm LED fans (two at the front and one at the top) and one 140mm rear fan.

Core V71 TG Radiator Supporting List

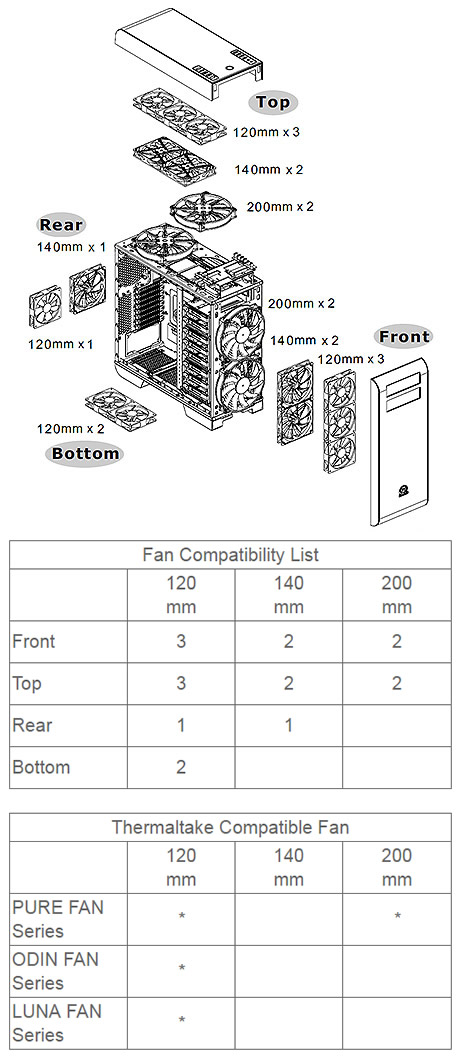

Core V71 TG Fan Supporting List

Specification
P/N | CA-1B6-00F1WN-04 |
---|---|
Case Type | Full Tower |
Dimension (H x W x D) | 583 x 230 x 560 mm (23 x 9.1 x 22 inch) |
Net Weight | 14.7 kg |
Side Panel | Tempered Glass |
Color | Exterior & Interior : Black |
Material | SPCC |
Cooling System | Front (intake) : 200 x 200 x 30 mm Blue LED fan (600~800rpm, 13~15dBA) x 2 Rear (exhaust) : 140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA) Top (exhaust) : 200 x 200 x 30 mm Blue LED fan (600~800rpm, 13~15dBA) |
Drive Bays | -Accessible 2 x 5.25" -Hidden 8 x 3.5" or 8 x 2.5" |
Expansion Slots | 8 |
Motherboards | 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX), 12" x 13" (Extend ATX) |
I/O Port | USB 3.0 x 2,USB 2.0 x 2, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
LCS Upgradable | Supports 1/2", 3/8", 1/4" water tube |
Fan Support | Front: 1 x 120mm or 2 x 120mm or 3 x 120mm 1 x 140mm or 2 x 140mm 1 x 200mm or 2 x 200mm Top: 1 x 120mm or 2 x 120mm or 3 x 120mm 1 x 140mm or 2 x 140mm 1 x 200mm or 2 x 200mm Rear: 1 x 120mm or 1 x 140mm Bottom: 1 x 120mm or 2 x 120mm |
Radiator Support | Front: 1 x 120mm or 1 x 240mm or 1 x 360mm 1 x 140mm or 1 x 280mm or 1 x 420mm Top: 1 x 120mm or 1 x 240mm or 1 x 360mm 1 x 140mm or 1 x 280mm or 1 x 420mm Rear: 1 x 120mm Bottom: 1 x 120mm or 1 x 240mm |
Clearance | CPU cooler height limitation: 185mm VGA length limitation: 310mm(with HDD rack) 480mm(without HDD rack) PSU length limitation: 220mm (With Bottom Fan) |
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 90 days
- This item is covered by Corn Electronics Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-988-1088
- Support Website
- View other products from Thermaltake
Pros: Spacious Easy to work in Ideal for water cooling Comes with 3x200mm fans and 1x140mm Dust filters
Cons: Nothing major. Fan controller did not work with my Aerocool fans.
Overall Review: I finally found a case to replace my Switch 810. I run a heavily overclocked 4790K along with a pair of GTX 970's all watercooled and usually have a pair of 240mm rads and a 140mm rad set up in my Switch. I now have a 240mm rad in the top of this case and a 360mm rad at the front of this case (30mm thick) and believe it or not there is enough space for the rad so that I do not have to remove the HDD caddies or the CD/DVD caddy at the top of the case. There is a massive amount of room behind the motherboard tray for cables. This is one of my neatest builds. I replaced all of the fans with Aerocool 120mm fans (except the rear which was Aerocool 140mm) for my rads and airflow is just as good, if not better than the Switch which has an extra 2 x 140mm fans. Excellent value, great looking build. Much recommended.
