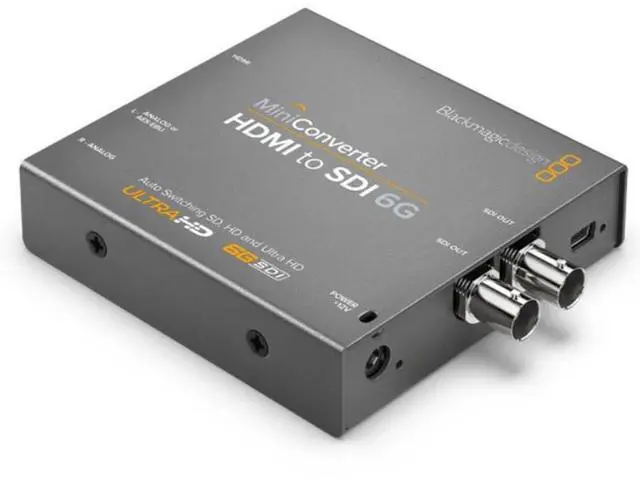

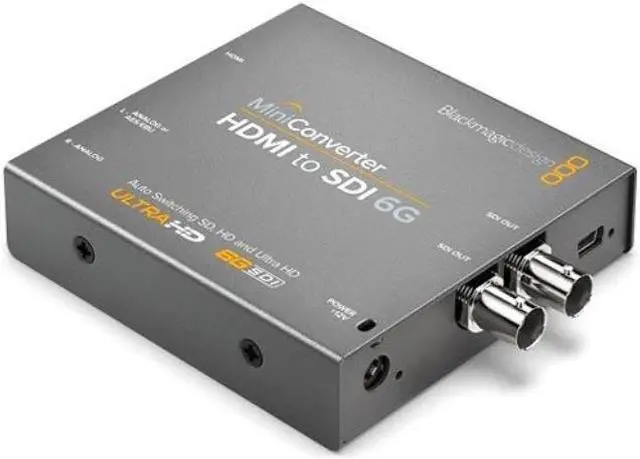

Blackmagic Design Mini Converter HDMI to SDI 6G BMD-CONVMBHS24K6G
- SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A or Level B, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601.
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Blackmagic Design Pty. Ltd. BMD-CONVMBHS24K6G
| Brand | Blackmagic Design |
|---|---|
| Model | BMD-CONVMBHS24K6G |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A or Level B, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601. |
|---|---|
| Video Sampling | SDI Video Sampling 4:2:2 |
| Audio Sampling | SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. |
| Color | SDI Color Precision: 4:2:2 SDI Color Space: YUV HDMI Color Space: YUV and RGB HDMI Color Precision: 4:2:2 and 4:4:4 |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Video | SD Video Standards 625i25 PAL, 525i29.97 NTSC HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p HDMI Video Standards 625i25 PAL, 525i29.97 NTSC 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| HDMI | HDMI type A in |
|---|---|
| SDI | 2 x SDI Video Outputs. Automatically matches the SD, HD and 6G-SDI HDMI video input. |
| Digital Aduio | 4 channels of AES/EBU digital audio. |
| Analog Aduio | 2 channels of professional balanced analog audio with standard 1/4 inch jack connections. |
| Software | Software Control Mac OS and Windows software upgrade via USB. Internal Software Upgrade Via included updater application. |
|---|
| Compatibility | macOS 10.12 Sierra, macOS High Sierra 10.13 or later. Windows 8.1 or Windows 10. |
|---|
| Power Consumption | 4.44 Watts |
|---|---|
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point. Operational Voltage Range 12 - 31V DC |
| Specification | Connections: Multi Rate Support: Auto detection of SD, HD or 6G-SDI. Updates and Configuration: USB Reclocking: Yes Standards: SDI Video Rates: SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K SDI Auto Switching: Automatically detects SD, HD or 6G-SDI Format Conversion: HD down conversion Settings Control: Mini Switches or USB software Environmental Specifications: Operating Temperature: 0 to 40 celsius degree Storage Temperature: -20 to 45 celsius degree Relative Humidity: 0% to 90% non-condensing |
|---|
| Feature | Mini Converter HDMI to SDI 6G includes everything you need to convert from HDMI devices to SDI video in SD, HD and Ultra HD video formats. With independent audio connections you can also embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. Mini Converter HDMI to SDI is the perfect solution to convert HDMI consumer cameras or computers to broadcast quality SDI! |
|---|
| Dimensions | 0.90" x 4.49" x 3.63" |
|---|---|
| Weight | 8.60 oz. |
| First Listed on Newegg | April 06, 2018 |
|---|
