Format: SDI Format Support: 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24,2048 x 1080PsF25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30.
Video: Input: (1) component, NTSC, PAL, and S-video via 3x BNCs
Output: (2) SDI (switchable between SD, HD & 3Gbs SDI)
Audio: Analog:
(2) channels of professional balanced analog with standard 1/4" jack connections
Digital:
(2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard
(Audio inputs are shared)
Feature: The Mini Converter Analog to SDI from Blackmagic will accept an HD/SD component, NTSC, PAL, or S-video signal and convert it to an SDI output. You can also choose to embed SDI audio from balanced AES/EBU or analog audio inputs. Use this device to convert video from Betacam SP, VHS, set-top boxes, HDV cameras, and other similar devices.
Analog to SDI Conversion
Use this device to convert analog video sources to SDI video output.
Embedded Audio
This unit can embed SDI audio from balanced...

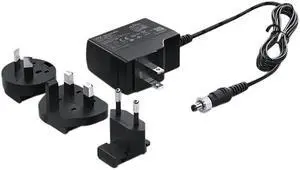

Feature: The Blackmagic Design PSUPPLY-INT12V10W is a replacement power supply that can be used with any Mini Converter in the series. As with the original unit, this power supply includes socket adapters for international countries and also features a cable tie to prevent the wire from becoming accidentally disconnected.
Format: SD Format Support
525/29.97 NTSC, 625/25 PAL
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
2K Format Support
2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25
4K Format Support
3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
SDI: SDI Video Rates
SDI video connections are switchable between 6G-SDI, HD and SD-SDI
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2 and 4:4:4
SDI Color Space
YUV and RGB
SDI Auto Switching
Automatic...
Format: SDI Format Support: 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24,2048 x 1080PsF25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30.
Format: SD Format Support
525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL
HD Format Support
1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
2K Format Support
2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25.
4K Format Support
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
HDMI Format Support
525/29.97 NTSC, 625/25 PAL...
Specification: Teranex Mini SDI to HDMi 12G
SDI Video Input: 1 x 12G-SDI SD/HD/2K/4K auto switching
SDI Video Output: 1 x 12G-SDI loop output
HDMI: 1 x HDMI 2.0 type A connector with support for 2160p60
Analog Audio Output: 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output
Multi Rate Support: Automatic switching between SD/HD/2K and 4K.
Format: SD Format Support
525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL
HD Format Support
1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
2K Format Support
2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25.
4K Format Support
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
Feature: ATEM Talkback Converter 4K handles up to 8 cameras for SDI talkback using embedded audio channels 15 and 16 as used on the Blackmagic Studio Cameras and ATEM Camera Converter. Supports 12G-SDI for all SD, HD and Ultra HD formats up to 2160p60 and provides BNC connections to each camera, and an optical fiber socket for adding an optical fiber SFP module for extending camera distances when required. Includes push to talk buttons, support for tough and common aviation headsets, loop though for more than 8 camera support, built in speaker, front panel mic input and much more.
