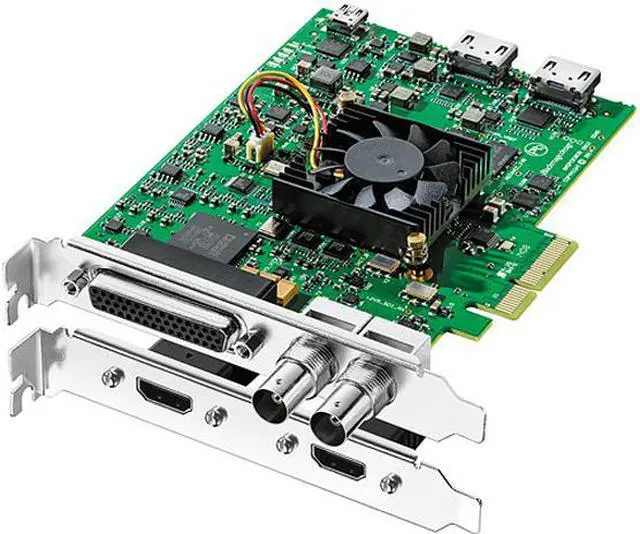

Blackmagicdesign DeckLink Studio 4K (BDLKSTUDIO4K) Capture & Playback Card
- 6G-SDI Input/Output
- 4K HDMI Input/Output
- PCIe Interface
- Supports SD, HD, 2K, and 4K Formats
- UHD / DCI 4K 4:2:2 via 6G-SDI or HDMI
+
+
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Blackmagic Design Pty. Ltd. DeckLink Studio 4K (BDLKSTUDIO4K)
| Brand | Blackmagicdesign |
|---|---|
| Model | DeckLink Studio 4K (BDLKSTUDIO4K) |
| Type | Video Capture & Editing |
|---|---|
| Specifications | Device Control: Sony compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control. Supported Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, DNxHR & DNxHD, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4. Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software. Physical Installation: PCI Express 4 lane generation 2, compatible with 4, 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Software Applications: DaVinci Resolve Fusion Final Cut Pro X Adobe Premiere Pro CC Avid Media Composer Adobe After Effects CC Avid Pro Tools Steinberg Cubase Autodesk Smoke Adobe Photoshop CC Other supported applications include: The Foundry Nuke, Grass Valley Edius, Steinberg Nuendo, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D. |
| Interface | PCI Express 4 lane generation 2, compatible with 4,8 and 16 lane PCI Express slots. |
|---|---|
| Video System | Video Standards SD Video Standards: 525i59.94 NTSC, 625i50 PAL HD Video Standards: 720p50, 720p59.94, 720p60, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 2K Video Standards (SDI Only): 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p* * SDI Only SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601. SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning. SDI Video Sampling: 4:2:2, 4:4:4* *4K is 4:2:2. SDI Color Precision: 8, 10-bit RGB 4:4:4 in all modes up to 1080p25 2K DCI, 8, 10-bit YUV 4:2:2 in all modes. Color Space: REC 601, REC 709 HDMI Video Sampling: 4:4:4, 4:2:2 & 4:2:0 HDMI Color Precision: 10-bit RGB HD, 10-bit YUV in HD and 4K HDMI Configuration: HDMI 1.4b. Automatically configures to connected display. Audio Sampling: Television standard sample rate of 48 kHz at 24-bit. Color Precision: 10-bit Color Space: REC 601, REC 709 HDMI Resolution: Pixel for pixel up to 4K resolutions. Multiple Rate Support: HDMI and SDI video connections are switchable between SD/HD/2K and UHD. Component analog video connections are switchable between SD and HD. Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Ports In | SDI Video Inputs 1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4. Analog Video Inputs 1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video. Component supports HD and SD. Analog Audio Inputs 4 Channels of professional balanced analog audio via 1/4 inch jack connectors. AES/EBU Audio Inputs 2 Channels unbalanced with sample rate converter. SDI Audio Inputs 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD. HDMI Video Inputs 1 x HDMI type A connector. HDMI Audio Inputs 8 Channels embedded in SD, HD, 4K. Sync Input Tri-Sync or Black Burst. |
| Ports Out | SDI Video Outputs 1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4. Analog Video Outputs 1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video, 1 x SD-SDI. Component supports HD and SD. Analog Audio Outputs 4 Channels of professional balanced analog audio via 1/4 inch jack connectors. Channels 3 & 4 can switch to AES/EBU outputs. AES/EBU Audio Outputs 2 Channels unbalanced. Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU output audio channels when using this feature. SDI Audio Outputs 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD. HDMI Video Outputs 1 x HDMI type A connector. HDMI Audio Outputs 8 Channels embedded in SD, HD, 4K. |
| System Requirements | Operating Systems: Mac OS X 10.11 El Capitan, macOS 10.12 Sierra, macOS 10.13 High Sierra or later. Windows 7, 8.1 and 10, all 64-bit. Linux. |
|---|
| Features | If you work with a wide range of analog video and audio gear, and need to move seamlessly between SD, HD, 2K and Ultra HD, then DeckLink Studio 4K is perfect! DeckLink Studio 4K includes a massive number of analog and digital video connections including SD/HD/Ultra HD 6G-SDI, HDMI 1.4b, SD/HD component, composite, S-video, 4 ch balanced analog audio, 2 ch AES/EBU switchable to 6 ch out, Black Burst and Tri-Sync reference input, RS-422 deck control connections, keying in SD and a hardware down converter. Perform editing, paint and broadcast design and more with the ultimate future proof design! |
|---|
| Package Contents | DeckLink Studio 4K SD card with software and manual Breakout cable for analog and RS-422 control HDMI bracket |
|---|
| First Listed on Newegg | October 30, 2019 |
|---|
