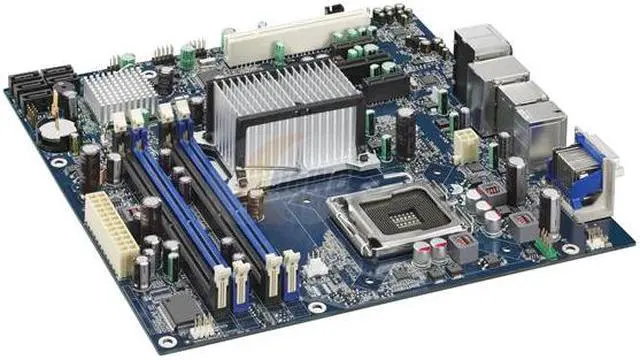

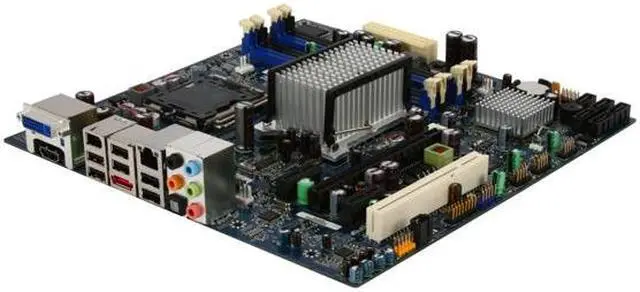

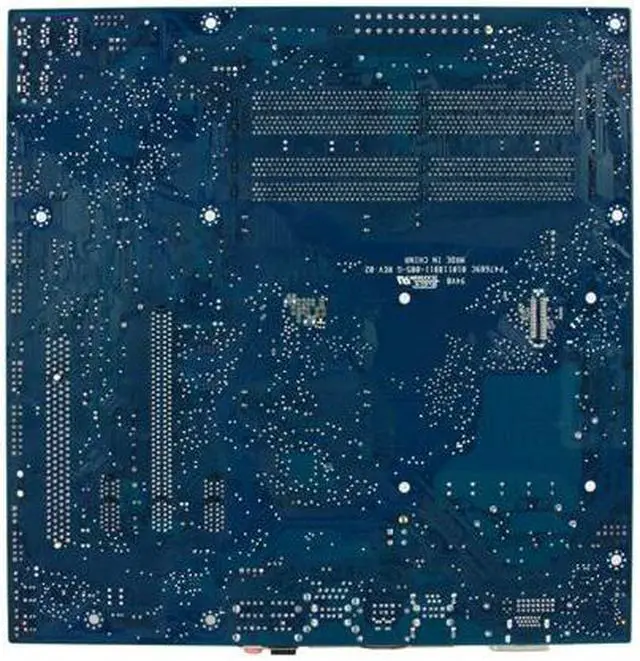

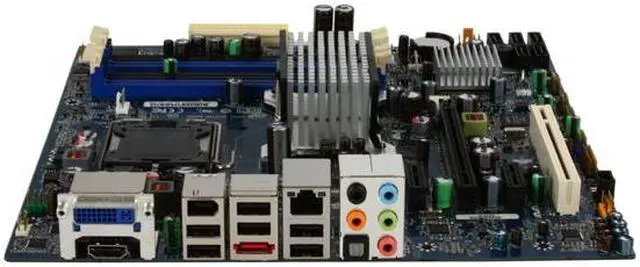

Intel BLKDG45ID LGA 775 Intel G45 Micro ATX Intel Motherboard - OEM
- Intel G45
- Core 2 Quad / Core 2 Duo / Pentium D / Celeron
- DDR2 800
Specs
Reviews (5)
Learn more about the Intel BLKDG45ID
| Brand | Intel |
|---|---|
| Model | BLKDG45ID |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Duo / Pentium D / Celeron |
| Chipset | Intel G45 |
|---|
| Onboard Video Chipset | Intel GMA X4500HD |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| SATA RAID | 0/1/5/10 |
|---|
| Audio Chipset | IDT 92HD73E |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Intel 82567LF |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 6 x USB 2.0/1.1 |
|---|---|
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| Onboard USB | 6 via headers |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| First Listed on Newegg | August 26, 2008 |
|---|
