4CH DVR Package - H264 High Quality DVR and 4 of 620TVL Ultra High Resolution outdoor IR Cameras

4CH DVR Package - H.264 High Quality DVR & 4 of 620TVL Ultra High Resolution outdoor IR Cameras

Eyemax HX-Series 4Ch 120 FPS DVR Eyemax DVST HX-04

¦1TB HDD
¦Triplex (Live Display, Recording, Network)
¦H.264 Hardware compression (High Quality video)
¦Embedded Linux Operating System
¦Simultaneous Monitoring via Composite, VGA
¦Backup and Firmware Update by USB drive
¦Multiple Screen division (1 / 4 / 9 / 16 / PIP)
¦Easy to Use and convinient GUI
¦Fast operation by mouse and remote controller
¦Network: DHCP & Static IP Supported
¦Event Recording: Motion detection and sensor

Eyemax Eyeball 620tvl 60ft Vandal Dome IR Camera IB 6025
¦1/3” Sony Super HAD II CCD
¦3.6mm
¦620 TVL : Razor sharp high resolution
¦0.1 Lux at F1.2 (Color) / 0.01 Lux (B/W)
¦60ft Infrared Range / 25 IR LED
¦Weather Proof Out/indoor Camera
¦2D DNR : 2D Digital Noise Reduction Function
¦DC 12V


High-Res 620 TV Line

The camera is powered by NEXT chipset that is embodied the top grade of the world at 620 TVL resolution be own image signal technology which is to change the frequency of luminance signal adaptively by a monitoring sector.

2D DNR (2D DIGITAL NOISE REDUCTION)

Improved S/N ratio 50dB and more sharp and noiseless low light image quality provided by built-in noise reduction (2DDNR: 2D Digital Noise Reduction) function.

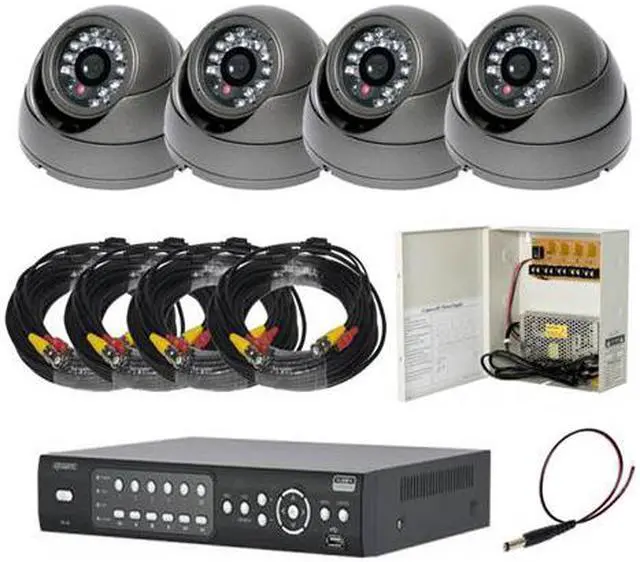

*****Package Includes*****

x1 Eyemax DVST HX-04: Standalone DVR
x4 Eyemax Eyeball IB 6025: 620TVL Indoor Dome Camera
x4 CB PREMADE-70: 70FT Premade Siamese Cable
x1 TR W12VDC04P05A: 4Ch, 5A, 12V Power Box

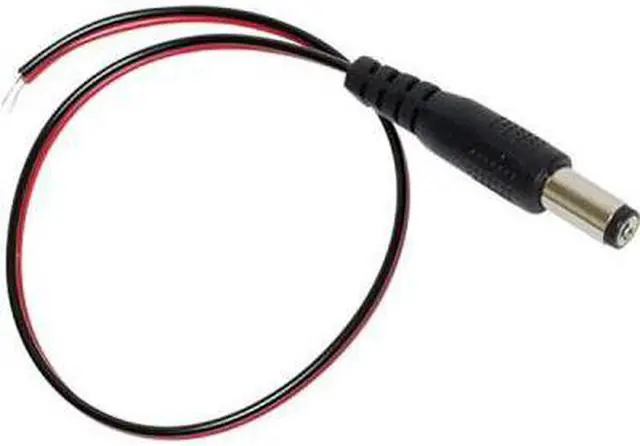

x4 TR PIGTAILM: DC Power Pigtail
