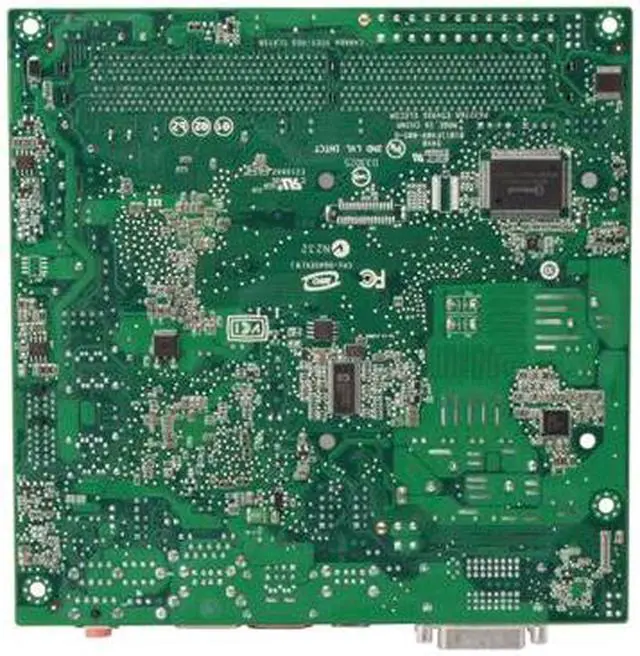

    Intel BOXDQ45EK LGA 775 Intel Q45 Mini ITX Intel Motherboard

    (33) Write a Review
    • Intel Q45
    • Celeron / Core 2 Duo / Core 2 Quad / Pentium Dual-Core
    • DDR2 800
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews (33)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the Intel BOXDQ45EK

    Model
    Brand Intel
    Model BOXDQ45EK
    Supported CPU
    CPU Socket Type LGA 775
    CPU Type Celeron / Core 2 Duo / Core 2 Quad / Pentium Dual-Core
    FSB 1333/1066 MHz
    Chipsets
    Chipset Intel Q45
    South Bridge Intel ICH10DO
    Onboard Video
    Onboard Video Chipset Intel GMA 4500
    Memory
    Number of Memory Slots 2x240pin
    Memory Standard DDR2 800
    Maximum Memory Supported 8GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express x1 1 x PCI Express x1
    Storage Devices
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset ADI AD1882
    Audio Channels 6 Channels
    Onboard LAN
    LAN Chipset Intel 82567LM
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x eSATA 3GB/S / 6 x USB 2.0/1.1
    Video Ports D-Sub + DVI
    USB 1.1/2.0 6 x USB 2.0
    eSATA 1 x eSATA 3Gb/s
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 4 x USB 2.0
    Physical Spec
    Form Factor Mini ITX
    Dimensions (W x L) 6.7" x 6.7"
    Power Pin 24 Pin

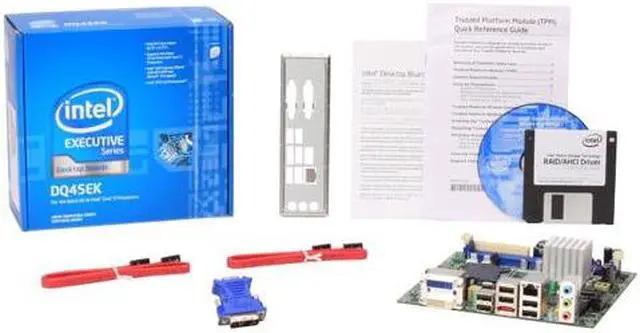

    Packaging
    Package Contents BOXDQ45EK
    Driver Disk
    User Manual
    Rear I/O Panel Shield
    SATA Cable
    DVI to VGA/D-sub Adapter
    Floppy Drive Diskette
    Additional Information
    Date First Available June 26, 2019
