Broadcom LSI 9400-8i Tri-Mode HBA 8-Port 12Gb/s SAS SATA NVMe PCIe 3.0 x8 Includes Full & Low Profile Brackets 9400-8I
Used - Like New Product Type
Brown Box
- Brand: Broadcom (LSI)
- Part Number: 05-50038-00
- MPN: SAS9400-8i
- Model: LSI 9400-8i
- Type: Tri-Mode PCIe Host Bus Adapter (HBA)
- Compatibility: SAS (12Gb/s), SATA (6Gb/s), and NVMe (PCIe Gen3 x4) drives
- Interface: PCI Express 3.0 x8
- Internal Ports: 2 x Mini-SAS HD (SFF-8643)
- Port Count: 8 total lanes (via 2 connectors)

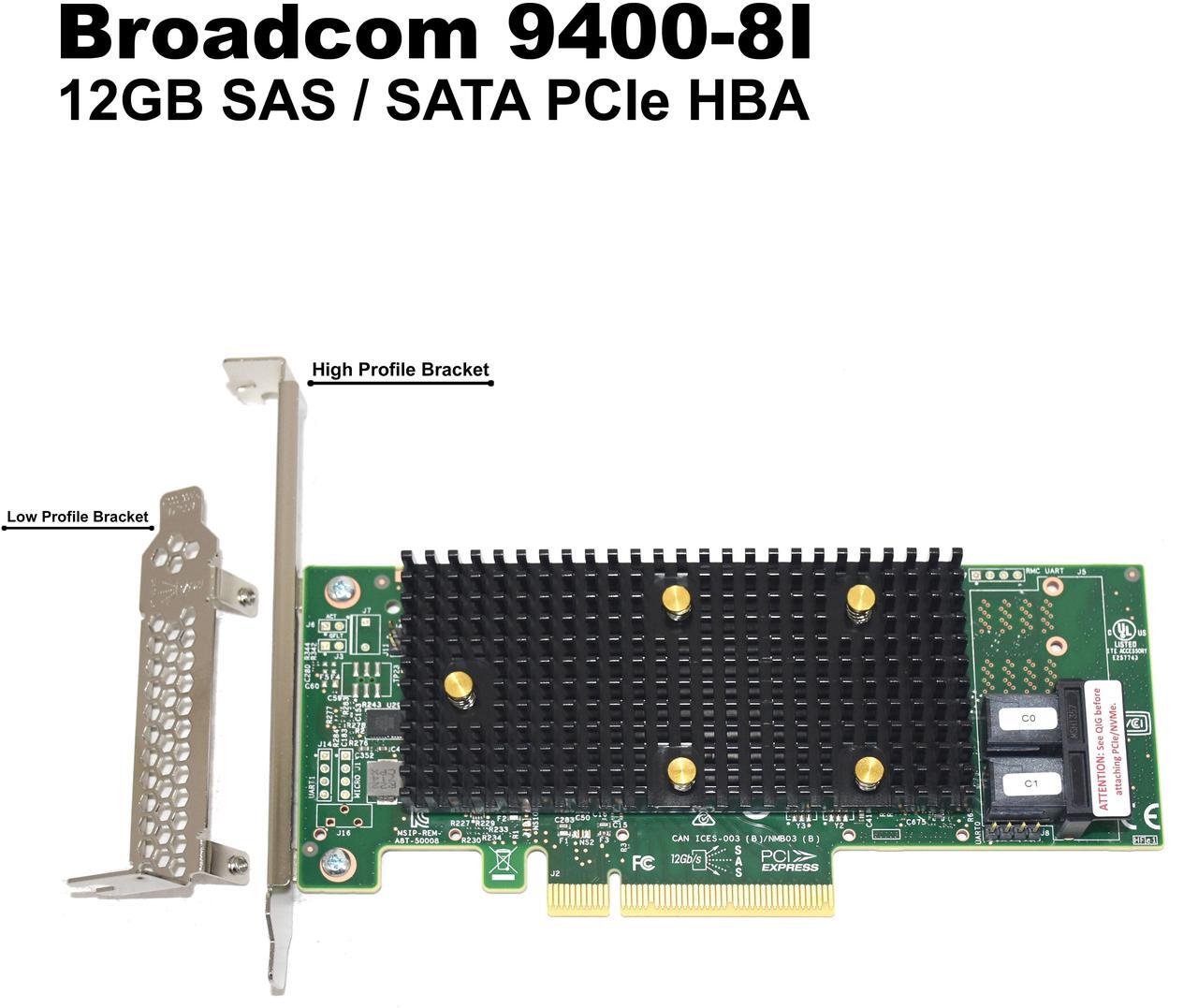

- Bracket Options: Includes both full-height and low-profile brackets
- Form Factor: Low-profile, half-height card
- Data Transfer Rate: Up to 12Gb/s SAS, 6Gb/s SATA, and PCIe Gen3 x8
- OS Support: Windows Server, Linux (RHEL, CentOS, SUSE), VMware ESXi
- NVMe Support: Requires Tri-Mode backplane for NVMe drives
- Ideal Use Case: Servers, storage appliances, and enterprise workstations
+
+
Overview
Specs
Broadcom LSI 9400-8i Tri-Mode Storage Adapter
The Broadcom LSI 9400-8i Tri-Mode Storage Adapter is a high-performance, enterprise-grade Host Bus Adapter (HBA) designed to deliver superior flexibility and performance across both modern and legacy storage systems. This advanced HBA features Tri-Mode support, enabling seamless connectivity to SAS (12Gb/s), SATA (6Gb/s), and NVMe (PCIe Gen3) storage devicesall from a single card. It is the ideal solution for next-generation servers and storage arrays that require speed, scalability, and reliability.
Built with Broadcoms industry-leading MegaRAID® technology, the 9400-8i offers 8 internal lanes through two Mini-SAS HD (SFF-8643) connectors, allowing direct connection to up to 8 drives. Whether deploying high-speed NVMe SSDs, cost-effective SATA HDDs, or enterprise SAS drives, this adapter effortlessly manages them all. Designed for data-intensive environments, it operates over a PCIe 3.0 x8 interface, ensuring high throughput and low latencymaking it perfect for virtualization, databases, media servers, and scalable enterprise storage.
For deployment flexibility, the card includes both a full-height bracket and a low-profile bracket, supporting various server form factors without the need for additional accessories. It is compatible with a wide range of operating systems including Windows Server, Red Hat Enterprise Linux, SUSE, VMware ESXi, and CentOS, with drivers readily available from Broadcom. If you are looking to build a future-ready, high-performance storage infrastructure, the LSI 9400-8i delivers the power, speed, and flexibility modern workloads demand.
- 8 internal ports via 2 x SFF-8643 Mini-SAS HD connectors
- Tri-Mode support for SAS, SATA, and NVMe drives
- PCIe 3.0 x8 interface ensures high bandwidth and low latency
- Includes both low-profile and full-height brackets
- Ideal for enterprise-grade applications: servers, RAID storage, JBODs, etc.
- NVMe drive support (requires Tri-Mode backplane)
- Compatible with a wide range of OS platforms
