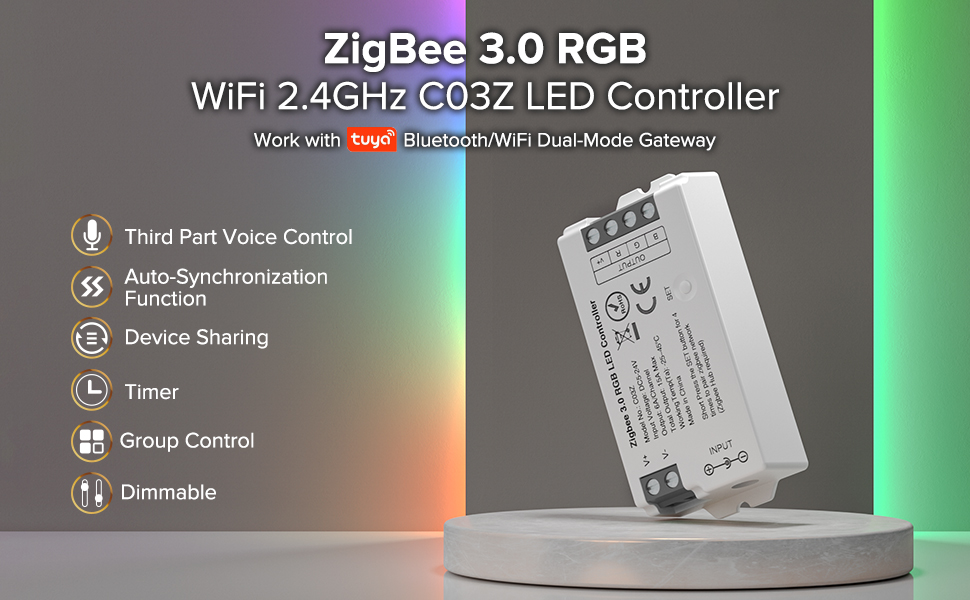

Name: KEHIPI Tuya Zigbee 3.0 C03Z Controller Support RGB Color 4 pin (+V R G B) PWM LED Strip Bulb Compatible with Echo Plus/4th Gen Tuya Gateway
Brand: KEHIPI
SKU: 35B-00G3-00006
Price: 30.89 USD
Availability: InStock

Limited time offer, ends 12/16 By Wispa Technologies

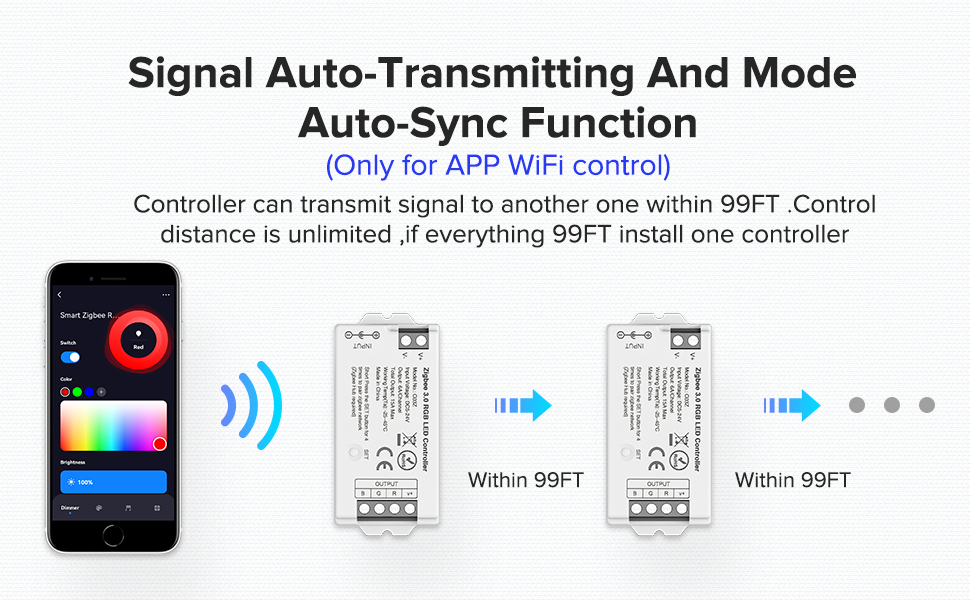

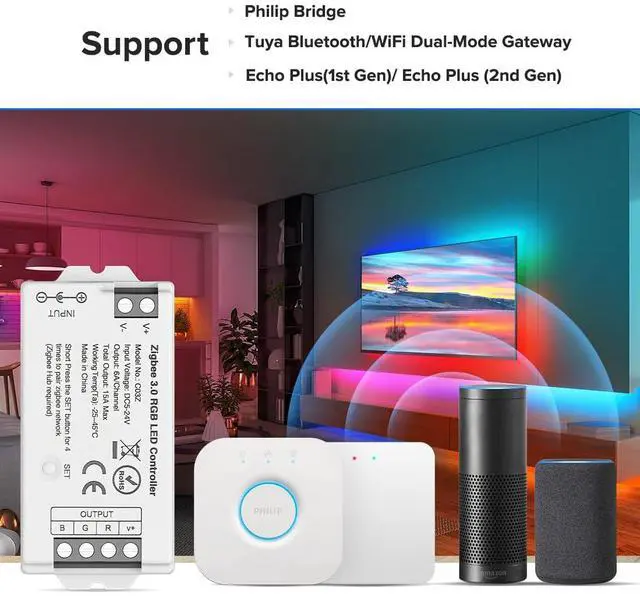

C03Z Tuya Zigbee 3.0 LED controllerThis Controller can control PWM RGB 4 wires LED strip. Such as FCOB,COB,5630,5730,5050SMD,3528SMD etc PWM LED strip Power: 6A/Channel Total output max 15A .DC5V 75W max .DC12V 180W max. DC24V 360W max. Support Echo Plus,Echo(4th Gen),Home-Kit GatewaySupport Echo Plus,Echo(4th Gen),Home-Kit.Compatible with general Zigbee bridge.More stable and convenient connection with Zigbee Gateway.Work with Tuya Bluetooth/WiFi Dual-Mode Gateway,it can Support Third Part Voice Control like Alexa,Google Home.Package content: 1X LED controller,1X User manual.Can't support Smart-Things. Auto-Transmitting Auto-Synchronization FunctionOne controller can transmit the App signal to another controller within 99 ft (30 meters). As long as there is another LED strip controller within this range, the App control distance can be extended indefinitely. Auto-Synchronization Function: Multiple controllers can operate synchronously even if started at different times, as long as they are controlled by the same App under the same dynamic mode and speed. Multiple FunctionsGroup Control. Device sharing,tap-to-run,automation,Dual white (Warm White and Cool White).Memory function in case of power-down.DC12V DC24V Power Supply ,DC12V LED strip please must use DC12V Power supply . NoteThis controller can not work with RF Remote .Only LM052 5in1 controller can .

RGB - 4 Pin LED

Parameters

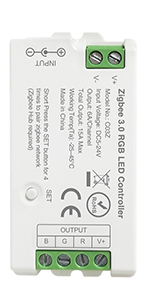

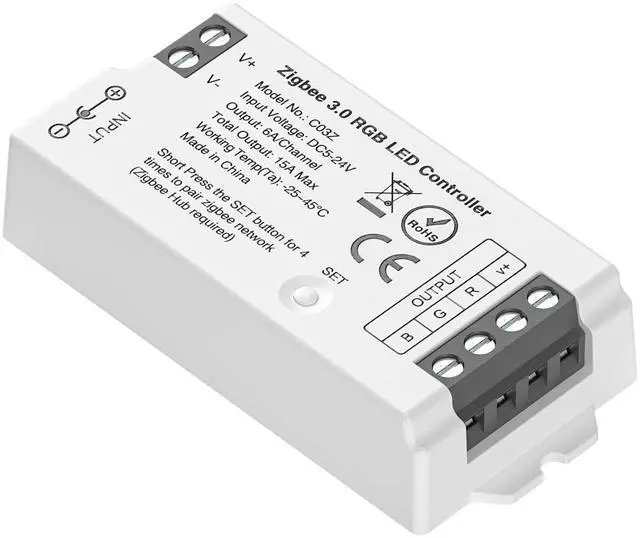

Model: C03Z
Product Name: Zigbee 3.0 RGB LED Controller
Item size(LxWxH):74.5x35.6x16.5(mm)
RF: 2.4GHz
Control Distance: 30m (98.42ft)
APP name: Smart Life or Tuya Smart
Support Third Part Voice Control : Echo Plus, Alexa and Google Home.
Input voltage: DC5V ~ 24V (It depends on what LED strip you use), ( 5.5*2.1mm )
Output: 6A/Channel (Total Output Max 15A) DC5V75W Max , DC12V180W Max , DC24V360W Max .
Working Temperature: -25-45?
Control RGB LED strip LED String LED bulb : FCOB 5630 2835 3528 5630 5730 5050 3014 etc no IC chip V+ Red Green Blue 4 wires LED strip.
Note: This controller can not work with RF Remote .Only LM052 5in1 controller can .

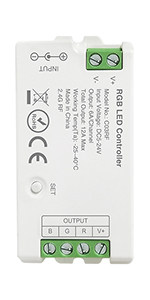

	C03W	C03Z	C03RF	LM052	WB5	LM053

Customer Reviews	—	—	—	—	—	—
Price	—	—	—	— no data	—	—
Group Control	?	?	?	?	?	?
Controller	2.4GHz WiFi and 2.4GHz RF Remote	ZigBee 3.0	2.4GHz WiFi and 2.4GHz RF Remote	ZigBee 3.0 And 2.4GHz RF Remote	2.4GHz WiFi and 2.4GHz RF Remote	Bluetooth Mesh And 2.4GHz RF Remote
Gateway	no data	?	?	?	no data	no data
APP	Smart Life/Tuya Smart	Smart Life/Tuya Smart	Smart Life/Tuya Smart	Smart Life/Tuya Smart	Smart Life/Tuya Smart	Smart Life/Tuya Smart
Google Home/Alexa	?	Need Gateway	Need Gateway	Need Gateway	?	Need Gateway

2PIN ~ 6PIN LED Controller

2.4GHZ WiFi / Bluetooth Mesh/ ZigBee 3.0 Controller

Working Voltage: DC5V/ DC12V/ DC24V

Only Indoor Use
