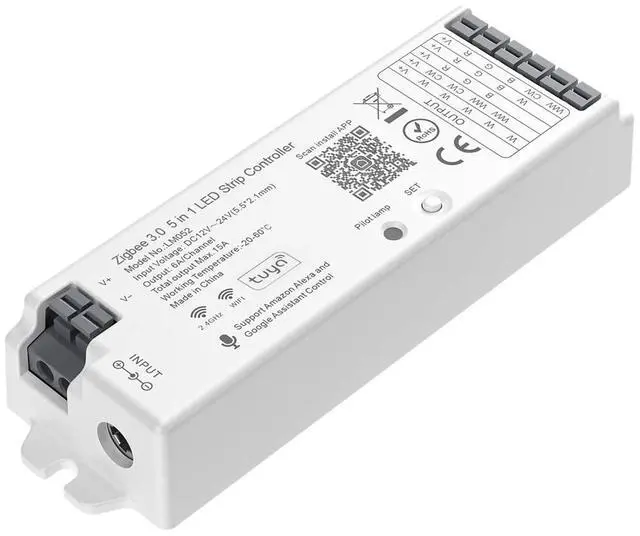

Main image of KEHIPI 5in1 LM052 Tuya Zigbee3.0 LED Controller Support Dimming CCT RGB RGBW RGBCCT PWM LED Strip Compatible with Echo Plus/4th Gen, Tuya Gateway Work with WR01RF WR02RF etc

Alt view image 2 of 6 - KEHIPI 5in1 LM052 Tuya Zigbee3.0 LED Controller Support Dimming CCT RGB RGBW RGBCCT PWM LED Strip Compatible with Echo Plus/4th Gen, Tuya Gateway Work with WR01RF WR02RF etc

Alt view image 3 of 6 - KEHIPI 5in1 LM052 Tuya Zigbee3.0 LED Controller Support Dimming CCT RGB RGBW RGBCCT PWM LED Strip Compatible with Echo Plus/4th Gen, Tuya Gateway Work with WR01RF WR02RF etc

Alt view image 4 of 6 - KEHIPI 5in1 LM052 Tuya Zigbee3.0 LED Controller Support Dimming CCT RGB RGBW RGBCCT PWM LED Strip Compatible with Echo Plus/4th Gen, Tuya Gateway Work with WR01RF WR02RF etc

Alt view image 5 of 6 - KEHIPI 5in1 LM052 Tuya Zigbee3.0 LED Controller Support Dimming CCT RGB RGBW RGBCCT PWM LED Strip Compatible with Echo Plus/4th Gen, Tuya Gateway Work with WR01RF WR02RF etc

Alt view image 6 of 6 - KEHIPI 5in1 LM052 Tuya Zigbee3.0 LED Controller Support Dimming CCT RGB RGBW RGBCCT PWM LED Strip Compatible with Echo Plus/4th Gen, Tuya Gateway Work with WR01RF WR02RF etc

Shop All KEHIPI Products | Visit Wispa Technologies Store

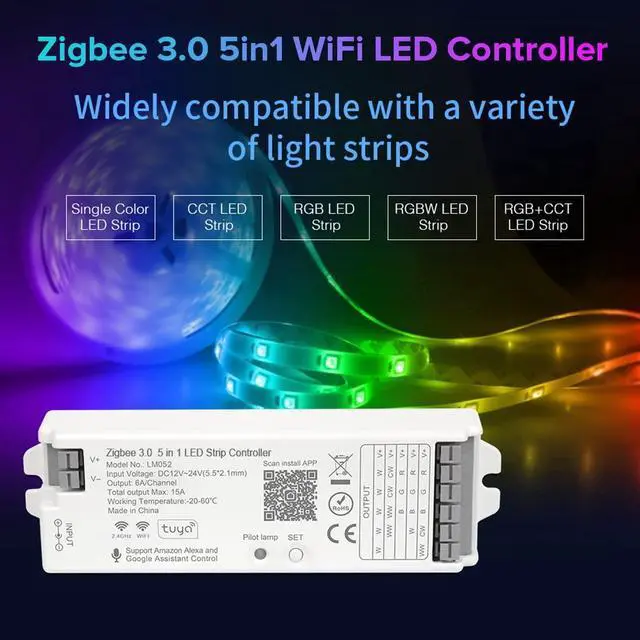

KEHIPI 5in1 LM052 Tuya Zigbee3.0 LED Controller Support Dimming CCT RGB RGBW RGBCCT PWM LED Strip Compatible with Echo Plus/4th Gen, Tuya Gateway Work with WR01RF WR02RF etc

5 in 1 Tuya Zigbee 3.0 ControllerLM052=C01Z+C02Z+C03Z+C04Z+C05Z . C01Z=Single Color C02Z=CCT (Dual White) C03Z=RGB C04Z=RGBW C05Z=RGBCCT. This Controller control Dimming, CCT, RGB, RGBW, RGBCCT,2pin 3pin 4pin 5pin 6pin PWM LED strip string bulb lamp. Switch mode by one setting button. Power: 6A/Channel Total output max 15A .DC12V 180W max. DC24V 360W max.

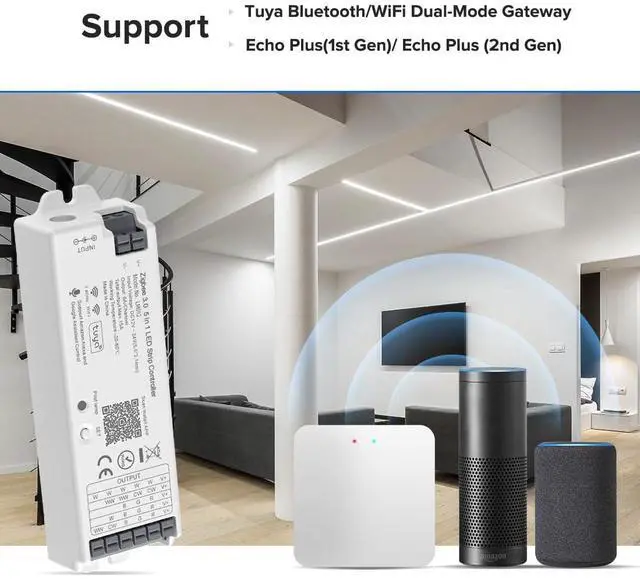

Support Echo Plus,Echo(4th Gen) and Home-Kit GatewaySupport Echo Plus,Echo(4th Gen),Home-Kit.Compatible with general Zigbee bridge.More stable and convenient connection with Zigbee Gateway.Work with Tuya Bluetooth/WiFi Dual-Mode Gateway,it can Support Third Part Voice Control like Alexa,Google Home.Package content: 1X LED controller, 1X User manual.Can't support Smart-Things.

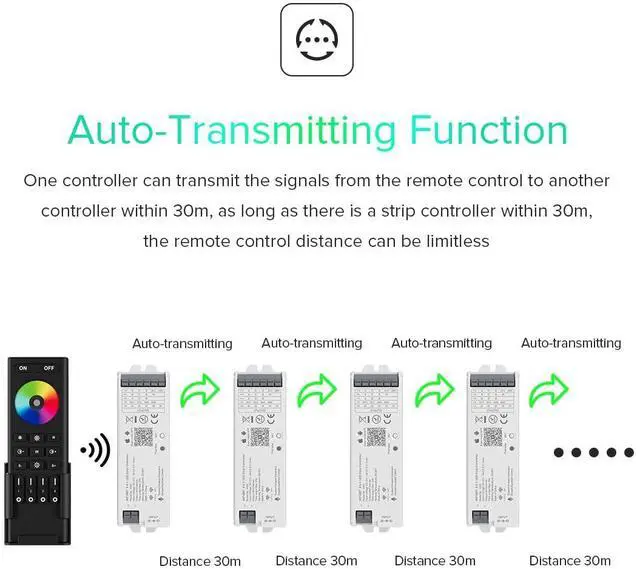

Auto-transmitting functionOne controller can transmit the signal from the remote control to the another controller within 99ft(30 meters). As long as there is a LED strip controller within 99ft(30 meters), the remote control distance can be limitless.Auto-Synchronization Function.Different controllers can work synchronously when they are started at different times, controlled by the same remote control at the same dynamic mode and with the same speed.

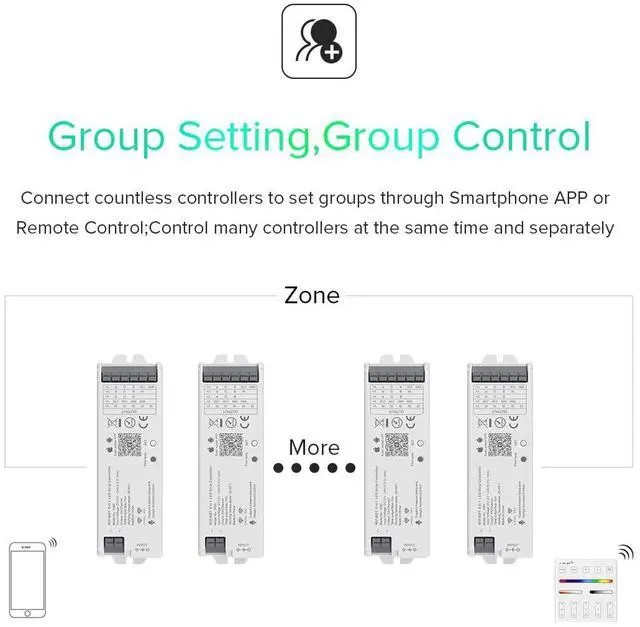

Multiple functionsGroup Control. Device sharing,tap-to-run,automation,16 millions of colors,DualWhite,Dim brightness.Memory function in case of power-down.DC12V DC24V Power Supply ,DC12V LED strip please must use DC12V Power supply .

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Single Color (Monochrome)-2 Pin LED

Parameters:

Model: LM052
Product Name: 5 IN 1 Zigbee 3.0 LED Controller
Item size(LxWxH):122x38x22(mm) / 4.9x1.5x0.9(in)
RF: 2.4GHz
Control Distance: 30m (98.42ft)
APP name: Smart Life or Tuya Smart
Support Third Part Voice Control : Echo Plus, Alexa and Google Home.

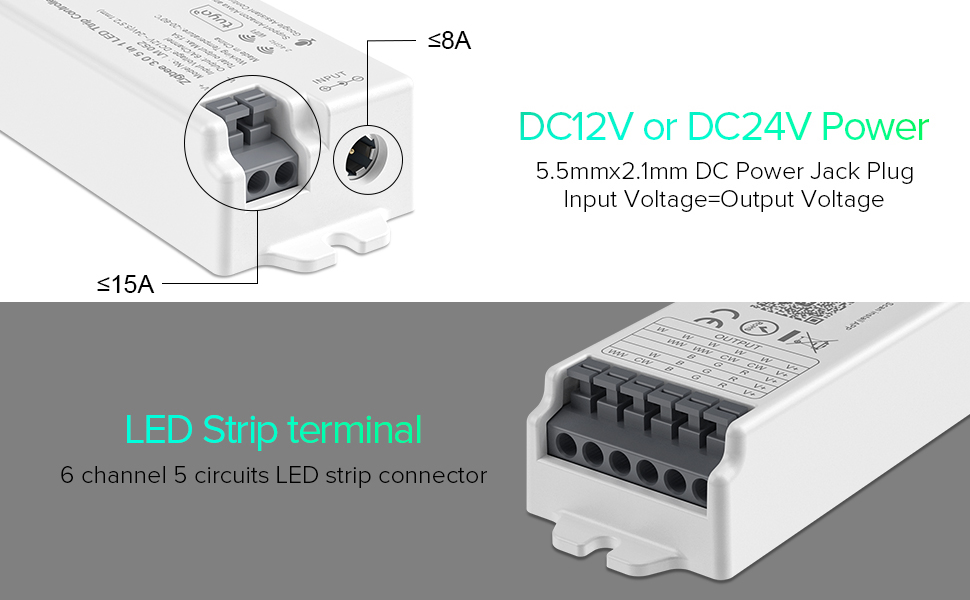

Input voltage: DC12V or DC24V (It depends on what LED strip you use)
Output: 6A/Channel (Total Output Max 15A) 12V180W 24V360W
Working Temperature: -20-60?
Compatible LED strip: FCOB COB 3014 5630 3528 2835 5050RGB 5050RGBW 5050RGB+CCT 5050 CCT etc
Monochrome+CCT+RGB+RGBW+RGBCCT 5in1
Compatible Remote control :

Remote control series:RC01RFB/RC02RFB/RC03RFB/RC04RFB/RC05RFB etc RF remote

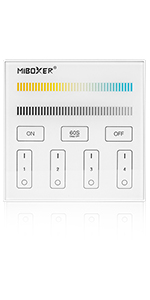

Panel series: WR01RF WR02RF Panel remote

CCT Color (Dual white=Warm white+Cool White)-3 Pin LED

Attention:

The working voltage is DC12 or 24V, the controller will be broken if the voltage is higher than 24V.
Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of the cathode and anode.
Please don't use controller around the metal area and high magnetic field, otherwise, it will badly affect the control distance

Package included:

1x 5 in 1 Zigbee 3.0 WiFi Controller (The LED strip, remote controller ,Gateway or power supply is not included)

RGB/RGBW/RGBCCT LED-4pin 5pin 6pin LED

RGB RGBW RGBCCT

RGB LED Strip
RGB+Warm White or RGB+Cool White LED strip
RGBCCT=RGB+CCT

Button fixation-Fast, Firm and Simple

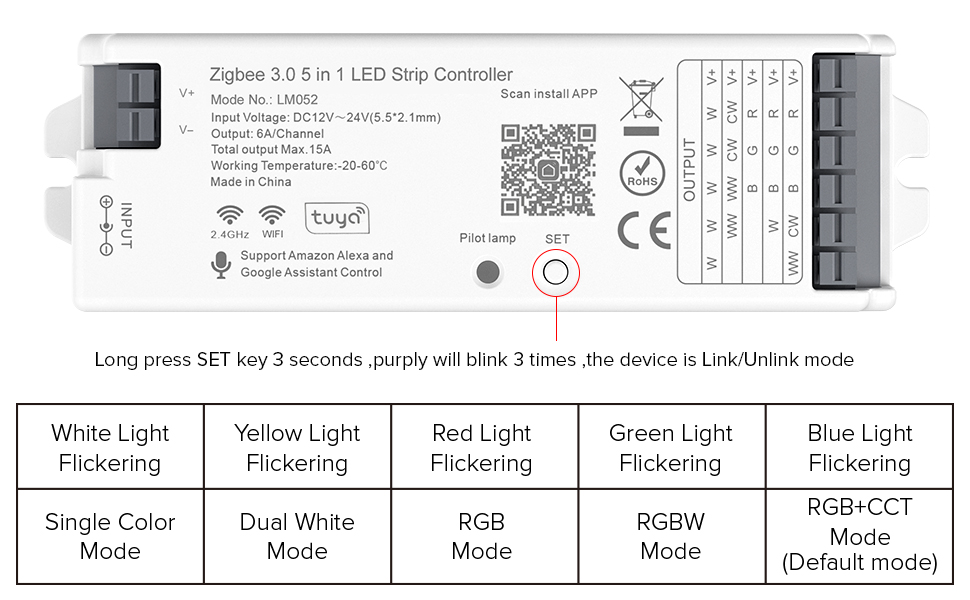

SET key-Pilot Lamp

Different Pilot Lamp color

1. Long press SET key 3 seconds ,Pilot lamp pureple blink 3 times-Link mode or Unlink mode

2.Short press SET key , White-single color LED strip ,Yellow-CCT LED Strip, Red-RGB LED strip ,Green-RGBW LED strip ,Blue-RGB+CCT LED strip

	Single Color RF Remote	CCT RF Remote	RGB/RGBW RF Remote	RGBCCT RF Remote	WiFi 5in1	Bluetooth Mesh 5in1 Controller

Customer Reviews	—	—	—	—	—	—
Price	—	—	—	—	—	—
Group Control	?	?	?	?	?	?
Controller	Work with Bluetooth/WiFi/Zigbee Controller	Work with Bluetooth/WiFi/Zigbee Controller	Work with Bluetooth/WiFi/Zigbee Controller	Work with Bluetooth/WiFi/Zigbee Controller	2.4GHz WiFi	Bluetooth Mesh
Gateway	no data	no data	no data	no data	No need	No Need
APP	no data	no data	no data	no data	Smart Life/Tuya Smart	Smart Life/Tuya Smart
Google Home/Alexa	no data	no data	no data	no data	?	Need Tuya Gateway

PWM Monochrome LED Controller

Work With PWM Single Color LED Strip

2.4Ghz WIFI / Bluetooth Mesh / Zigbee3.0 / 2.4GHz wireless

Only Indoor Use

PWM Monochrome LED Controller
