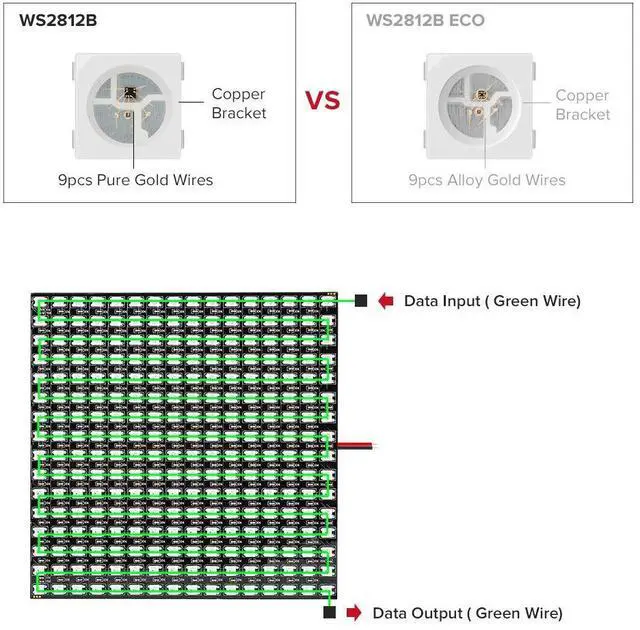

- IC type :WS2812B IC Built-in

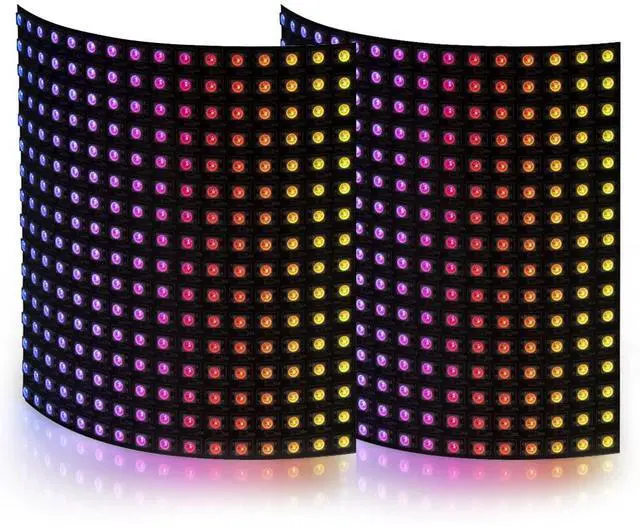

- Packing List : 2 pieces 16x16 256 LED matrixs
- Color order :G R B(NOT RGB)
- Gray level: 256
- View angle: 120°
- Input voltage:DC5V Do not use DC12V or DC24V

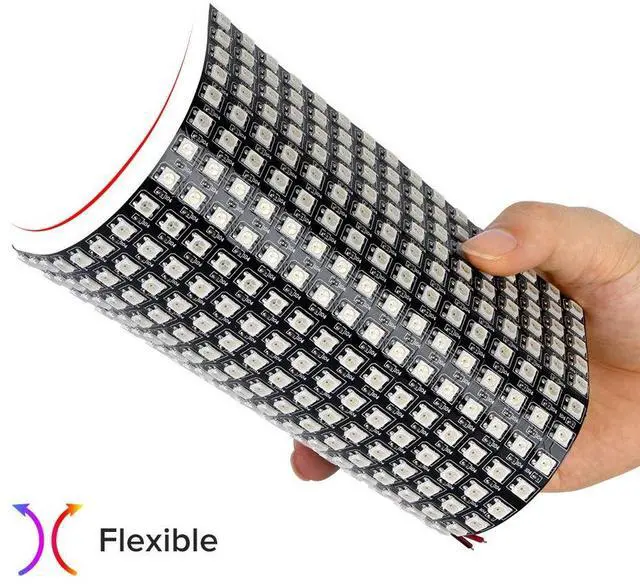

- FPCB: Flexible
- Color: full color 24-bit
- FPCB board color: Black
- Power:0.1W~0.3W/LED Total 25W~75W/256LEDs (The value will change depending on the effect.)
- Recommended power supply:DC5V10A(50w) or DC5V20A (100W)
- Pixel Qty: 32pixels x 8 pixels Total 256 Pixels(1PC)
- Operating Temperature: -20 ~ +50°C
- Length xWidthx Height:16cmx16cmx0.2cm
- Waterproof level: IP30 non-waterproof
- When you light up 1 color(red or green or blue) , 0.1W/LED . If you light up 2 colors (red+green) ,0.2W/LED , when you light up 3 colors (red+green+blue=white light), 0.3W/LED
- Note: All white light, power is 75W, wires generate a lot of heat, Do not recommended to light all white light, it will reduce the LED life and it will be very harsh

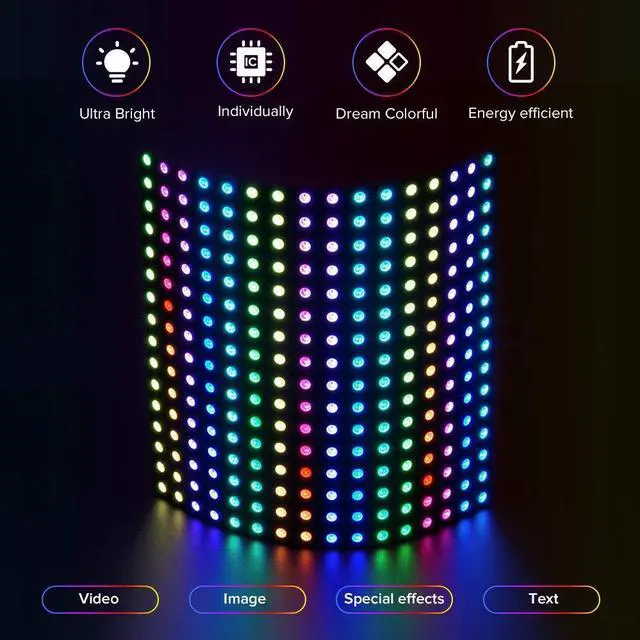

Features
- Individually Addressable
Using a programmable controller and you can program every led just you like. Every one led has its own IC chip.one IC controll one led.The chip buil in led.
- Ultra Bright
Brightness can be adjusted freely.Do not stare at it for a long time, otherwise you will be dazzled when the led Brightness is the brightest.

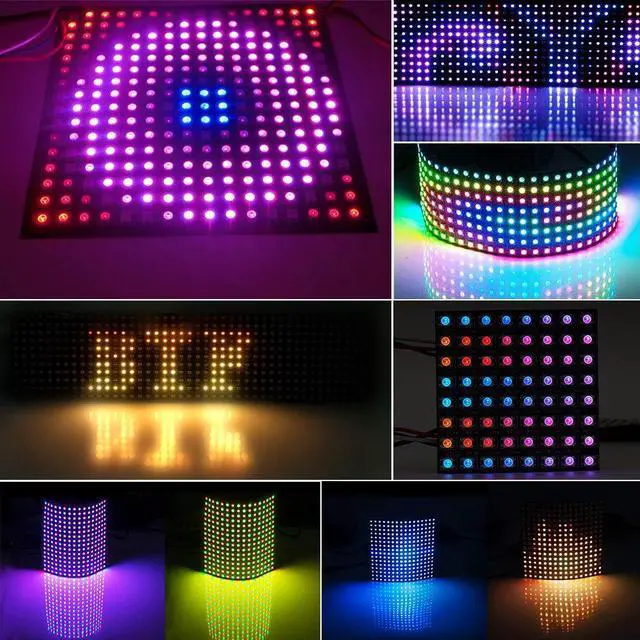

- Colorful
Red ,Green, Blue .Dream full color. curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software
- Long life
Life span:more than 50000hrs
- Spliceable
You can connect many LED matrix as one big LED matrix with more pixels

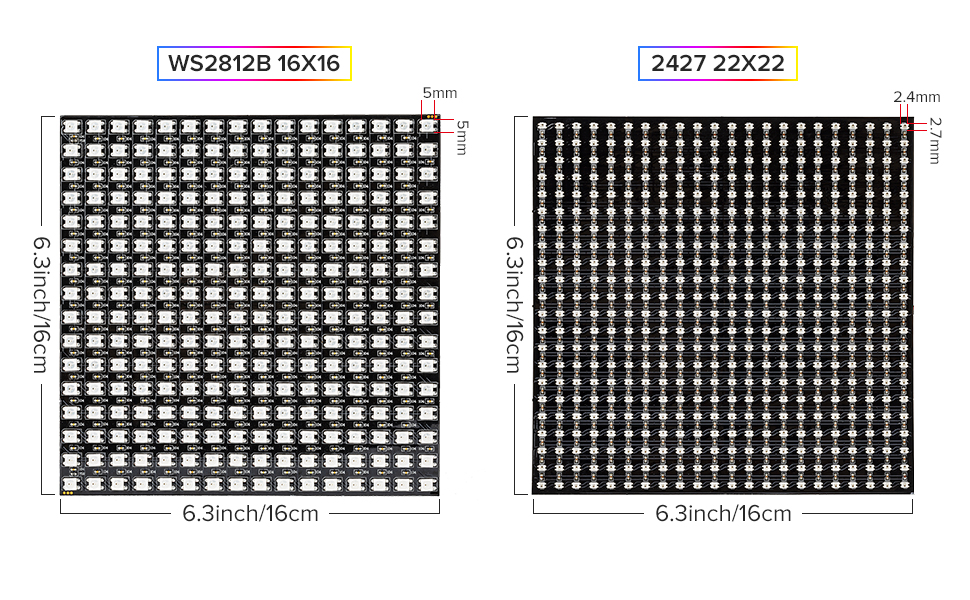

Size
- WS2812B 16x16 ECO LED Matrix : Length : 16cm/6.3in Width: 16cm/6.3in
- WS2812B 16x16 ECO LED Matrix: Number of horizontal pixels:16 pixels Number of vertical pixels:16pixels Total 256 pixels
- WS2812B 16x16 ECO LED Matrix: The length LED beads:5mm The width LED beads:5mm
- 2427 22x22 LED Matrix : Length : 16cm/6.3in Width: 16cm/6.3in
- 2427 22x22 LED Matrix: Number of horizontal pixels:22pixels Number of vertical pixels:22pixels Total 484 pixels
- 2427 22x22 LED Matrix: The length LED beads:2.7mm The width LED beads:2.4mm

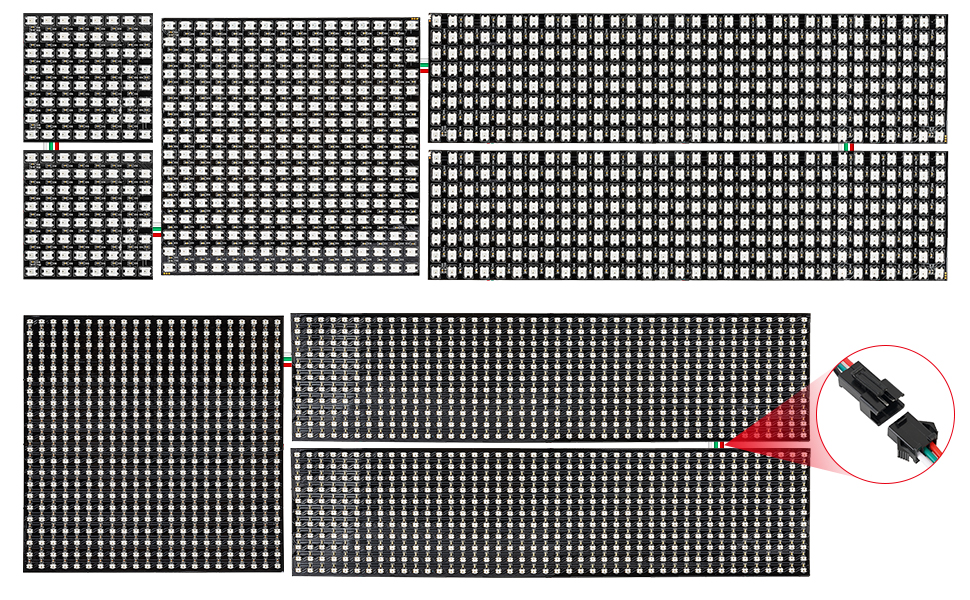

Spliceable
- LED matrix of different sizes or of the same size can be assembled at will.

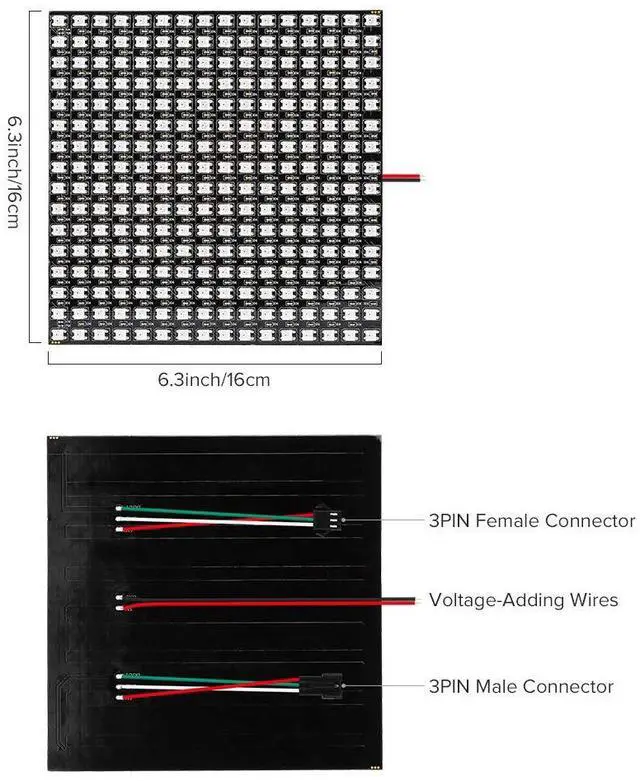

- With 3PIN-JST connector, you can easily connect LED matrix in series.

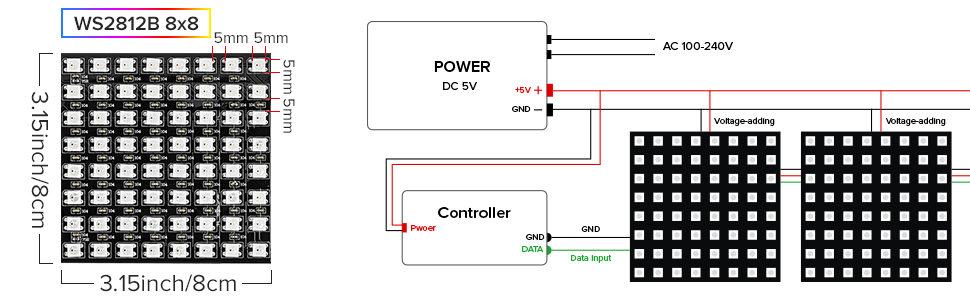

- When splicing, be sure to add DC5V to every LED matrix .Prevent overheating of wires.
- White light consumes a lot of power, it is not recommended to light up all white light.

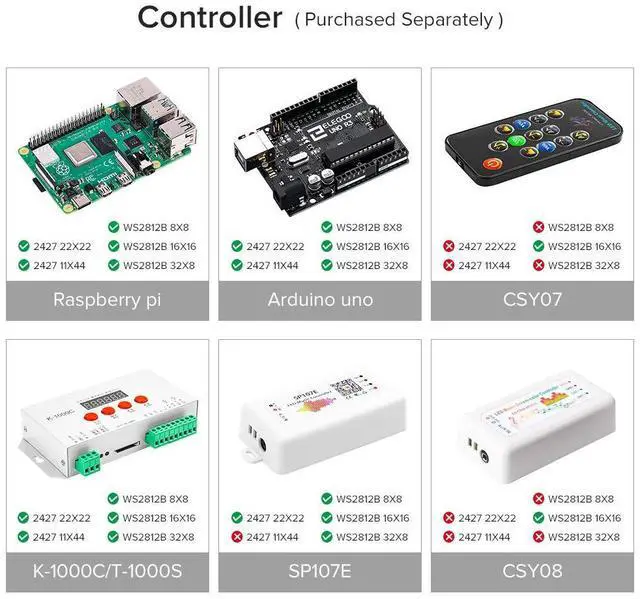

- Packaging, 2pc ws2812b-16x16eco LED matrix panel. Please note: power supply and controller are not included.
