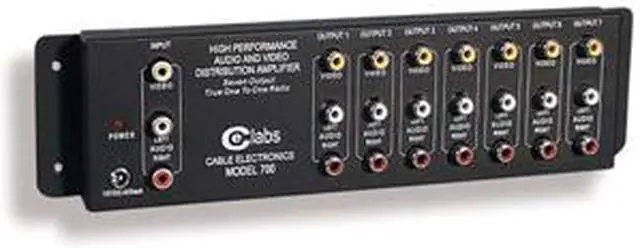

CABLE ELECTRONICS AV700 Composite A/V Distribution Amplifiers
- Daisy chain several units for larger displays with great picture quality
- Heavy duty metal housing provides excellent shielding
- Allows up to 150 ft. runs
Learn more about the CABLE ELECTRONICS AV700
| Brand | CABLE ELECTRONICS |
|---|---|
| Model | AV700 |
| Type | A/V Distribution |
|---|---|
| Color | Black |
| Specifications | Video: - Gain: 1 Volt into 75 ohms (2 Volts Unterminated) - Input Impedance: 75 ohms ± 5% - Video Response: 50 Hz to 10 MHz < 0.4db - Ch. to Ch. Isolation: 50 Hz to 10 MHz 32 dB - Out to In Isolation: 50 Hz to 10 MHz 60 dB - Return loss: 50 Hz to 10 MHz 20 dB Audio: - Gain: Unity - Input Impedance: 22K Ohms - Output Impedance: 100 Ohm - THD: 0.05% at 1.0 Volts input level - Frequency Response: 10 to 50KHz + 1 dB - Channel Separation: >75 dB @ + KHz - A/V Inputs/Output s: RCA type- Phono Jacks - Power Requirements: 15 Volts DC @ 400 mA. Power Supply Included |
| Dimensions | 10.5” x 2.8” x 1.3” |
| Features | Distribute audio, composite video and s-video television signals from a single A/V source to multiple television monitors. - Daisy chain several units for larger displays with great picture quality - Heavy duty metal housing provides excellent shielding - Allows up to 150 ft. runs - Save the expense of additional A/V receivers |
|---|
| First Listed on Newegg | July 06, 2012 |
|---|
