Economical solution to upgrade your analog DVR security recorder

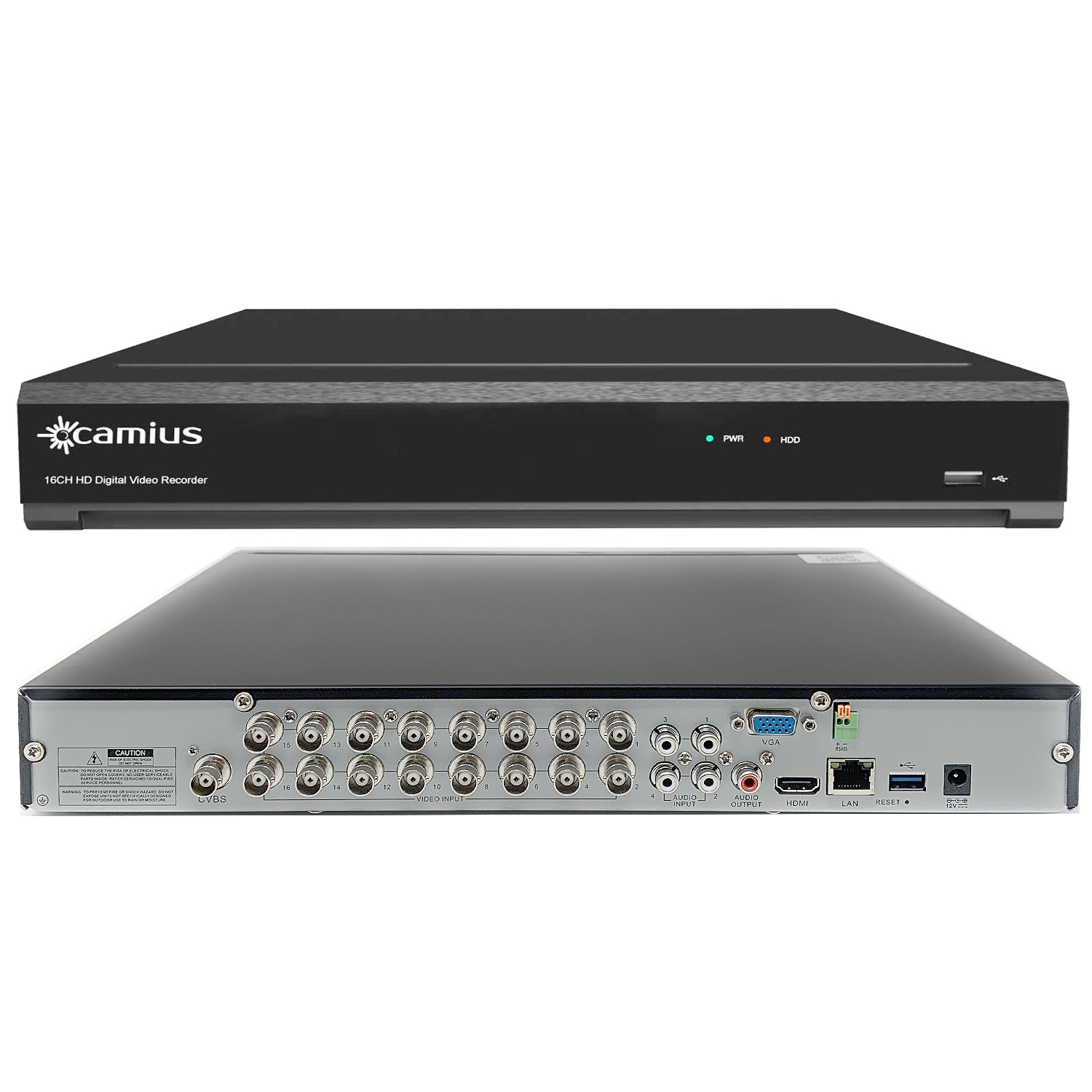

Camius 5MP Lite 16 Channel Security DVR (digital video recorder) is an economical upgrade for your existing analog security camera system.
You can view and record up to 20 security cameras! Besides supporting 16 analog cameras over coax, you can add up to 4 (four) digital IP cameras. The surveillance recorder fits two (2) internal SATA hard drives with a capacity of up to 16TB. Moreover, you can add network-attached storage (NAS) to the DVR. The DVR comes with free PC and Mac compatible software, free iOS, Android app (Camius View). It is also accessible using web browsers.
| Recorder Type |
Hybrid DVR for Analog and IP cameras |
| Recorder Channels |
16 Analog (CVBS, AHD, CVI, TVI) + 4 IP |
| Storage |
Fits 2 Internal SATA HDD with capacity 8TB each + NAS |
| Recorder Video Output |
HDMI, VGA + BNC (CVBS) Spot video output for the 2nd (call) monitor |
| Spot-out |
Available |
| Cloud storage |
Dropbox/Google Drive |
| System access |
PC/Mac VMS software, browser, Camius View mobile app (iOS, Android) |
| Detection |
Motion, PIR, Sound +Intelligent (Perimeter Intrusion, Line Crossing, Stationary Object, Face, Human) |
| Recording |
Pre-recording, post Recording, Continuous, Schedule, Manual, Event triggered |
| Capture |
Supports Time-lapse video (capture resolution for analog channels is 720P, for IP channels - 1080p) |
| PTZ support |
RS485 for adding a Pan Tilt Zoom cameras (PTZ) (Pelco_D / Pelco-P / COAX1 / COAX2) |
| Protocols |
WLAN, DHCP, PPPOE, DNS, DDNS, RTSP, HTTPS, P2P protocols |
| Display and Playback resolution |
Single analog channel at 5MP Lite (1280x1944)@12fps, 4MP Lite@ 16fps, 1080P@15fps, 720P@25fps (PAL) |
| Languages |
Multiple (English, Spanish, Portuguese, French, etc) |
| Deterrence |
With supported Camius IP cameras |
| Password Reset |
Reset button available |

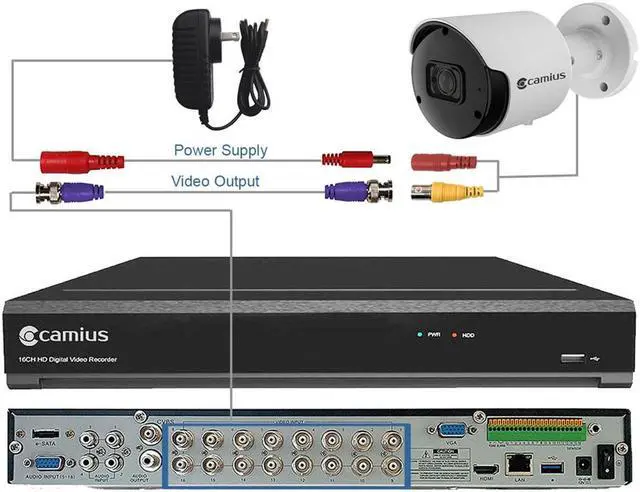

- As a DVR, it supports up to 16 analog cameras.
- This DVR works with analog cameras of 720P, 1080P, maximum of 5MP.
- Supports H.264 and H.265 video, along with the audio G.711A/G.711U compression.

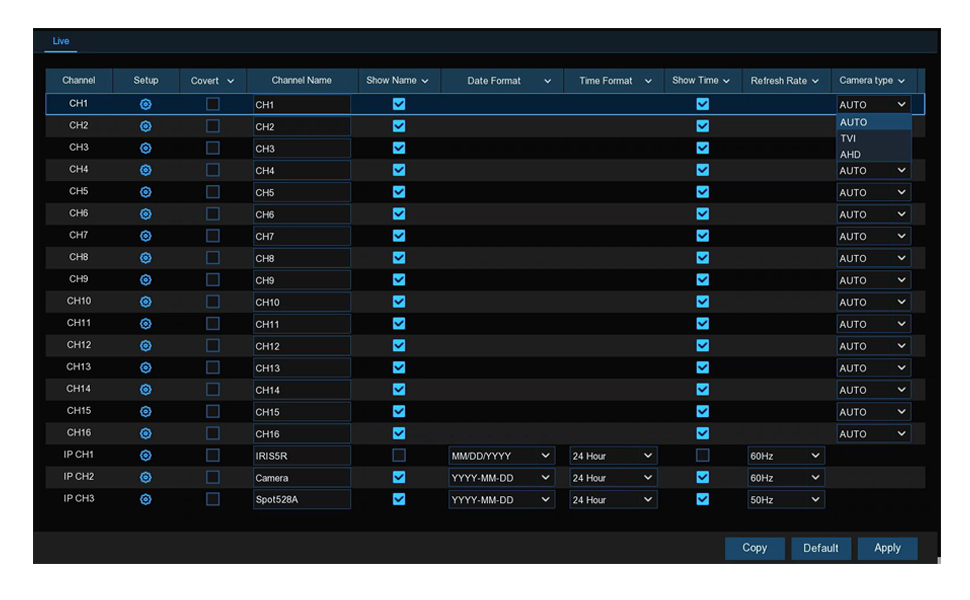

- The DVR works with CVBS, AHD, CVI, TVI cameras

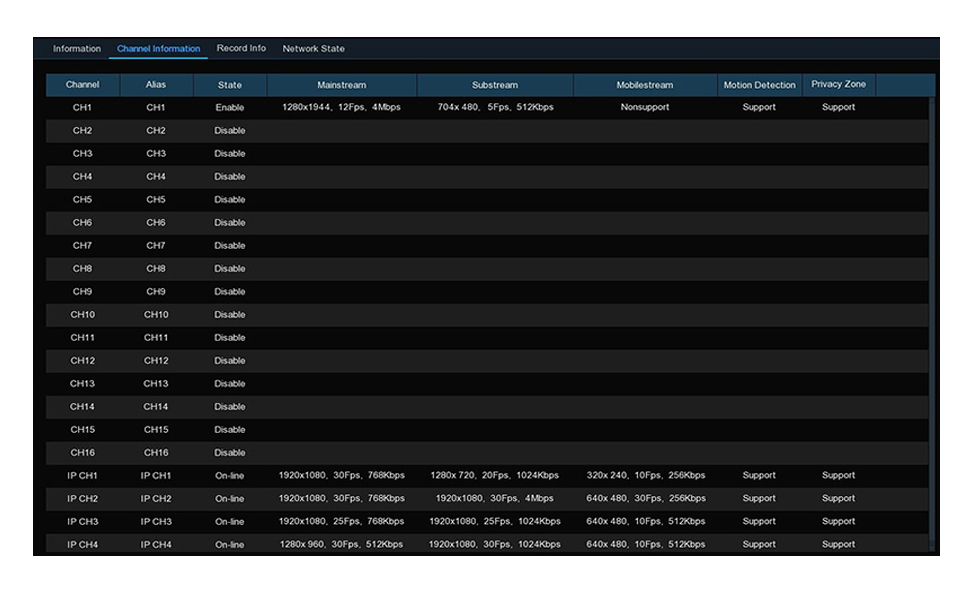

In XVR mode, you can add 4 IP cameras in addition to 16 analog. Combined number of channels: 16 analog + 4 IP. By disabling analog channels you can increase bandwidth to accommodate IP cameras. Camius IP cameras are recommended (1080p), supporting audio, deterrence, PIR, Sound, etc Detection.

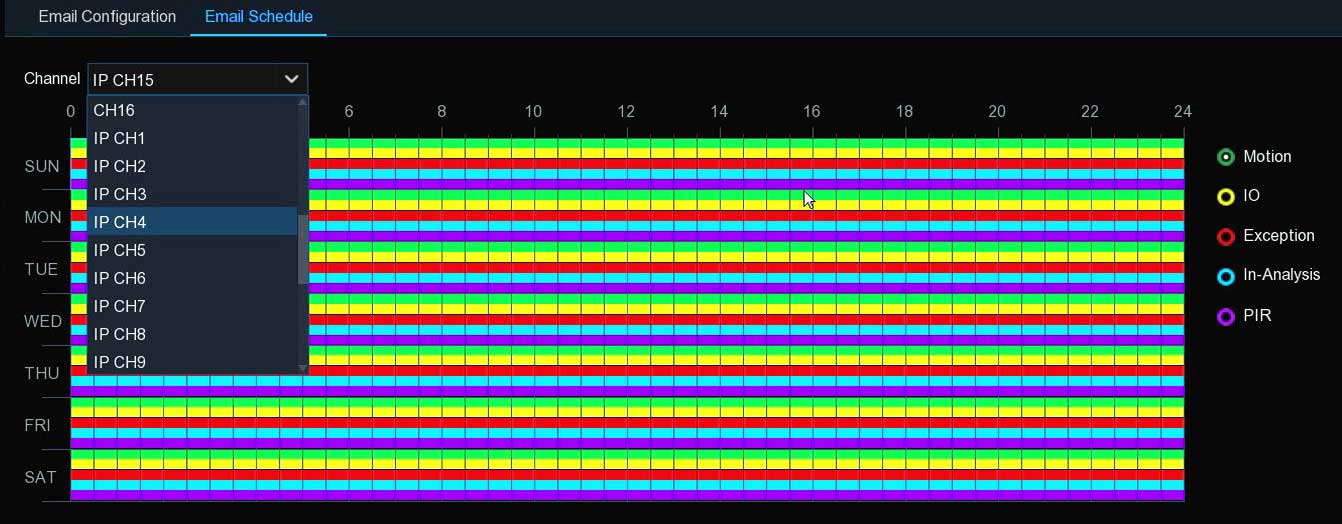

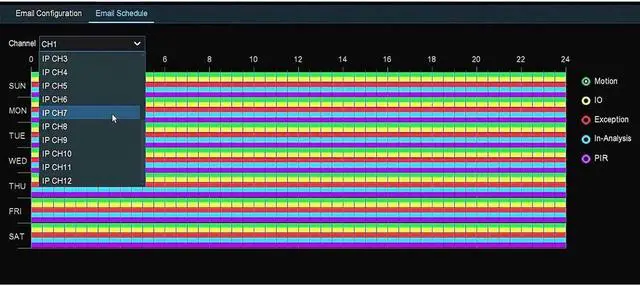

- Setup not only email notifications ( 3 users) but also Push alerts to your smart phone app (CAMIUS VIEW)
DVR & XVR modes

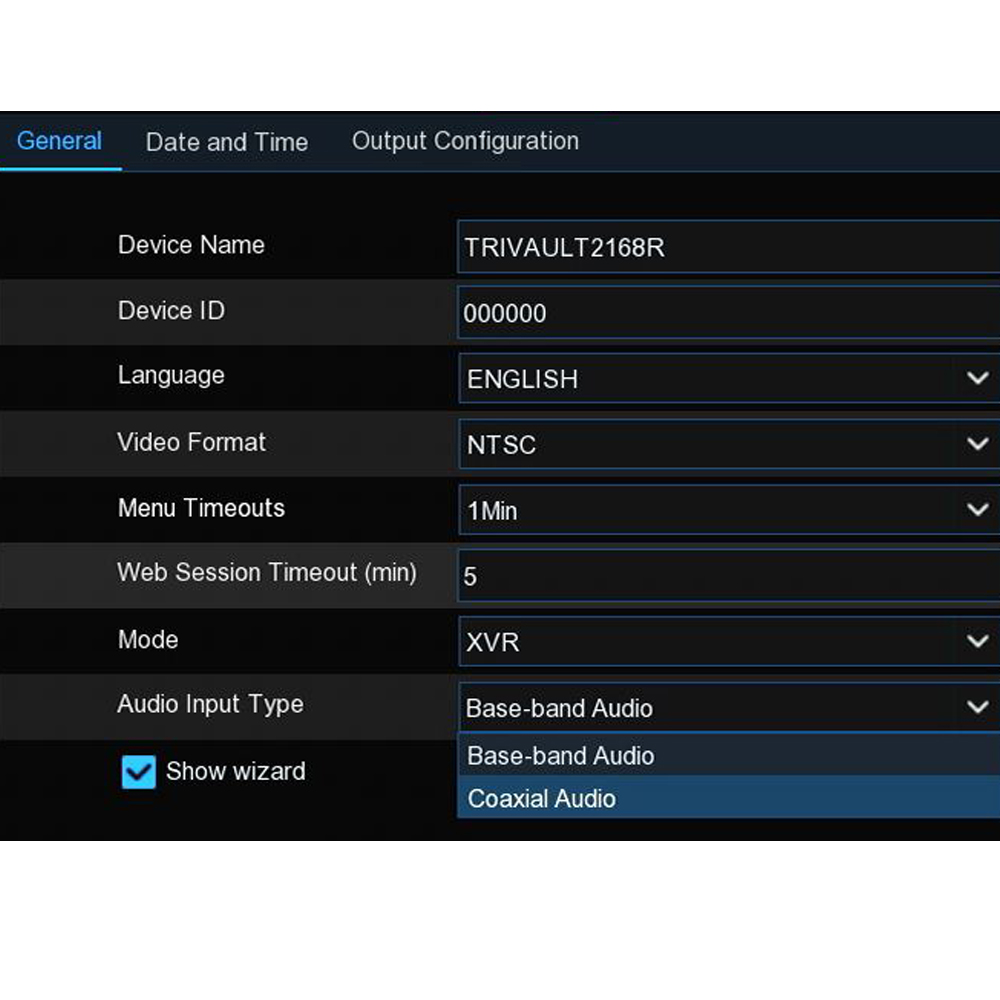

- Switch between analog DVR and hybrid XVR mode (analog + IP)

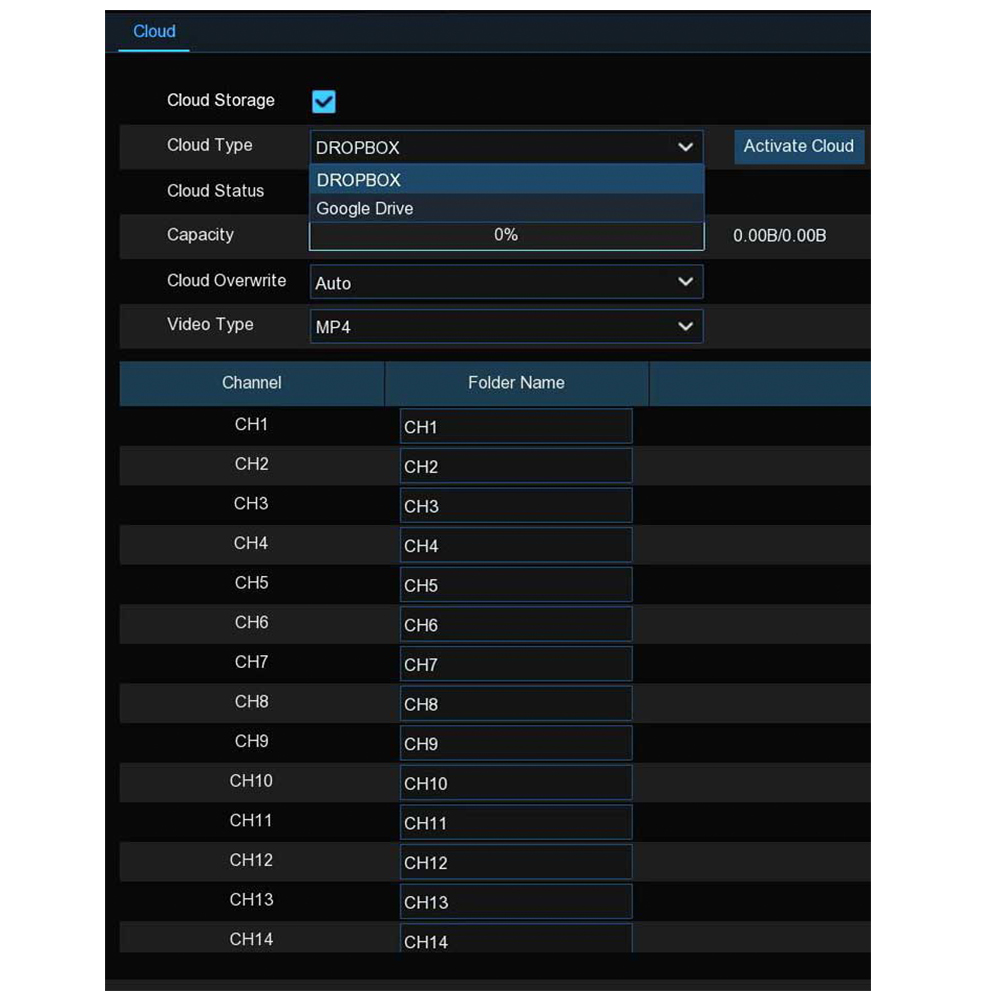

Works with your own Cloud service
- Upload snapshots, footage (videos) triggered by events (motion, sound detection, etc) to your FTP server or Dropbox / Google drive.

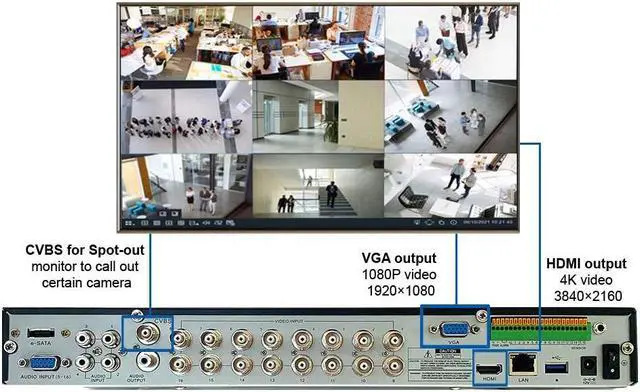

HDMI VGA, Spot-Out video ouputs
- Connect a monitor or HDTV to your Camius DVR using HDMI (4K) or VGA video output

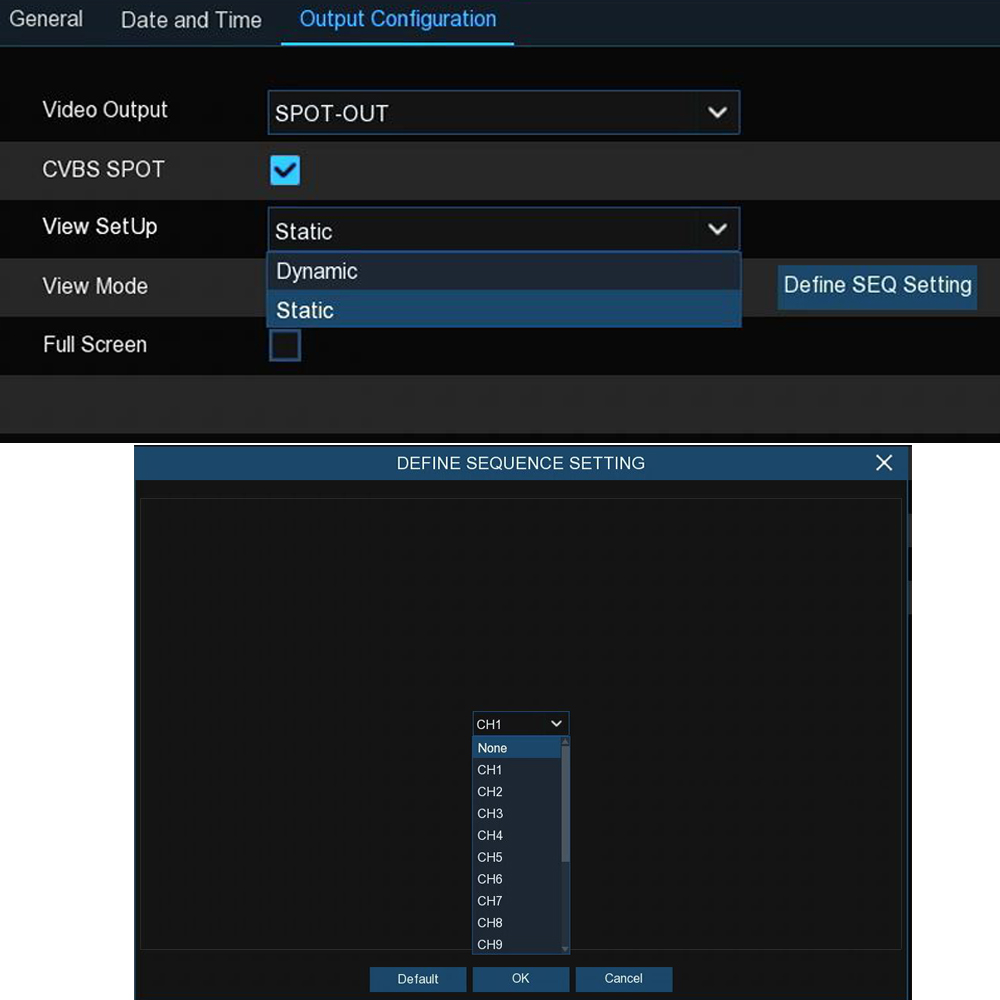

- Connect an additional monitor to your Camius DVR using Spot video output (CVBS)
CAMIUS VMS
- Camius security systems go beyond the HDMI monitor and smartphone app.
- The free NVR software (VMS) can turn any desktop, laptop, PC, or Mac into a 24/7 surveillance station.
- Users can monitor live video and audio streams in addition to playback and manage cameras with access to device settings.
- This software is great for multiple installations as it can combine cameras connected to a Camius DVR or NVR in addition to individual Camius cameras on one screen.
- The software can display Up to 128 cameras on the same screen and manage multiple devices from different locations.
CAMIUS VIEW
- The Smartphone Security Camera App Camius View offers full access to your cameras from any location.
- The mobile app is available on iOS and Android App stores and is ready to link into your security cameras out of the box.
- You can use your smartphone security camera App to view and playback any Camius security camera; 2-way audio is available for supported cameras, which allows the user to press and talk in addition to listening to audio.
- You can even activate the spotlight and siren for supported cameras remotely to deter threats.
CUSTOMER SUPPORT
- Call / Text (424) 543-4474 9 am to 5 pm PST Monday to Friday or request info
- Submit a support case us on Camius site
The Camius Professional 16 Channel 4K DVR offers a robust and flexible hybrid surveillance solution for large-scale home and business setups. Supporting up to 24 HD cameras (16 analog via coaxial connections and 8 IP cameras), this DVR delivers crystal-clear 4K video resolution alongside advanced AI-powered features for enhanced monitoring, detection, and security management.
Key Features
Hybrid DVR with 4K Video Support
Record and view footage in stunning 4K Ultra HD resolution at up to 10 fps for analog cameras and 30 fps for IP cameras.
Supports multiple camera formats, including CVBS, AHD, CVI, and TVI for analog cameras, and seamlessly integrates with HD IP cameras.
Hybrid capabilities allow converting analog channels to IP channels for increased bandwidth, supporting up to 192 Mbps total.
Smart AI Detection and Alerts
Human and Vehicle Detection: Receive real-time notifications for activity in key areas.
Line Crossing and Perimeter Intrusion Detection: Strengthen security with AI-driven, color-coded, and tagged event recordings.
Tamper Detection: Alerts you if cameras are obstructed or tampered with, ensuring uninterrupted surveillance.
Extensive Storage Capacity
Comes with a pre-installed 3TB hard drive, expandable up to 16TB via dual internal SATA ports (14TB per drive) and an external e-SATA port.
Features S. M. A. R. T. technology for monitoring hard drive health and reliability.
Flexible Video Outputs and Audio Recording
Multiple video output options,
including:
HDMI (4K Ultra HD)
VGA (Full HD 1080p)
CVBS (BNC) for spot monitoring specific cameras.
Supports audio recording with Camius 4K analog cameras featuring built-in microphones and the Coaxial Audio option.
Remote Access and User Management
Stay connected from anywhere with the Camius View App for iOS and Android or via PC/Mac software and web browser access.
Manage up to 128 cameras on a single screen with Camius software.
Create multiple user accounts with customized access levels for viewing live or recorded footage.
Advanced Recording Options
Multiple recording modes: Normal, Motion-triggered, IO, and PIR.
Time-lapse recording captures snapshots at intervals ranging from 5 seconds to 1 hour.

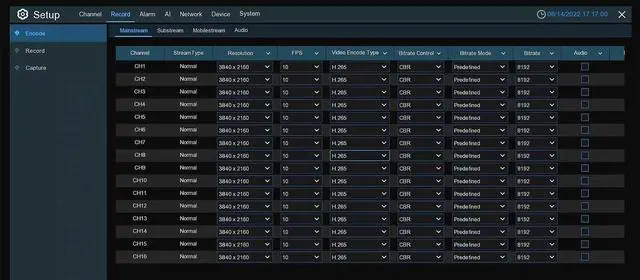

Compression technology (H. 264/H. 265) ensures efficient storage use without compromising quality.
AI-Driven Analytics
Advanced analytics include face detection, pedestrian and vehicle detection, perimeter intrusion alerts, and heat maps for visual insights.
Cloud and Email Integration
Save snapshots and event-triggered videos directly to Dropbox or Google Drive for additional backup options.
Receive email notifications for motion or AI-detected events.
Durable Design and Compatibility
Compact yet durable design (15 x 13 x 2 inches) with a power-efficient system ( <20W without HDD).
Compatible with a wide range of analog and IP cameras, allowing seamless integration into existing systems.
Additional Features
Privacy Zone Masking: Protect sensitive areas in your camera's field of view.
Auto-Reboot and System Recovery: Ensure uninterrupted operation.
Voice Assistant Compatibility: Integrates with Amazon Alexa and Google Assistant.
Whats Included

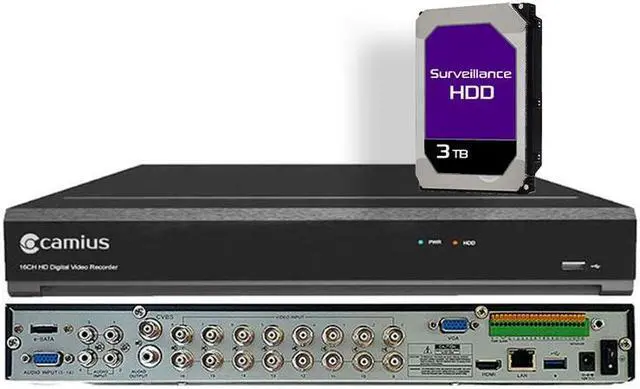

16 Channel DVR with pre-installed 3TB hard drive (model: Trivault4K2168R).
Power supply, HDMI cable, network cable, audio cable, and USB mouse.
Installation guide and screws.
(Cameras sold separately)
Whether youre upgrading your existing security setup or starting fresh, the Camius Professional 16 Channel 4K DVR offers the ultimate blend of performance, flexibility, and cutting-edge features to ensure your premises are always secure.
