MSR605 Magnetic Card Reader Writer Encoder Stripe Swipe Credit Magstripe Comp.MSR206
+
+
Overview
Specs
Reviews (1)

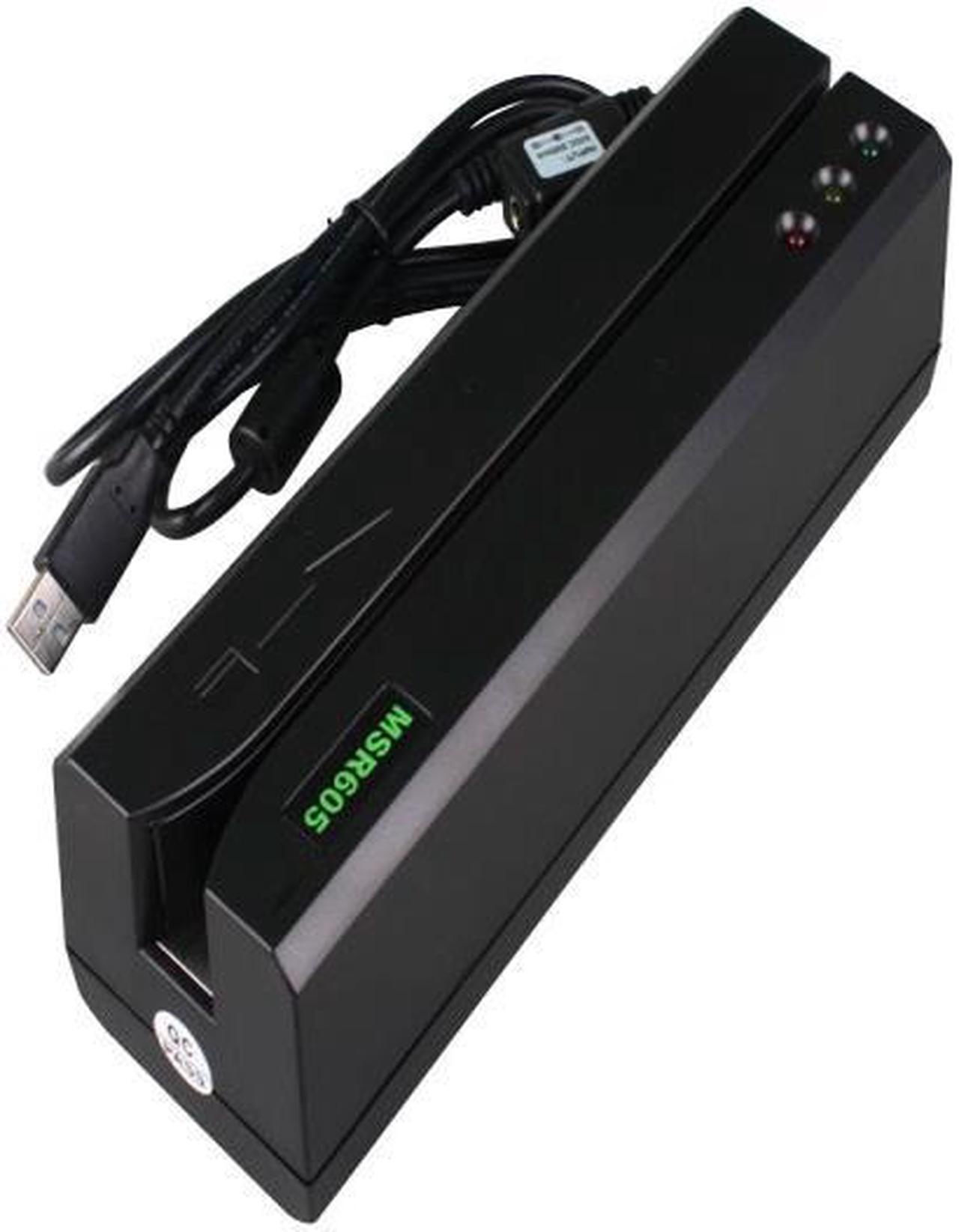

New MSR605 USB Magnetic Card Reader Writer Encoder Comp MSR206 MSR606 For Hi&Lo Co Track 1, 2 & 3
1, 2 & 3 TRACKS High&Low are applicable for READ / WRITE / COPY / ERASE
It is ideal for access control, time keeping, banking, ID recognition & credit verification and related applications.
In fact, wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR605 reader/writer.
Reading/Writing magnetic stripe card complied with ISO formats
* Read/Write High & Low Coercive (300~4000Oe)
* High/Low Coercivity encoding circuitry selectable on screen
* Program software for Windows 98/2000/Me/XP/VISTA/Windows 7
* Programming software for various read/write performance
* Sequential write function, up to 12 digits (1 up)
* Manual Swipe to read and/or write card USB output
* Writing and verifying data on single, dual, or triple track in one swipe
* +9VDC, 2.5A Max external power adapter attached
Power requirements
+9VDC +/- 5%
Consumption
Typical 350mA Max. 600mA plus for each writing track
Power supply
External switching power 9V/ 2.5A
Communication
Standard RS232 or USB with USB-to-RS232
Ripple
50mVp-p or less
Dielectric strength
500 VDC for 1 minute

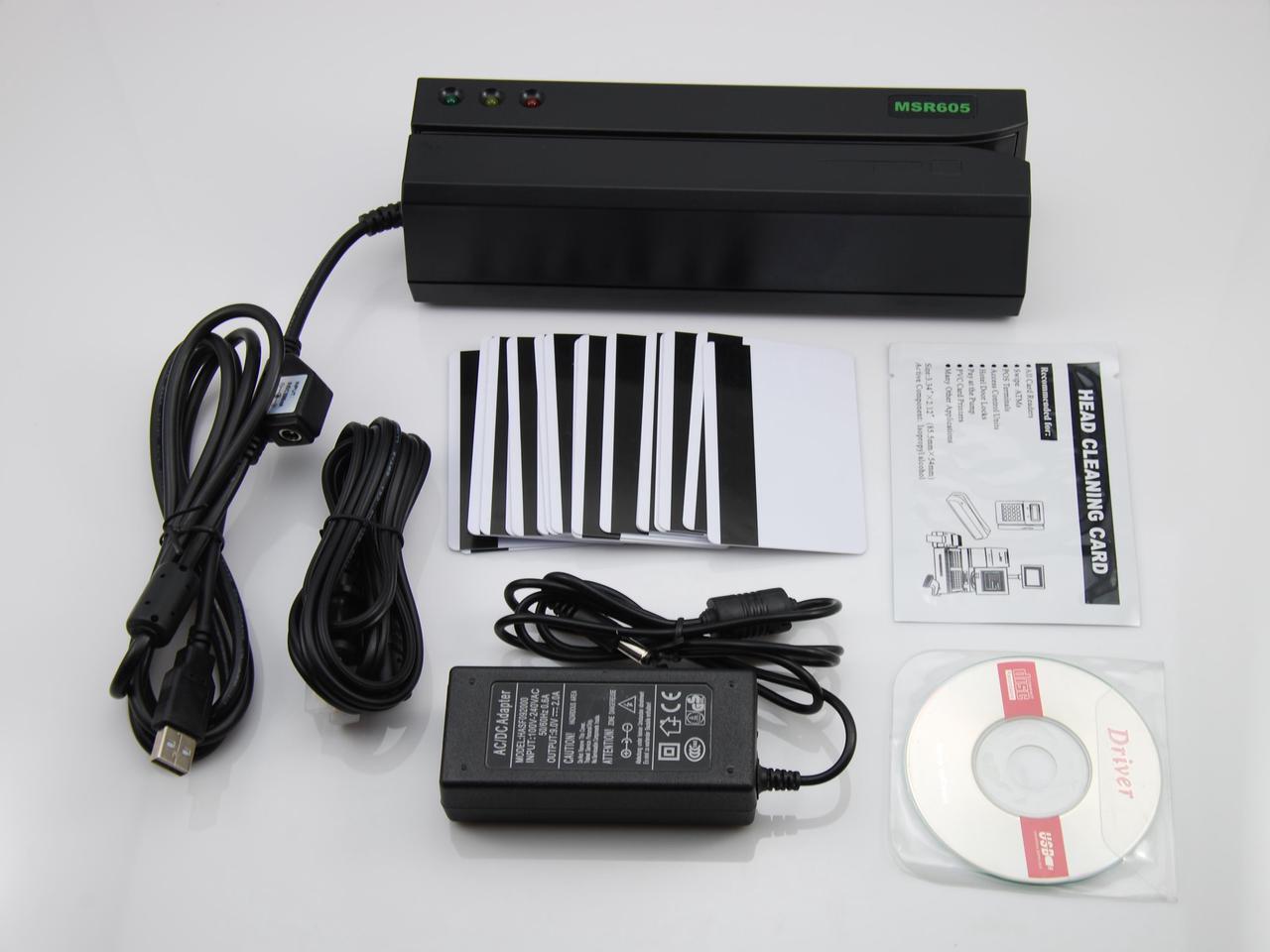

Package including
1). 1PCS Brand New Magnetic Card Reader/Writer MSR605.
2). 1PCS Software CD including USB Driver, Demo Software
3). 1PCS Power adaptor
4). 1PCS Clearning Card
5). 20 Free Blank HiCo Magnetic Card For Gift
1, 2 & 3 TRACKS High&Low are applicable for READ / WRITE / COPY / ERASE
It is ideal for access control, time keeping, banking, ID recognition & credit verification and related applications.
In fact, wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR605 reader/writer.
Reading/Writing magnetic stripe card complied with ISO formats
* Read/Write High & Low Coercive (300~4000Oe)
* High/Low Coercivity encoding circuitry selectable on screen
* Program software for Windows 98/2000/Me/XP/VISTA/Windows 7
* Programming software for various read/write performance
* Sequential write function, up to 12 digits (1 up)
* Manual Swipe to read and/or write card USB output
* Writing and verifying data on single, dual, or triple track in one swipe
* +9VDC, 2.5A Max external power adapter attached
Power requirements
+9VDC +/- 5%
Consumption
Typical 350mA Max. 600mA plus for each writing track
Power supply
External switching power 9V/ 2.5A
Communication
Standard RS232 or USB with USB-to-RS232
Ripple
50mVp-p or less
Dielectric strength
500 VDC for 1 minute
Package including
1). 1PCS Brand New Magnetic Card Reader/Writer MSR605.
2). 1PCS Software CD including USB Driver, Demo Software
3). 1PCS Power adaptor
4). 1PCS Clearning Card
5). 20 Free Blank HiCo Magnetic Card For Gift
